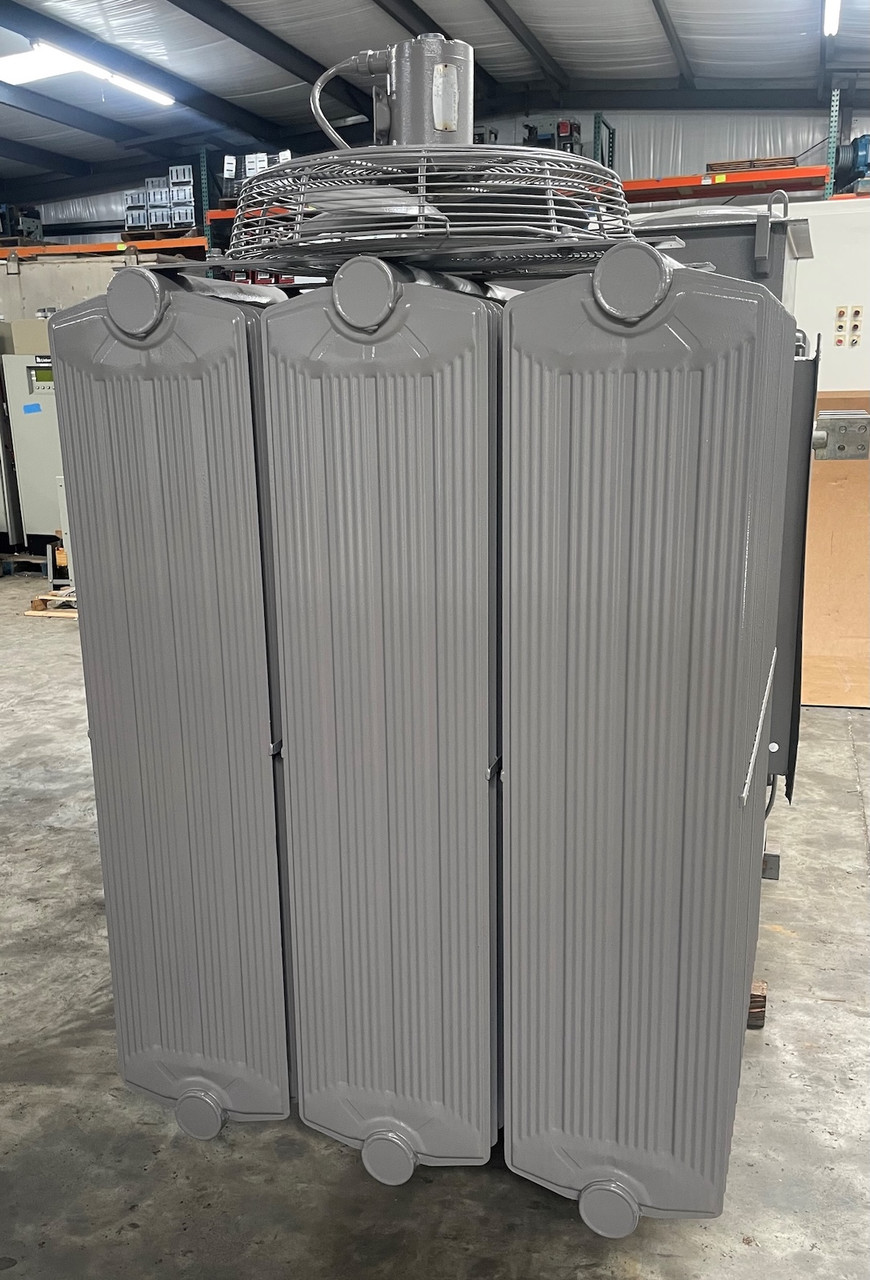

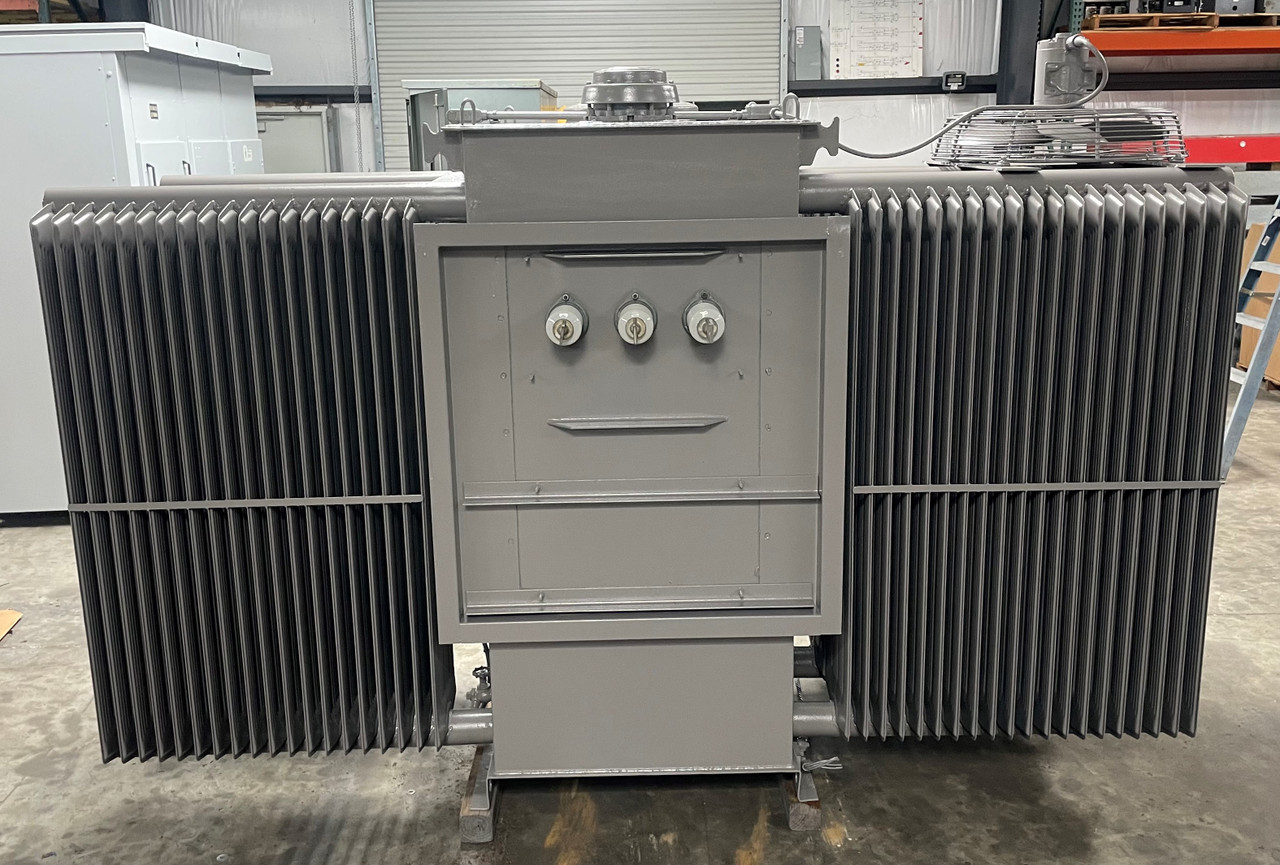

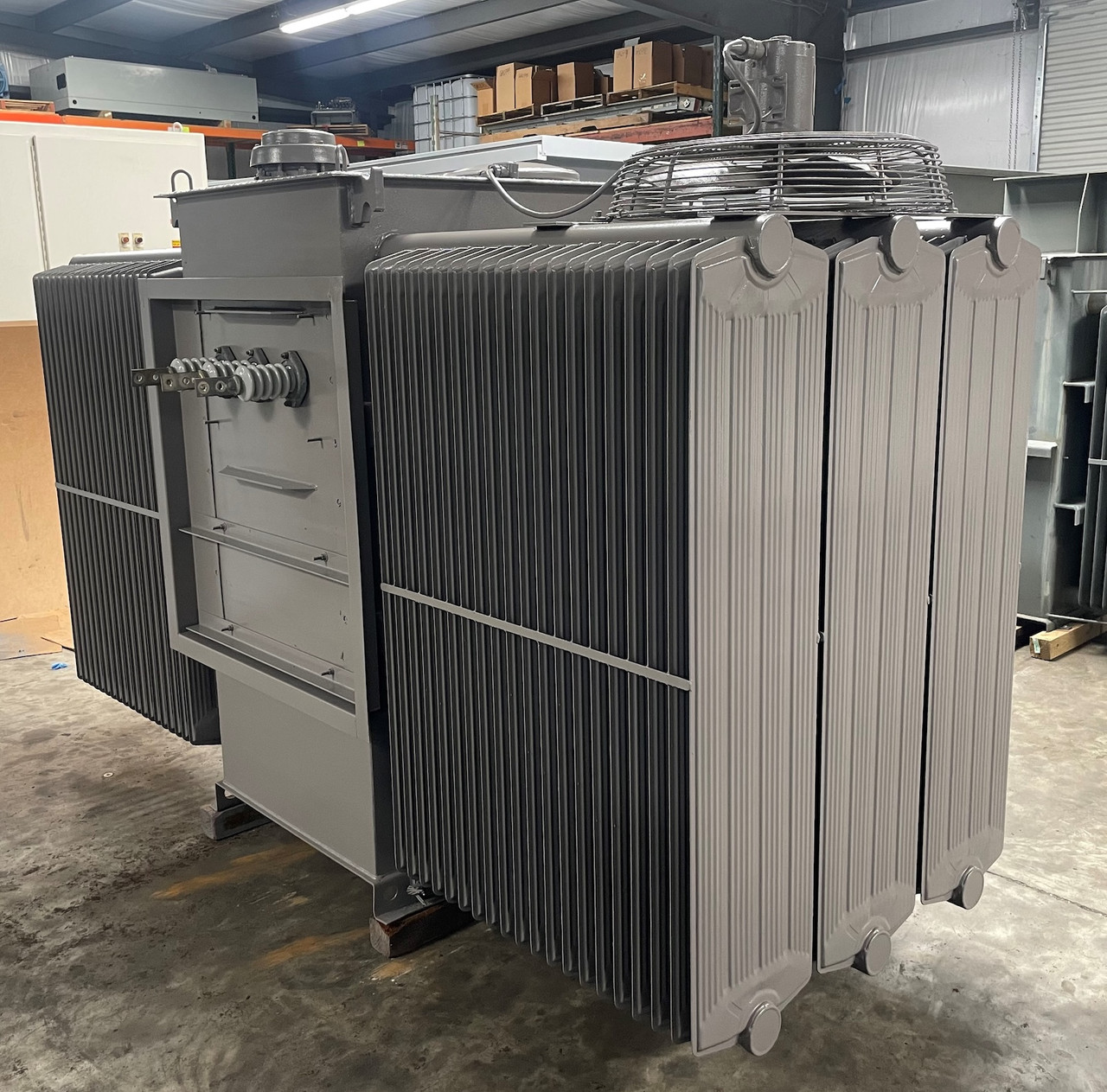

RTE 2575-2000 kVA 13200 to 600Y/346 V Pad Mount Oil Transformer 600V 13800 600 (PM3219-1)
SKU:
PM3219
RTE Corporation
MPN: 866003825
USED
Three Phase Type RTemp Oil Filled Padmount Substation Transformer w Copper Coils
Unit comes completely filled with oil to manufacturer's specificationsPower turned off from fully operational electrical setup and professionally removed
- Nameplate Information -
Class: OA-FA - 55/65 Deg C Rise
kVA: 2000/2240-2300/2576 - 60 Hz Three Phase Volts: 13800-2400Y/1386 - 60 Hertz
Impedance 8.3% at Rated Voltage & Base kVA
H.V. Volts: 13200 - L.V. Volts: 600Y/346 - Cat No: 15JA15D03U
H.V. BIL: 95 - L.V. BIL: 30 - L.V.-N BIL: 30
H.V. Conductor: CU - L.V. Conductor: CU - Coolant: RTemp
- Approximate Weights -
Core & Coil: 5835 lbs
Tank: 3420 lbs
Fluid: 427 Gal, 3205 lbs
Total: 12460 lbs
Untanking: 5835 lbs
- High Voltage -
Volts - Amps - Pos
13860 - 107 - A
13530 - 110 - B
13200 - 113 - C
12870 - 116 - D
12540 - 119 - E
Low Voltage: 600 Volts - 2479 Amps
Transformer Weight: 12,460
Transformer Dimensions (D x W x H): 122" x 59" x 66"
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
*This chart is for reference ONLY. See specific item and manufacturer for accurate specs on specific items.
kVA | 208V | 240V | 480V | 600V |
3 | 8.3 | 7.2 | 3.9 | 2.9 |
6 | 16.7 | 14.4 | 7.2 | 5.8 |
9 | 25 | 21.7 | 10.8 | 8.7 |
15 | 41.6 | 36.1 | 18 | 14.4 |
30 | 83.3 | 72.2 | 36.1 | 28.9 |
45 | 125 | 108.3 | 54.1 | 43.3 |
75 | 208.2 | 180.4 | 90.2 | 72.2 |
112.5 | 312 | 271 | 135 | 108 |
150 | 416 | 361 | 180 | 144 |
225 | 625 | 541 | 271 | 217 |
300 | 833 | 722 | 361 | 289 |
500 | 1388 | 1203 | 601 | 481 |
RTE Corporation
MPN: 866003825
USED
Three Phase Type RTemp Oil Filled Padmount Substation Transformer w Copper Coils
Unit comes completely filled with oil to manufacturer's specificationsPower turned off from fully operational electrical setup and professionally removed
- Nameplate Information -
Class: OA-FA - 55/65 Deg C Rise
kVA: 2000/2240-2300/2576 - 60 Hz Three Phase Volts: 13800-2400Y/1386 - 60 Hertz
Impedance 8.3% at Rated Voltage & Base kVA
H.V. Volts: 13200 - L.V. Volts: 600Y/346 - Cat No: 15JA15D03U
H.V. BIL: 95 - L.V. BIL: 30 - L.V.-N BIL: 30
H.V. Conductor: CU - L.V. Conductor: CU - Coolant: RTemp
- Approximate Weights -
Core & Coil: 5835 lbs
Tank: 3420 lbs
Fluid: 427 Gal, 3205 lbs
Total: 12460 lbs
Untanking: 5835 lbs
- High Voltage -
Volts - Amps - Pos
13860 - 107 - A
13530 - 110 - B
13200 - 113 - C
12870 - 116 - D
12540 - 119 - E
Low Voltage: 600 Volts - 2479 Amps
Transformer Weight: 12,460
Transformer Dimensions (D x W x H): 122" x 59" x 66"
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
*This chart is for reference ONLY. See specific item and manufacturer for accurate specs on specific items.
kVA | 208V | 240V | 480V | 600V |
3 | 8.3 | 7.2 | 3.9 | 2.9 |
6 | 16.7 | 14.4 | 7.2 | 5.8 |
9 | 25 | 21.7 | 10.8 | 8.7 |
15 | 41.6 | 36.1 | 18 | 14.4 |
30 | 83.3 | 72.2 | 36.1 | 28.9 |
45 | 125 | 108.3 | 54.1 | 43.3 |
75 | 208.2 | 180.4 | 90.2 | 72.2 |
112.5 | 312 | 271 | 135 | 108 |
150 | 416 | 361 | 180 | 144 |
225 | 625 | 541 | 271 | 217 |
300 | 833 | 722 | 361 | 289 |
500 | 1388 | 1203 | 601 | 481 |
SKU:
PM3219
UPC:
721749503644
Condition:
Used
Availability:
Ships within 0-1 business days of full payment. Expedited shipping available.
Width:
122
Height:
92
Depth:
59
Warranty:
30 day warranty.
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
SKU:
PM3219
MPN:
866003825
Approx Shipping Dims (LxWxH):
59.000" x 122.000" x 92.000"
Approx Shipping Weight:
12600.0000
Location:
E Floor
kVA:
2576-2000 kVA
Phases:
3 Phase
Voltage:
13200 Delta to 600 WYE / 346 Volts
Listed:
8/28/2023
