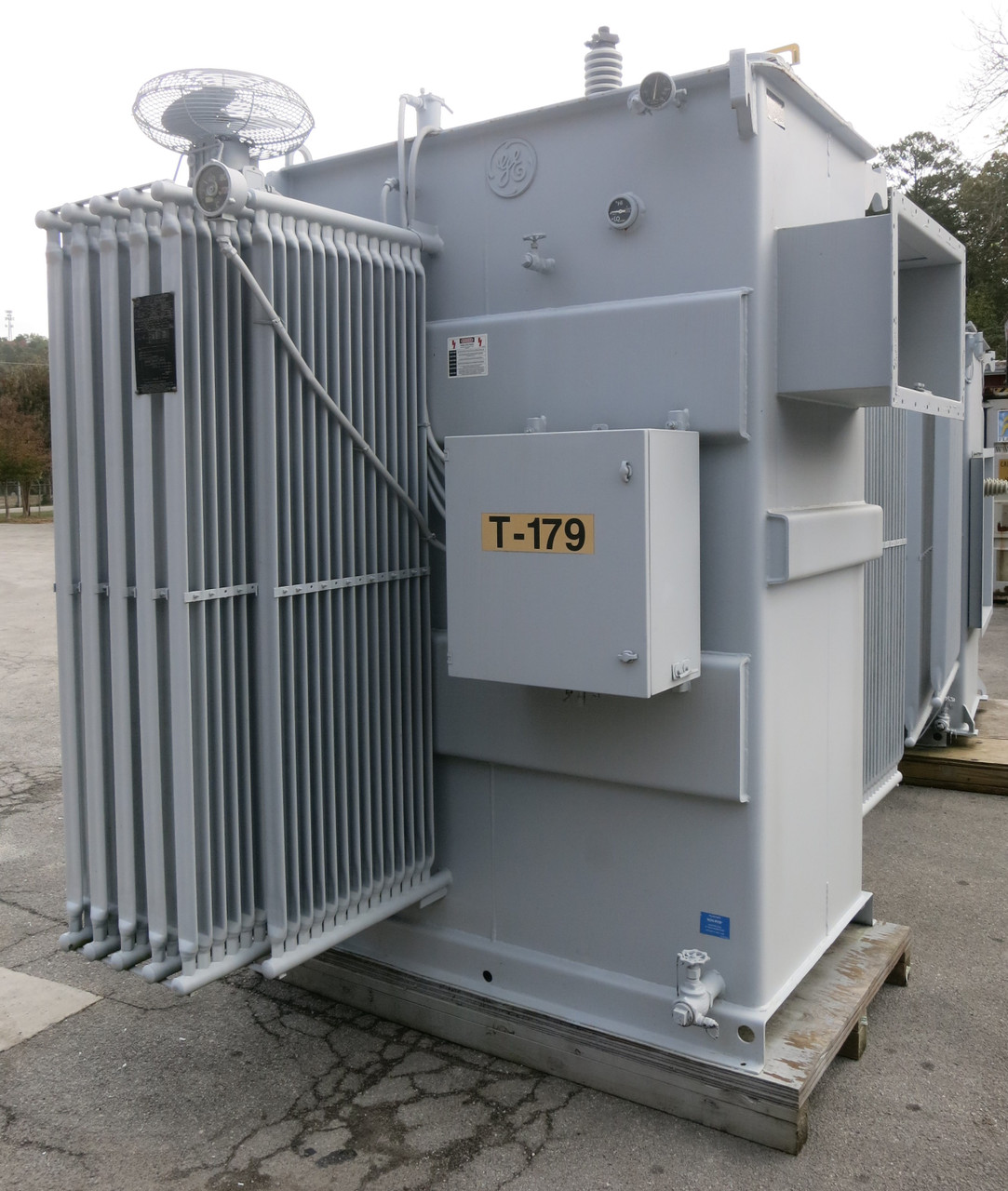

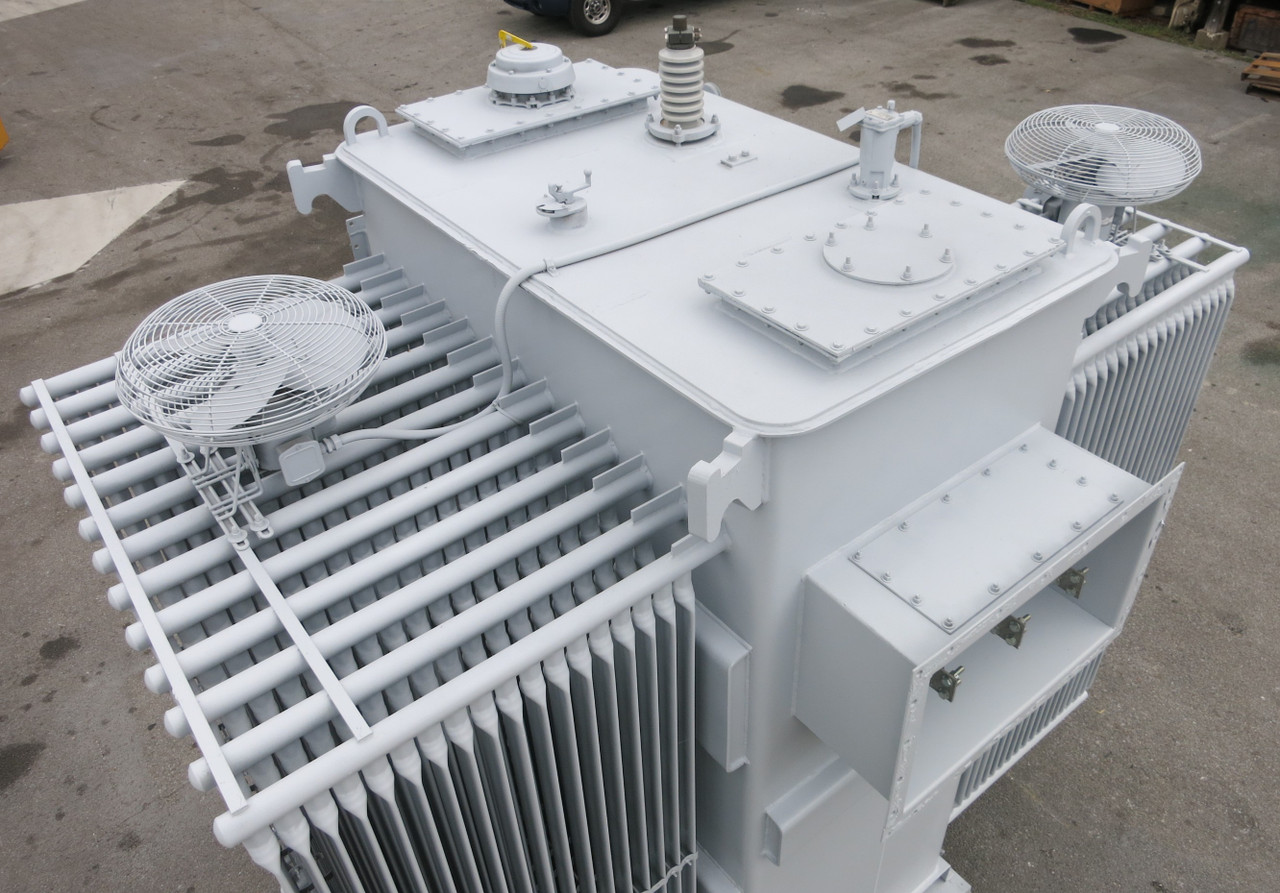

GE 5000-7000 kVA 13800 Delta 2400Y/1386 Pad Mount Oil Transformer 1684A @ 2400 V (PM3199-1)
SKU:
PM3199
General Electric
GE
MPN: SF08758001
USED

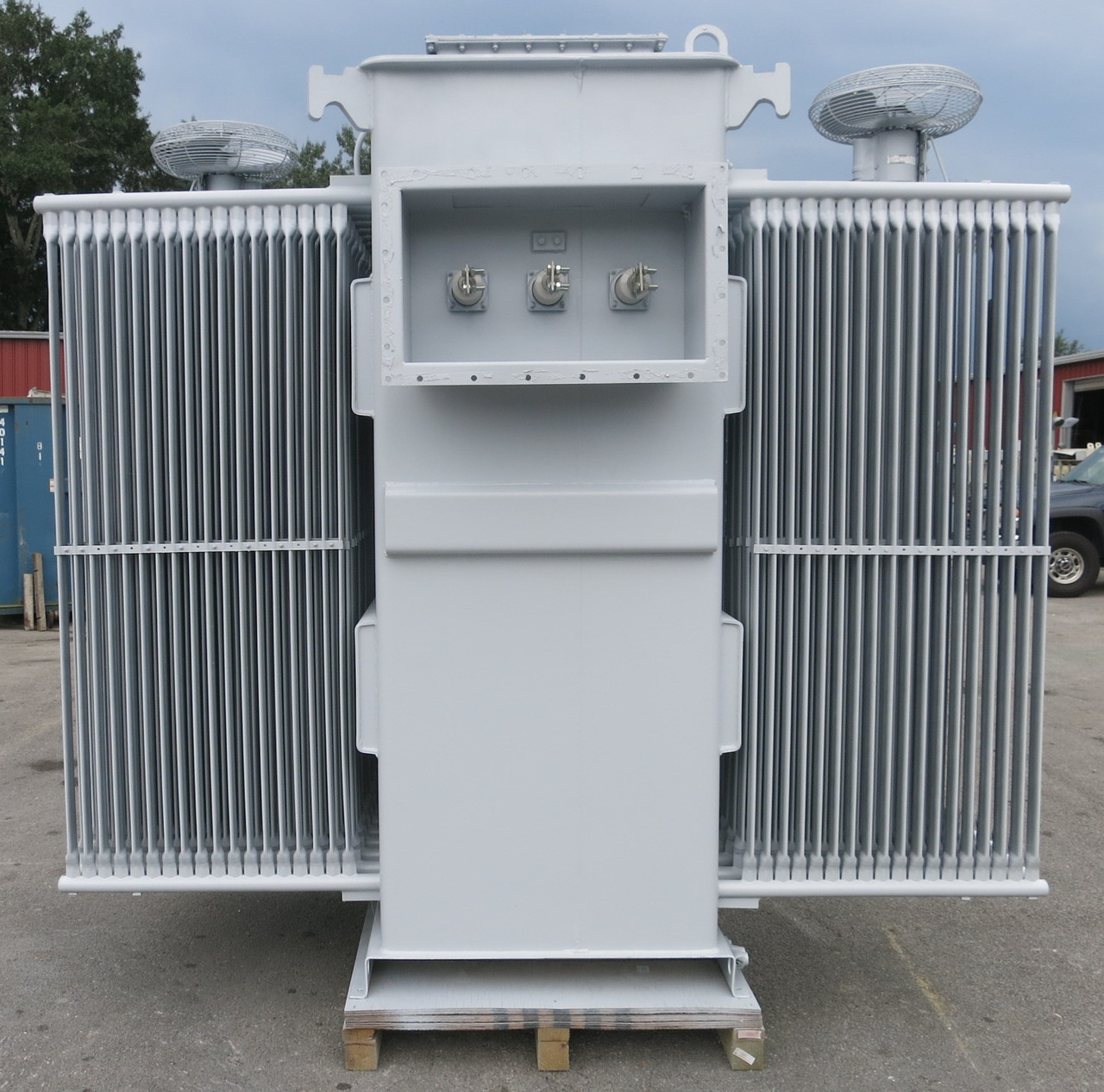

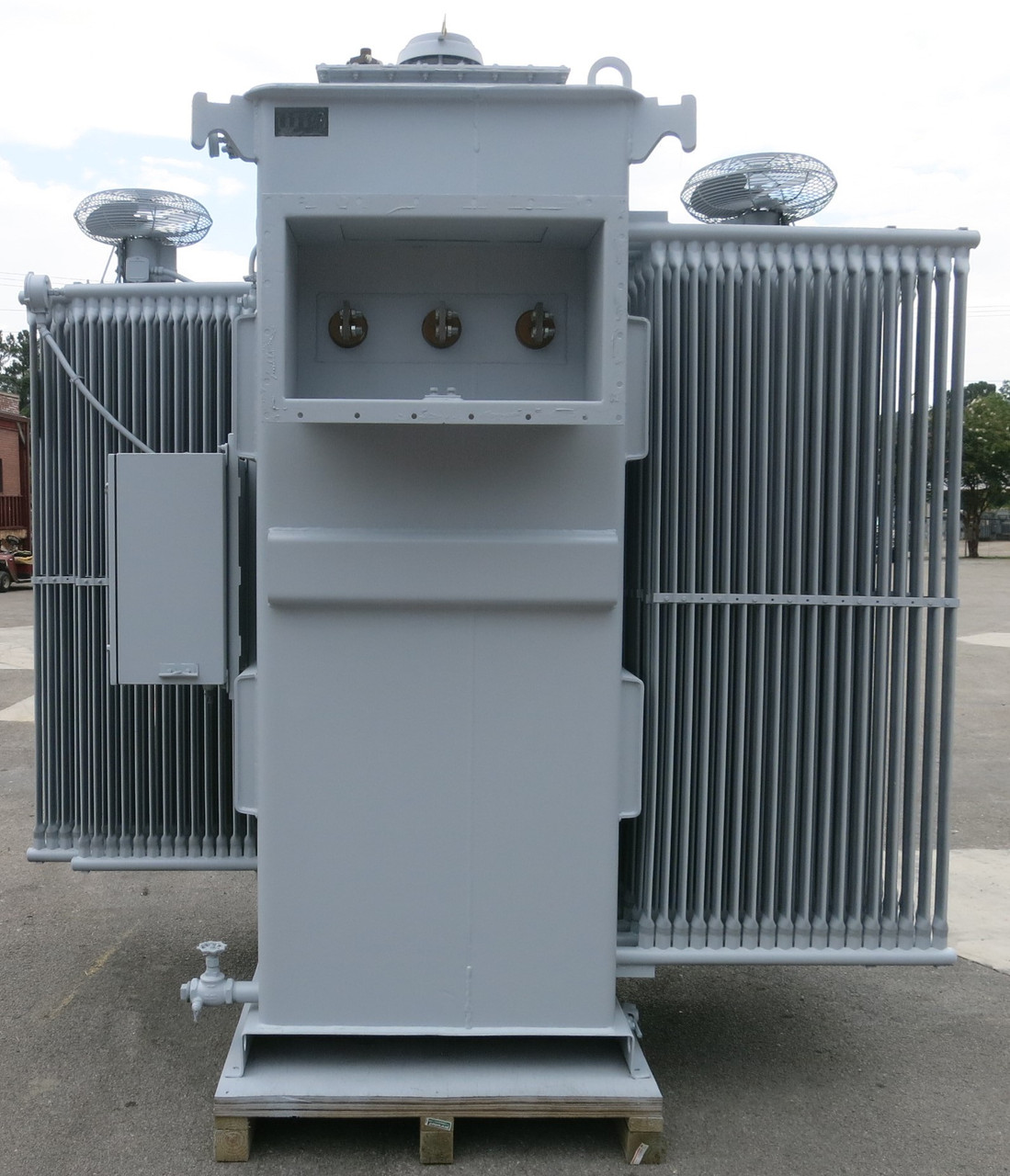

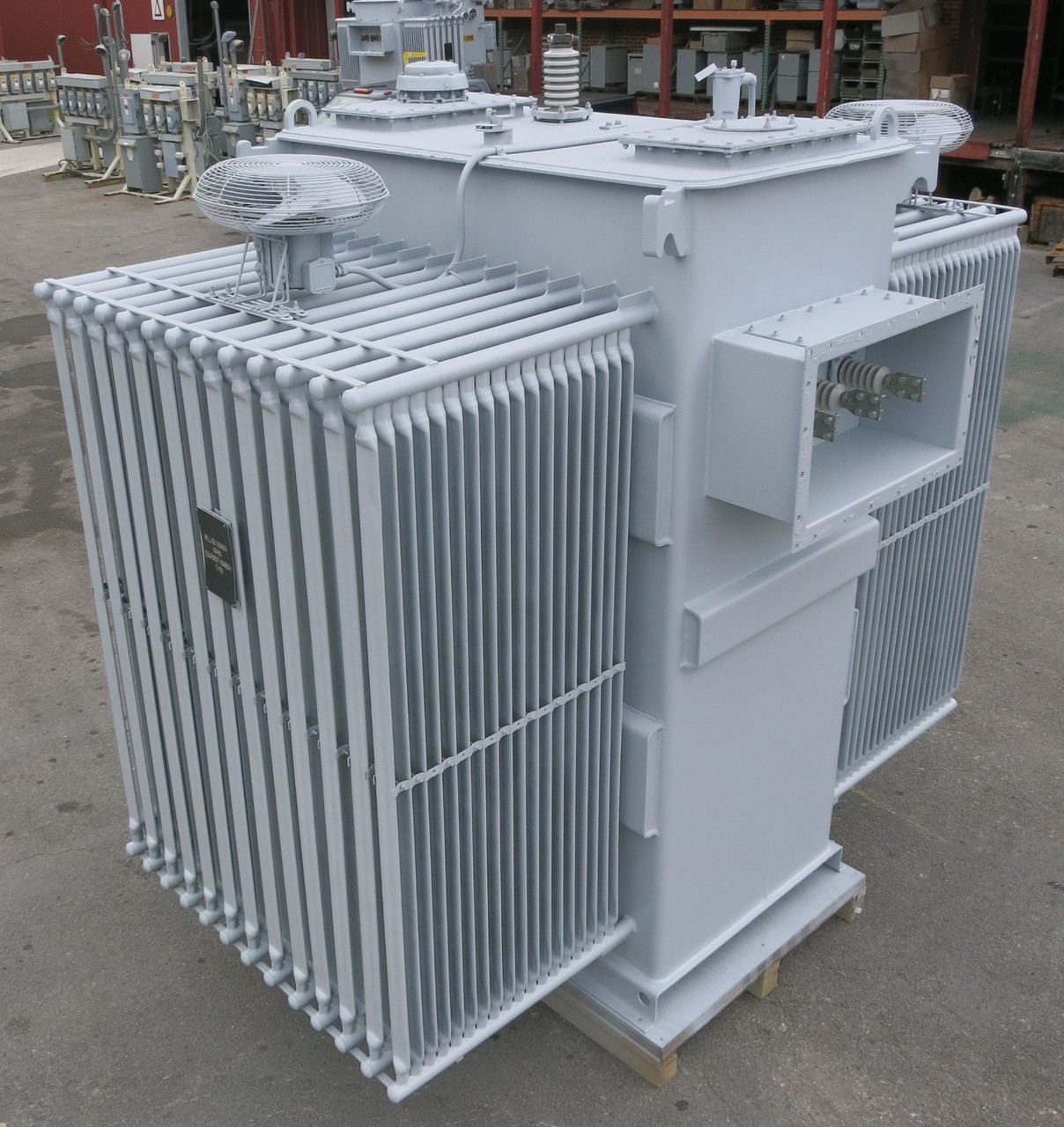

Three Phase Oil Filled Padmount Unit Substation Transformer
Unit comes completely filled with oil to manufacturer's specificationsPower turned off from fully operational electrical setup and professionally removed
ABB Small Power Transformer
HV Volts: 13800 - LV Volts: 2400Y/1386 - 60 Hertz
Full Load kVA: 5000/5600 OA - 6250/7000 FA - 55/65 Deg C Rise - Gallons Liquid: 906

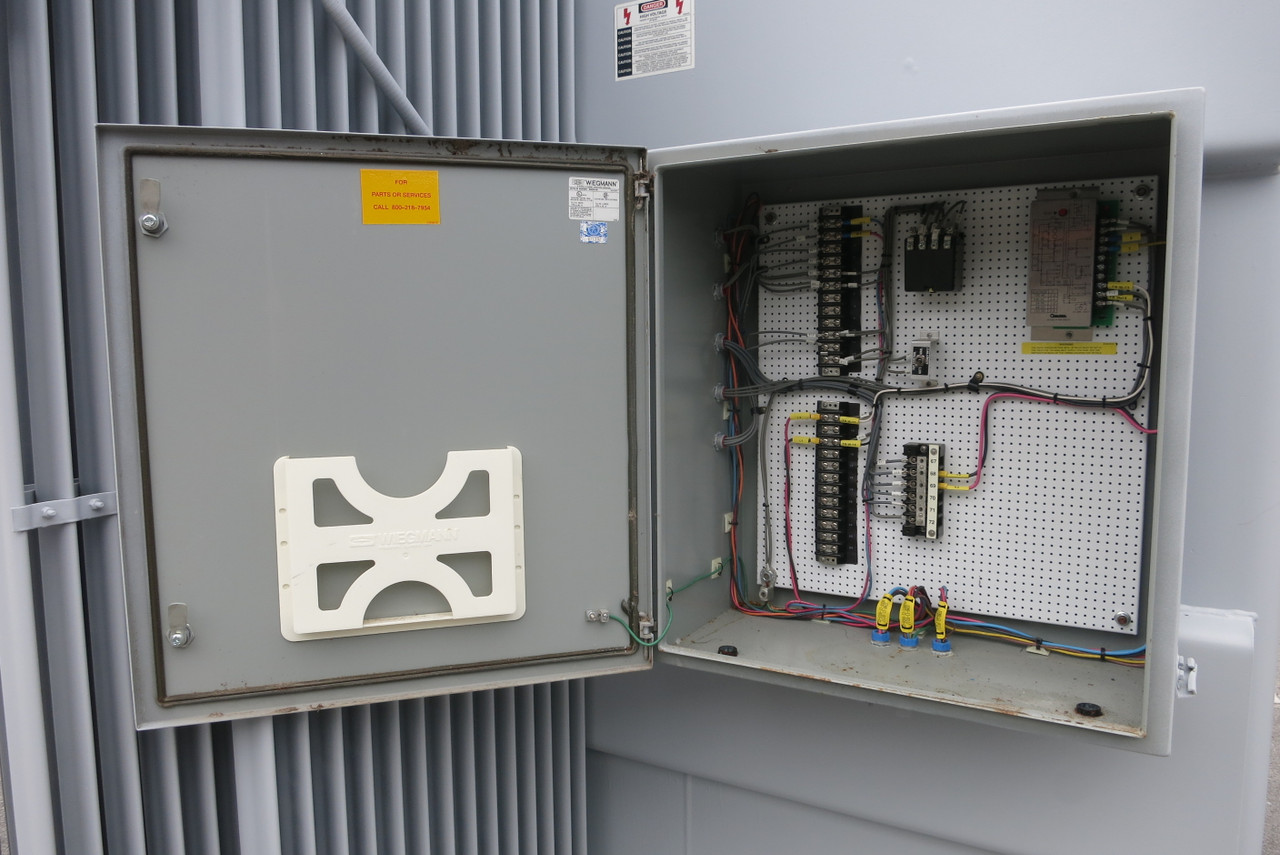

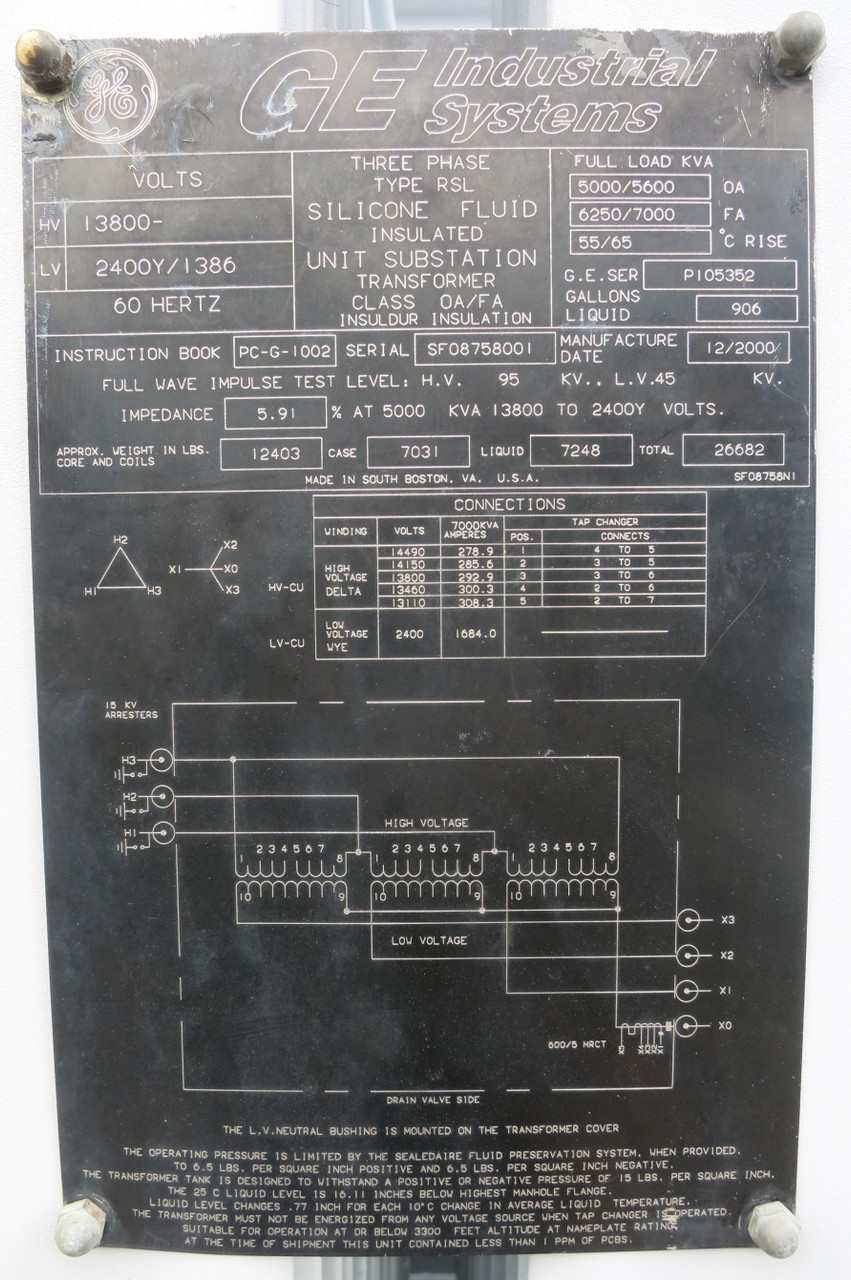

Instruction Book: PC-G-1002 - Serial: SF08758001 - Manufacture Date: 12/2000
Full Wave Impulse Test Level: H.V. 95 kV., L.V. 45 kV
Impedance: 5.91 % at 5000 kVA 13800 to 2400Y Volts
Approx. Weight in lbs Core and Coils: 12403 - Case: 7031 - Liquid: 7248 - Total: 26682

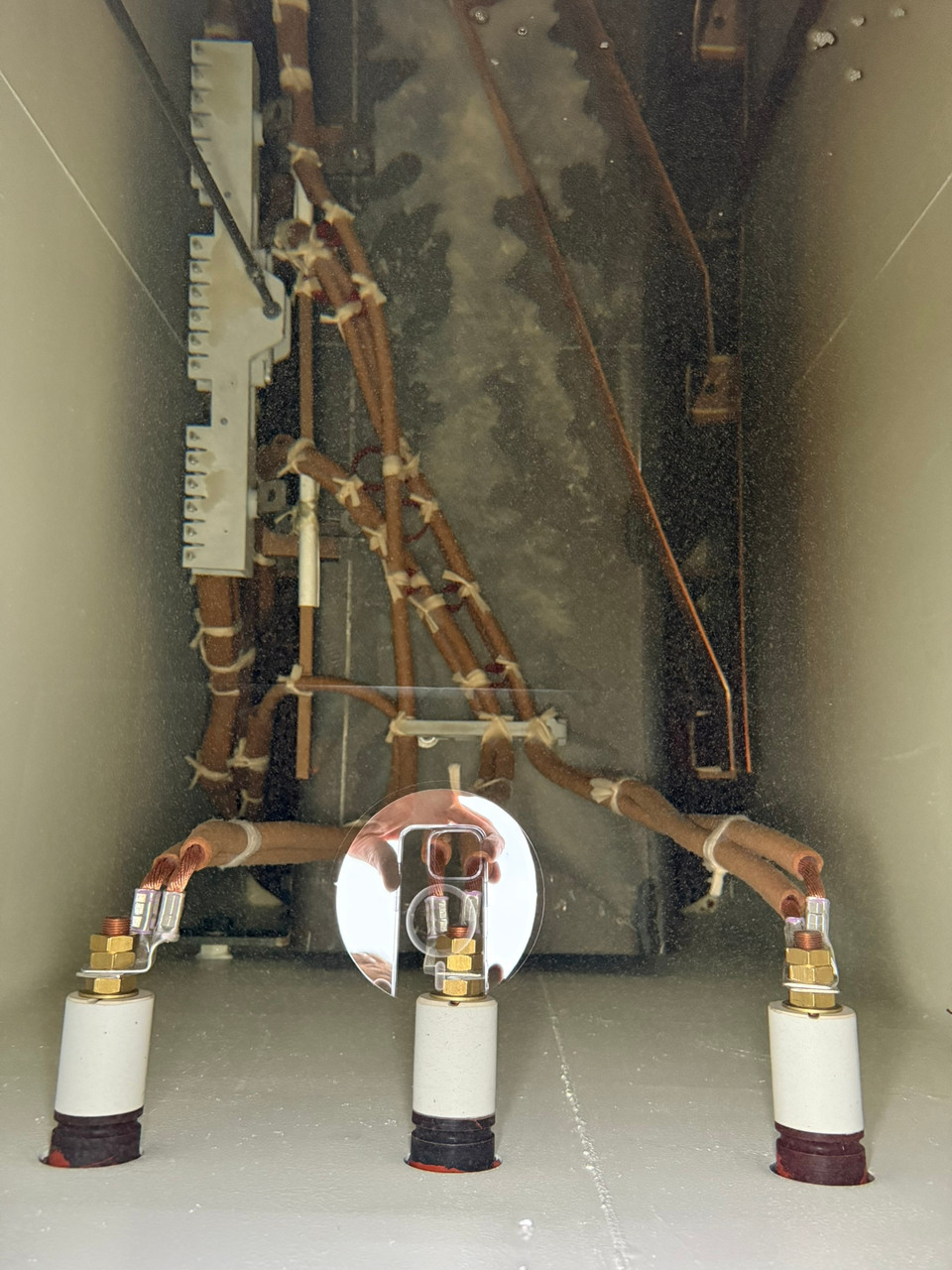

- Connections (Taps) -
Winding (High Voltage Delta) - Volts: 14490 - 7000kVA Amperes: 278.9 - Pos: 1 - Tap Changer Connects: 4 to 5
Winding (High Voltage Delta) - Volts: 14150 - 7000kVA Amperes: 285.6 - Pos: 2 - Tap Changer Connects: 3 to 5
Winding (High Voltage Delta) - Volts: 13800 - 7000kVA Amperes: 292.9 - Pos: 3 - Tap Changer Connects: 3 to 6
Winding (High Voltage Delta) - Volts: 13460 - 7000kVA Amperes: 300.3 - Pos: 4 - Tap Changer Connects: 2 to 6
Winding (High Voltage Delta) - Volts: 13110 - 7000kVA Amperes: 308.3 - Pos: 5 - Tap Changer Connects: 2 to 7
Winding (Low Voltage Wye) - Volts: 2400 - 7000kVA Amperes: 1684.0
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
