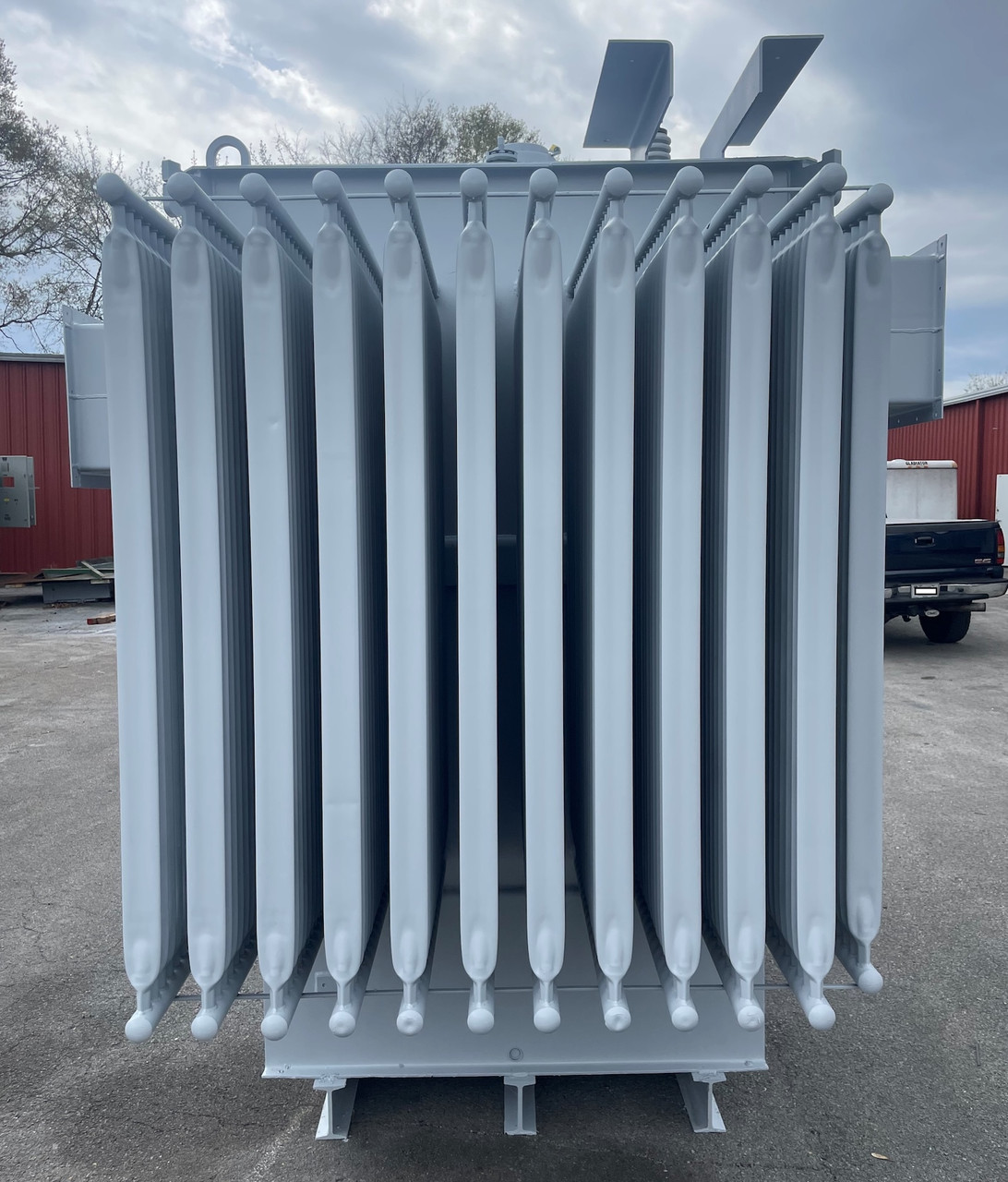

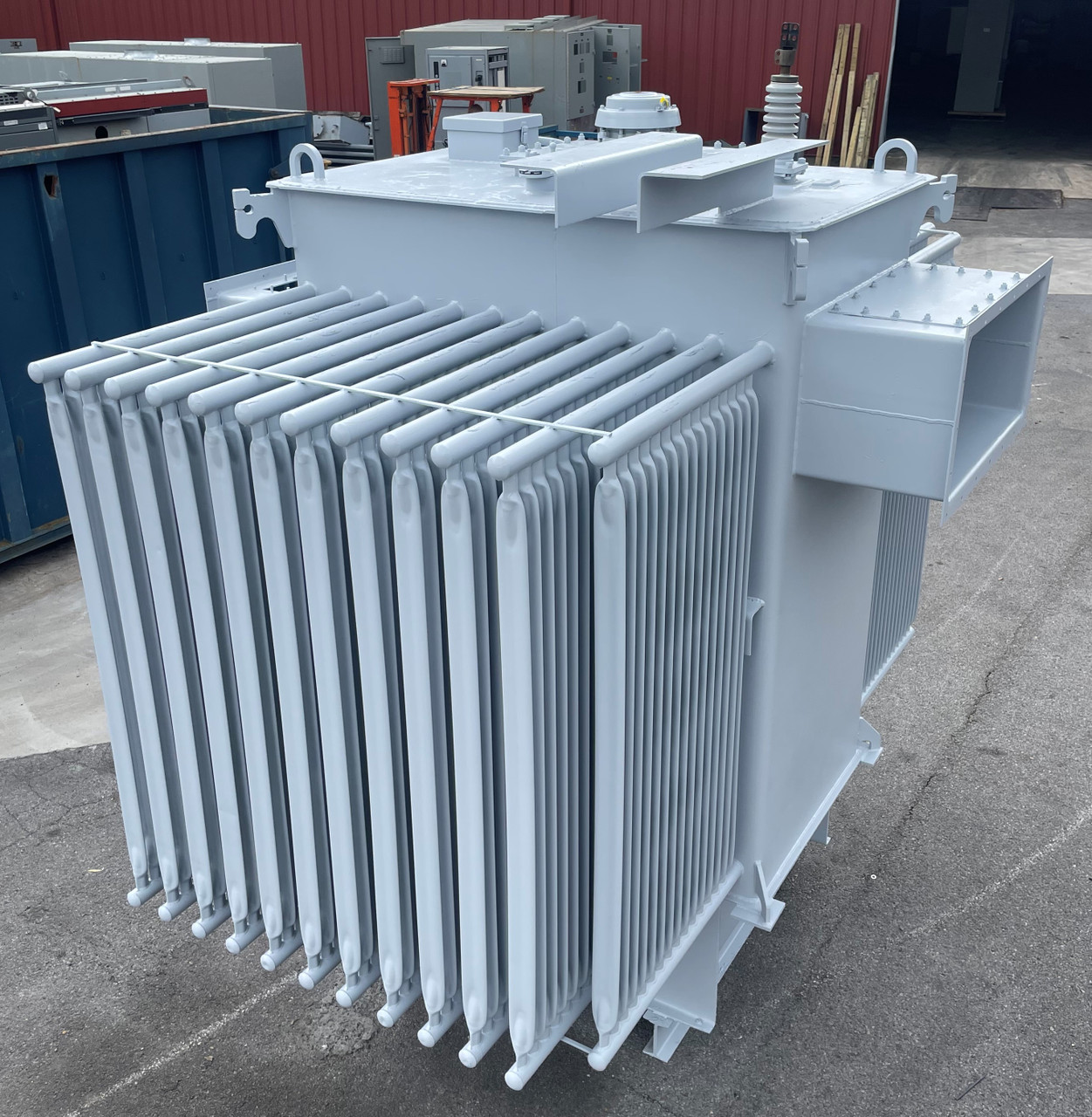

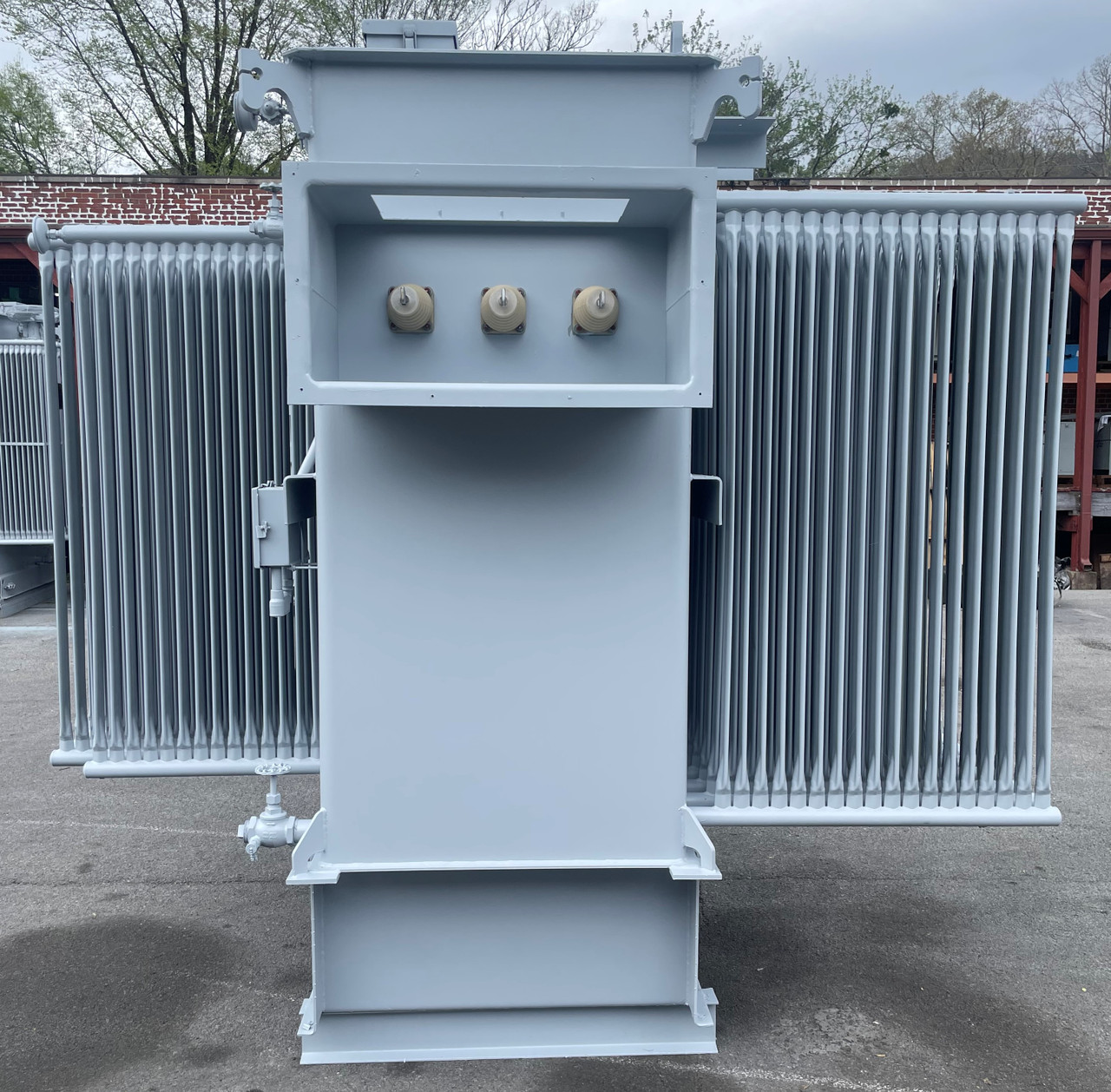

Westinghouse 5000 kVA 13800 to 2400Y/1386 Pad Mount Oil Transformer 1200A 2400 V (PM3214-1)
SKU:
PM3214
Westinghouse
Westinghouse Electric Corporation
MPN: SET4689-0101
USED
Three Phase Type RSL Silicone Fluid Insulated Oil Filled Padmount Unit Substation Transformer
Unit comes completely filled with oil to manufacturer's specificationsPower turned off from fully operational electrical setup and professionally removed

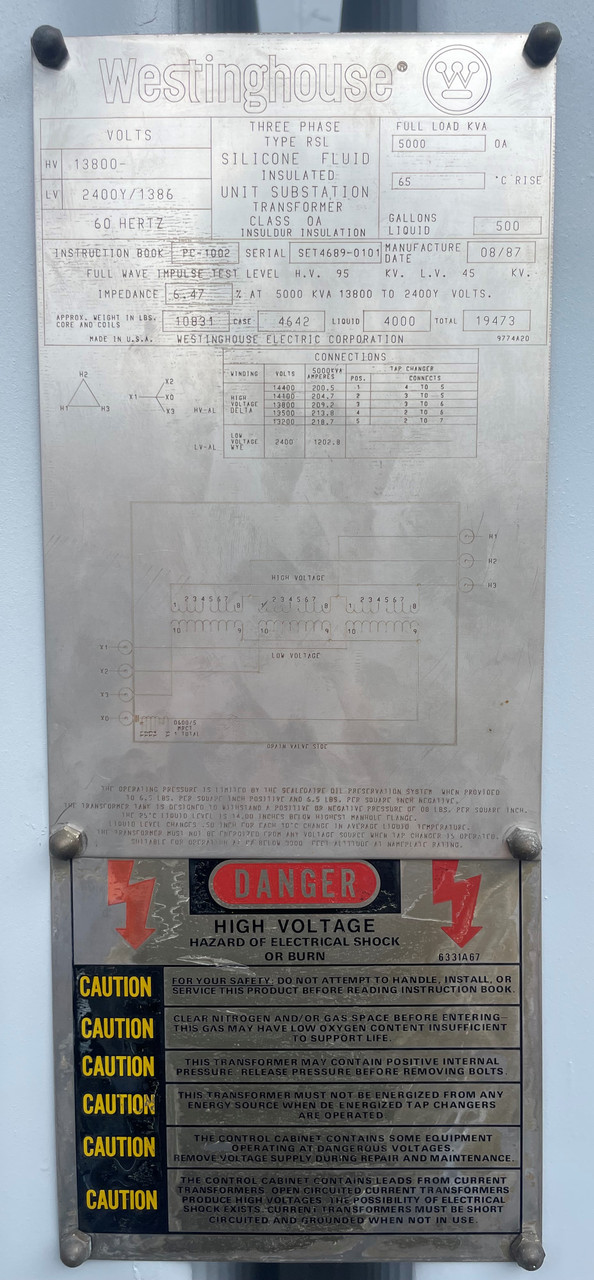

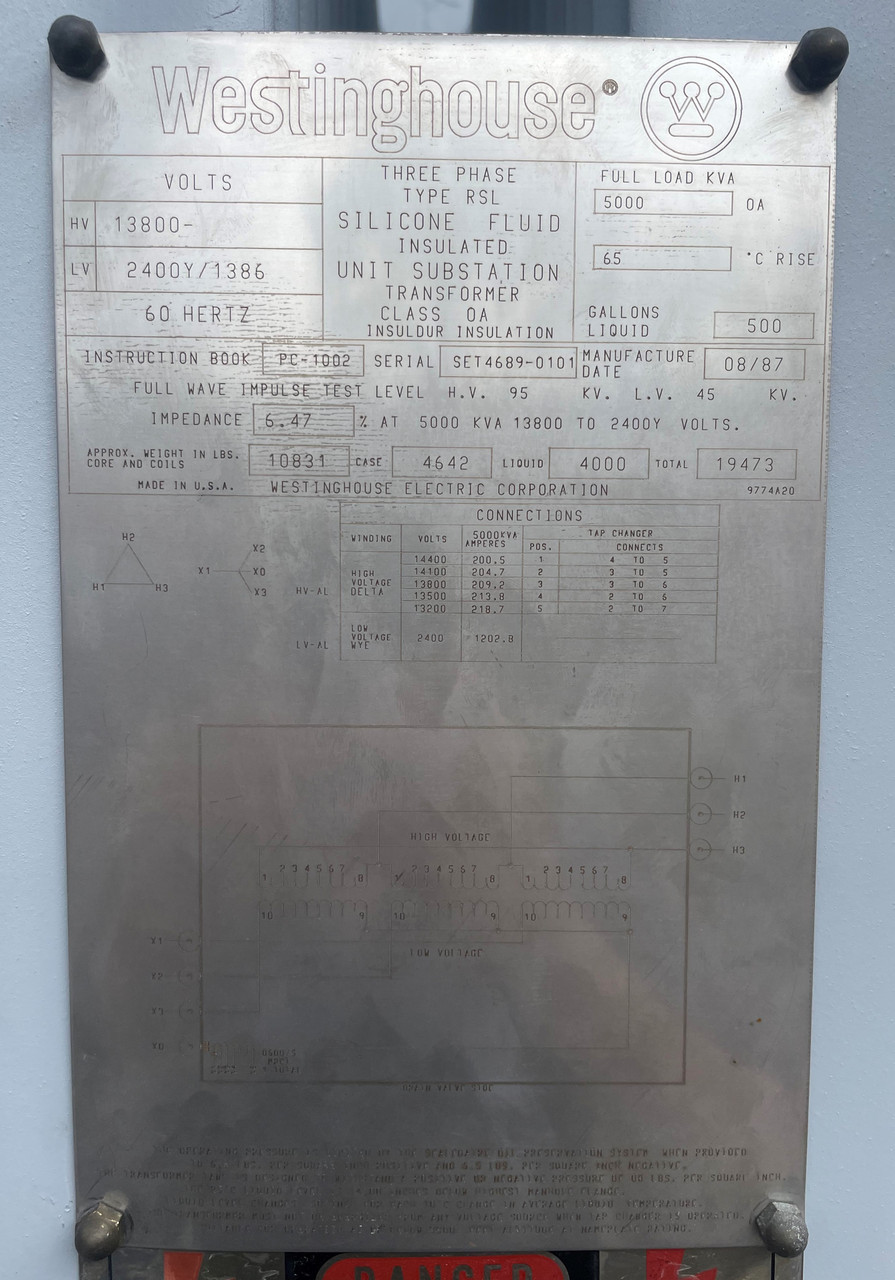

Nameplate Information
Volts: 13800-2400Y/1386 - 60 Hertz
Full Load kVA: 5000 OA - 65 Deg C Rise - 500 Gallons Liquid
Instruction Book: PC-1002 - Serial: SET4689-0101 - Manufacture Date: 08/1987
Full Wave Impulse Test Level: H.V. 95 kV., L.V. 45 kV
Impedance: 6.47 % at 5000 kVA 13800 to 2400Y Volts
Approx. Weight in LBS: 10831 Core and Coils - 4642 Case - 4000 Liquid - 19473 Total
- Connections (Taps) -
Winding (High Voltage Delta) - Volts: 14440 - 5000kVA Amperes: 200.5 - Pos: 1 - Tap Changer Connects: 4 to 5
Winding (High Voltage Delta) - Volts: 14100 - 5000kVA Amperes: 204.7 - Pos: 2 - Tap Changer Connects: 3 to 5
Winding (High Voltage Delta) - Volts: 13800 - 5000kVA Amperes: 209.2 - Pos: 3 - Tap Changer Connects: 3 to 6
Winding (High Voltage Delta) - Volts: 13500 - 5000kVA Amperes: 213.8 - Pos: 4 - Tap Changer Connects: 2 to 6
Winding (High Voltage Delta) - Volts: 13200 - 5000kVA Amperes: 218.7 - Pos: 5 - Tap Changer Connects: 2 to 7
Winding (Low Voltage Wye) - Volts: 2400 - 5000kVA Amperes: 1202.8
Transformer Weight: 19,473 lbs.
Transformer Dimensions (D x W x H): 98" x 113" x 124"
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
*This chart is for reference ONLY. See specific item and manufacturer for accurate specs on specific items.
| kVA | 208V | 240V | 480V | 600V |
| 3 | 8.3 | 7.2 | 3.9 | 2.9 |
| 6 | 16.7 | 14.4 | 7.2 | 5.8 |
| 9 | 25 | 21.7 | 10.8 | 8.7 |
| 15 | 41.6 | 36.1 | 18 | 14.4 |
| 30 | 83.3 | 72.2 | 36.1 | 28.9 |
| 45 | 125 | 108.3 | 54.1 | 43.3 |
| 75 | 208.2 | 180.4 | 90.2 | 72.2 |
| 112.5 | 312 | 271 | 135 | 108 |
| 150 | 416 | 361 | 180 | 144 |
| 225 | 625 | 541 | 271 | 217 |
| 300 | 833 | 722 | 361 | 289 |
| 500 | 1388 | 1203 | 601 | 481 |
Westinghouse
Westinghouse Electric Corporation
MPN: SET4689-0101
USED
Three Phase Type RSL Silicone Fluid Insulated Oil Filled Padmount Unit Substation Transformer
Unit comes completely filled with oil to manufacturer's specificationsPower turned off from fully operational electrical setup and professionally removed
Nameplate Information
Volts: 13800-2400Y/1386 - 60 Hertz
Full Load kVA: 5000 OA - 65 Deg C Rise - 500 Gallons Liquid
Instruction Book: PC-1002 - Serial: SET4689-0101 - Manufacture Date: 08/1987
Full Wave Impulse Test Level: H.V. 95 kV., L.V. 45 kV
Impedance: 6.47 % at 5000 kVA 13800 to 2400Y Volts
Approx. Weight in LBS: 10831 Core and Coils - 4642 Case - 4000 Liquid - 19473 Total
- Connections (Taps) -
Winding (High Voltage Delta) - Volts: 14440 - 5000kVA Amperes: 200.5 - Pos: 1 - Tap Changer Connects: 4 to 5
Winding (High Voltage Delta) - Volts: 14100 - 5000kVA Amperes: 204.7 - Pos: 2 - Tap Changer Connects: 3 to 5
Winding (High Voltage Delta) - Volts: 13800 - 5000kVA Amperes: 209.2 - Pos: 3 - Tap Changer Connects: 3 to 6
Winding (High Voltage Delta) - Volts: 13500 - 5000kVA Amperes: 213.8 - Pos: 4 - Tap Changer Connects: 2 to 6
Winding (High Voltage Delta) - Volts: 13200 - 5000kVA Amperes: 218.7 - Pos: 5 - Tap Changer Connects: 2 to 7
Winding (Low Voltage Wye) - Volts: 2400 - 5000kVA Amperes: 1202.8
Transformer Weight: 19,473 lbs.
Transformer Dimensions (D x W x H): 98" x 113" x 124"
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
*This chart is for reference ONLY. See specific item and manufacturer for accurate specs on specific items.
| kVA | 208V | 240V | 480V | 600V |
| 3 | 8.3 | 7.2 | 3.9 | 2.9 |
| 6 | 16.7 | 14.4 | 7.2 | 5.8 |
| 9 | 25 | 21.7 | 10.8 | 8.7 |
| 15 | 41.6 | 36.1 | 18 | 14.4 |
| 30 | 83.3 | 72.2 | 36.1 | 28.9 |
| 45 | 125 | 108.3 | 54.1 | 43.3 |
| 75 | 208.2 | 180.4 | 90.2 | 72.2 |
| 112.5 | 312 | 271 | 135 | 108 |
| 150 | 416 | 361 | 180 | 144 |
| 225 | 625 | 541 | 271 | 217 |
| 300 | 833 | 722 | 361 | 289 |
| 500 | 1388 | 1203 | 601 | 481 |
SKU:
PM3214
UPC:
7450012773752
Condition:
Refurbished
Availability:
Ships within 0-1 business days of full payment. Expedited shipping available.
Width:
118
Height:
127
Depth:
97
Warranty:
30 day warranty.
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
SKU:
PM3214
MPN:
SET4689-0101
Approx Shipping Dims (LxWxH):
97.000" x 118.000" x 127.000"
Approx Shipping Weight:
20000.0000
Location:
Outside Alpha
kVA:
5000 kVA
Phases:
3 Phase
Voltage:
13800 Delta to 2400 WYE / 1386 Volts
UPC:
7450012773752
Listed:
4/4/2023
eBay Listing:
275776414200
Related products
ABB 5000-7000 kVA 13800 Delta 2400Y/1386 Pad Mount Oil Transformer 1684A/2400 V (PM3198-1)
$93,100.00

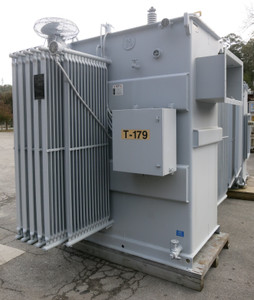

GE 5000-7000 kVA 13800 Delta 2400Y/1386 Pad Mount Oil Transformer 1684A @ 2400 V (PM3199-1)
