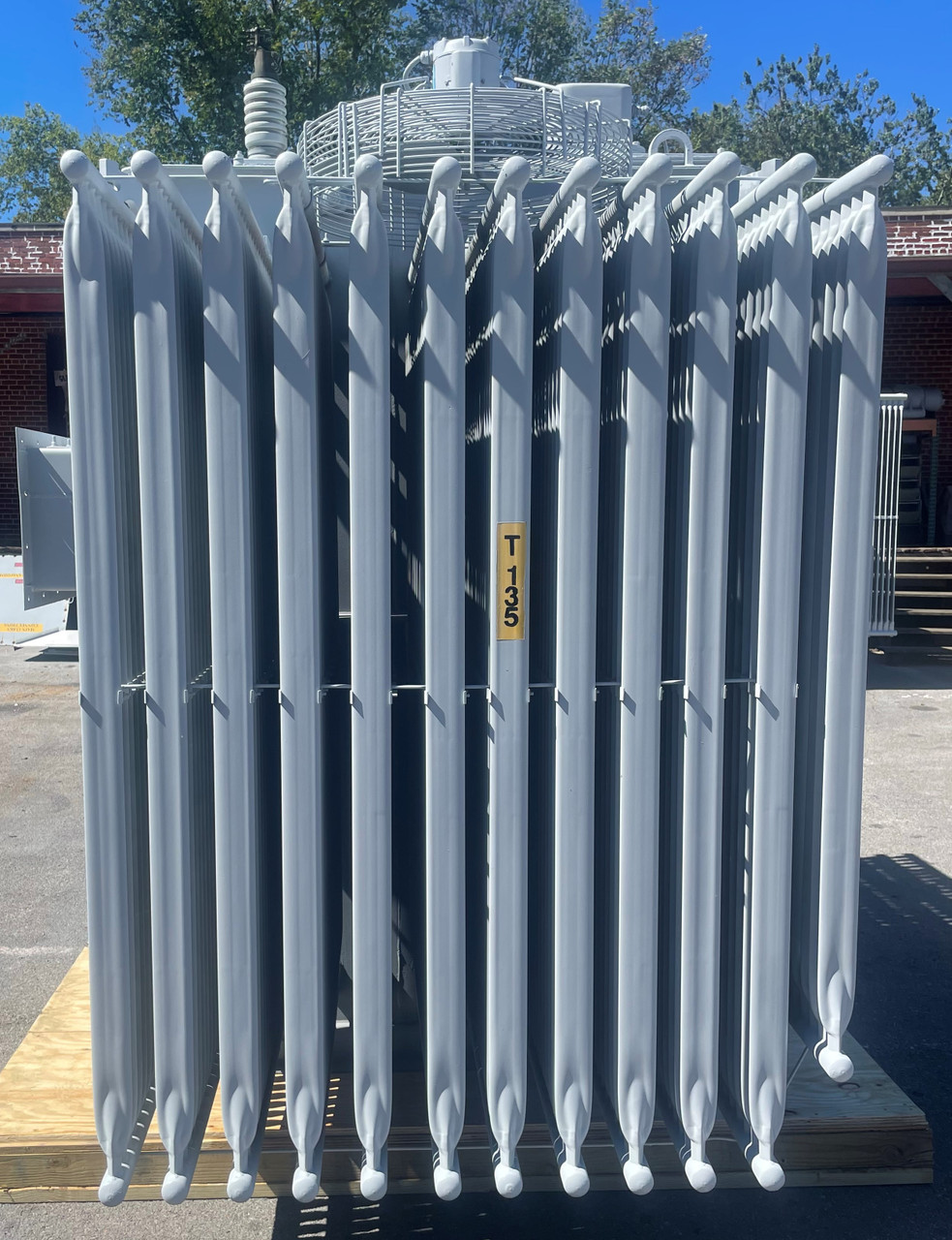

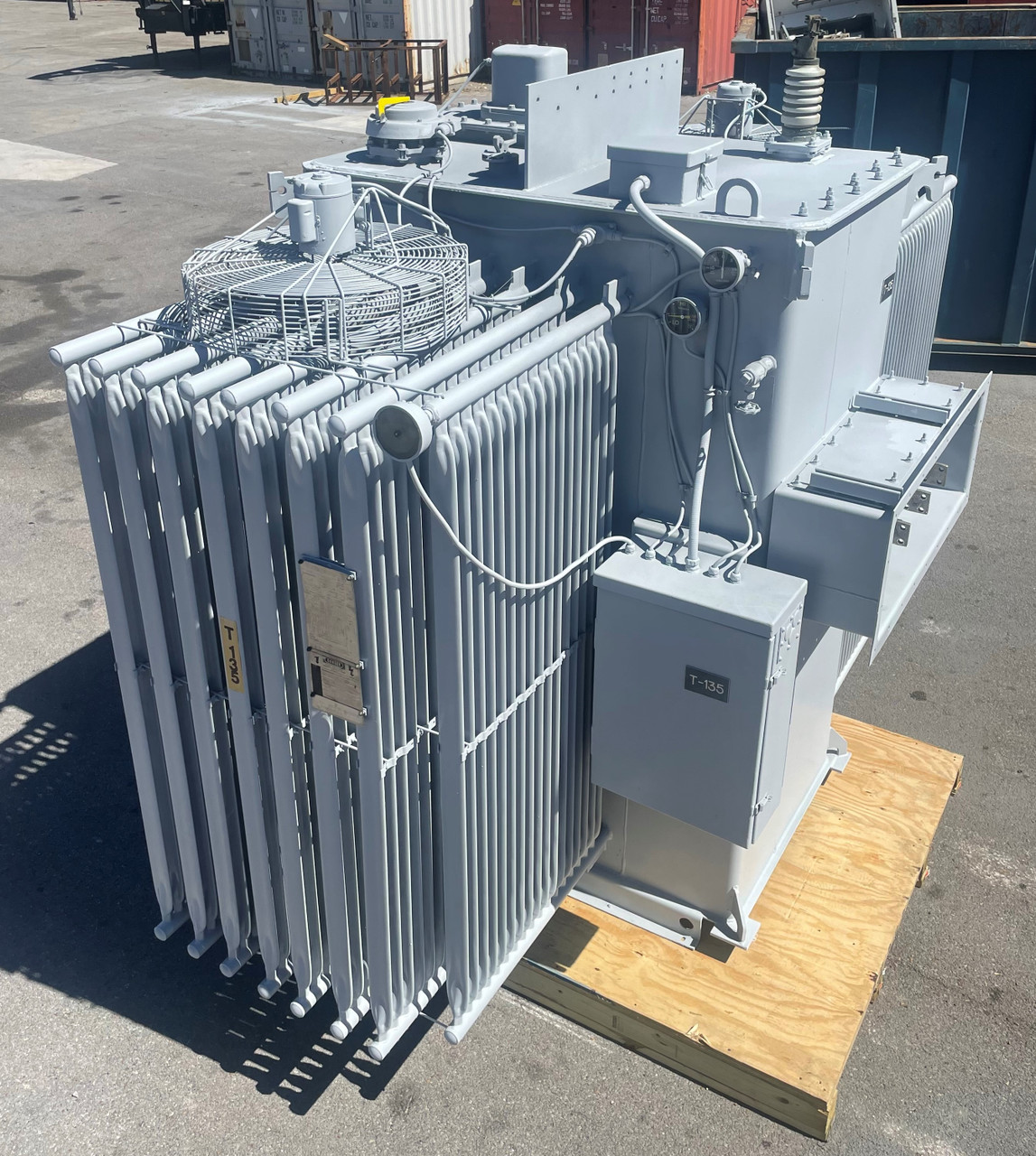

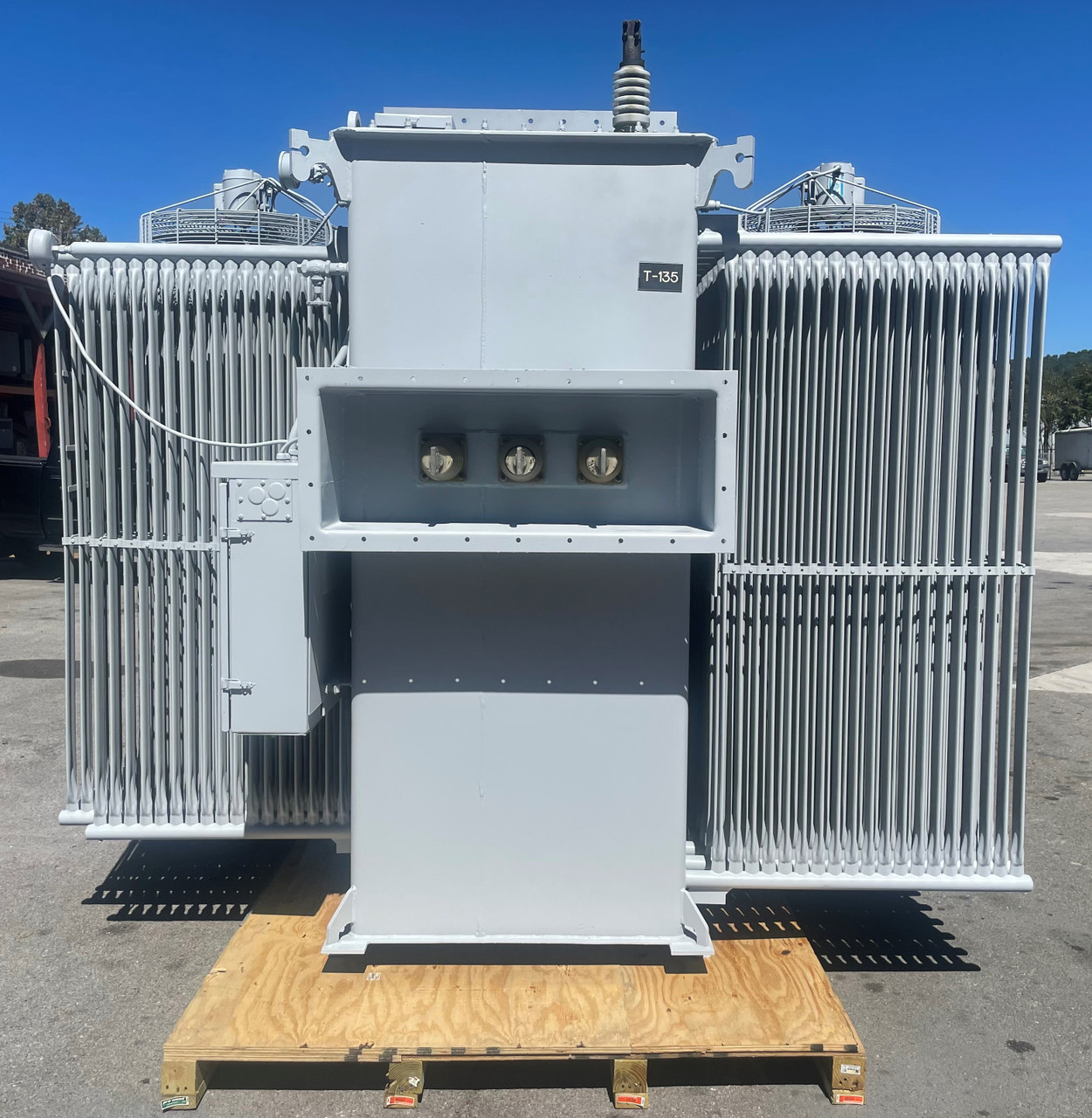

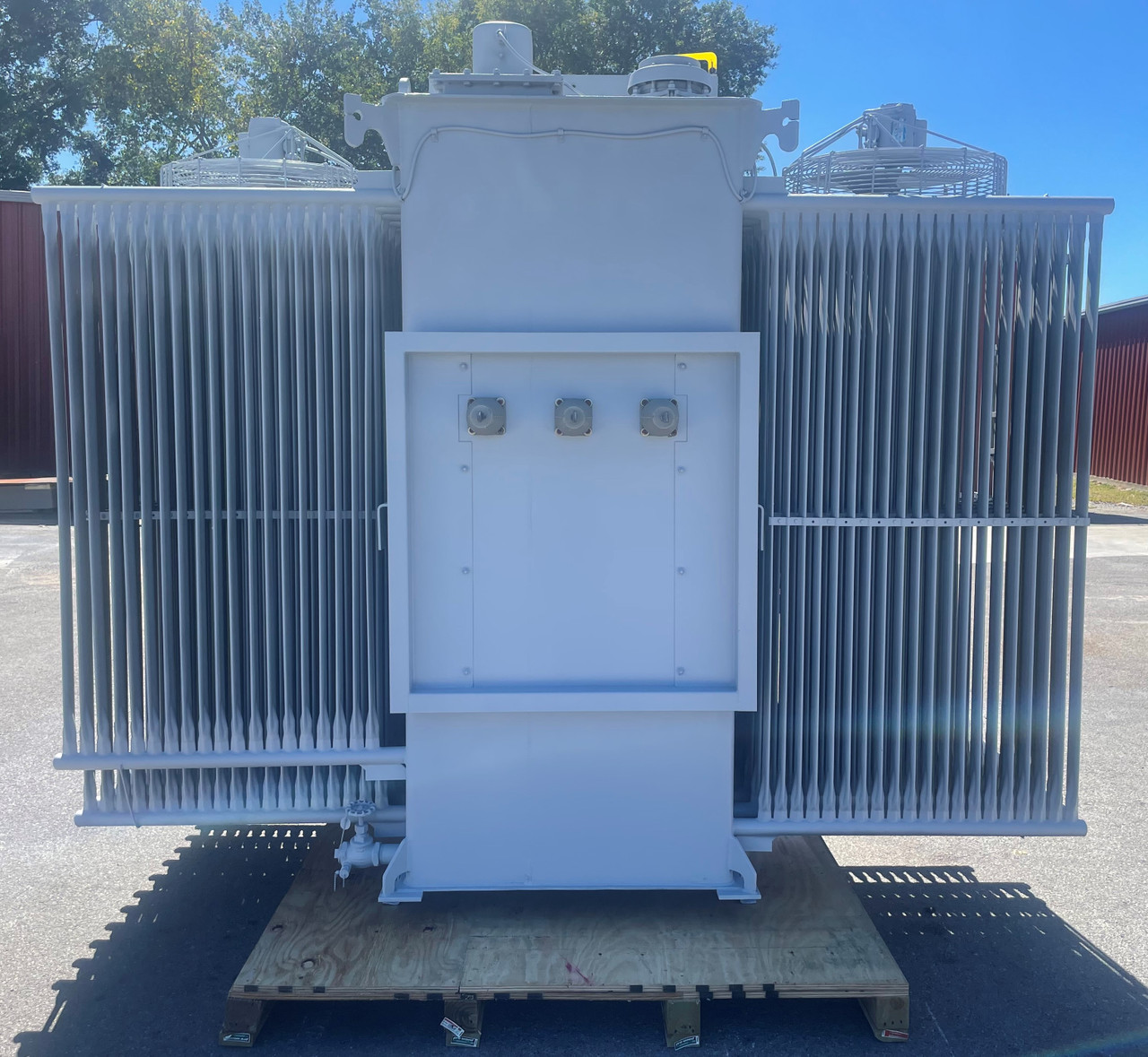

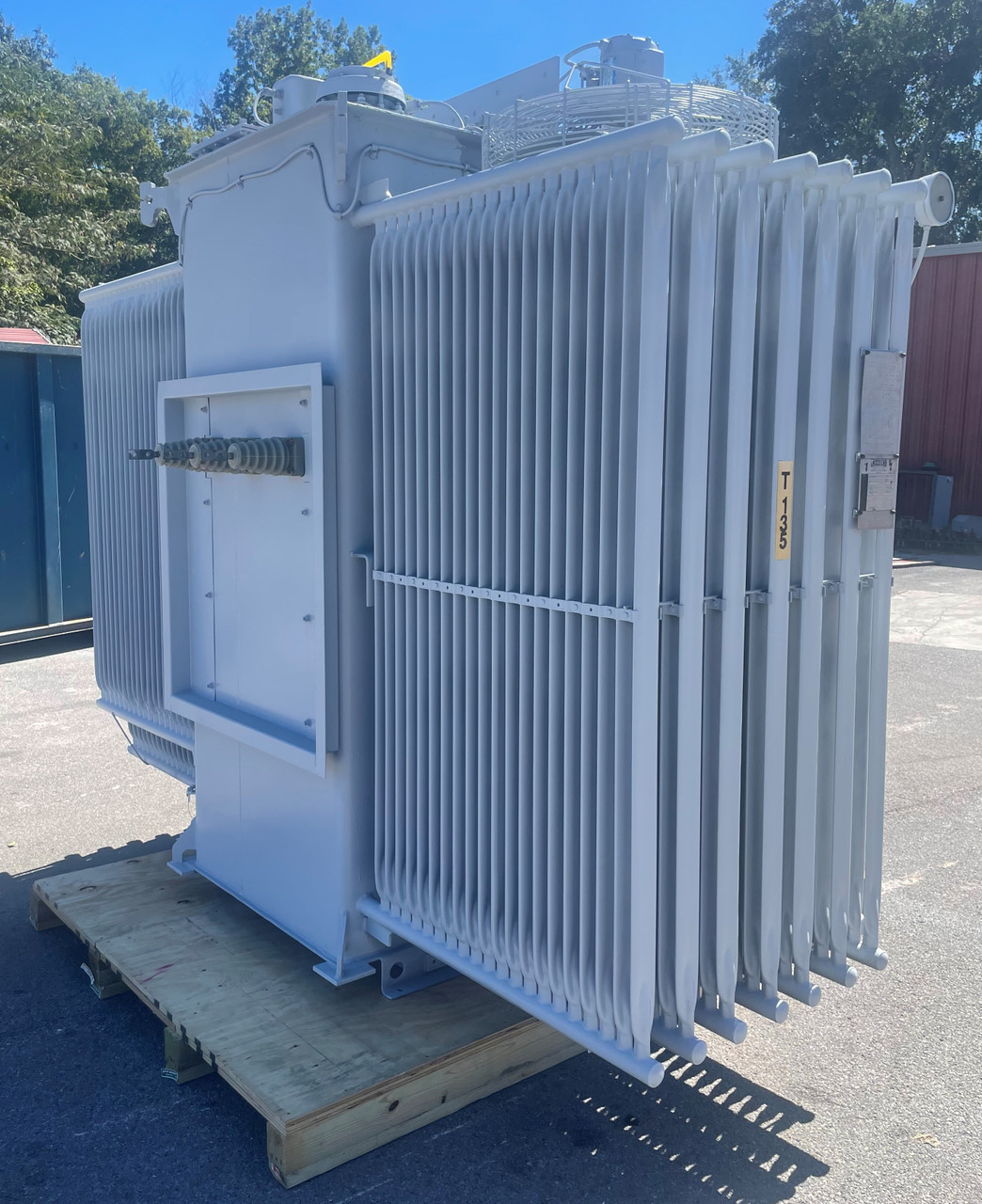

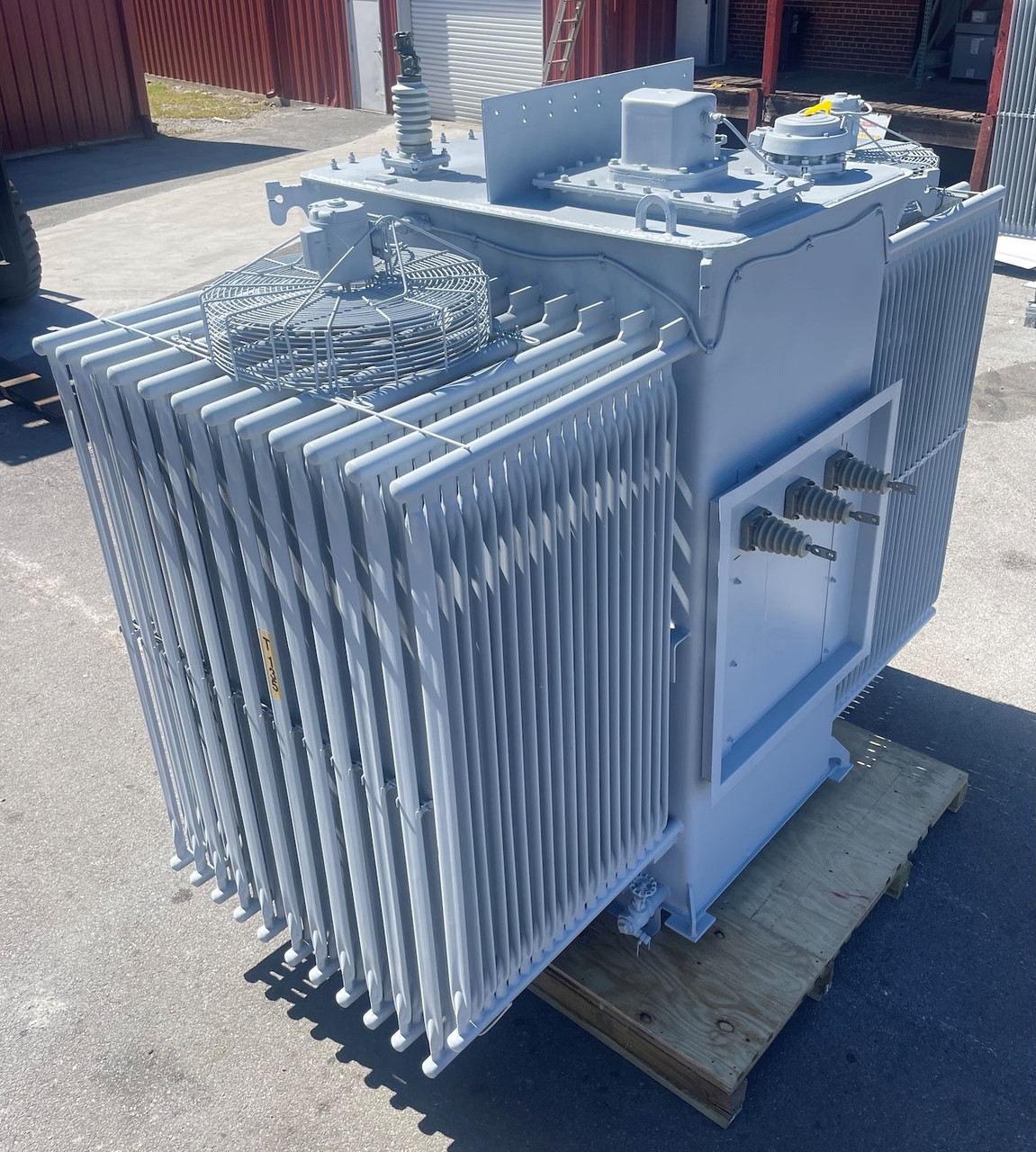

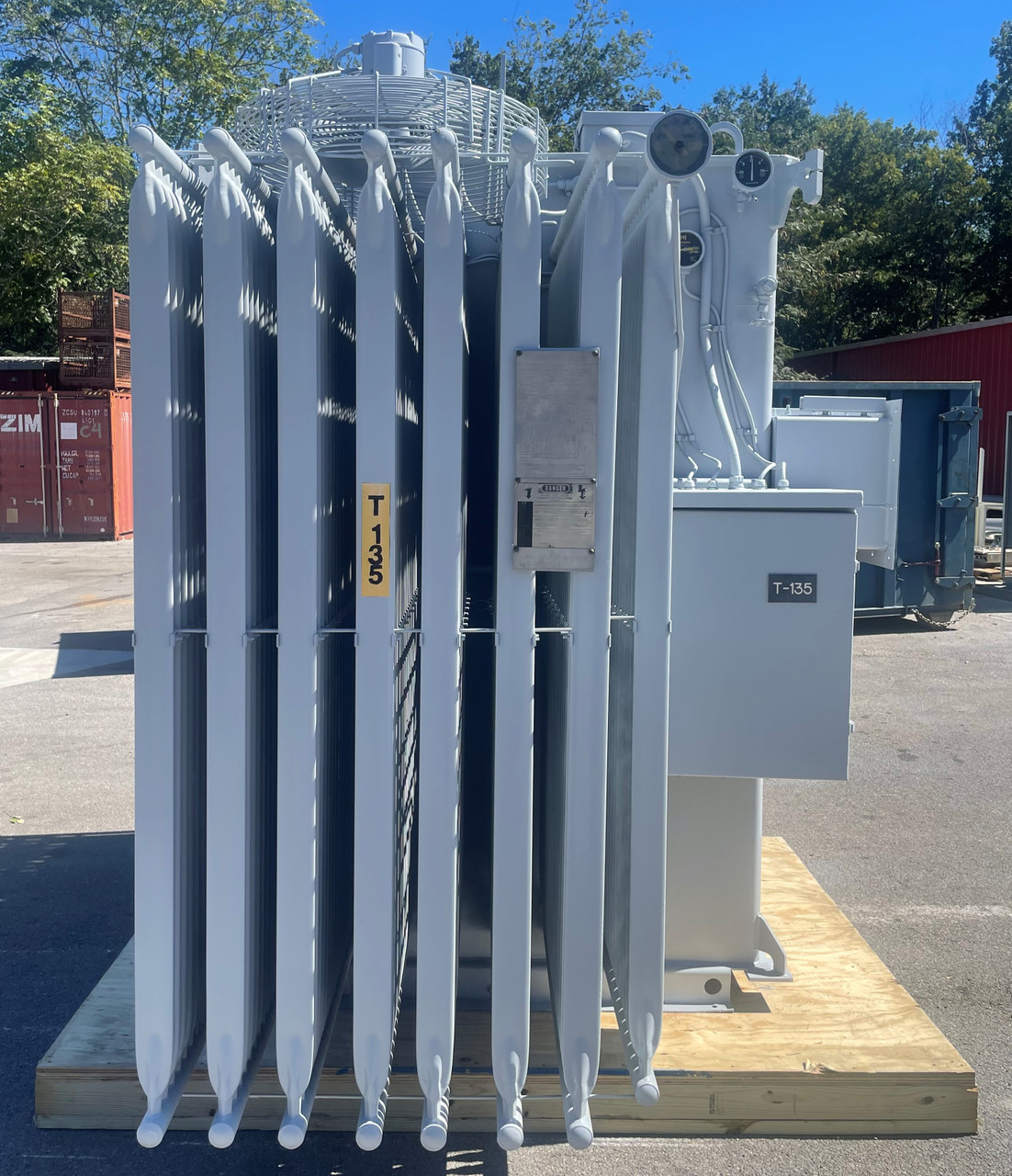

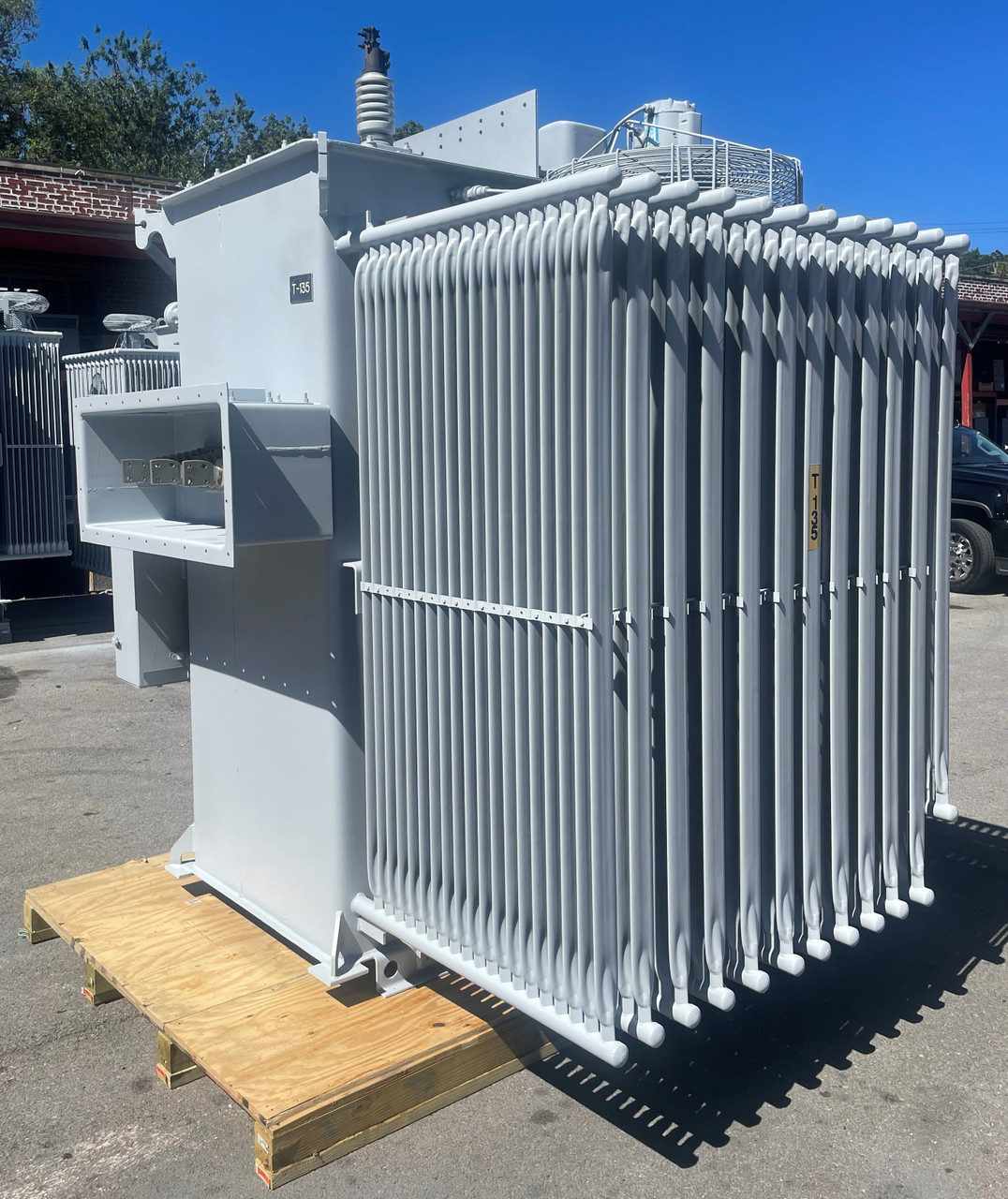

Westinghouse 5000-7000 kVA 13800 to 2400Y/1386 Pad Mount Oil Transformer 2400 V (PM3202-1)
SKU:
PM3202
Westinghouse
Westinghouse Electric Corporation
MPN: SEV8825-0101
USED
Three Phase Type RSL Silicone Fluid Insulated Oil Filled Padmount Unit Substation Transformer
Unit comes completely filled with oil to manufacturer's specificationsPower turned off from fully operational electrical setup and professionally removed

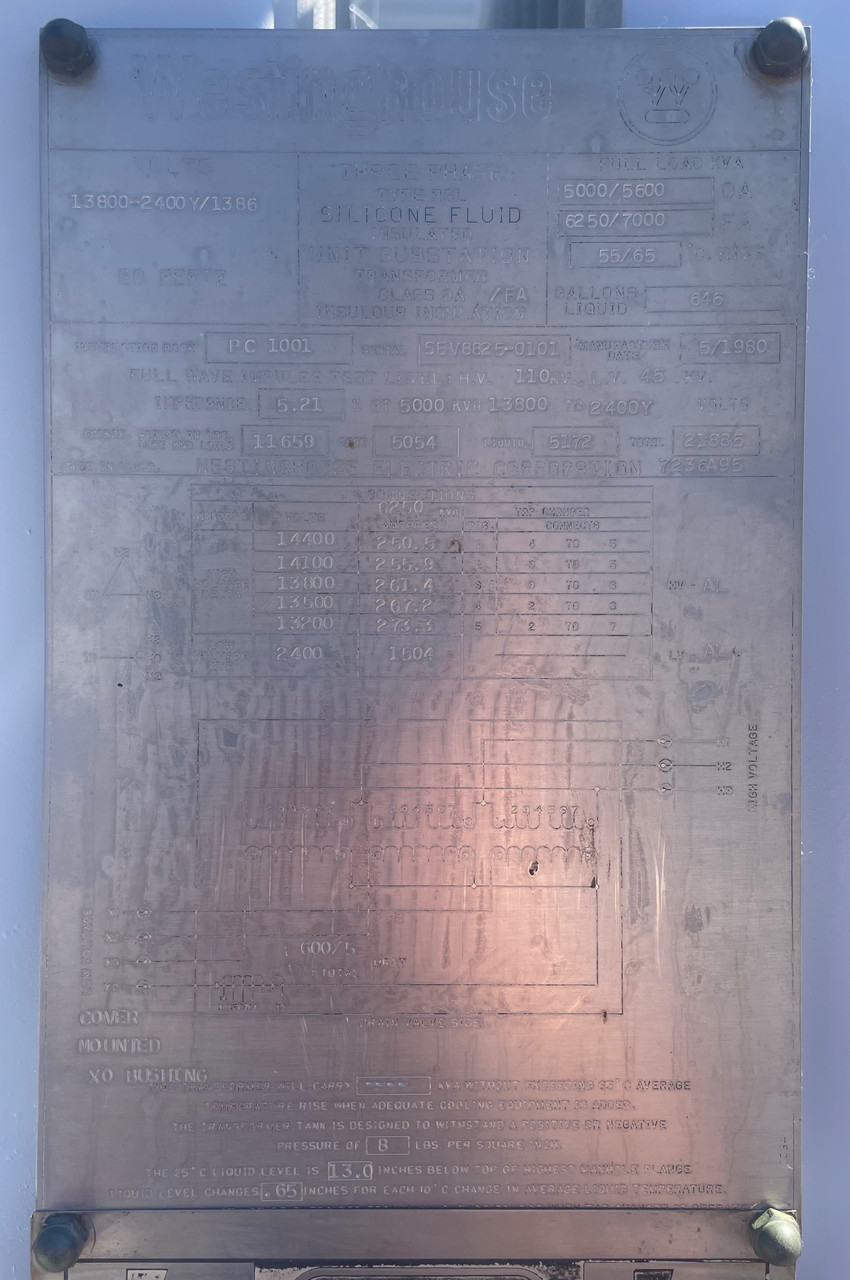

Nameplate Information
Volts: 13800-2400Y/1386 - 60 Hertz
Full Load kVA: 5000/5600 OA and 6250/7000 FA - 55/65 Deg C Rise - 646 Gallons Liquid
Instruction Book: PC1001 - Serial: SEV8825-0101 - Manufacture Date: 5/1980
Full Wave Impulse Test Level: H.V. 110 kV., L.V. 45 kV
Impedance: 5.21 % at 5000 kVA 13800 to 2400Y Volts
Approx. Weight in LBS: 11659 Core and Coils - 5054 Case - 5172 Liquid - 21885 Total
- Connections (Taps) -
Winding (High Voltage Delta) - Volts: 14440 - 6250kVA Amperes: 250.5 - Pos: 1 - Tap Changer Connects: 4 to 5
Winding (High Voltage Delta) - Volts: 14100 - 6250kVA Amperes: 255.9 - Pos: 2 - Tap Changer Connects: 3 to 5
Winding (High Voltage Delta) - Volts: 13800 - 6250kVA Amperes: 261.4 - Pos: 3 - Tap Changer Connects: 3 to 6
Winding (High Voltage Delta) - Volts: 13500 - 6250kVA Amperes: 267.2 - Pos: 4 - Tap Changer Connects: 2 to 6
Winding (High Voltage Delta) - Volts: 13200 - 6250kVA Amperes: 273.3 - Pos: 5 - Tap Changer Connects: 2 to 7
Winding (Low Voltage Wye) - Volts: 2400 - 6250kVA Amperes: 1504
Transformer Weight: 21,885 lbs.
Transformer Dimensions (D x W x H): 87" x 125" x 113"
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
*This chart is for reference ONLY. See specific item and manufacturer for accurate specs on specific items.
| kVA | 208V | 240V | 480V | 600V |
