GE Power/Vac 1200A PVDB1 15.5-20-2 15.5 kV Distribution Breaker General Electric (PM3088-2)

General Electric $9,261.00
SKU: PM3088

General Electric
GE

MPN: PVDB1 15.5-20-2
USED

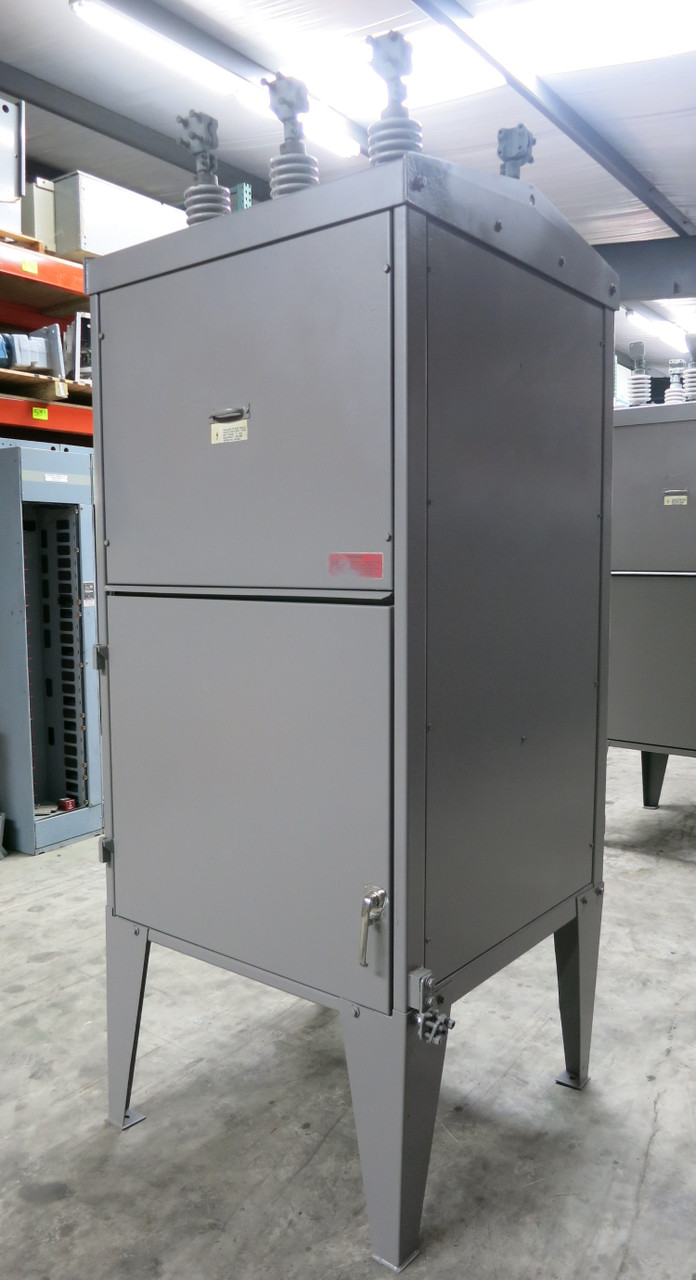

PowerVac Distribution Vacuum Circuit Breaker
1200 Amp | 15kV

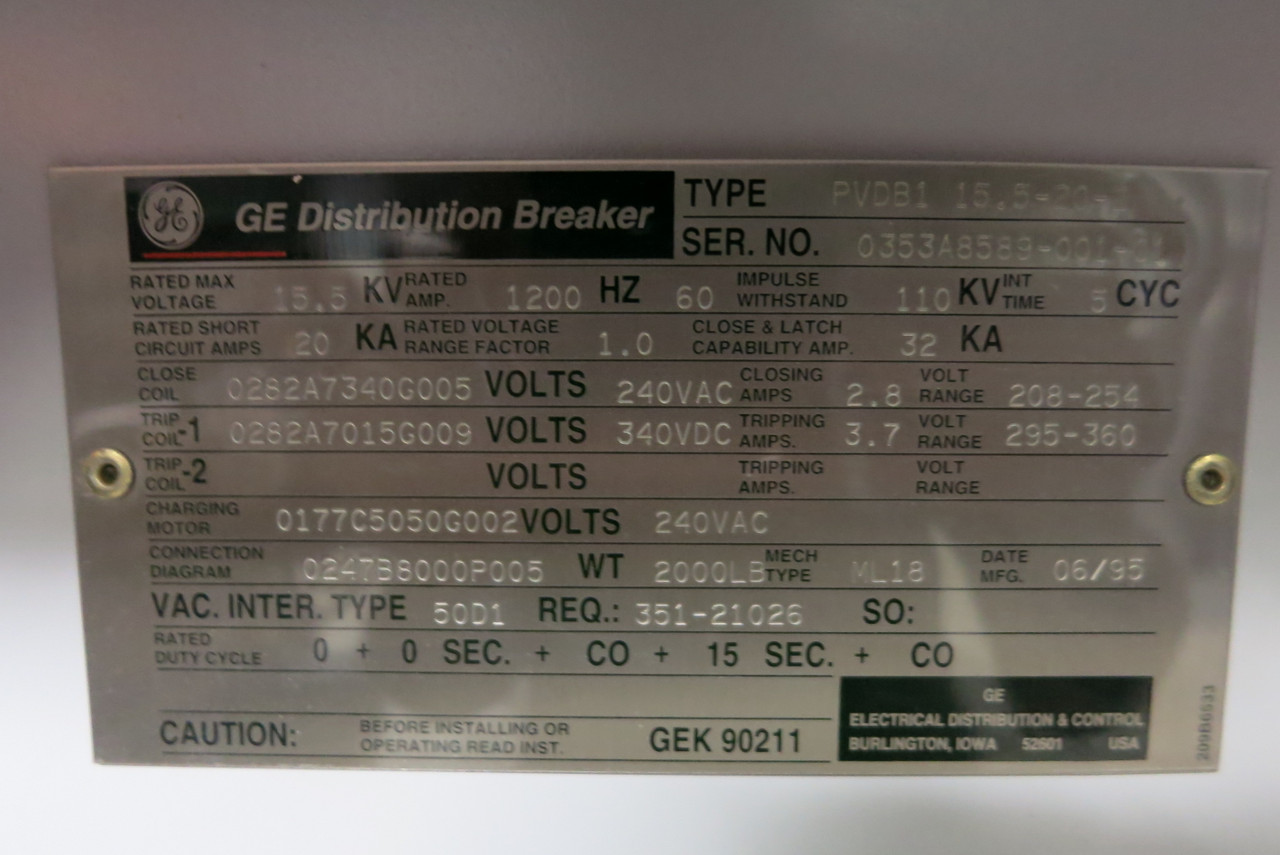

- Name Plate Information -
Type: PVDB1 15.5-20-2
Rated Max Voltage: 15.5 kV - Rated Amp. 1200 - Hz: 60 - Impulse Withstand: 110 kV - Int. Time: 5 Cyc
Rated Short Circuit Amps: 20 kA - Rated Voltage Range Factor: 1.0 - Close & Latch Capability Amp.: 32 kA
Close Coil: 0282A7340G005 - Volts: 240 AC - Closing Amps.: 2.8 - Volt Range: 208-254
Trip Coil 1: 0282A7015G009 - Volts: 340 DC - Tripping Amps.: 3.7 - Volt Range: 295-360
Charging Motor: 0177C5050G002 - Volts: 240 VAC
Connection Diagram: 0247B8000P005 - WT: 2000 lbs - Mech Type: ML18 - Date MFG: 6/95
Vacuu,. Interrupter Type: 50D1 - REQ: 351-21026
Before Installing or Operating Read Inst. GEK 90211
Manual:
http://apps.geindustrial.com/publibrary/checkout/GEK-90211C?TNR=Installation%20and%20Instruction|GEK-90211C|generic
30 day warranty on all purchases.

Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com

Read more
Current stock: 2
Description

General Electric
GE

MPN: PVDB1 15.5-20-2
USED
PowerVac Distribution Vacuum Circuit Breaker
1200 Amp | 15kV



- Name Plate Information -
Type: PVDB1 15.5-20-2
Rated Max Voltage: 15.5 kV - Rated Amp. 1200 - Hz: 60 - Impulse Withstand: 110 kV - Int. Time: 5 Cyc
Rated Short Circuit Amps: 20 kA - Rated Voltage Range Factor: 1.0 - Close & Latch Capability Amp.: 32 kA
Close Coil: 0282A7340G005 - Volts: 240 AC - Closing Amps.: 2.8 - Volt Range: 208-254
Trip Coil 1: 0282A7015G009 - Volts: 340 DC - Tripping Amps.: 3.7 - Volt Range: 295-360
Charging Motor: 0177C5050G002 - Volts: 240 VAC
Connection Diagram: 0247B8000P005 - WT: 2000 lbs - Mech Type: ML18 - Date MFG: 6/95
Vacuu,. Interrupter Type: 50D1 - REQ: 351-21026
Before Installing or Operating Read Inst. GEK 90211
Manual:
http://apps.geindustrial.com/publibrary/checkout/GEK-90211C?TNR=Installation%20and%20Instruction|GEK-90211C|generic
30 day warranty on all purchases.

Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com

Additional info
SKU: PM3088
UPC: 4065977712932
Condition: Used
Availability: Ships within 0-1 business days of full payment. Expedited shipping available.
Width: 43
Height: 120
Depth: 43
Warranty: 30 day warranty.

If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.

SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.

Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
SKU: PM3088
MPN: PVDB1 15.5-20-2
Approx Shipping Dims (LxWxH): 43.000" x 43.000" x 120.000"
Approx Shipping Weight: 2000.0000
Location: Beta Floor (E?)
Phases: 3 Phase
Amperage: 1200 Amp
Voltage: 15 kV
Listed: 8/31/2020
Outdoor Rated?: Outdoor Rated (NEMA 3R or 4X)
eBay Listing: 373210527096
UPC: 4065977712932
