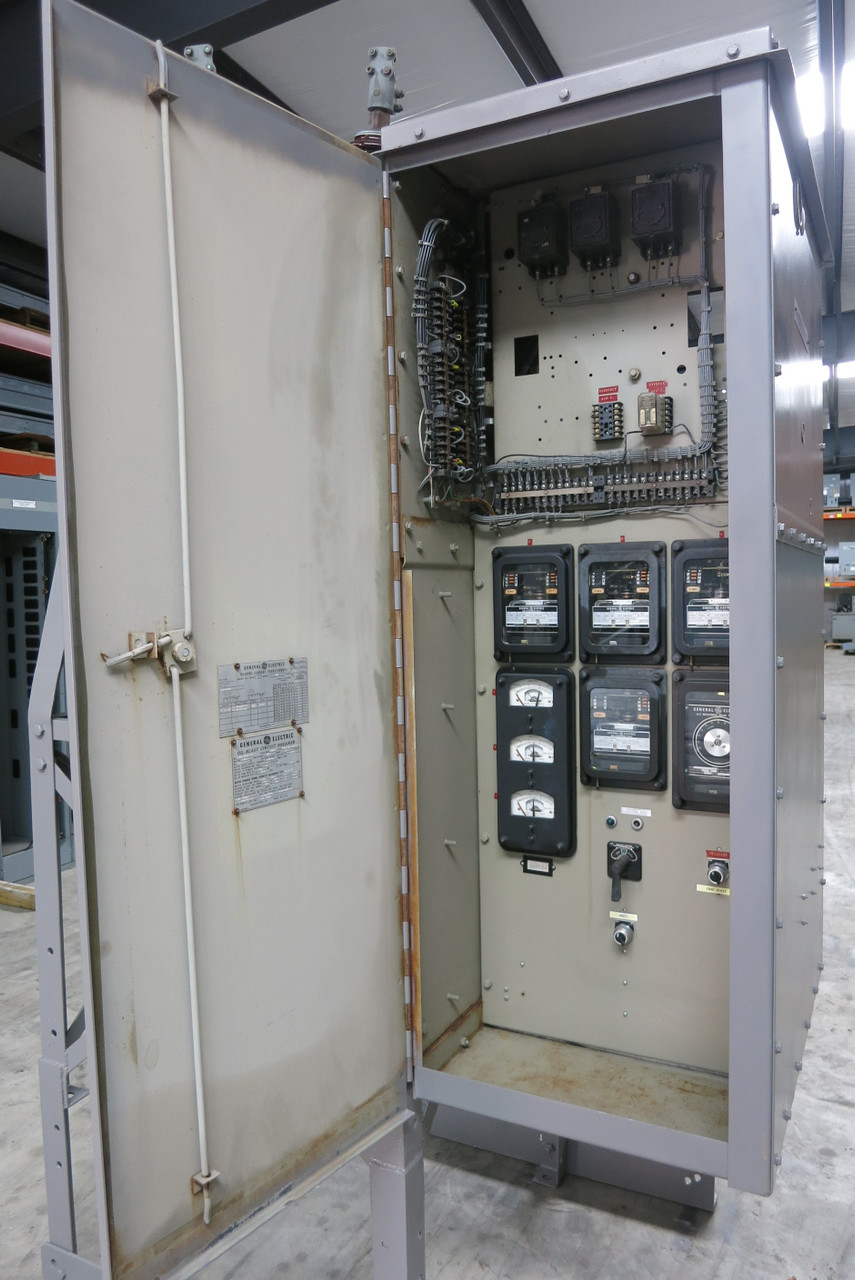

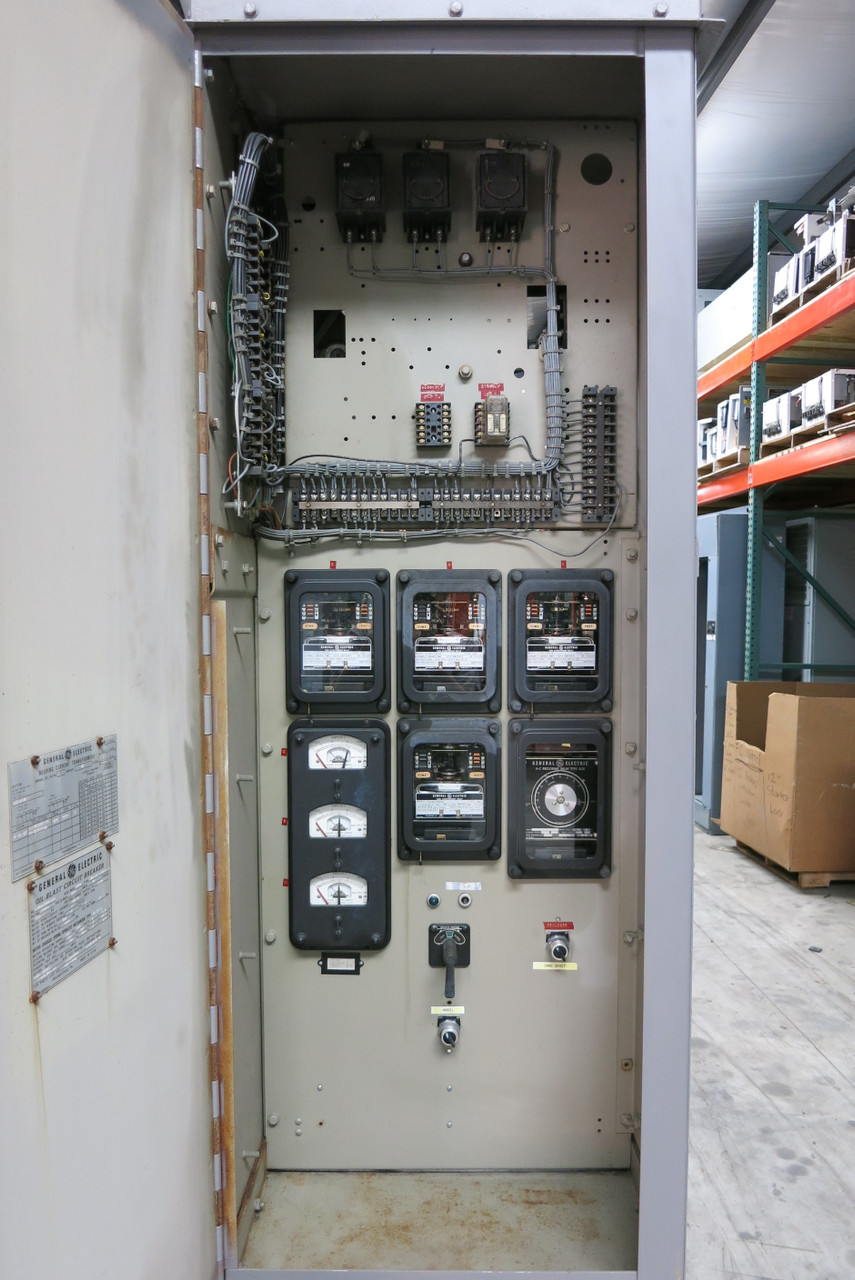

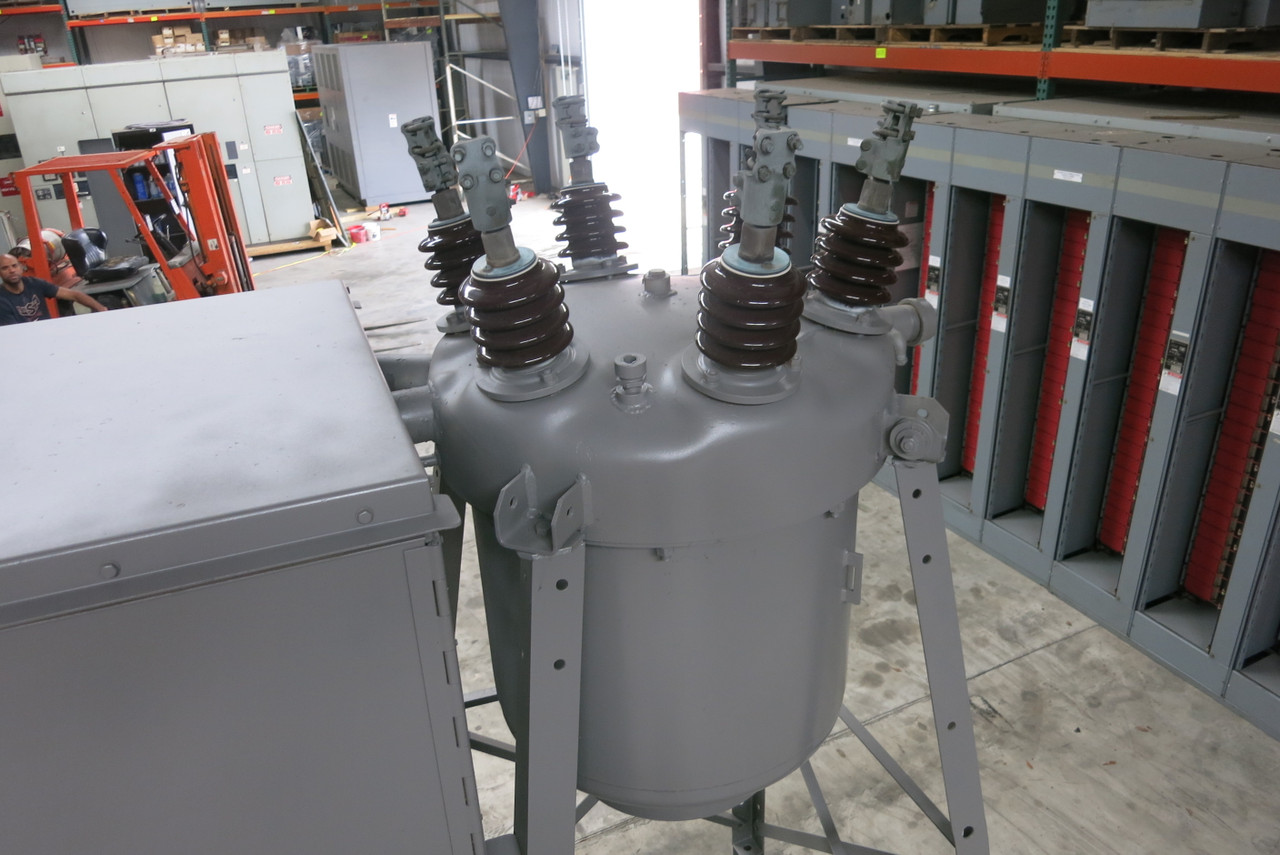

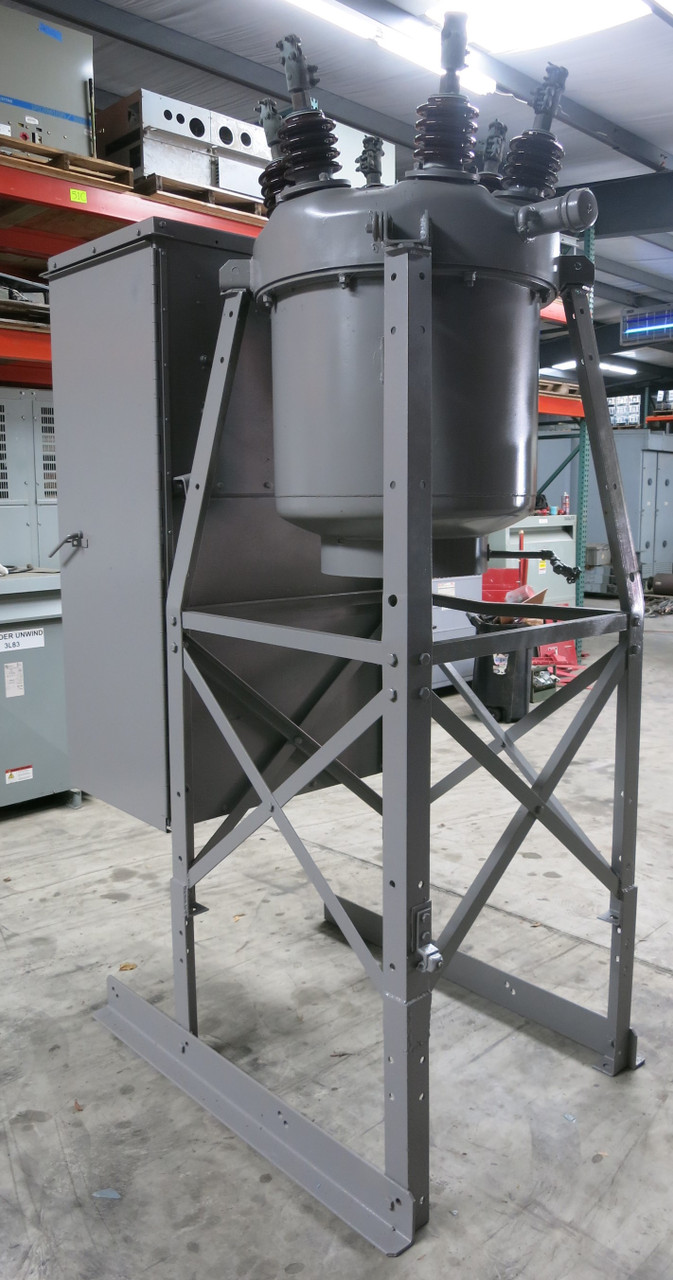

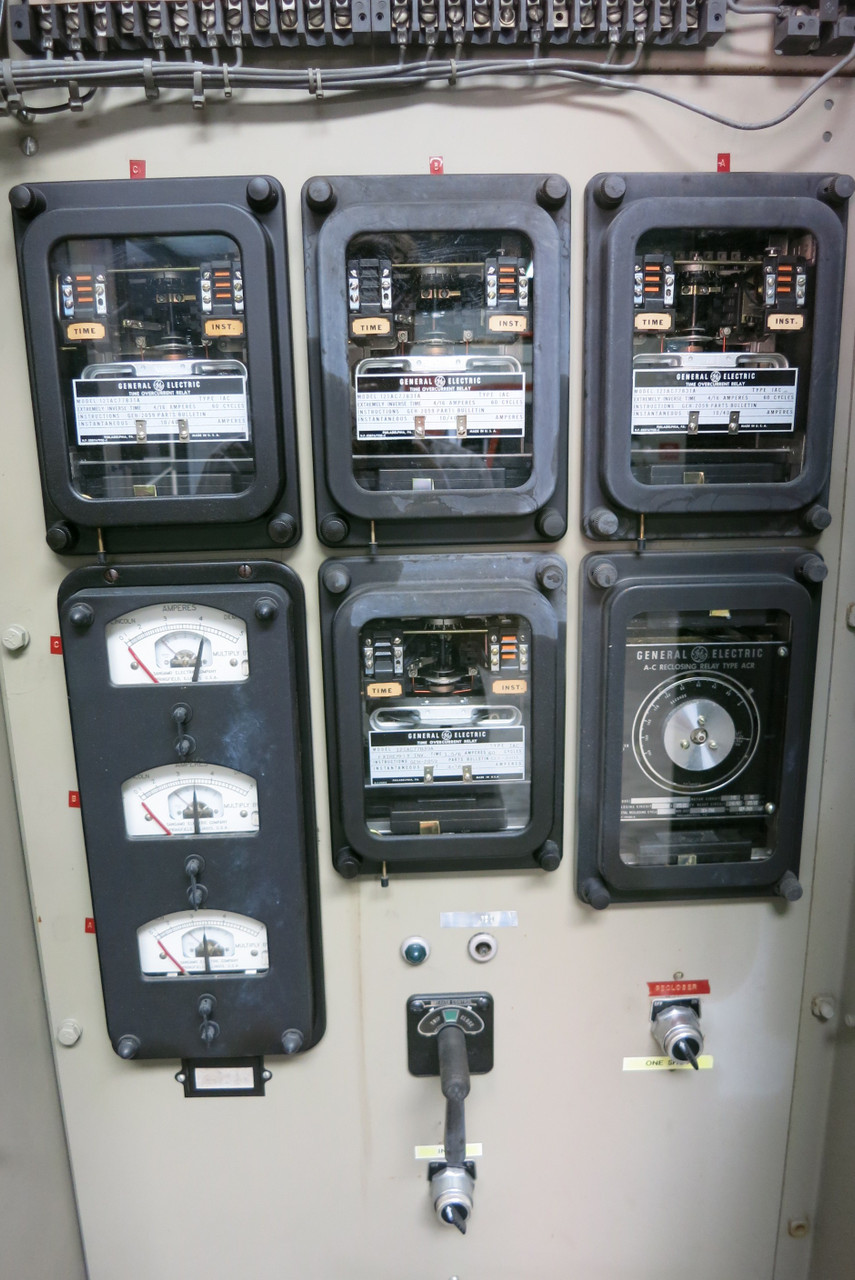

GE 1200A FKD-15.5-18000-5 15kV Oil-Blast Circuit Breaker General Electric 15500V (PM3091-1)
SKU:
PM3091
General Electric
GE
MPN: FKD-15.5-18000-5
USED
Oil-Blast Distribution Circuit Breaker
1200 Amp | 15.5 kV
- Name Plate Information -
No: 0 442A5944-101 - Year Mfd: 1972 - Type: FKD-15.5-18000-5 Type: PVDB1 15.5-20-2 - Rating: 15500 Volts - Max: 1200 Amp
60 Cycles - BIL: 110 kV - Voltage Range Factor "K": 1.29
Rated Short-Circuit Current: 18000 Amps Sym
Rated Interrupting Time: 5 Cycles - Height to Remove Bushing: 11 Ft 3
Weight of Tank with Oil: 595 lbs - Oil Per Tank: 60 Gal
Weight of Breaker with Oil: 2050 lbs
Motor Charged Spring Operated Mechanism Type: ML 10-3
Motor Operating Range: 190 to 250 Volts AC 1.5 A
Closing Release Coil Range: 190 to 250 Volts AC 15.0 A
Potential Trip Coil Range: 190 to 250 Volts AC 9.5 A
Before Installing or Operating Read Instructions: GEK-19765
and See Wiring Diagrams Nos: 0139C3410P1 0129C3759 0129C3875 P1
For art List See: GEK-19765
Dimensions (D x W x H): 64" x 42" x 112"
Manual:
https://npeinc.com/manuals/General%20Electric/GEBK67_PDF/GEK-19765%20Oil-Blast%20Circuit%20Breakers%20Types%20FKD-15.5-8900-5%20-18000-5%20-11000-4%20with%20ML-10-3%20Mechanism.pdf
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
General Electric
GE
MPN: FKD-15.5-18000-5
USED
Oil-Blast Distribution Circuit Breaker
1200 Amp | 15.5 kV
- Name Plate Information -
No: 0 442A5944-101 - Year Mfd: 1972 - Type: FKD-15.5-18000-5 Type: PVDB1 15.5-20-2 - Rating: 15500 Volts - Max: 1200 Amp
60 Cycles - BIL: 110 kV - Voltage Range Factor "K": 1.29
Rated Short-Circuit Current: 18000 Amps Sym
Rated Interrupting Time: 5 Cycles - Height to Remove Bushing: 11 Ft 3
Weight of Tank with Oil: 595 lbs - Oil Per Tank: 60 Gal
Weight of Breaker with Oil: 2050 lbs
Motor Charged Spring Operated Mechanism Type: ML 10-3
Motor Operating Range: 190 to 250 Volts AC 1.5 A
Closing Release Coil Range: 190 to 250 Volts AC 15.0 A
Potential Trip Coil Range: 190 to 250 Volts AC 9.5 A
Before Installing or Operating Read Instructions: GEK-19765
and See Wiring Diagrams Nos: 0139C3410P1 0129C3759 0129C3875 P1
For art List See: GEK-19765
Dimensions (D x W x H): 64" x 42" x 112"
Manual:
https://npeinc.com/manuals/General%20Electric/GEBK67_PDF/GEK-19765%20Oil-Blast%20Circuit%20Breakers%20Types%20FKD-15.5-8900-5%20-18000-5%20-11000-4%20with%20ML-10-3%20Mechanism.pdf
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
SKU:
PM3091
UPC:
4065977714523
Condition:
Refurbished
Availability:
Ships within 0-1 business days of full payment. Expedited shipping available.
Width:
42
Height:
112
Depth:
64
Warranty:
30 day warranty.
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
SKU:
PM3091
MPN:
FKD-15.5-18000-5
Approx Shipping Dims (LxWxH):
64.000" x 42.000" x 112.000"
Approx Shipping Weight:
2100.0000
Location:
Epsilon Floor
Phases:
3 Phase
Amperage:
1200 Amp
Voltage:
15 kV
Outdoor Rated?:
Outdoor Rated (NEMA 3R or 4X)
Listed:
10/2/2020
eBay Listing:
275810778285
UPC:
4065977714523
