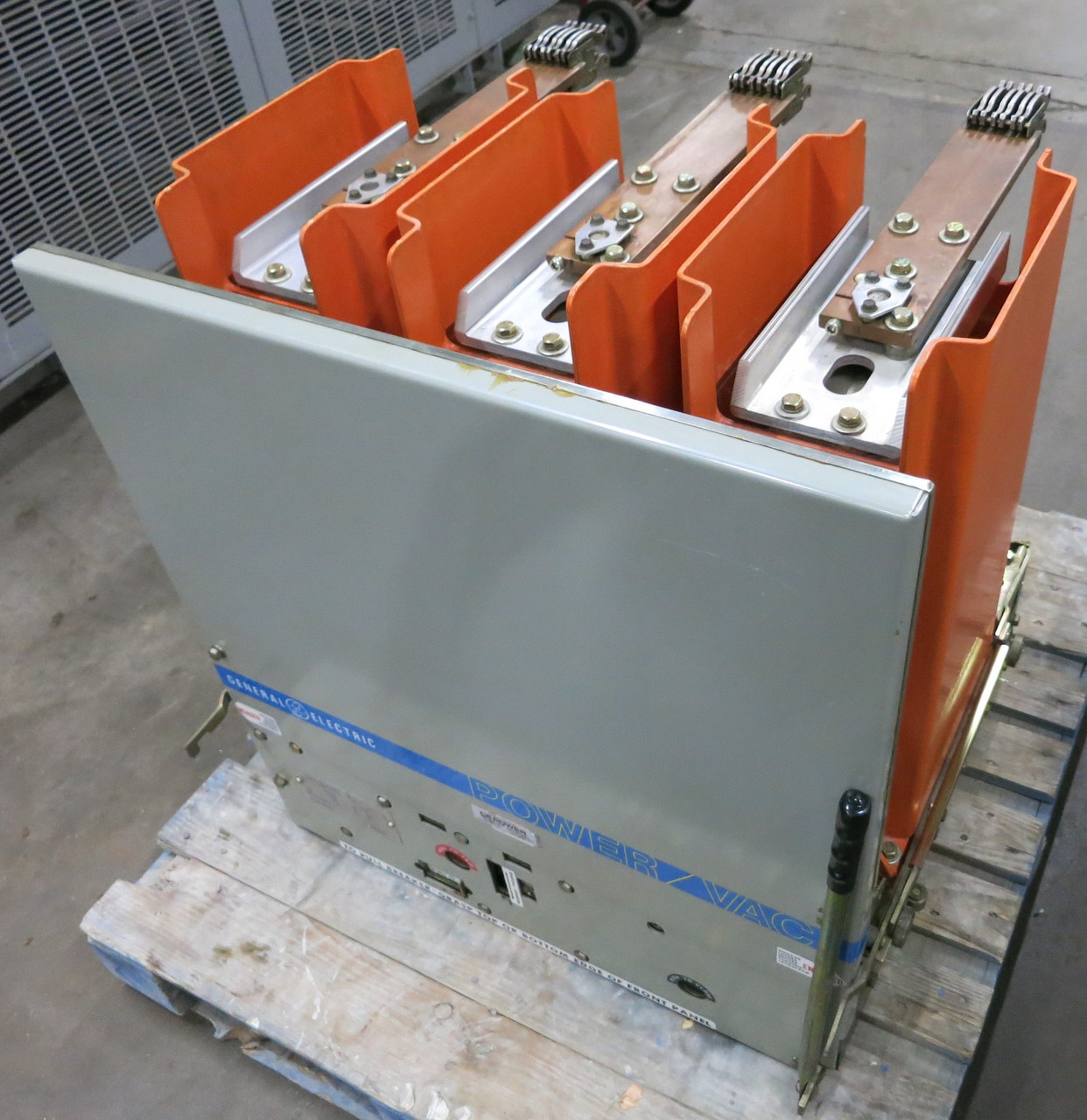

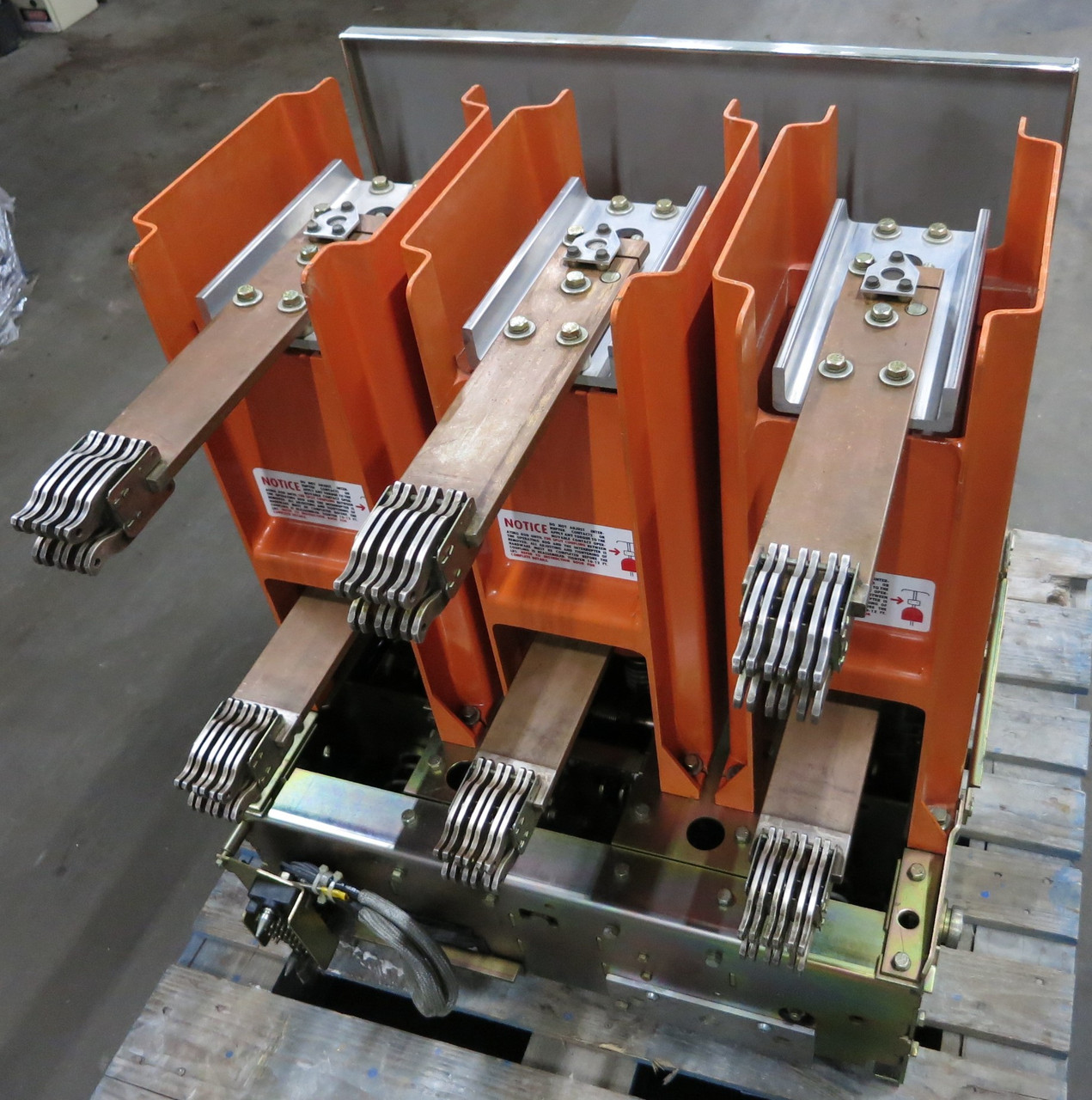

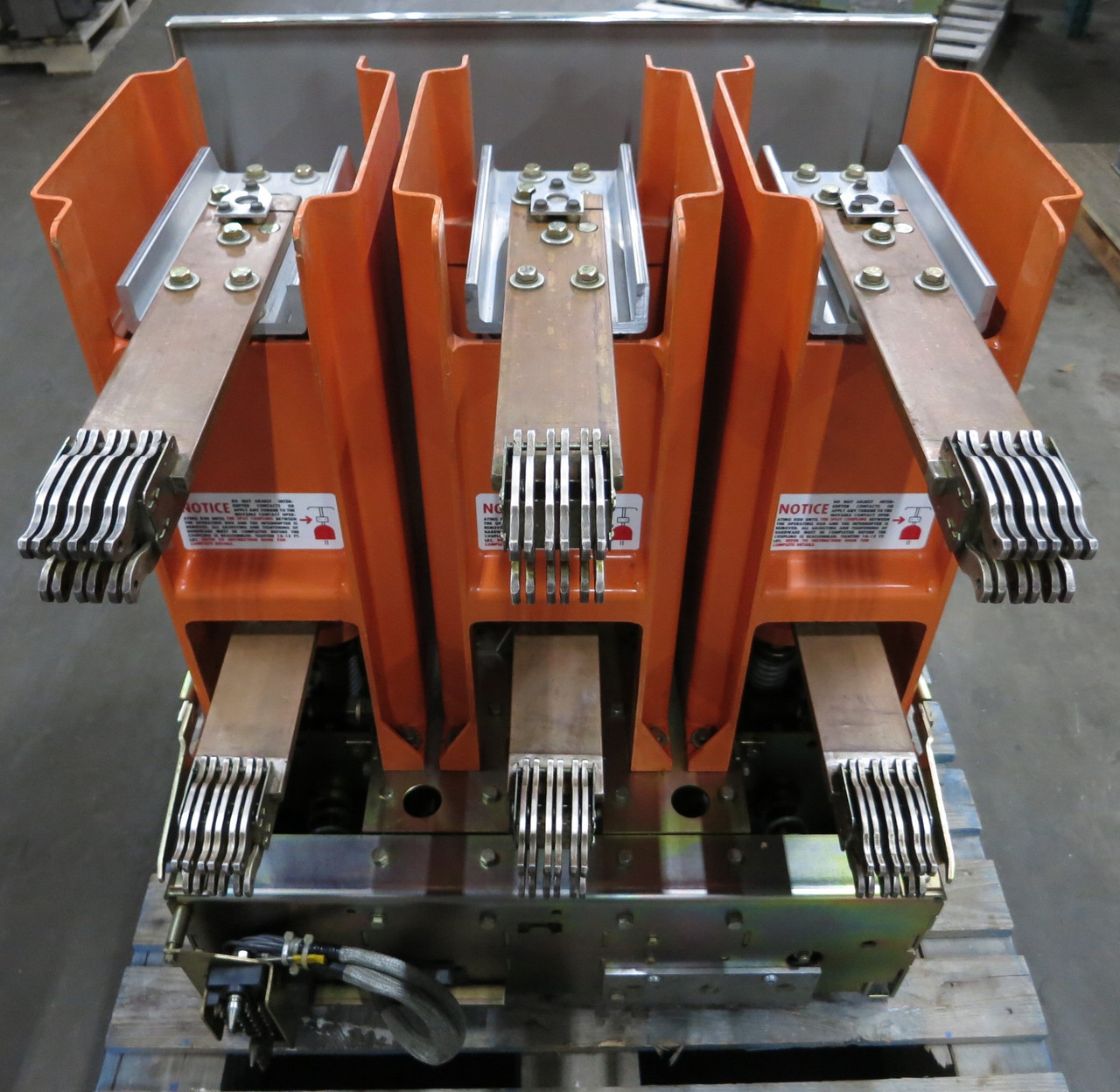

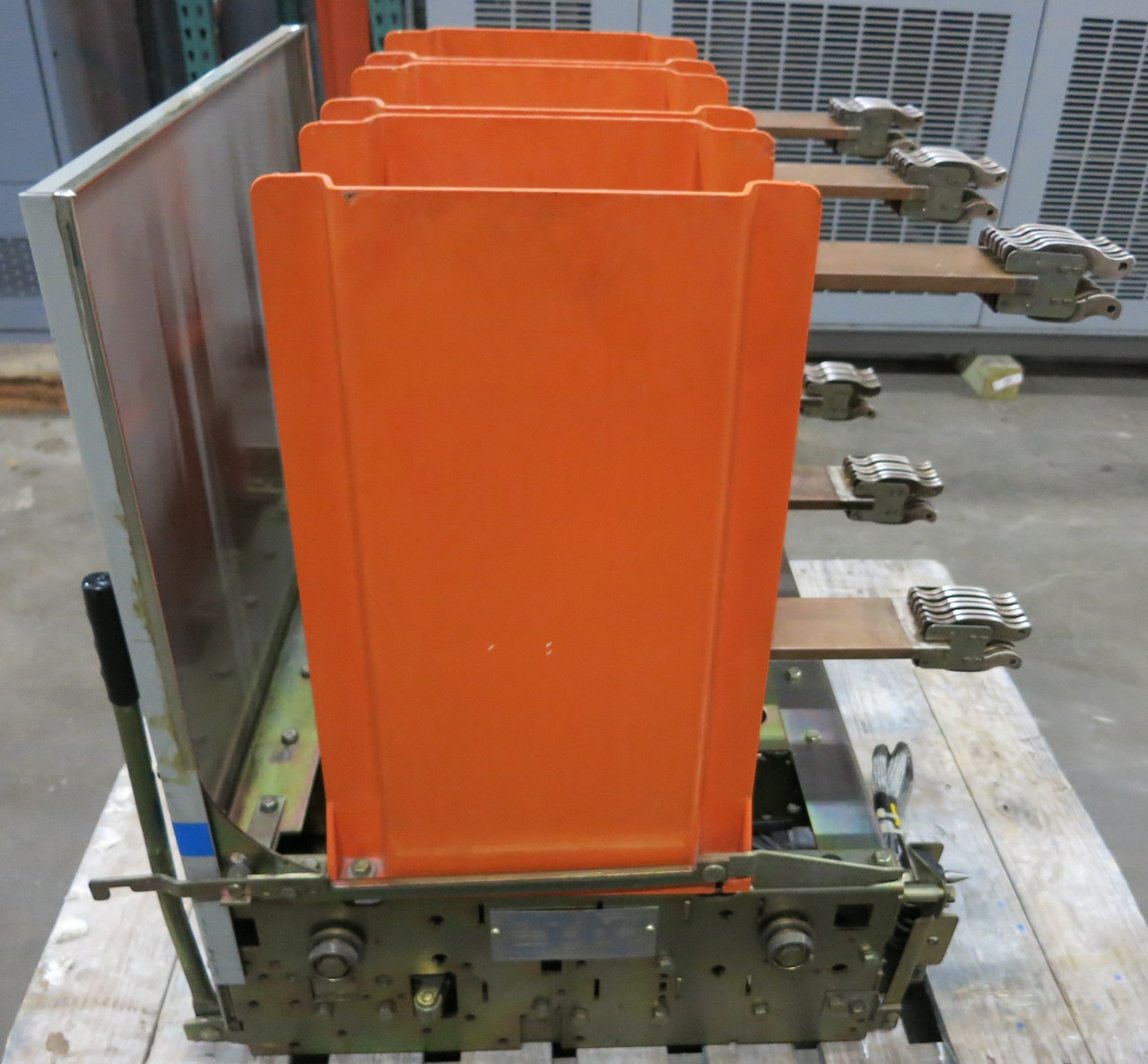

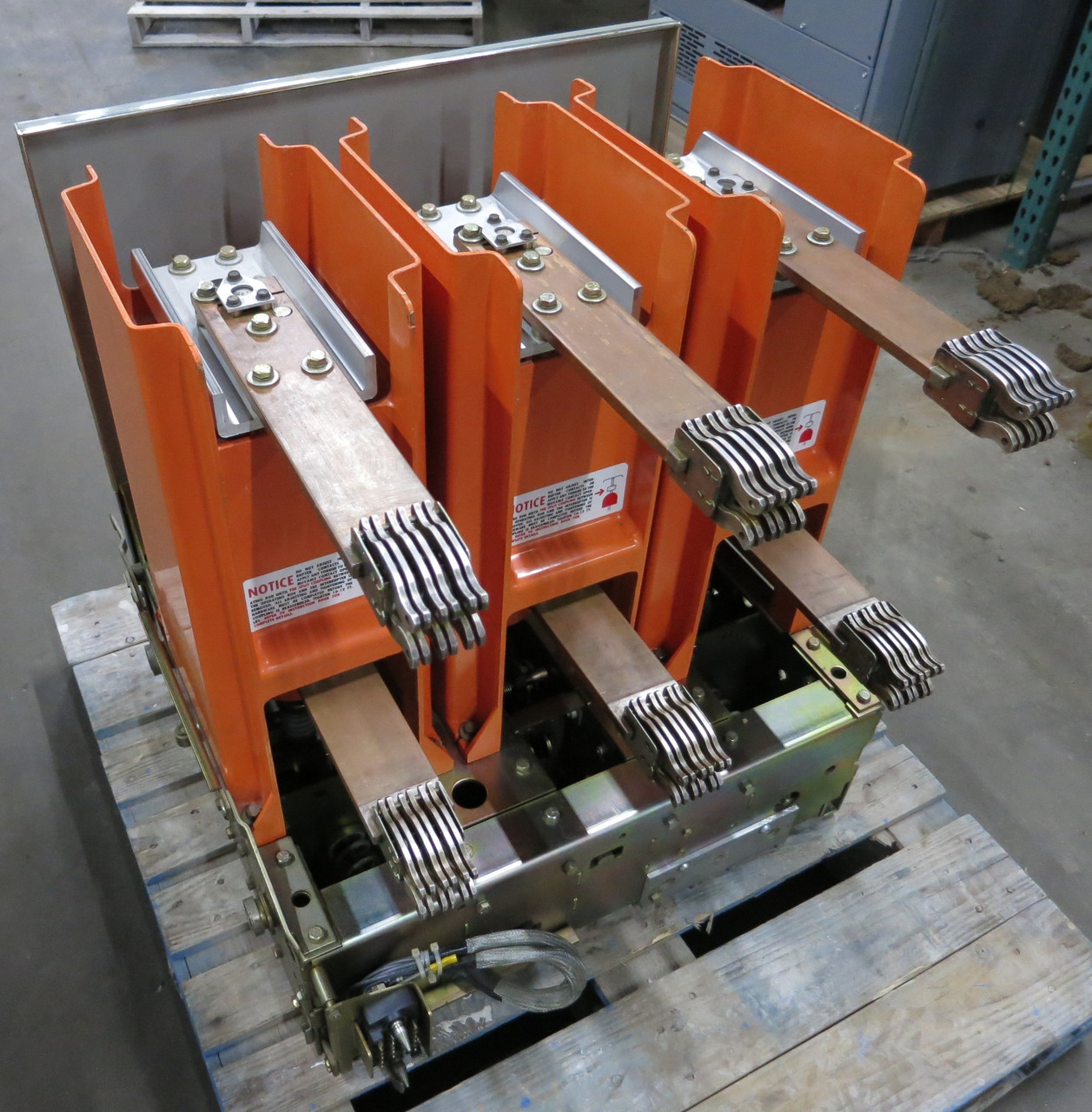

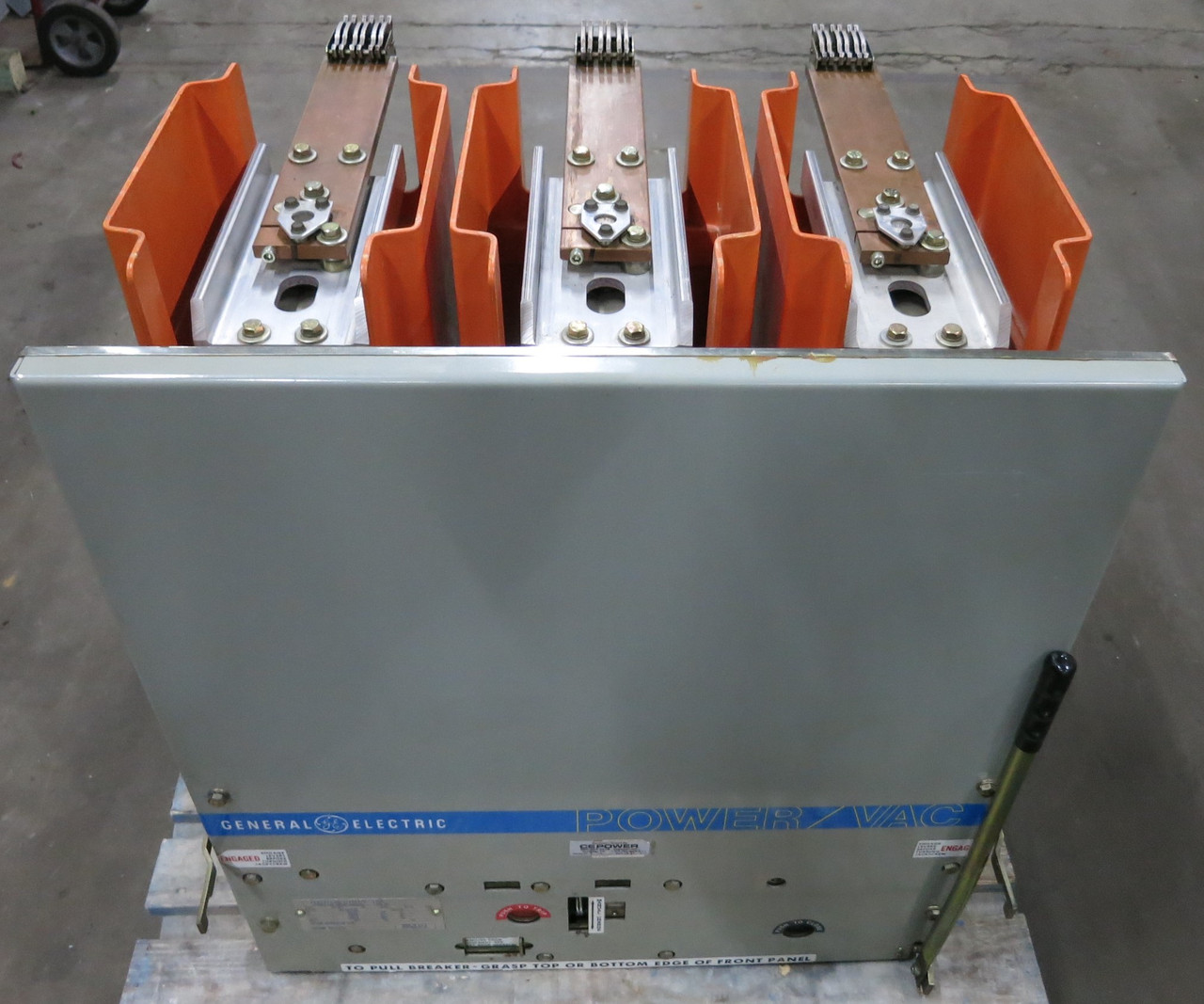

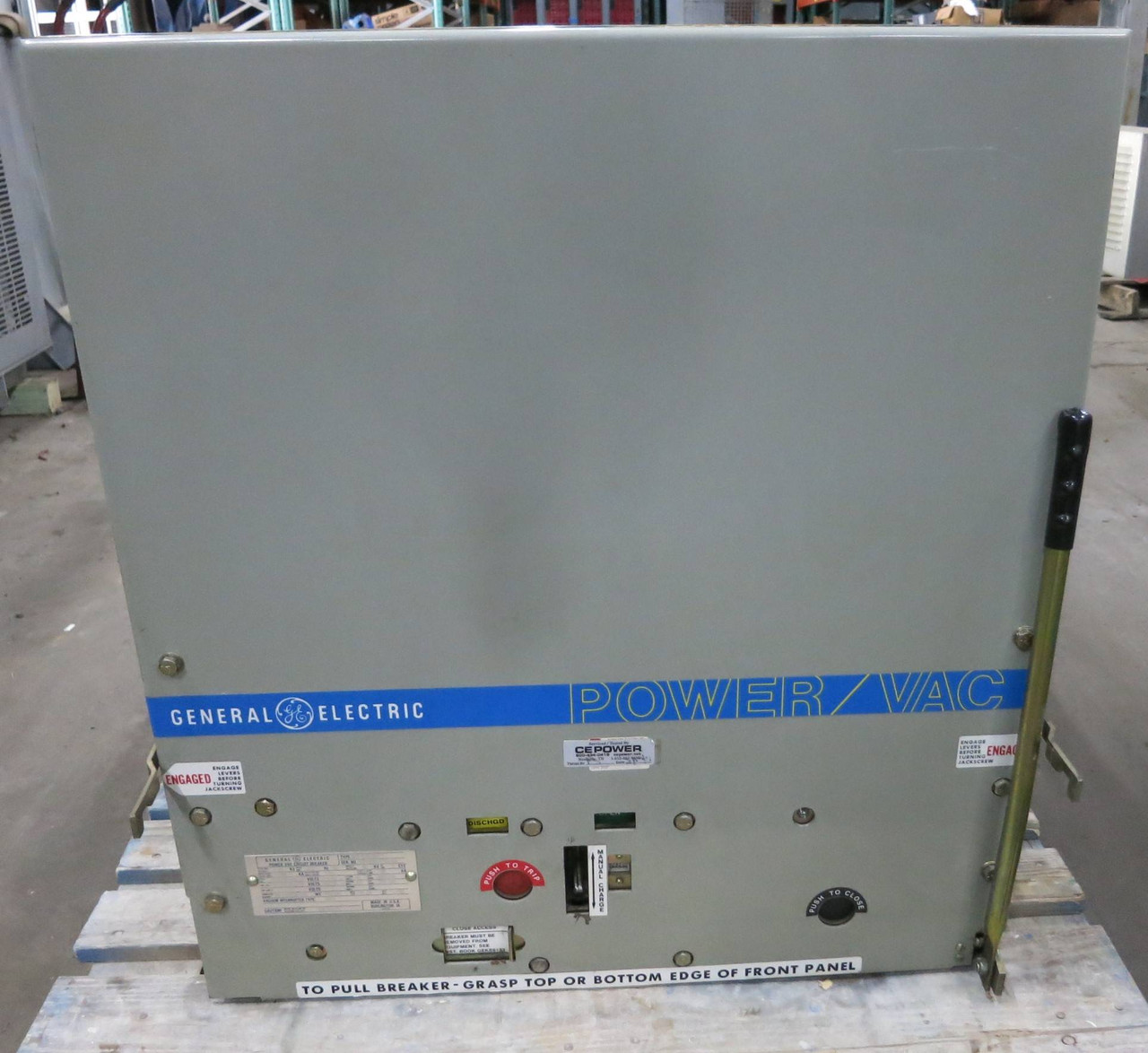

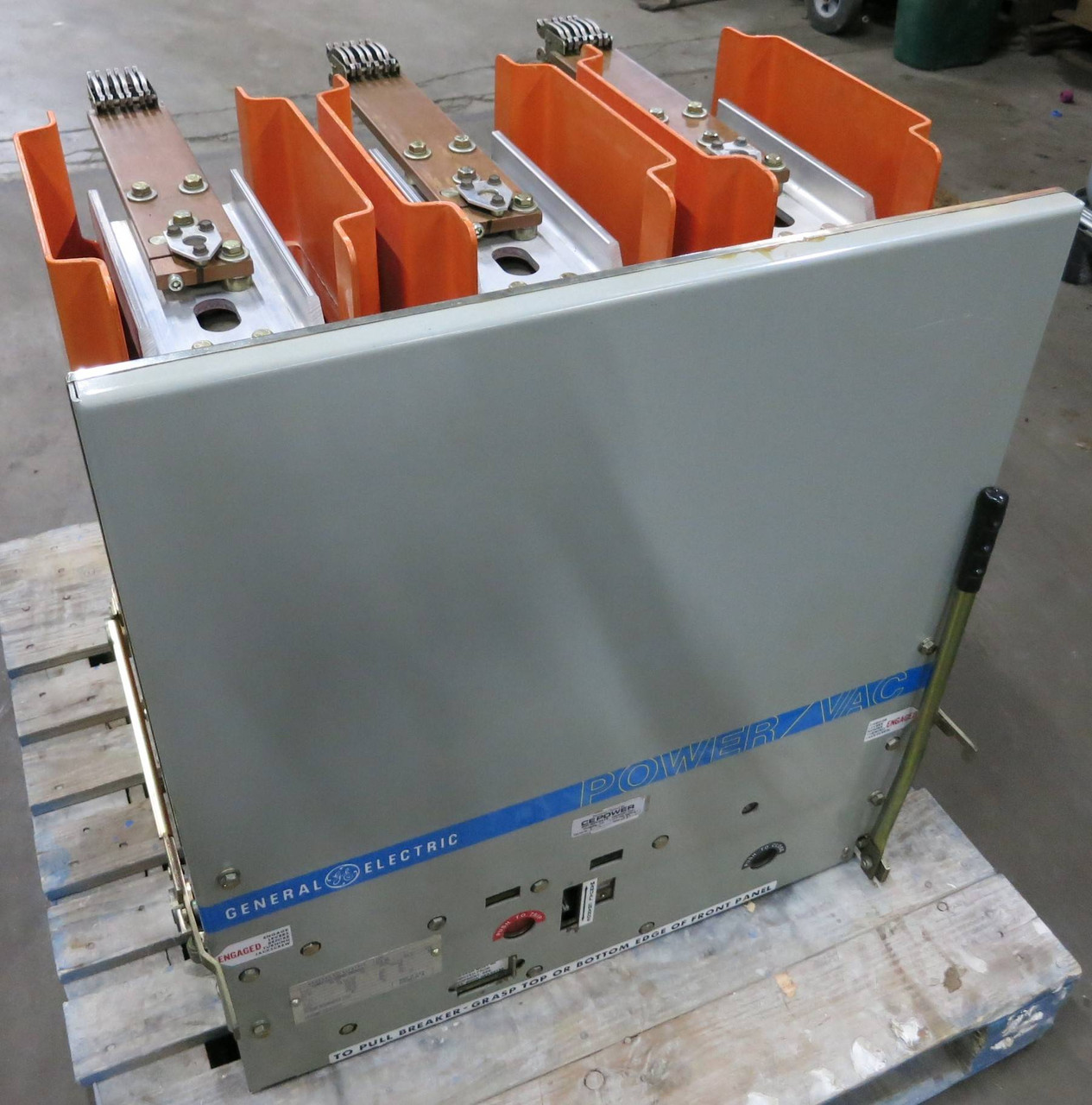

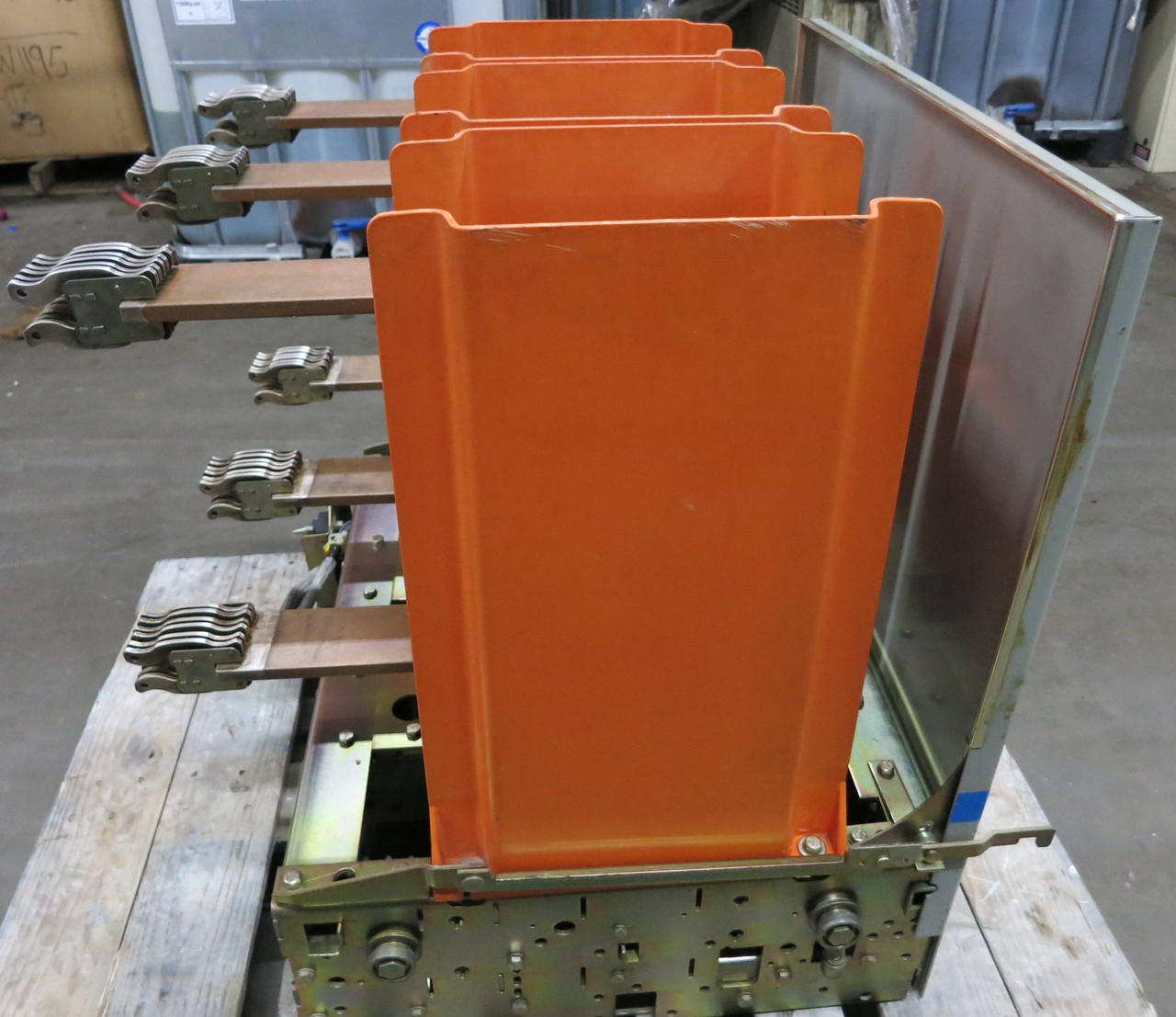

GE Power/Vac 1200A VB1 4.16-250-1 5 kV Vacuum Breaker General Electric PowerVac (GA0332-8)
SKU:
GA0332
General Electric
GE
MPN: VB1 4.16-250-1
USED
Power Vac Vacuum Circuit Breaker
1200 Amp | 5 KV

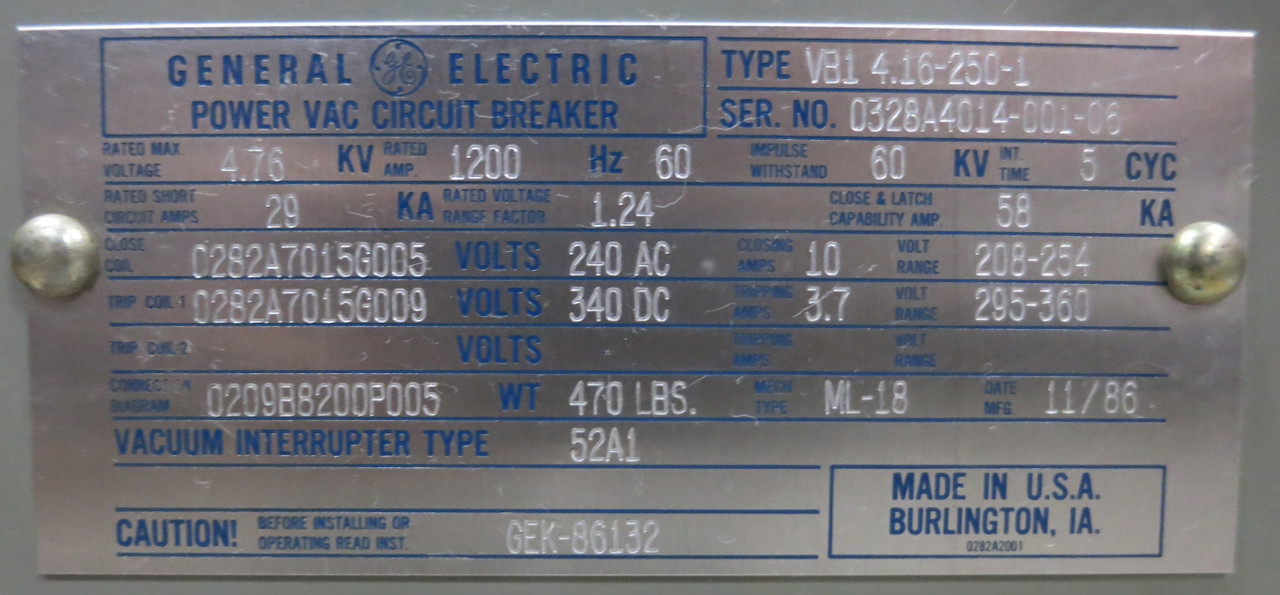

All were charged between 182-380 times- Name Plate Information -
Type: VB1 14.6-250-1
Rated Max Voltage: 5 kV - Rated Amp. 1200 - Hz: 60 - Impulse Withstand: 60 kV - Int. Time: 5 Cyc
Rated Short Circuit Amps: 29 kA - Rated Voltage Range Factor: 1.24 - Close & Latch Capability Amp.: 58 kA
Close Coil: 0282A7015G005 - Volts: 240 AC - Closing Amps.: 10 - Volt Range: 208-254
Trip Coil 1: 0282A7015G009 - Volts: 340 DC - Tripping Amps.: 3.7 - Volt Range: 295-360
Connection Diagram: 0209B3602P005 - WT: 470 lbs - Mech Type: ML-18 - Date MFG: 11/86
Vacuum,. Interrupter Type: 52A1
Before Installing or Operating Read Inst. GEK-86132
Breaker Dimensions: 33" x 34" x 31"
Breaker Weight: 470 lbs
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
General Electric
GE
MPN: VB1 4.16-250-1
USED
Power Vac Vacuum Circuit Breaker
1200 Amp | 5 KV
All were charged between 182-380 times- Name Plate Information -
Type: VB1 14.6-250-1
Rated Max Voltage: 5 kV - Rated Amp. 1200 - Hz: 60 - Impulse Withstand: 60 kV - Int. Time: 5 Cyc
Rated Short Circuit Amps: 29 kA - Rated Voltage Range Factor: 1.24 - Close & Latch Capability Amp.: 58 kA
Close Coil: 0282A7015G005 - Volts: 240 AC - Closing Amps.: 10 - Volt Range: 208-254
Trip Coil 1: 0282A7015G009 - Volts: 340 DC - Tripping Amps.: 3.7 - Volt Range: 295-360
Connection Diagram: 0209B3602P005 - WT: 470 lbs - Mech Type: ML-18 - Date MFG: 11/86
Vacuum,. Interrupter Type: 52A1
Before Installing or Operating Read Inst. GEK-86132
Breaker Dimensions: 33" x 34" x 31"
Breaker Weight: 470 lbs
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
