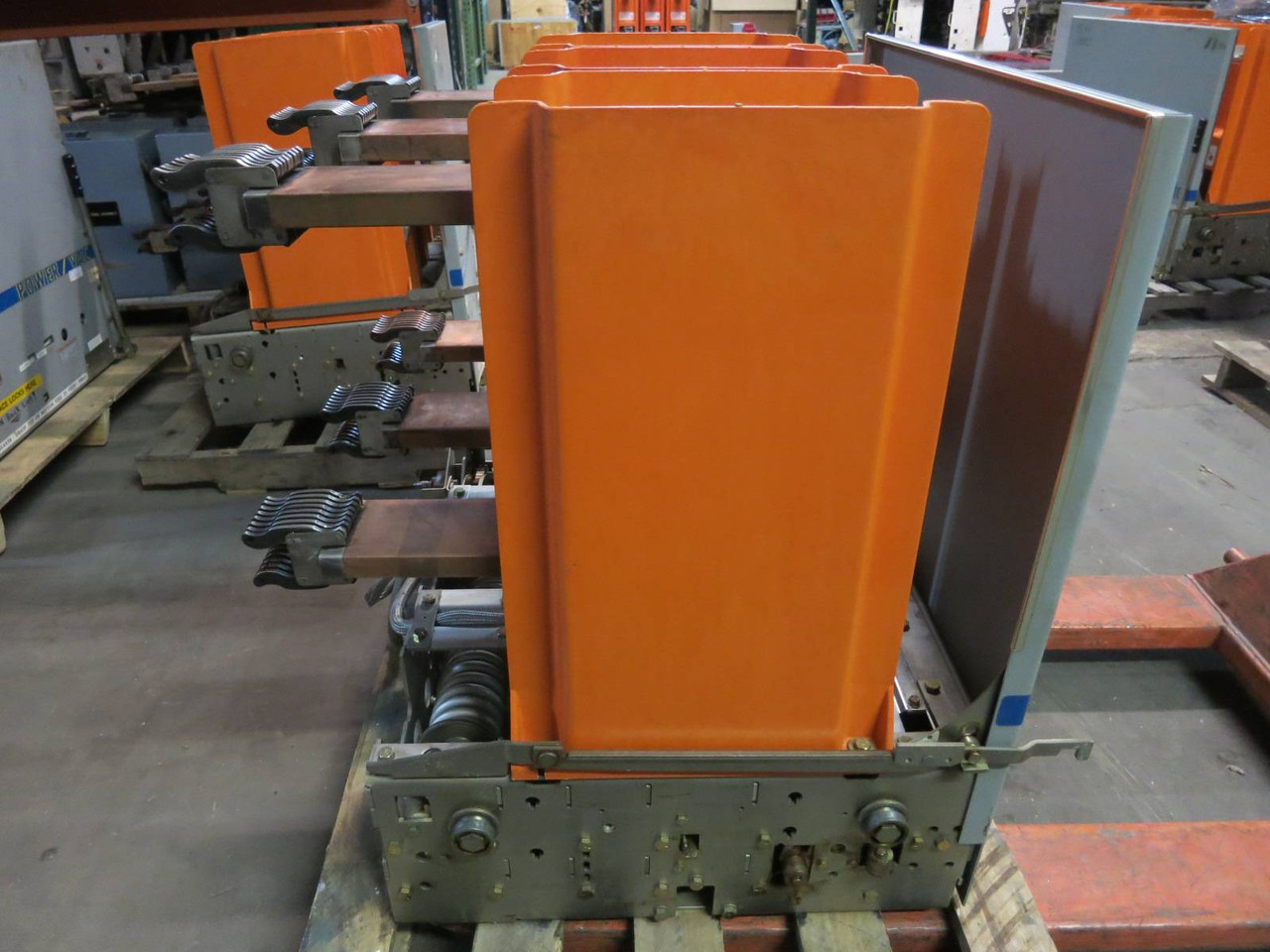

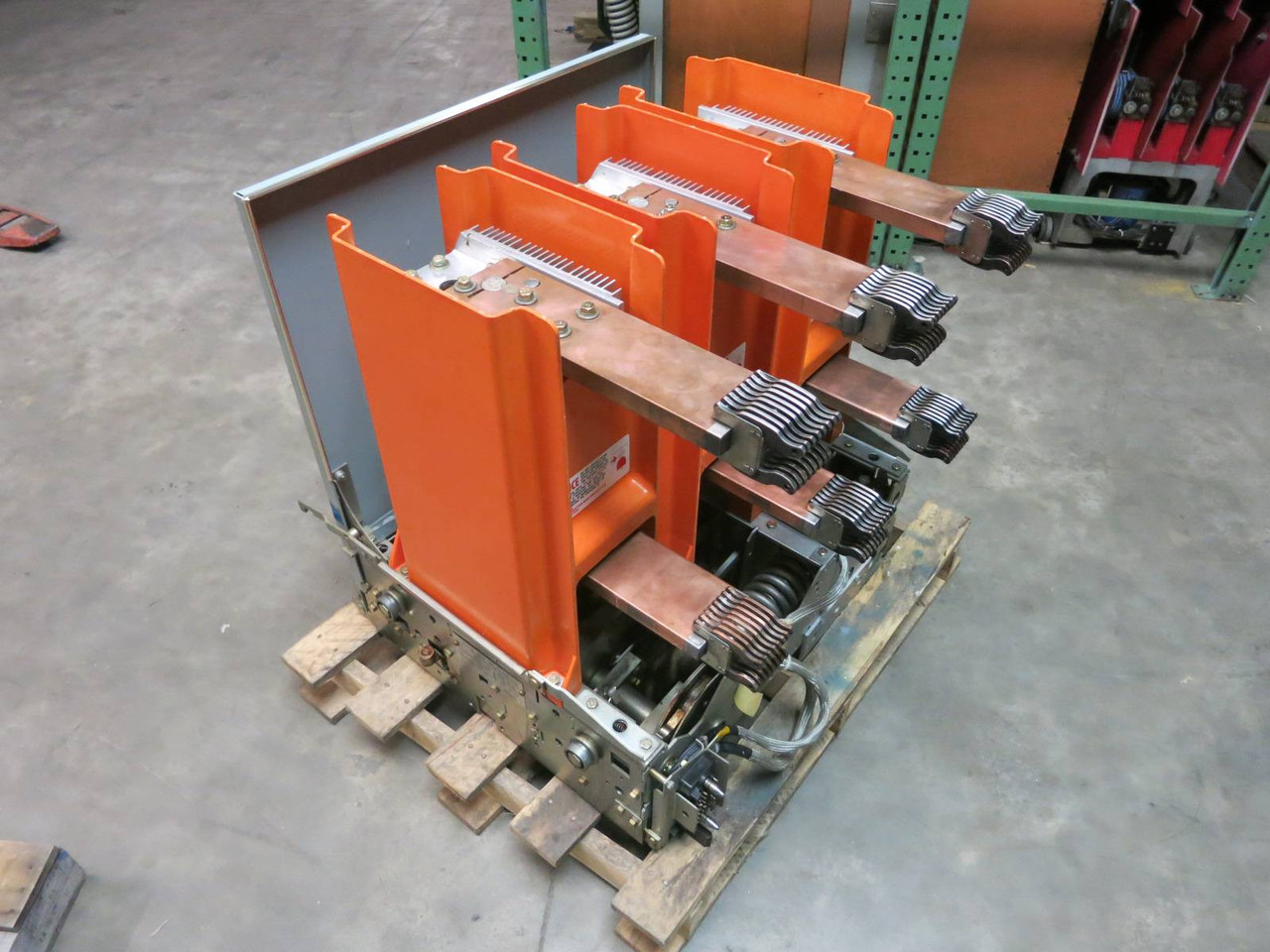

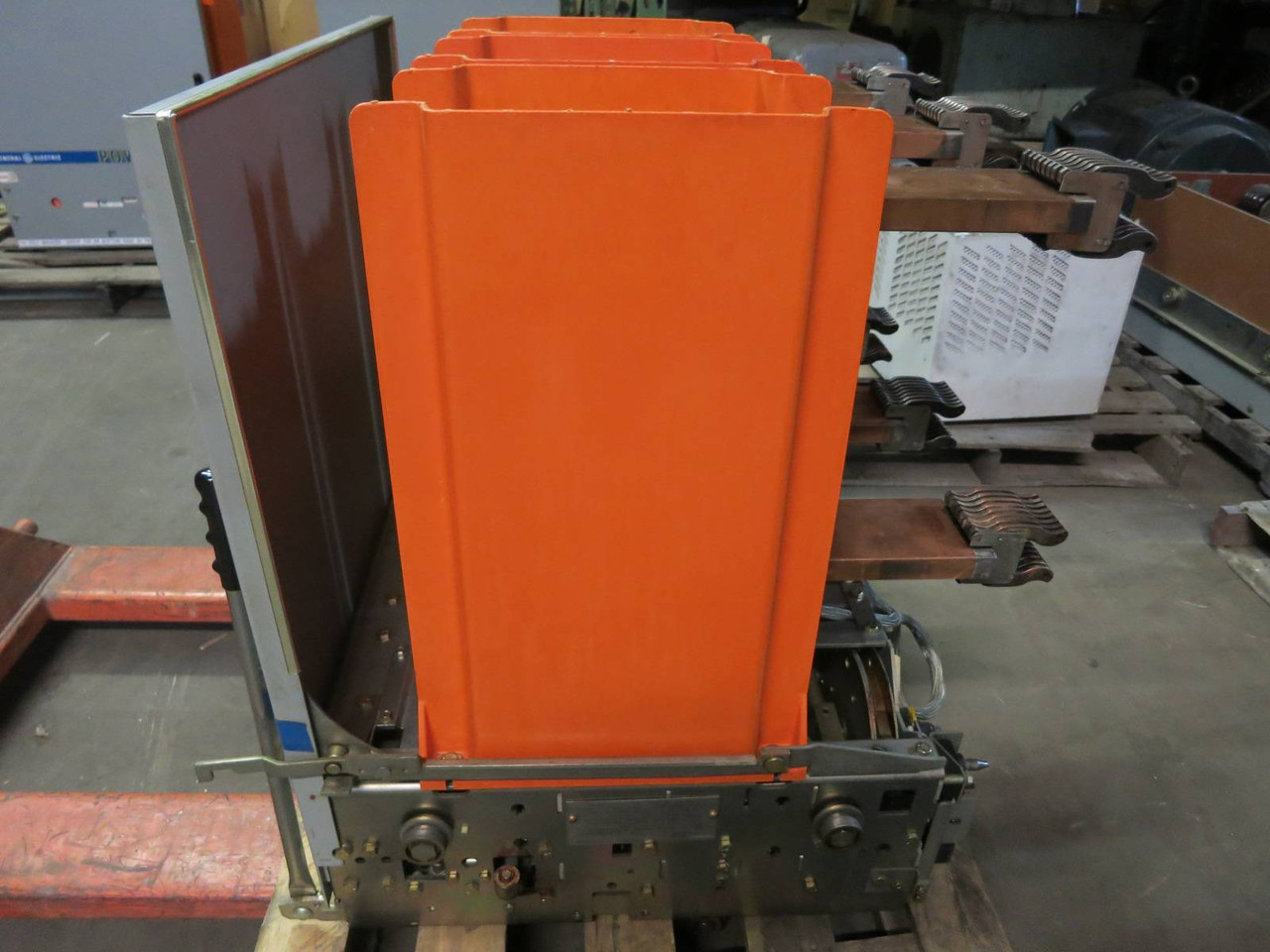

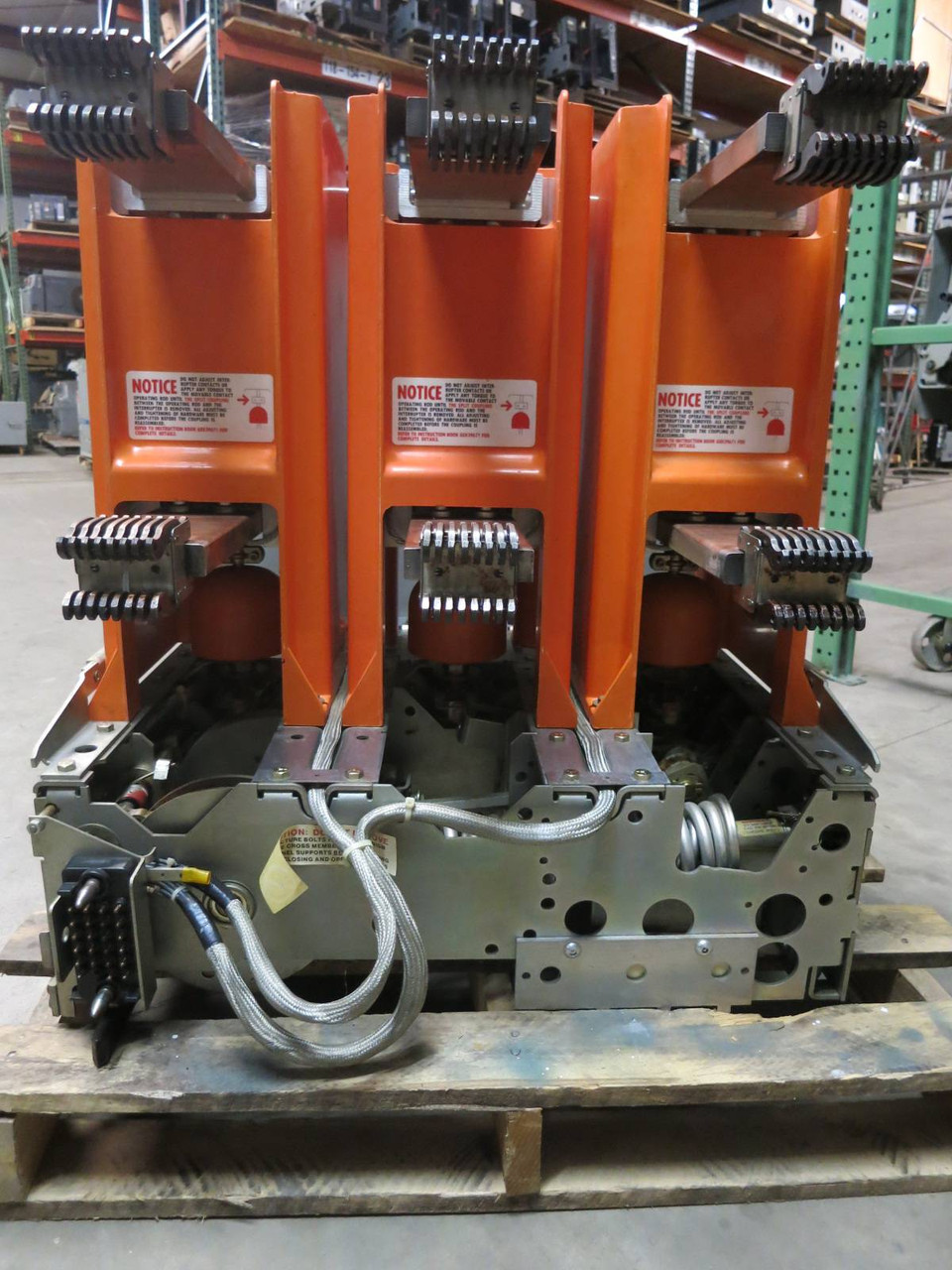

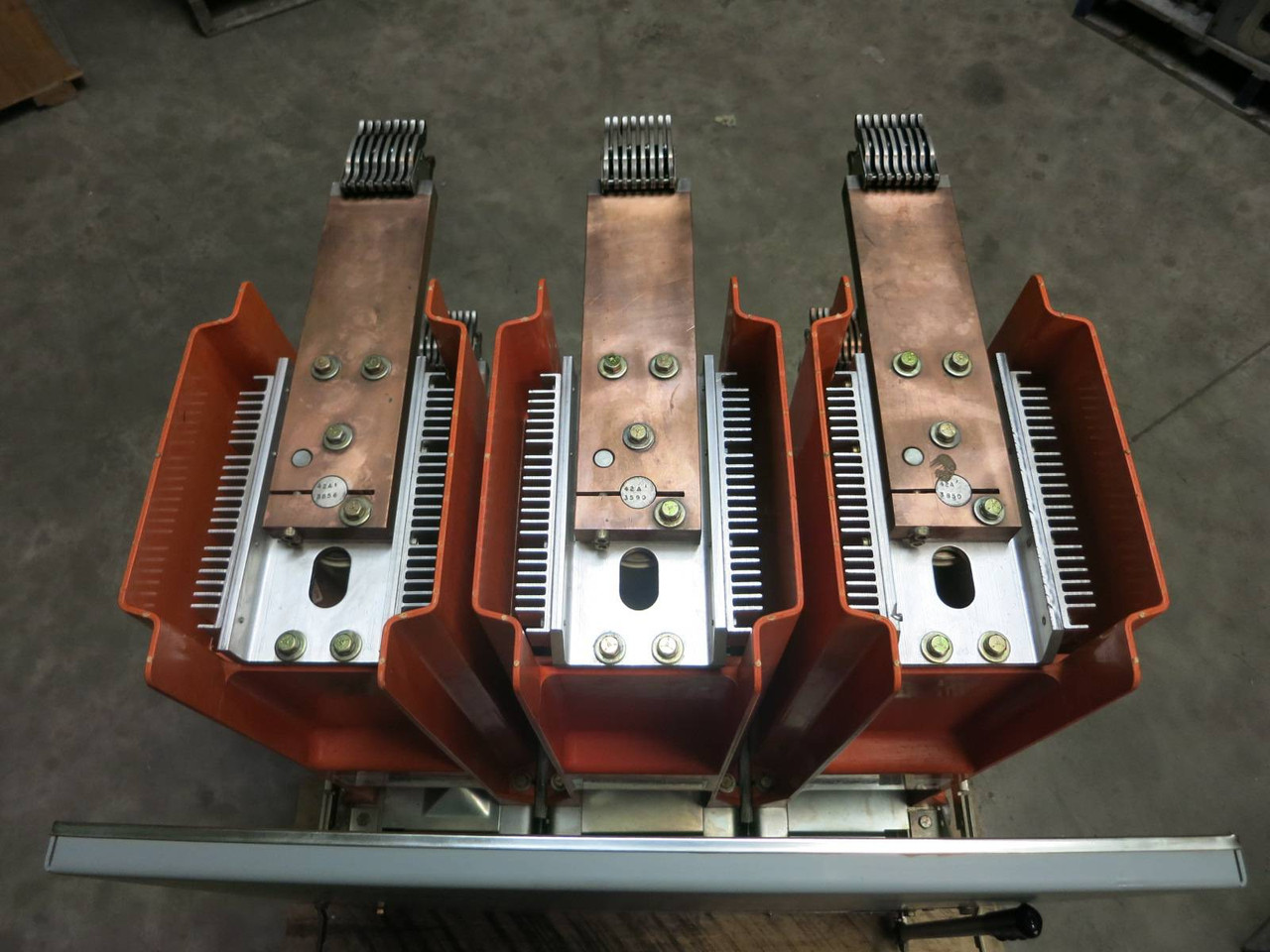

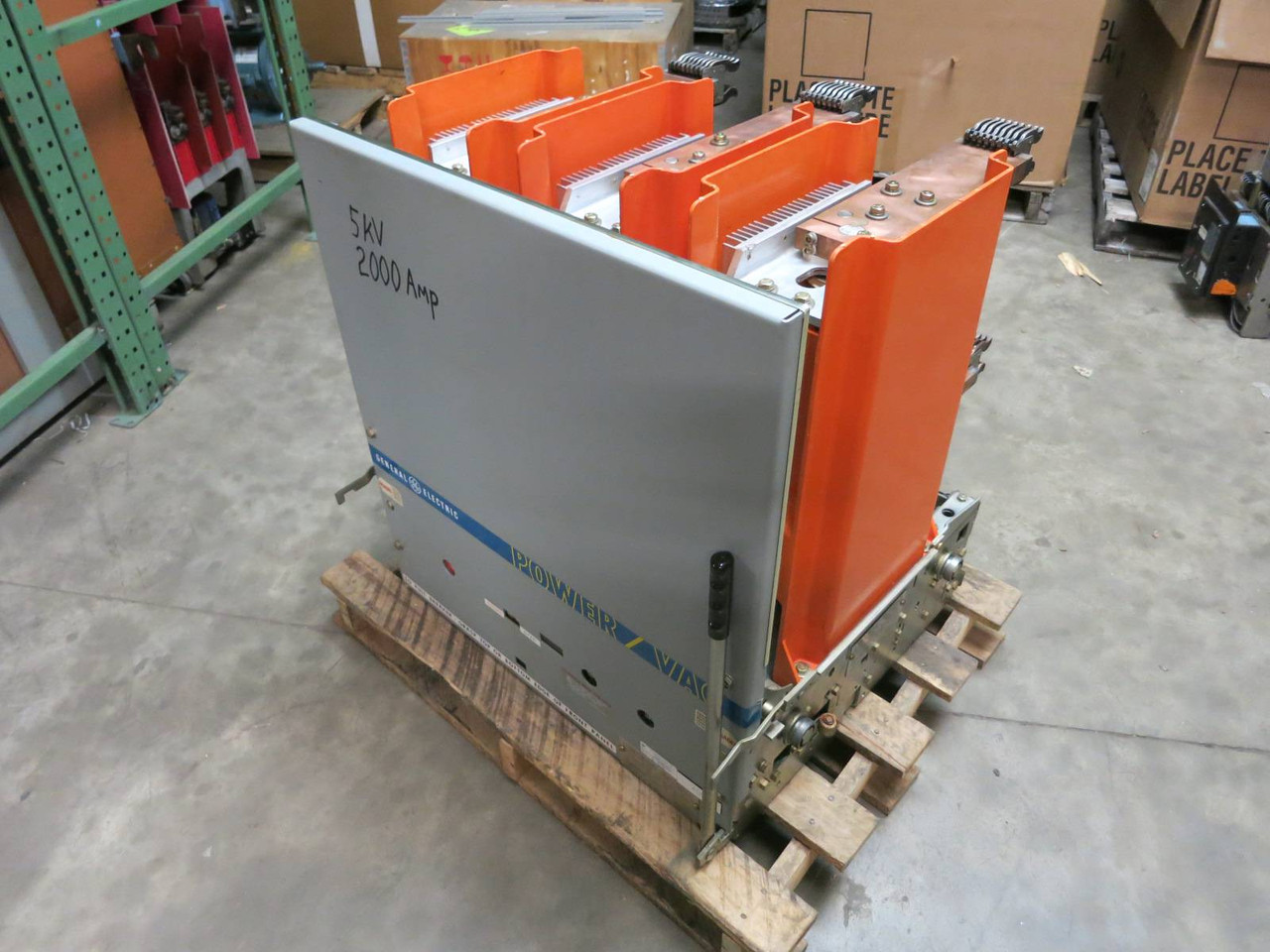

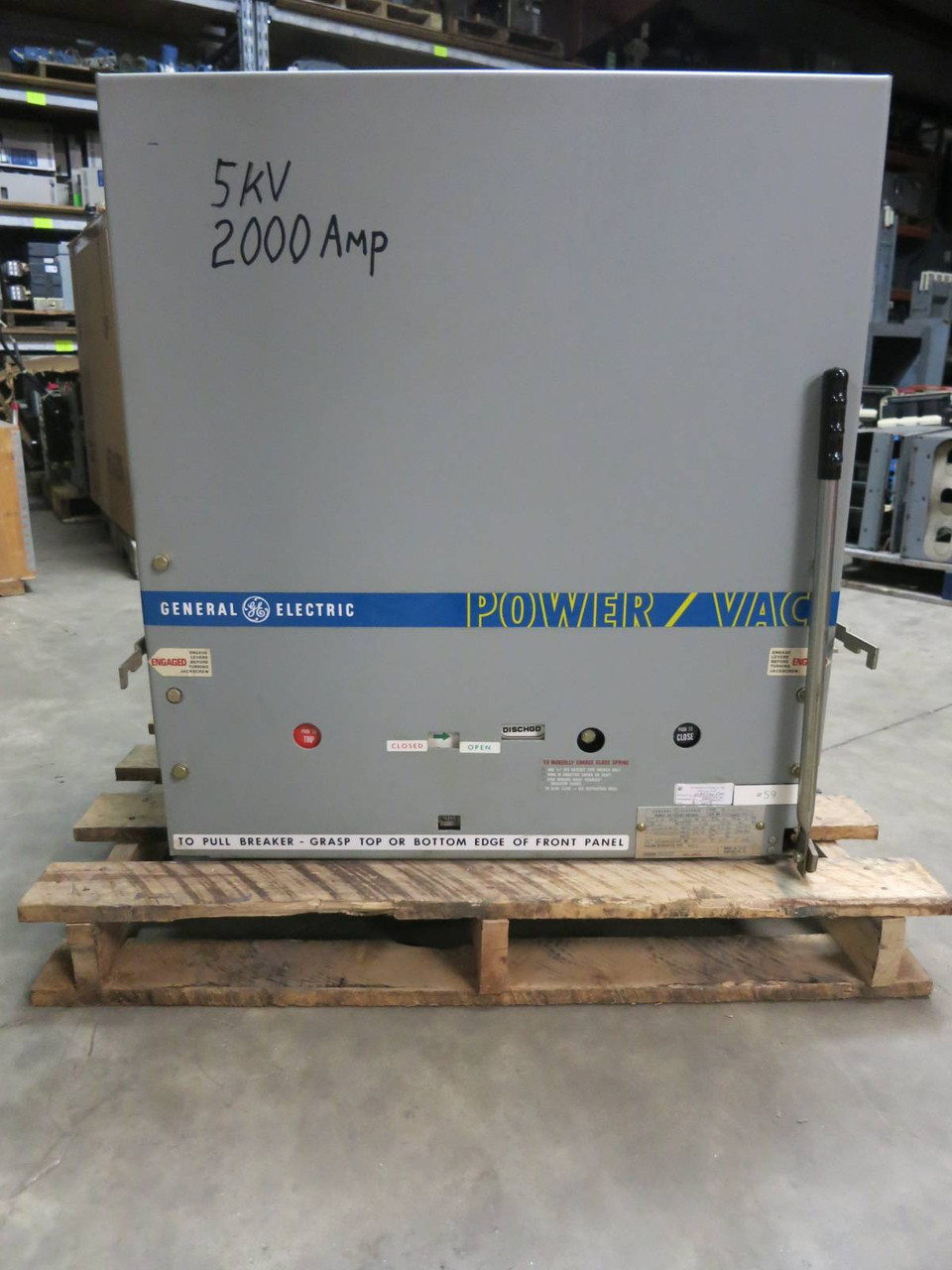

GE Power/Vac 2000A VB 4.16-250-1 5kV Vacuum Breaker General Electric PowerVac (GA0008-1)
SKU:
GA0008
General Electric
GE
MPN: VB 4.16-250-1
USED
Power Vac Vacuum Circuit Breaker
2000 Amps | 5 kV

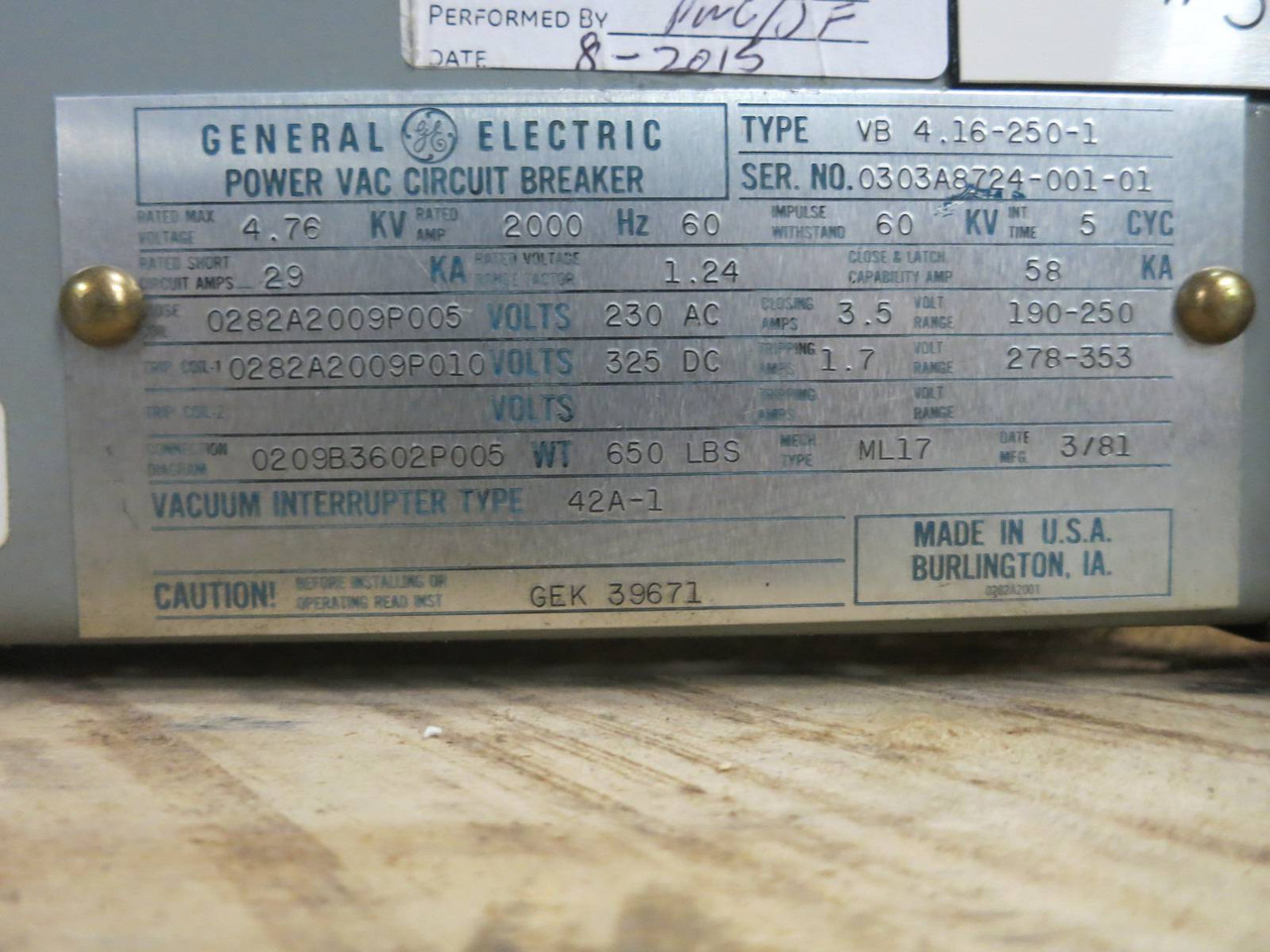

All were charged between 258-261 times- Name Plate Information -
Type: VB 4.16-250-1
Rated Max Voltage: 5 kV - Rated Amp. 2000 - Hz: 60 - Impulse Withstand: 60 kV - Int. Time: 5 Cyc
Rated Short Circuit Amps: 29 kA - Rated Voltage Range Factor: 1.24 - Close & Latch Capability Amp.: 58 kA
Close Coil: 0282A2009P005 - Volts: 230 AC - Closing Amps.: 3.5 - Volt Range: 190-250
Trip Coil 1: 0282A2009P010 - Volts: 325 DC - Tripping Amps.: 1.7 - Volt Range: 278-353
Connection Diagram: 0209B3602P005 - WT: 650 lbs - Mech Type: ML17 - Date MFG: 1981
Vacuu,. Interrupter Type: 42A-1
Before Installing or Operating Read Inst. GEK-39671
Breaker Dimensions: 38" Tall x 32" Wide x 38" Deep - Breaker Weight: 650 lbs
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
General Electric
GE
MPN: VB 4.16-250-1
USED
Power Vac Vacuum Circuit Breaker
2000 Amps | 5 kV
All were charged between 258-261 times- Name Plate Information -
Type: VB 4.16-250-1
Rated Max Voltage: 5 kV - Rated Amp. 2000 - Hz: 60 - Impulse Withstand: 60 kV - Int. Time: 5 Cyc
Rated Short Circuit Amps: 29 kA - Rated Voltage Range Factor: 1.24 - Close & Latch Capability Amp.: 58 kA
Close Coil: 0282A2009P005 - Volts: 230 AC - Closing Amps.: 3.5 - Volt Range: 190-250
Trip Coil 1: 0282A2009P010 - Volts: 325 DC - Tripping Amps.: 1.7 - Volt Range: 278-353
Connection Diagram: 0209B3602P005 - WT: 650 lbs - Mech Type: ML17 - Date MFG: 1981
Vacuu,. Interrupter Type: 42A-1
Before Installing or Operating Read Inst. GEK-39671
Breaker Dimensions: 38" Tall x 32" Wide x 38" Deep - Breaker Weight: 650 lbs
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
SKU:
GA0008
UPC:
086156112194
Condition:
Used
Availability:
Ships within 0-1 business days of full payment. Expedited shipping available.
Width:
40
Height:
44
Depth:
48
Warranty:
30 day warranty.
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
MPN:
VB 4.16-250-1
SKU:
GA0008
Phases:
3 Phase
Voltage:
5 kV
Freight Shipping Cost:
324
Listed:
5/22/2015
Approx Shipping Dims (LxWxH):
48.000" x 40.000" x 44.000"
Approx Shipping Weight:
700.0000
Location:
Z = nw corner
eBay Listing:
352503051367
UPC:
086156112194
Amperage:
2000 Amp
Amperage (rated amps):
2000 Amp
