Product Description
Siemens
MPN: SBS2016DV
USED

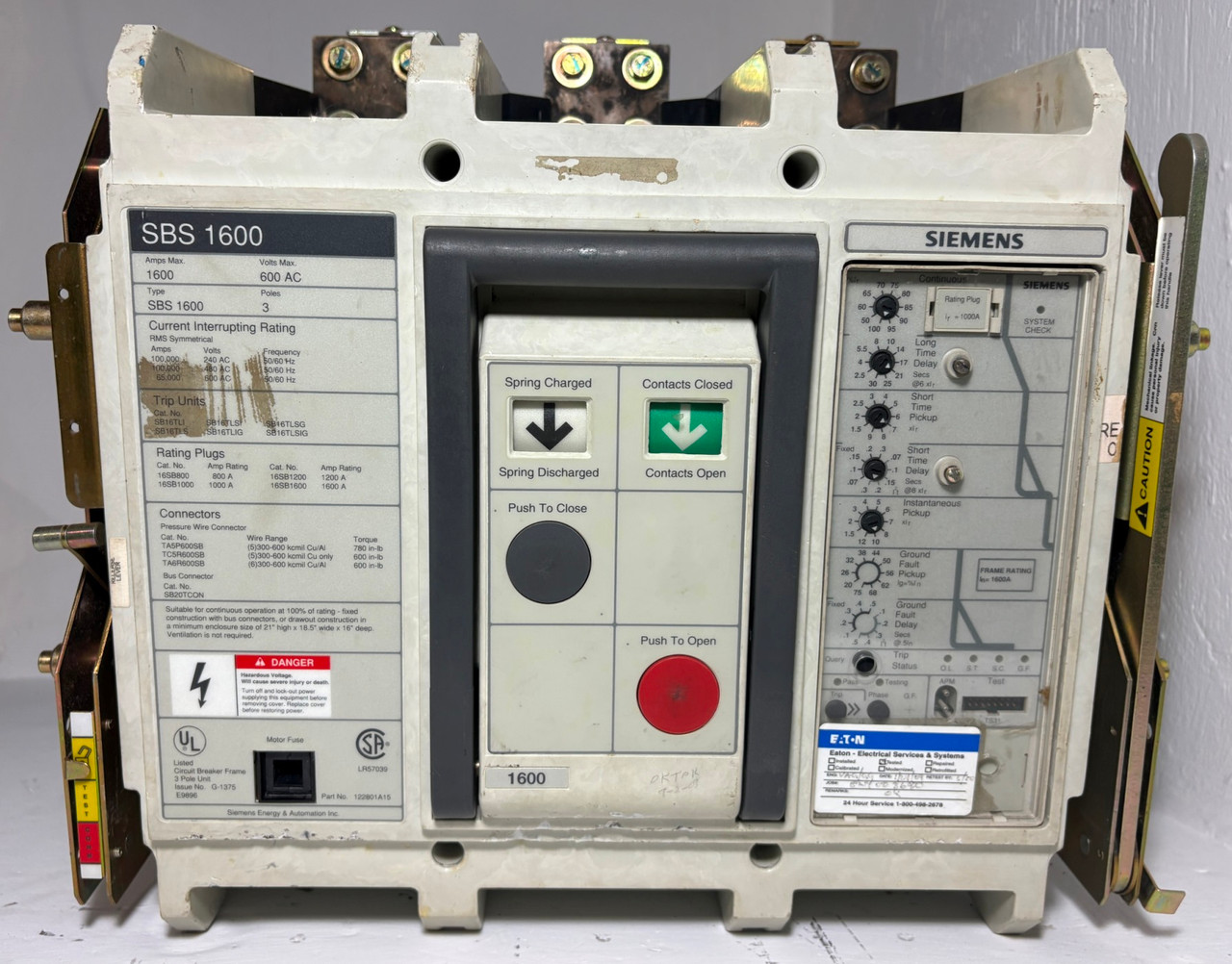

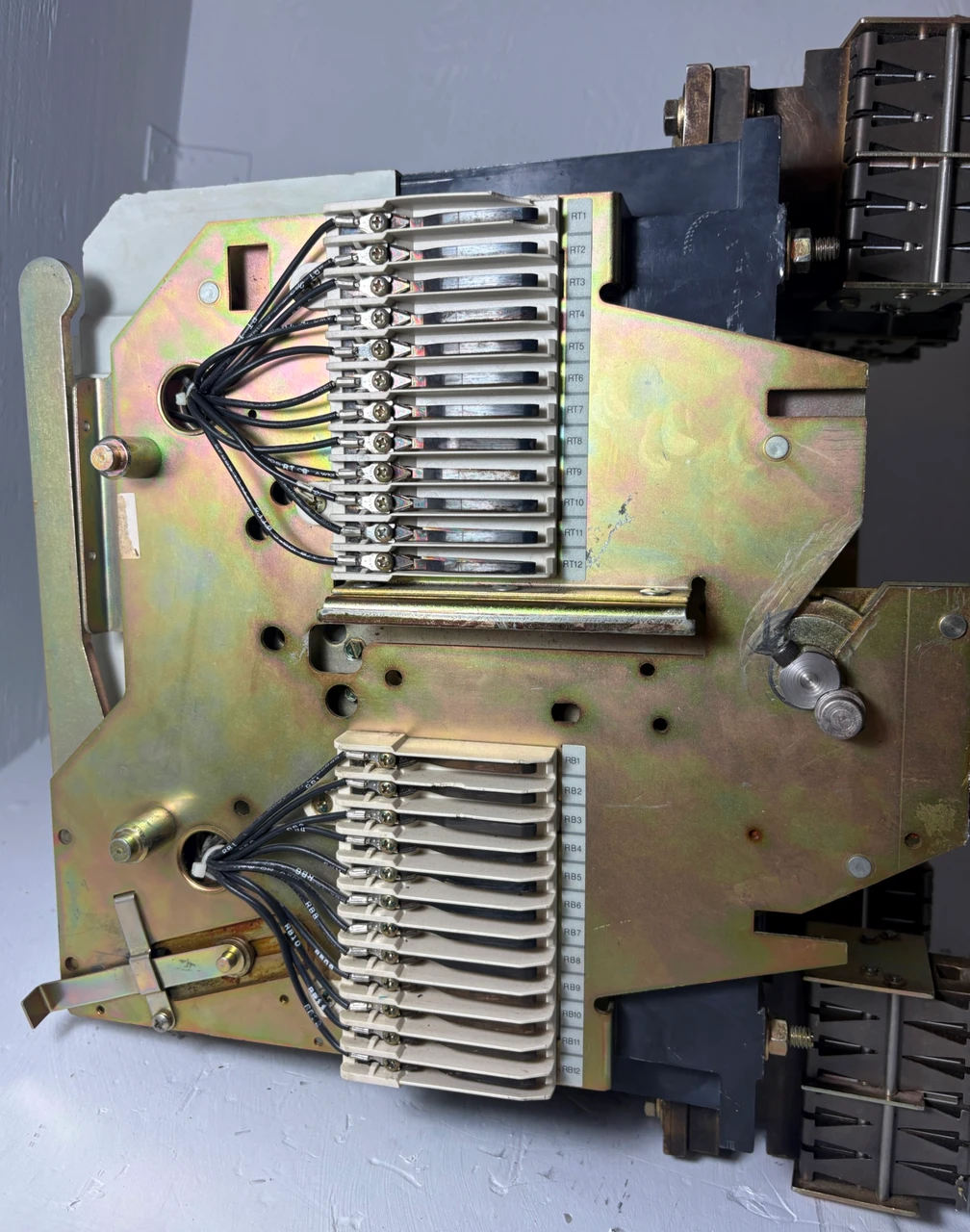

Industrial Circuit Breaker
1600 Amps Max. | 1000 A Plug
SBS 1600
Electrical Operator | 48 VDC Shunt Trip | Auxiliary Switches
LSI
This drawout circuit breaker can be manually or electrically operated
3 Pole
480/600 VAC
Current Interrupting Ratings:
100,000 Amps @ 240 Volts AC
100,000 Amps @ 480 Volts AC
65,000 Amps @ 600 Volts AC
Trip Unit:
1600 Amps
Continuous Setting
Long Time Delay
Short Time Pickup & Delay
Instantaneous Pickup
Rating Plug:
1000 Amps
Cat. No. 16SB1000
Electric Operator:
SBE0120
120 Volts AC
Shunt Trip:
SB4ST24
48 Volts DC
Aux. Switches:
SB4AS12
Breaker Weight: 160 lbs.
Breaker Dimensions (D x W x H): 15" x 19" x 18"
Shipping within 1 business day
30 Day Warranty on all purchases
Your purchase will include what is pictured and described above ONLY.
For more info or pictures, please visit our FAQs or contact us :
423 821-4712 - Sales@RiverCityIndustrial.com
Additional Information
- SKU:
- EM6025
- UPC:
- 634607682842
- Condition:
- Used
- Availability:
- Ships within 0-1 business days of full payment. Expedited shipping available.
- SKU:
- EM6025
- MPN:
- SBS2016DV
- Approx Shipping Dims (LxWxH):
- 48.000" x 40.000" x 21.000"
- Approx Shipping Weight:
- 210.0000
- Location:
- BR 75B = lsi - 1600a - eo - do - shunt - aux - scratching
- Amperage:
- 1600 Amp
- Voltage:
- 480/600 VAC
- Amperage (rated amps):
- 1000 Amp
- UPC:
- 634607682842
- Freight Shipping Cost:
- 242
- Listed:
- 2026-07-13T00:00:00
