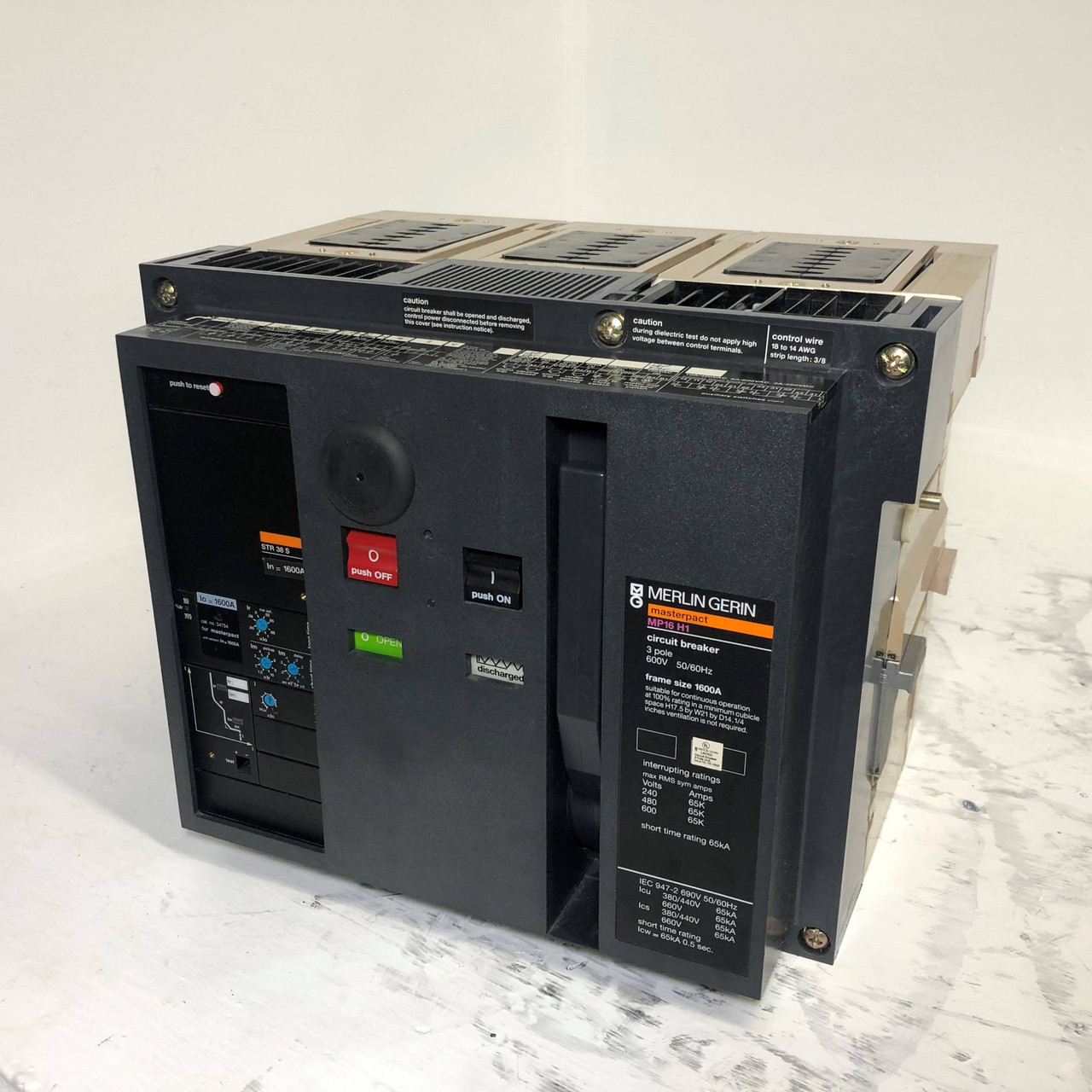

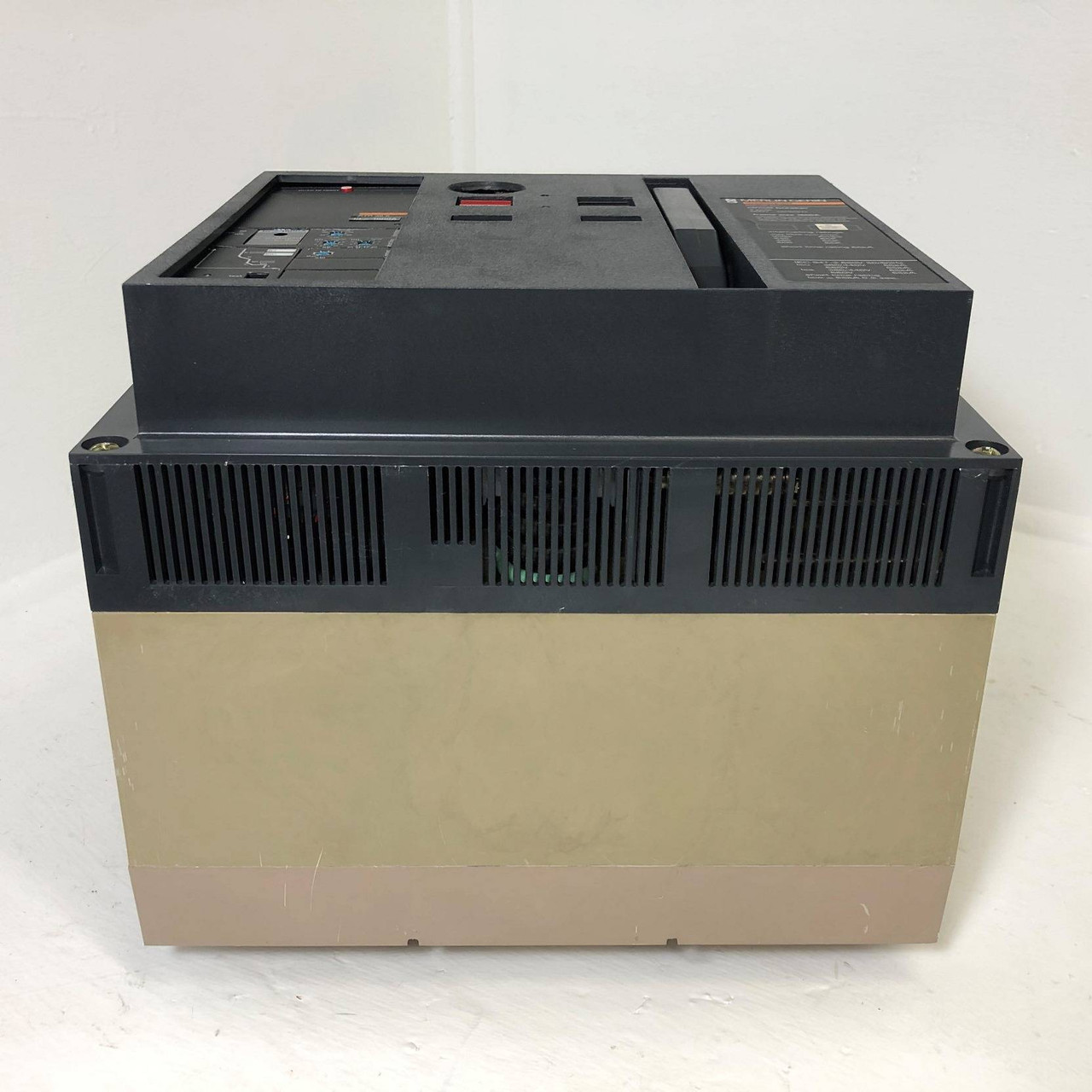

Merlin Gerin MP16H1 1600A LSI Masterpact Circuit Breaker EO w/ 1600 Amp Plug 3P (EM3781-18)
SKU:
EM3781
Merlin Gerin
Square D / Schneider Electric
MPN: MP16H1
USED
EO MasterPact Circuit Breaker
1600 Amps Frame | 1600 A Rating Plug
Shunt Trip | Motor Mechanism
LSI
We have cradles available for these breakers: EM3782Each Breaker is Manually and Electrically Operated
3 Pole
480/600 VAC
50/60 Hz
Short Time Rating: 65kA
Interrupting Ratings Max. RMS Symmetrical:
65,000 Amps @ 240 Volts AC
65,000 Amps @ 480 Volts AC
65,000 Amps @ 600 Volts AC

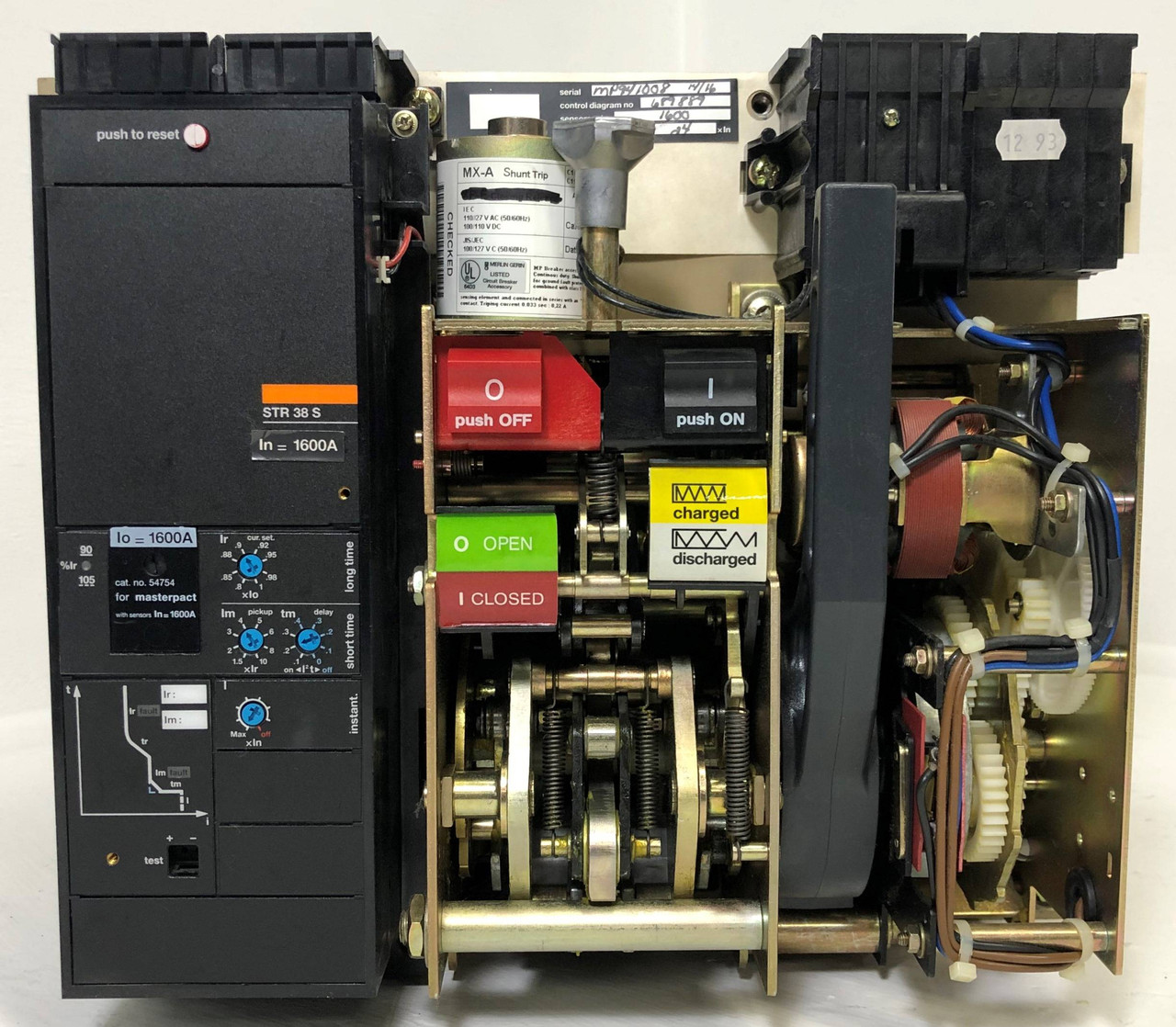

Trip Unit:
STR 38 S
1600 Amps
Long Time Current Setting
Short Time Pickup & Delay
Instantaneous
Rating Plug:
1600 Amps
Cat. No. 54754

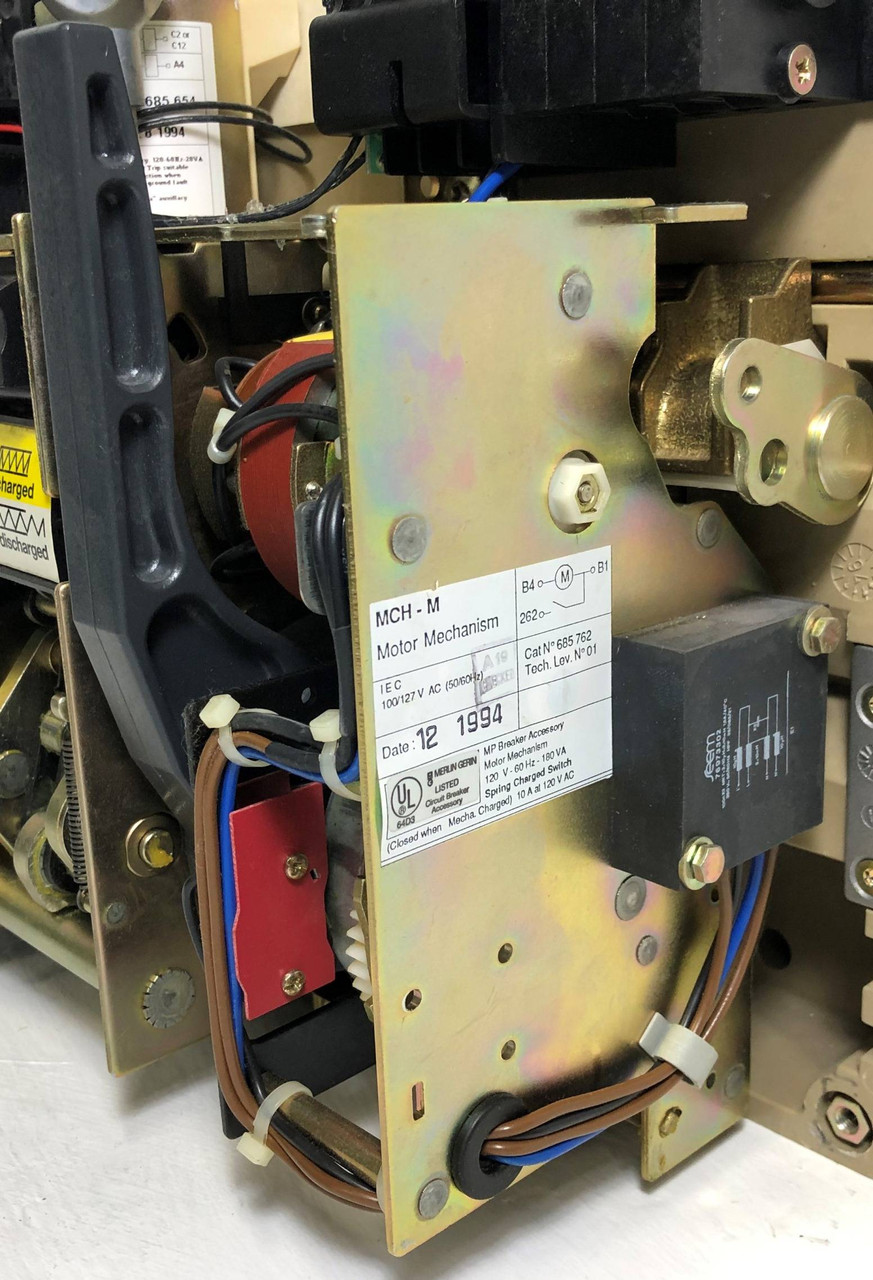

Motor Mechanism:
MCH-M
Cat No 685762
100/127 Volts AC

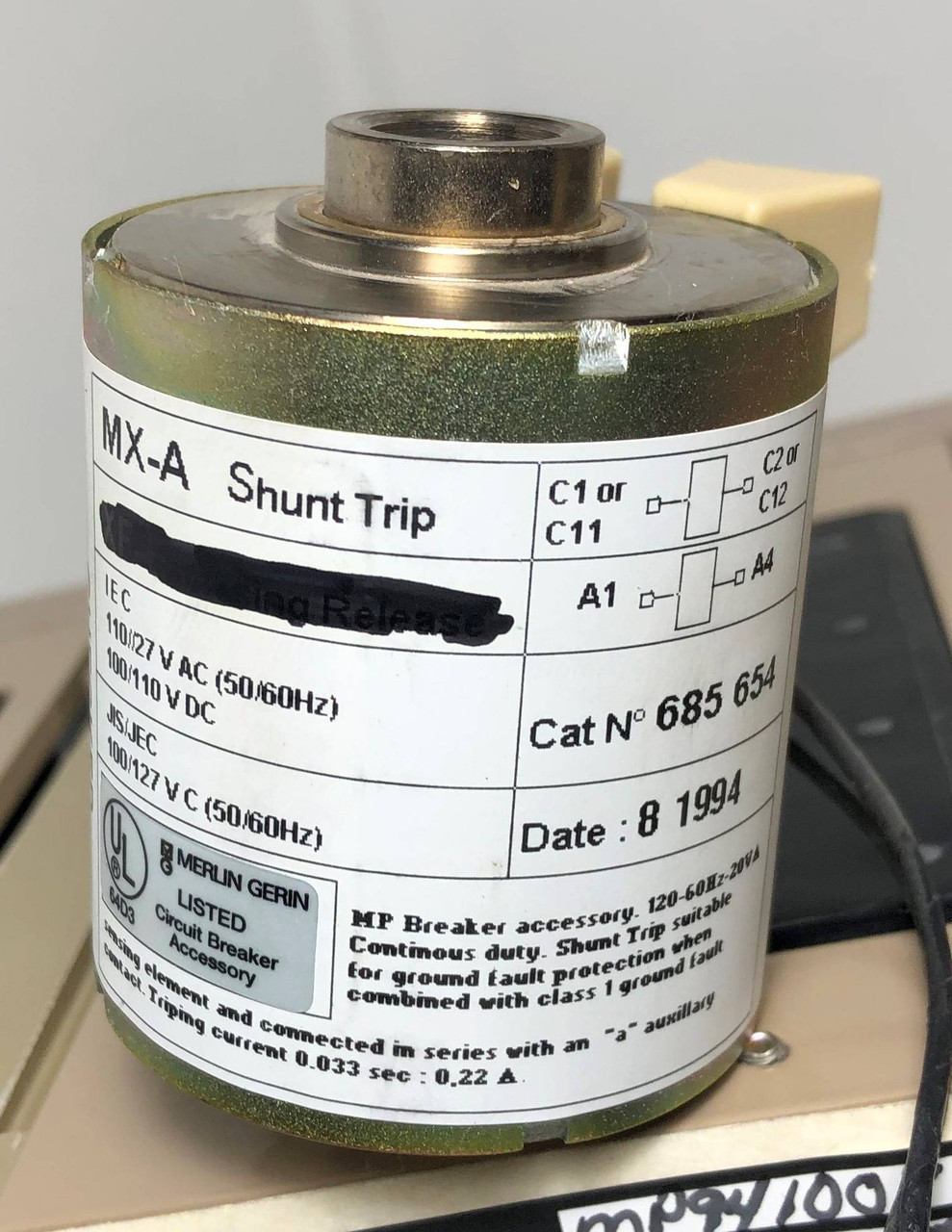

Shunt Trip:
MX-A
Cat. No. 685 654
110/127 VAC @ 50/60 Hz
100/110 VDC
Breaker Weight: 92 lbs.
Breaker Dimensions: 12.5" x 15" x 12"
