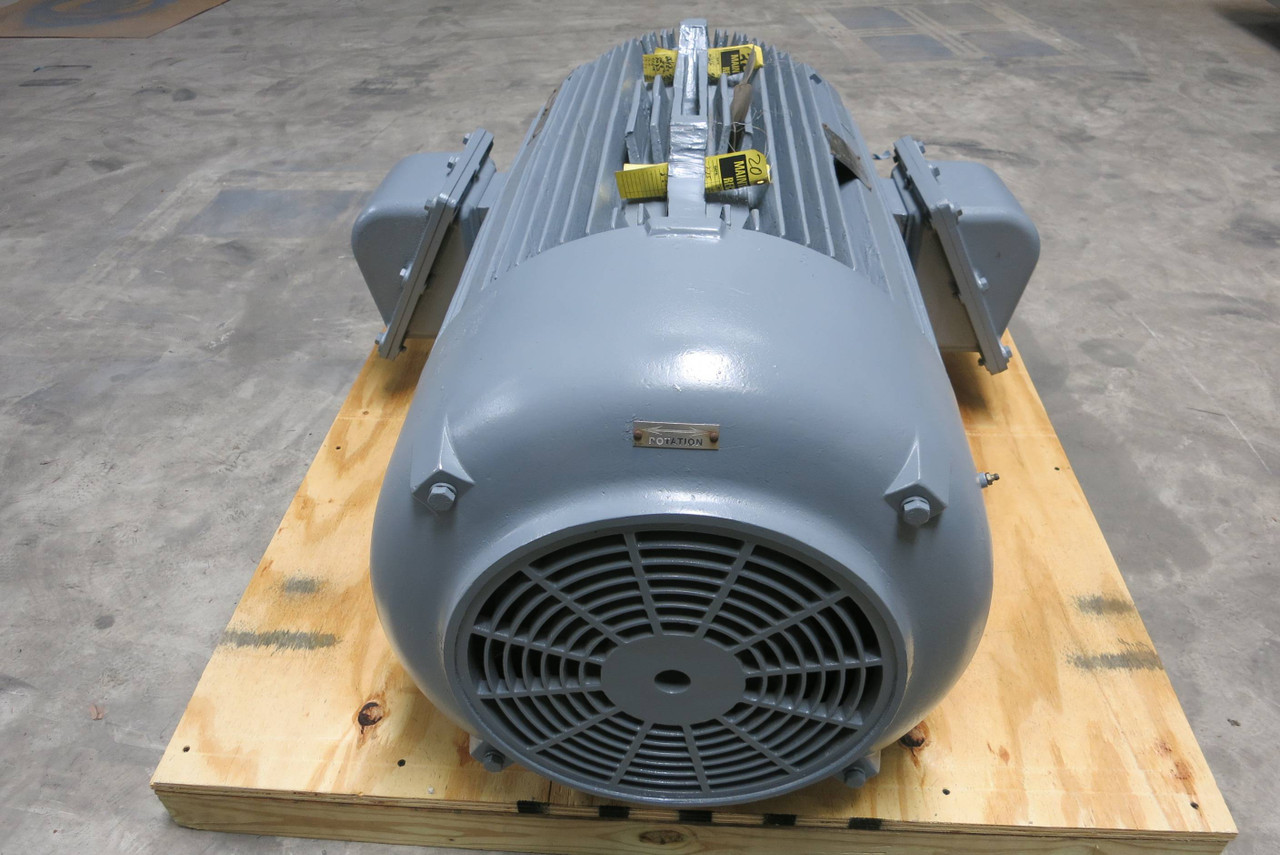

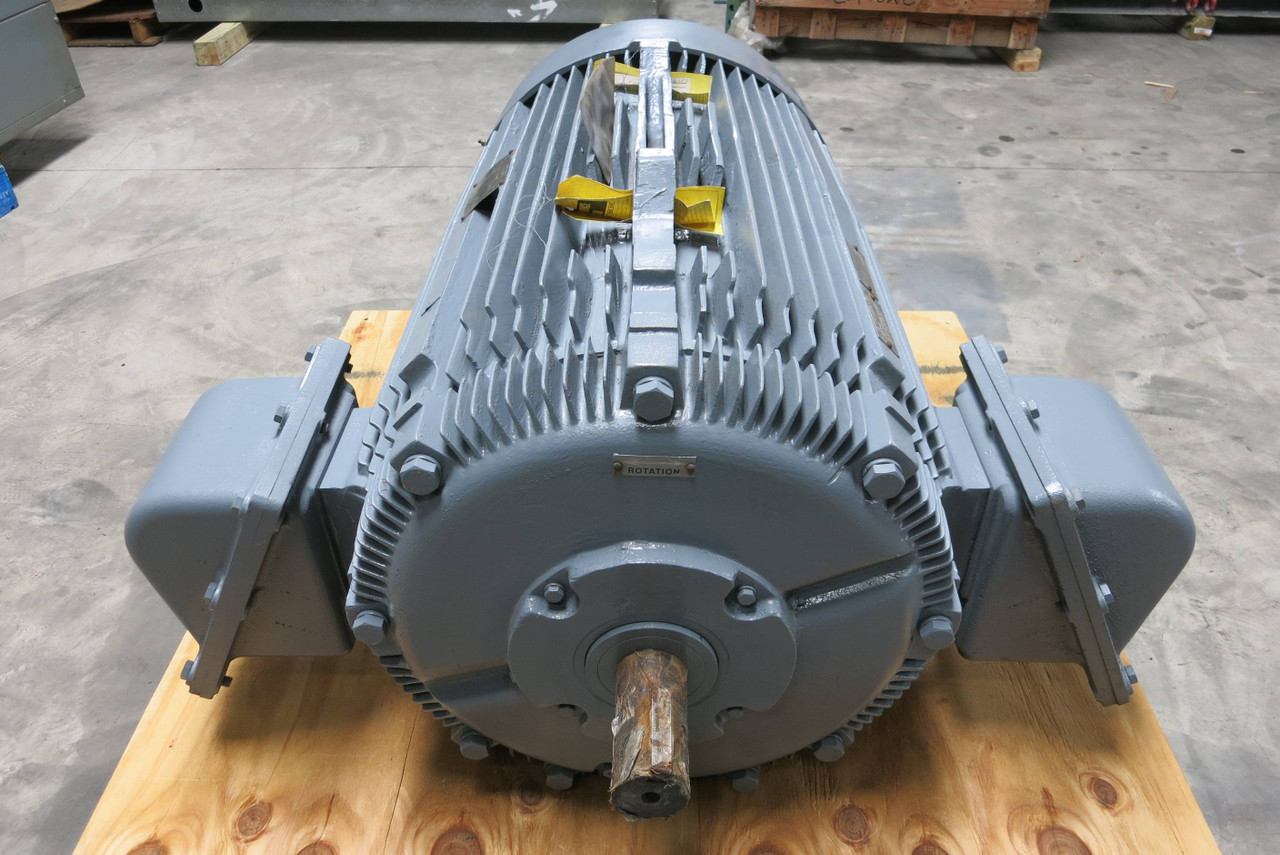

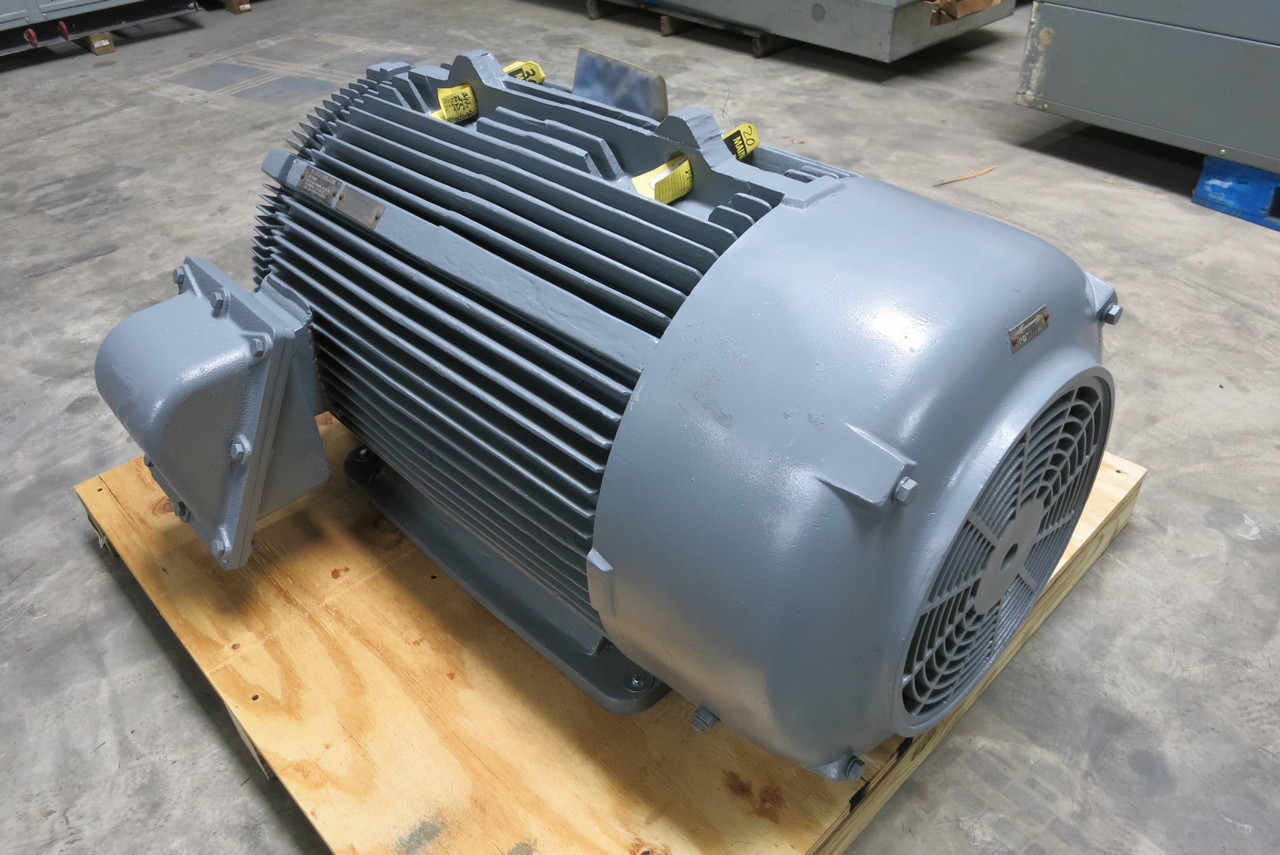

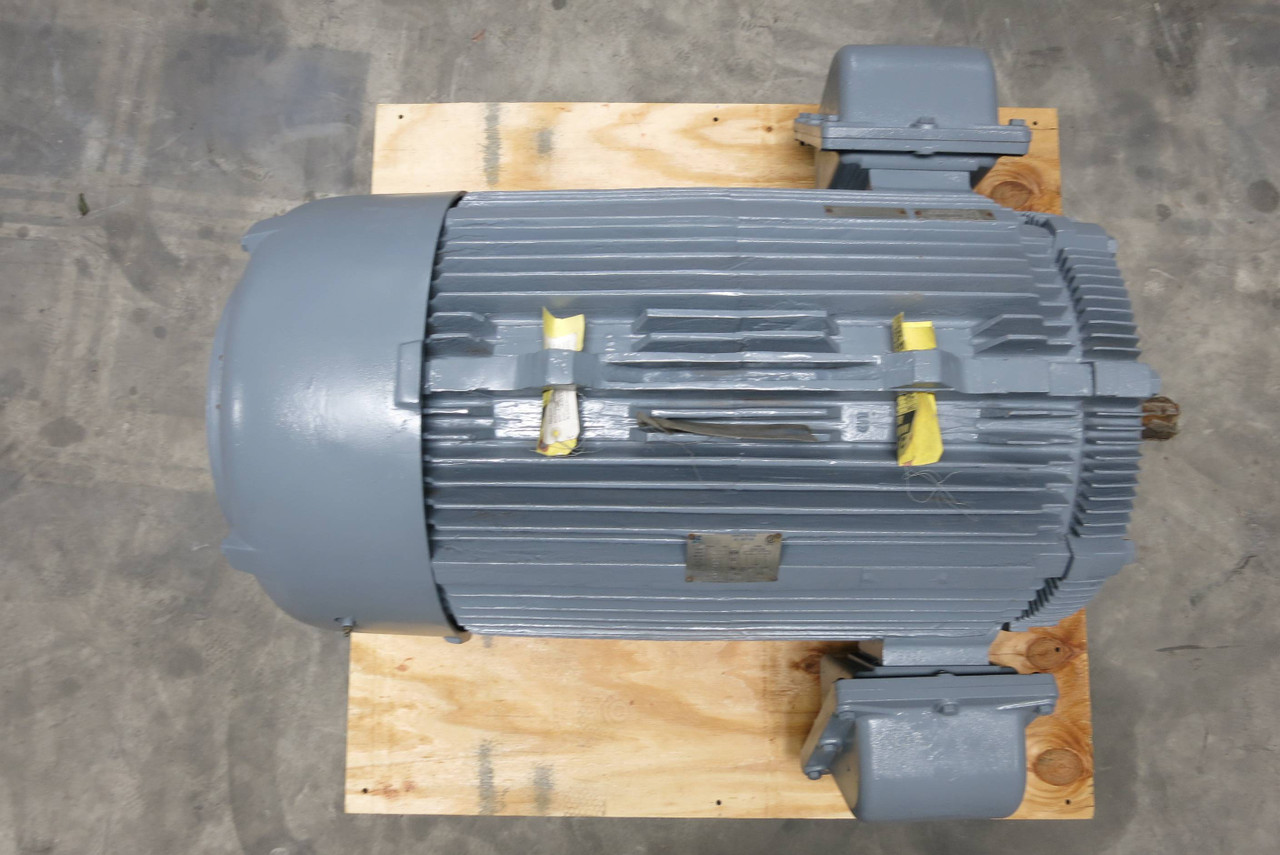

REBUILT IEM 768200 250HP 1788RPM 2300V 449TS HTEFC-XP Explosion Proof AC Motor (PM3027-3)

IEM $8,673.00
SKU: PM3027

IEM
Industrias IEM

MPN: 768200 - 768153
REFURBISHED

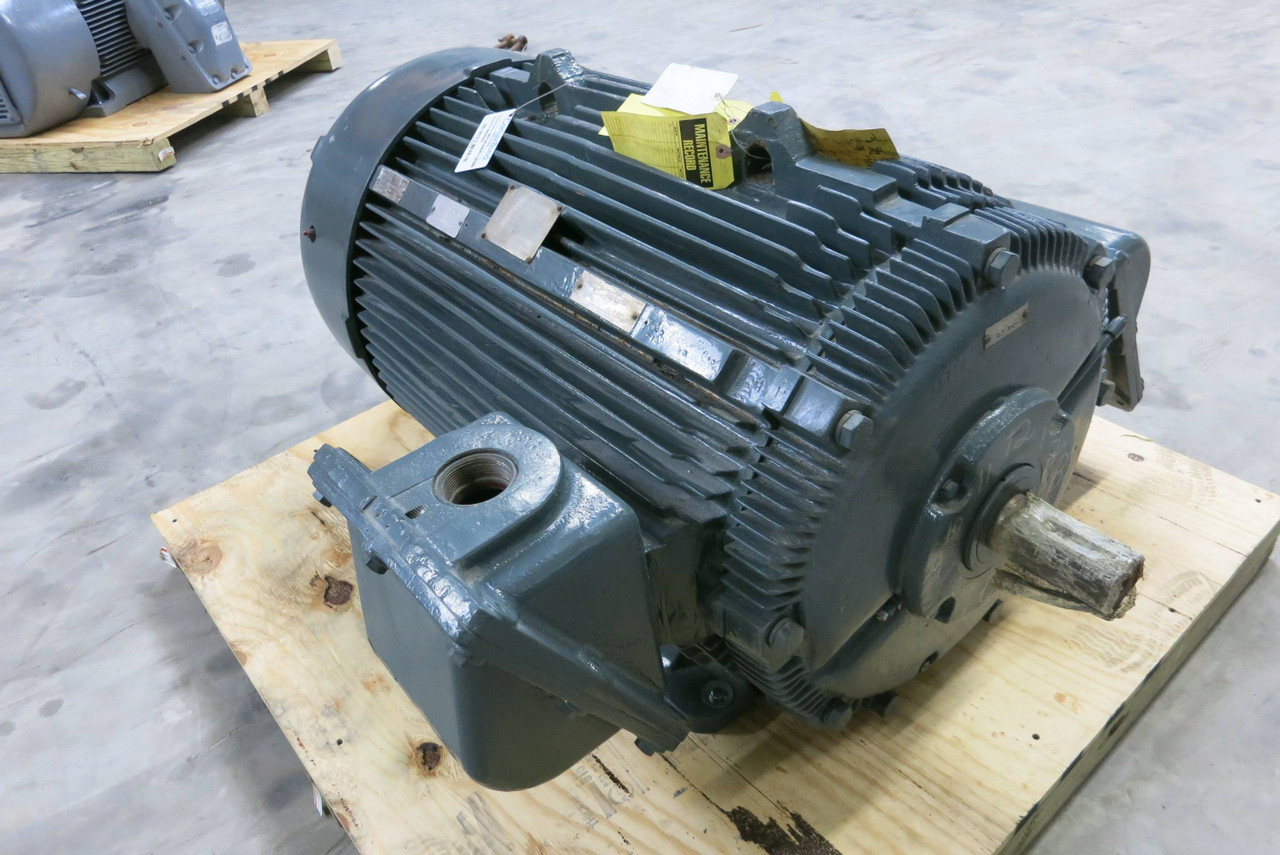

250 HP Three Phase Explosion Proof Star AC Electric Motor

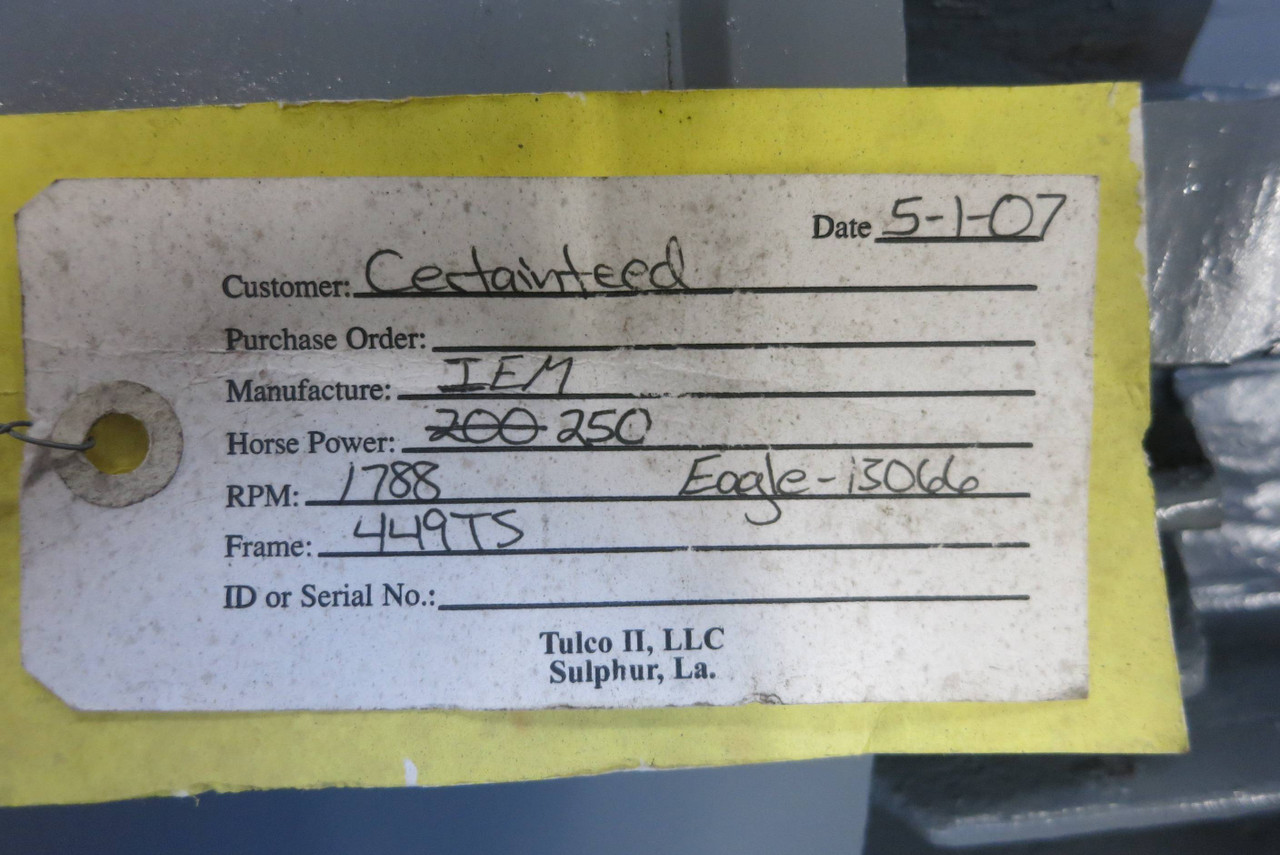

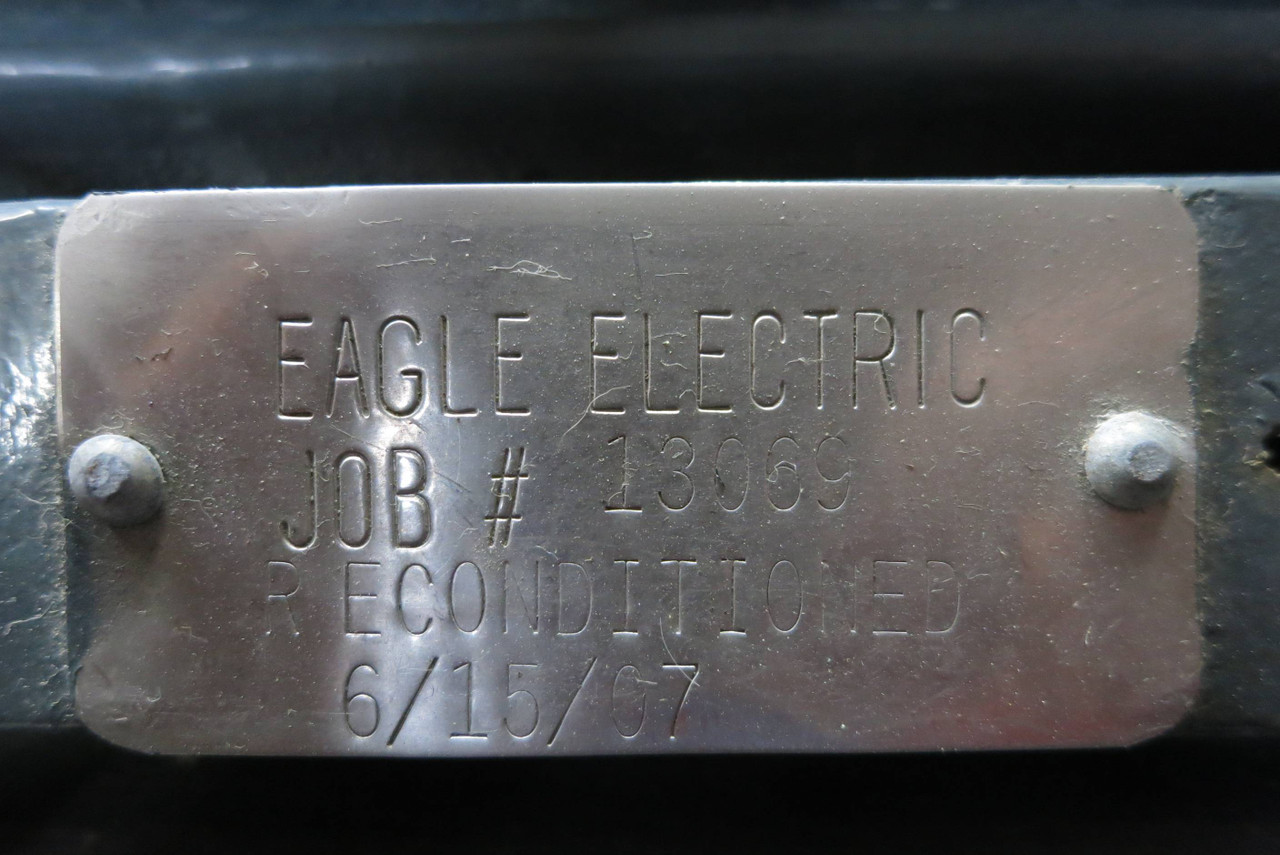

This AC Motor was never put back into service after being fully rebuilt by Eagle Electric
Motor always stored in a climate controlled warehouse and shaft rotated monthly

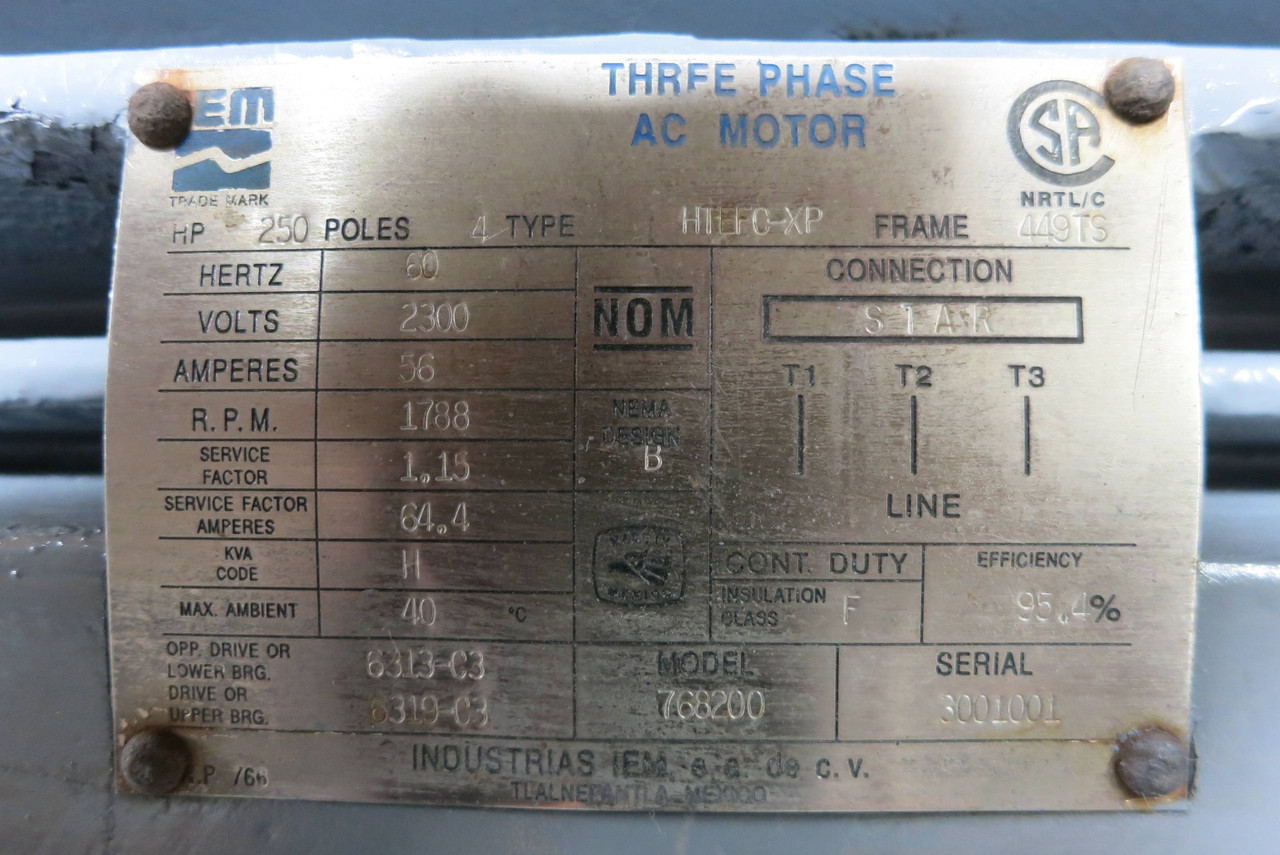

- Nameplate Information -
HP: 250 - Poles: 4 - Type: HTEFC-XP - Frame: 449TS - Connection: Star
Hertz: 60 - Volts: 2300 - Amperes: 56 / 55 - RPM: 1788 - Service Factor: 1.15
Service Factor Amperes: 64.4 - kVA Code: H - Max. Amb: 40 Deg C
Insulation Class: F - Efficiency: 95.4 / 95.0 % - Time Hrs: 24 - Insulation Class: F
Opp. Drive or Lower Brg: 6313-C3 - Drive or Upper Brg: 6319-C3
Model: 768200 - Serial: 3001001 / 0002001 / 9903001

30 day warranty on all purchases.

Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com



For more info on the meaning on motor frame size numbers,
please see the following link:
Link

For a conversion chart of 3PH amperage to horsepower,
please see the following chart:
Link

Read more
Current stock: 3
Description

IEM
Industrias IEM

MPN: 768200 - 768153
REFURBISHED
250 HP Three Phase Explosion Proof Star AC Electric Motor

This AC Motor was never put back into service after being fully rebuilt by Eagle Electric
Motor always stored in a climate controlled warehouse and shaft rotated monthly

- Nameplate Information -
HP: 250 - Poles: 4 - Type: HTEFC-XP - Frame: 449TS - Connection: Star
Hertz: 60 - Volts: 2300 - Amperes: 56 / 55 - RPM: 1788 - Service Factor: 1.15
Service Factor Amperes: 64.4 - kVA Code: H - Max. Amb: 40 Deg C
Insulation Class: F - Efficiency: 95.4 / 95.0 % - Time Hrs: 24 - Insulation Class: F
Opp. Drive or Lower Brg: 6313-C3 - Drive or Upper Brg: 6319-C3
Model: 768200 - Serial: 3001001 / 0002001 / 9903001

30 day warranty on all purchases.

Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com



For more info on the meaning on motor frame size numbers,
please see the following link:
Link

For a conversion chart of 3PH amperage to horsepower,
please see the following chart:
Link

Additional info
SKU: PM3027
UPC: 760377733191
Condition: Refurbished
Availability: Ships within 0-1 business days of full payment. Expedited shipping available.
Width: 51
Height: 30
Depth: 46
Warranty: 30 day warranty.

If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.

SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.

Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
SKU: PM3027
MPN: 768200 - 768153
Approx Shipping Dims (LxWxH): 46.000" x 51.000" x 30.000"
Approx Shipping Weight: 2700.0000
Location: D 7A, D 47A, B 18B
Phases: 3 Phase
Horsepower: 250 HP
Voltage: 2300 VAC
Outdoor Rated?: Outdoor Rated (NEMA 3R or 4X)
Listed: 11/12/2019
UPC: 760377733191
eBay Listing: 352853018225
