    IEM

    $8,506.40
    Adding to cart… category.add_cart_announcement

    Product Description

    IEM
    Industrias IEM

    MPN: 766817
    REFURBISHED

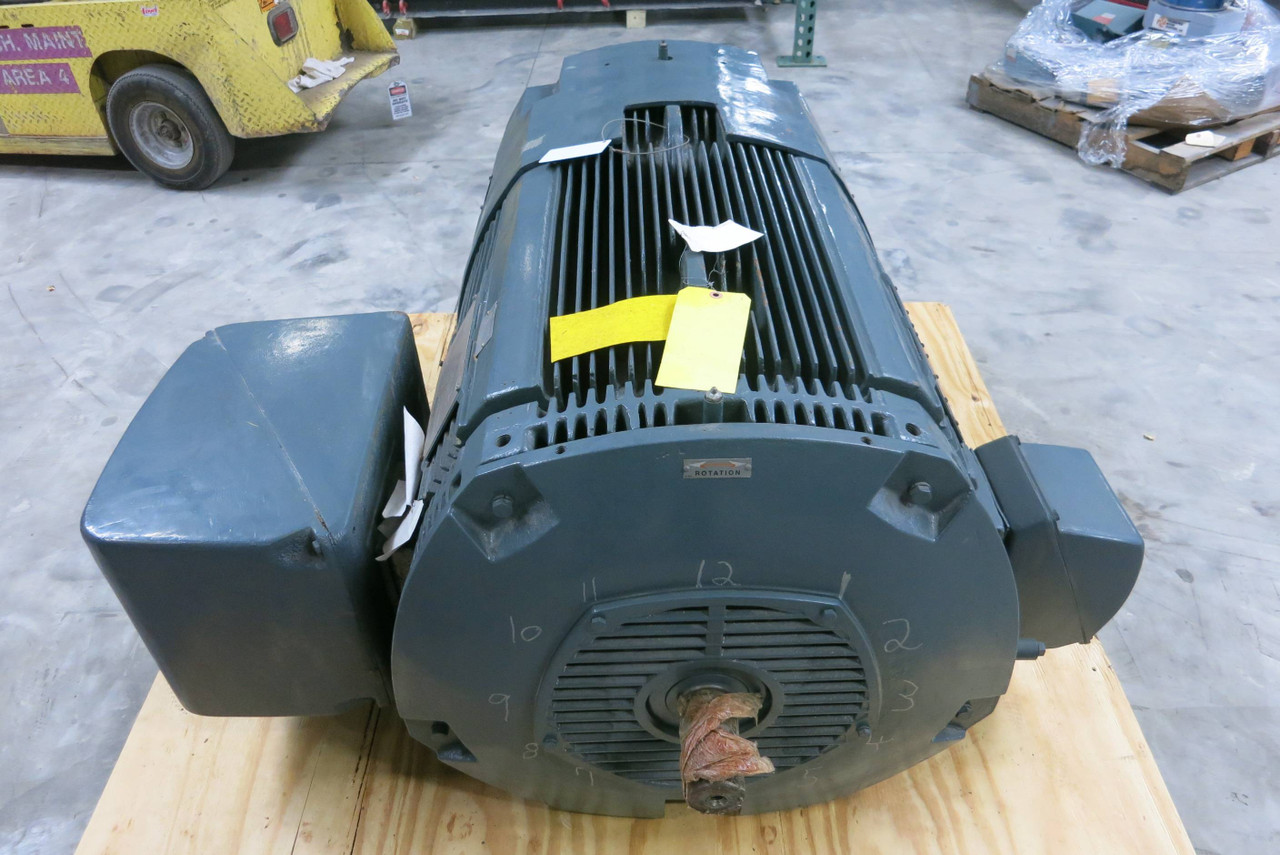

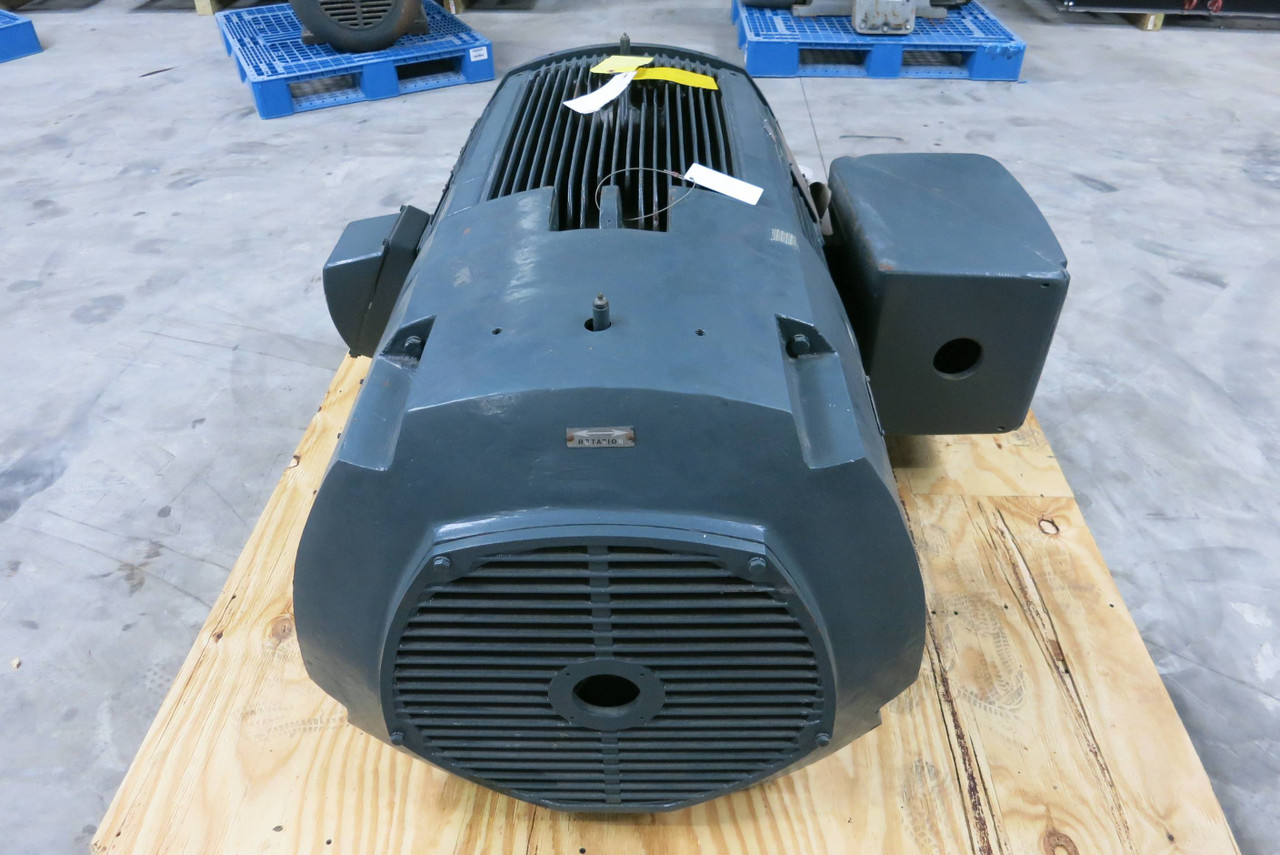

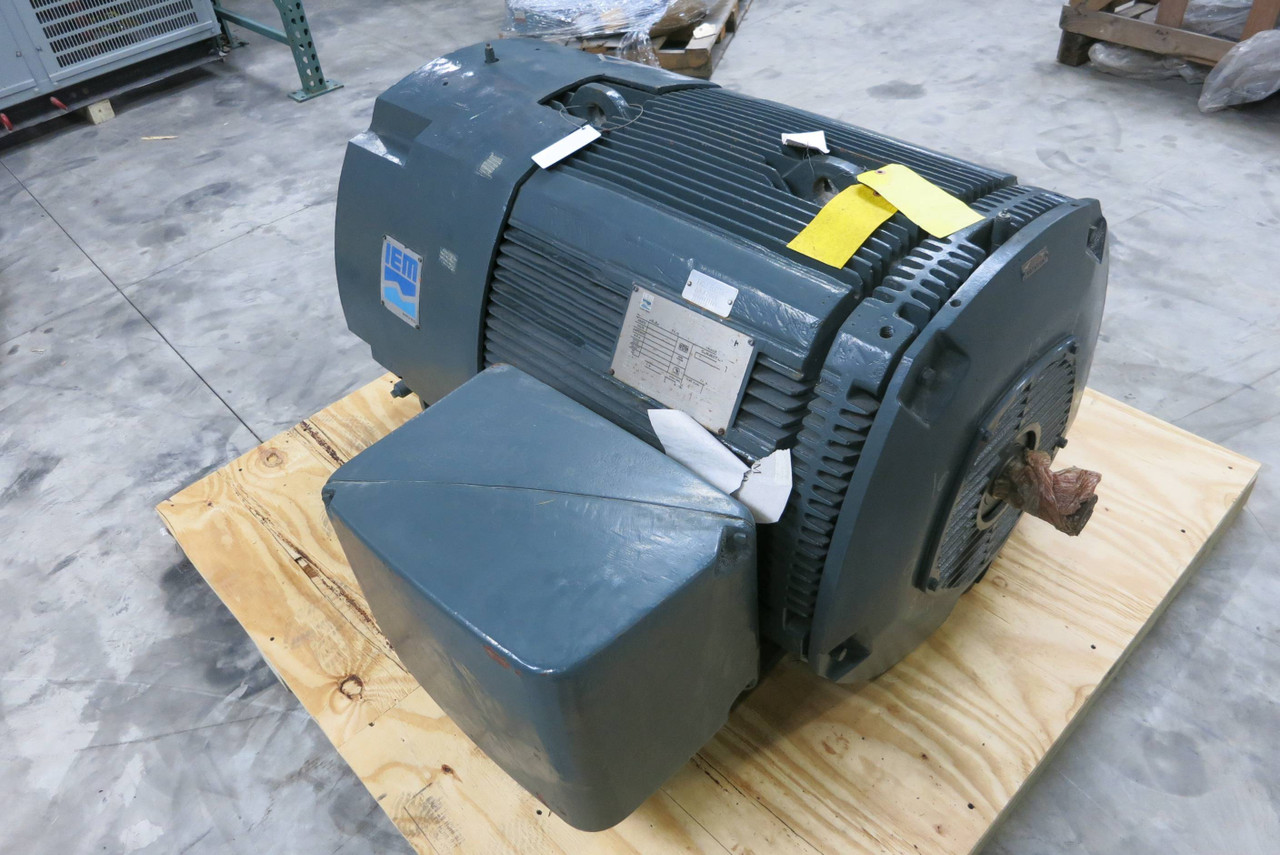

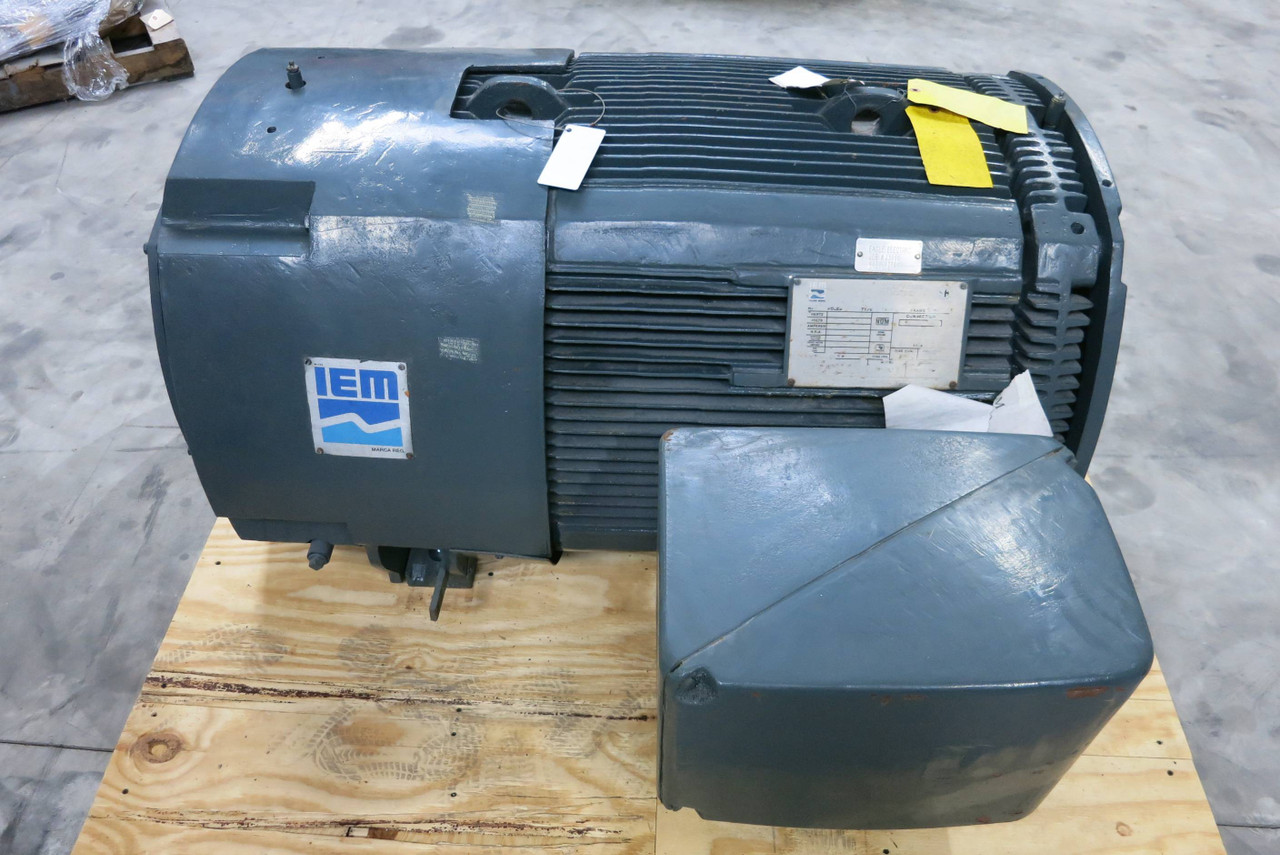

    300 HP Three Phase Delta/Star AC Electric Motor

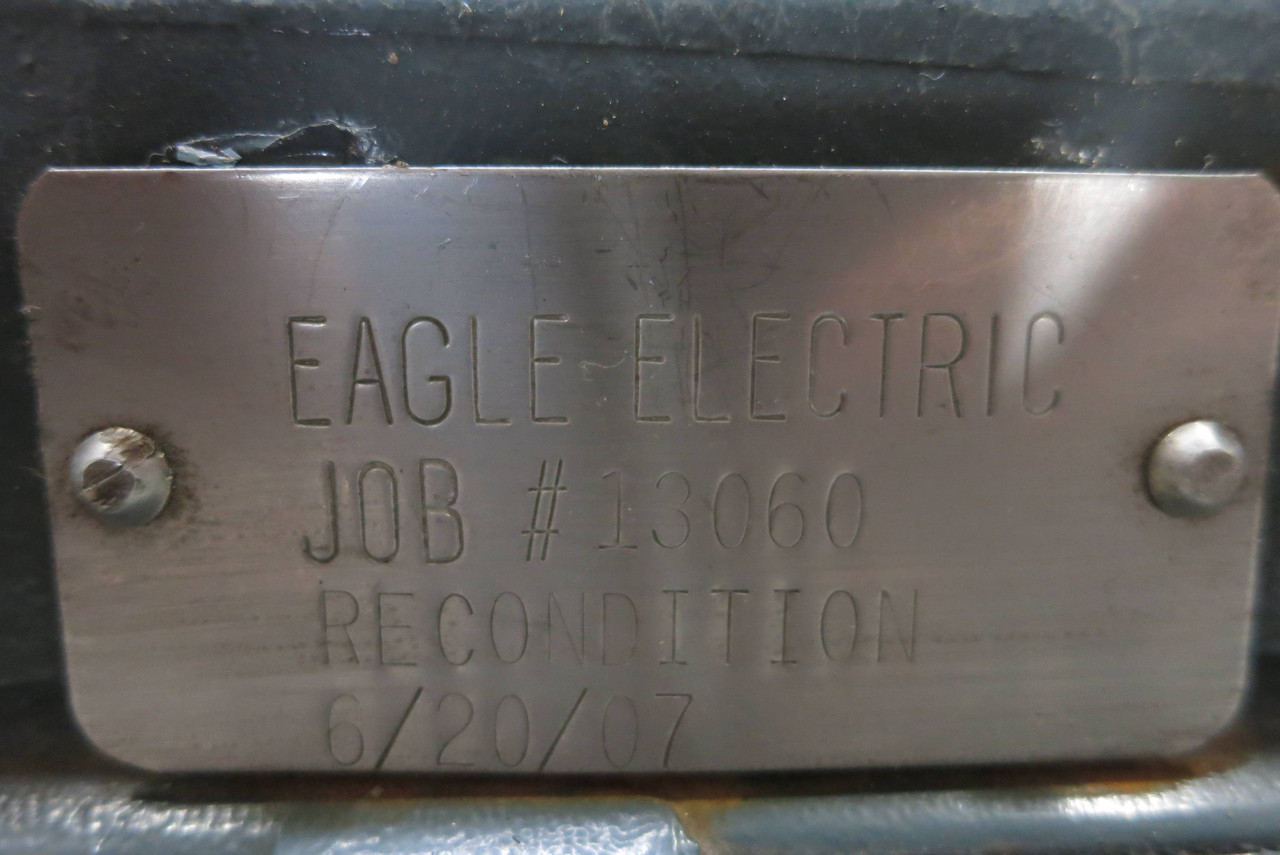

    This AC Motor was never put back into service after being fully rebuilt by Eagle Electric
    Motor always stored in a climate controlled warehouse and shaft rotated monthly

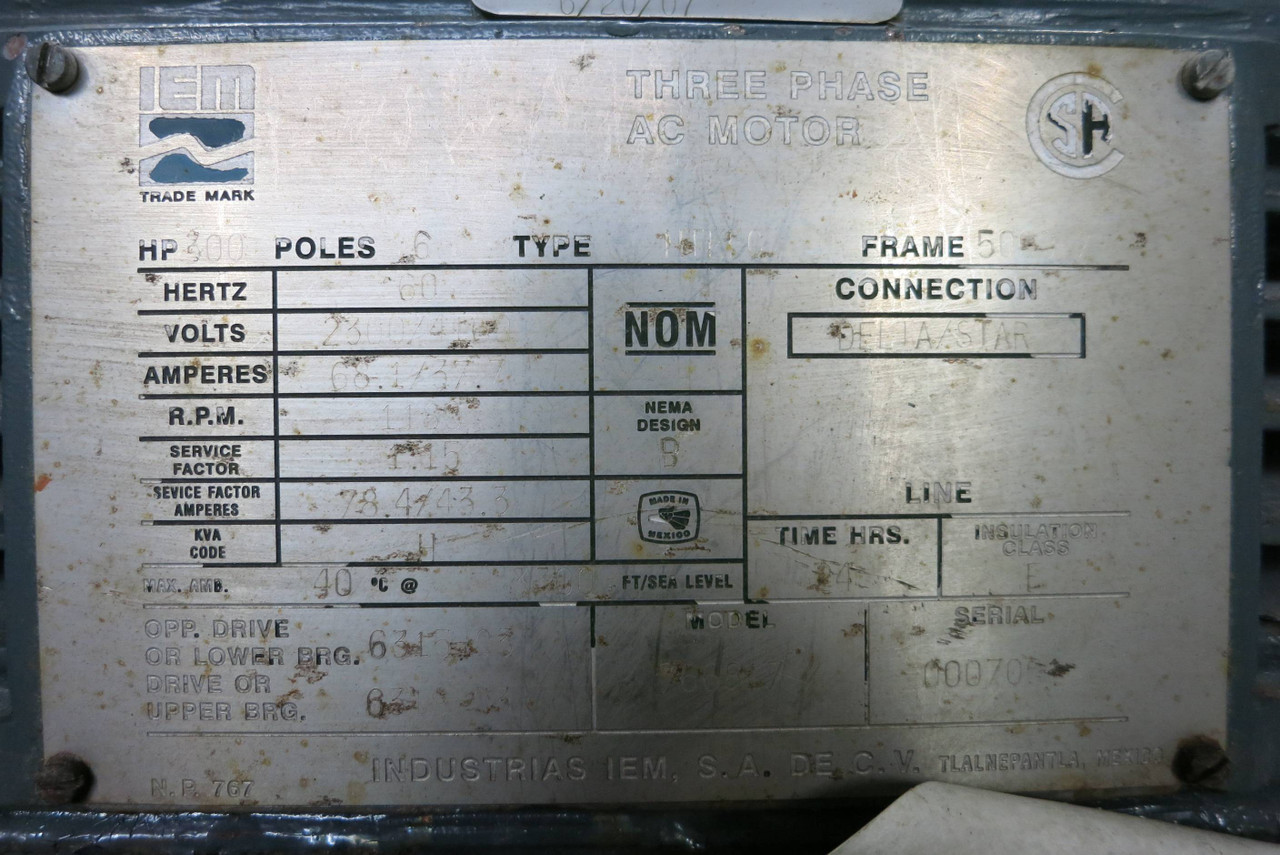

    - Nameplate Information -
    HP: 300 - Poles: 6 - Type: HTEFC - Frame: 5009-Z - Connection: Delta/Star
    Hertz: 60 - Volts: 2300/4600 - Amperes: 68.1 / 37.7 - RPM: 1189 - Service Factor: 1.15
    Service Factor Amperes: 78.4 / 43.3 - kVA: H - Nema Design: B - kVA Code: H
    Max. Amb: 40 Deg C @ 3300 Ft/Sea Level - Time Hrs: 24 - Insulation Class: F
    Opp. Drive or Lower Brg: 6315-C3 - Drive or Upper Brg: 6319-C3 - Model: 766817

    Shipping within 1 business day
    30 Day Warranty on all purchases

    Your purchase will include what is pictured and described above ONLY.
    For more info or pictures, please visit our FAQs or contact us :
    423 821-4712 - Sales@RiverCityIndustrial.com



    For more info on the meaning on motor frame size numbers,
    please see the following link:
    Link

    For a conversion chart of 3PH amperage to horsepower,
    please see the following chart:
    Link

    Additional Information

    SKU:
    PM3022
    UPC:
    760377733146
    Condition:
    Refurbished
    Availability:
    Ships within 0-1 business days of full payment. Expedited shipping available.
    SKU:
    PM3022
    MPN:
    766817
    Approx Shipping Dims (LxWxH):
    59.000" x 56.000" x 26.000"
    Approx Shipping Weight:
    3700.0000
    Location:
    Z 74A
    Phases:
    3 Phase
    Horsepower:
    300 HP
    Voltage:
    2300/4160 VAC
    Outdoor Rated?:
    Outdoor Rated (NEMA 3R or 4X)
    Listed:
    11/8/2019
    UPC:
    760377733146
    eBay Listing:
    352847733519
