Powell Industries 2000A 15kV 15PV500-3 125DC Powl-Vac Vacuum Breaker PowlVac GE (PM2923-2)
SKU:
PM2923
Powell
MPN: 15PV500-3 - 2000A
USED

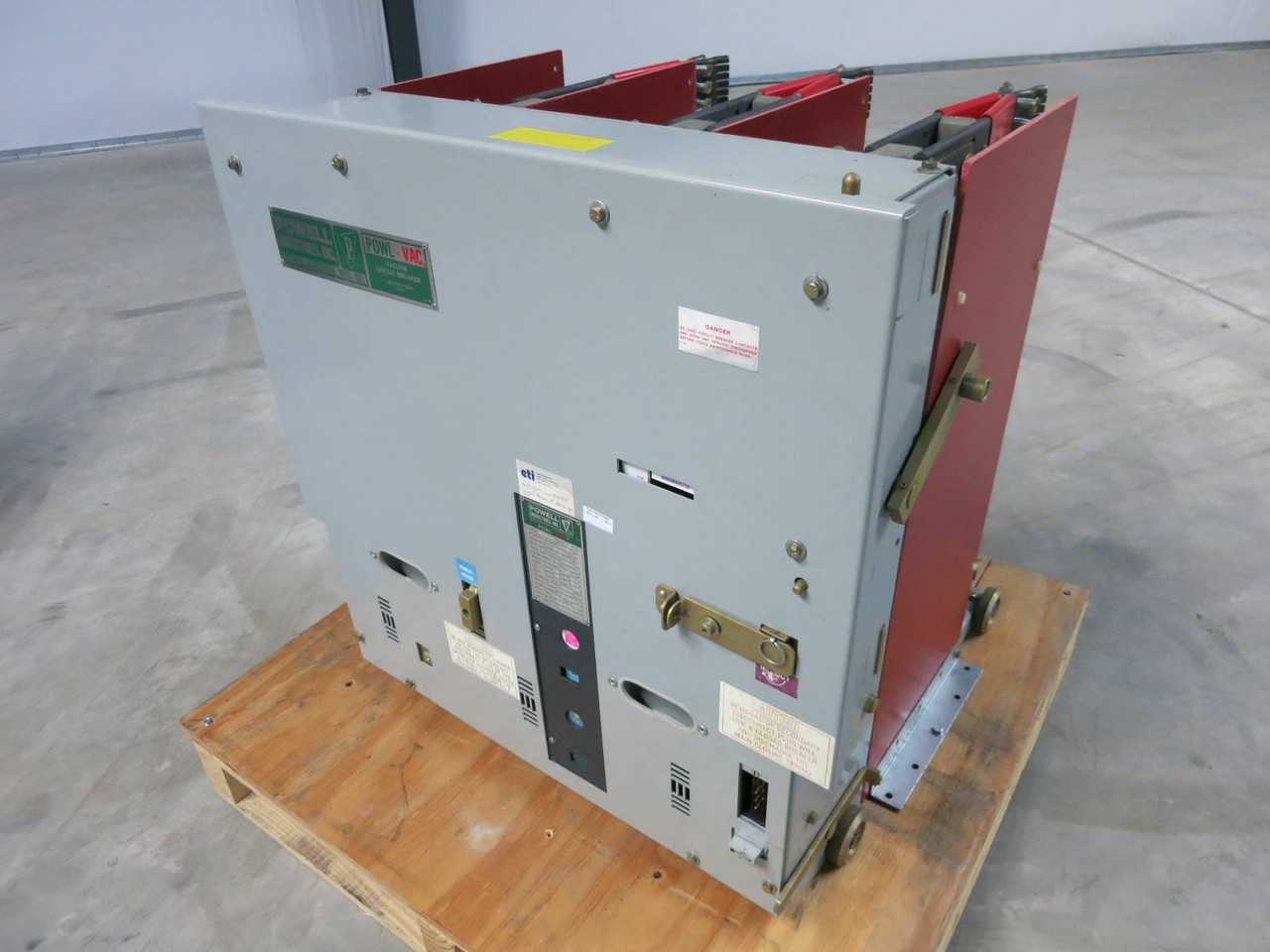

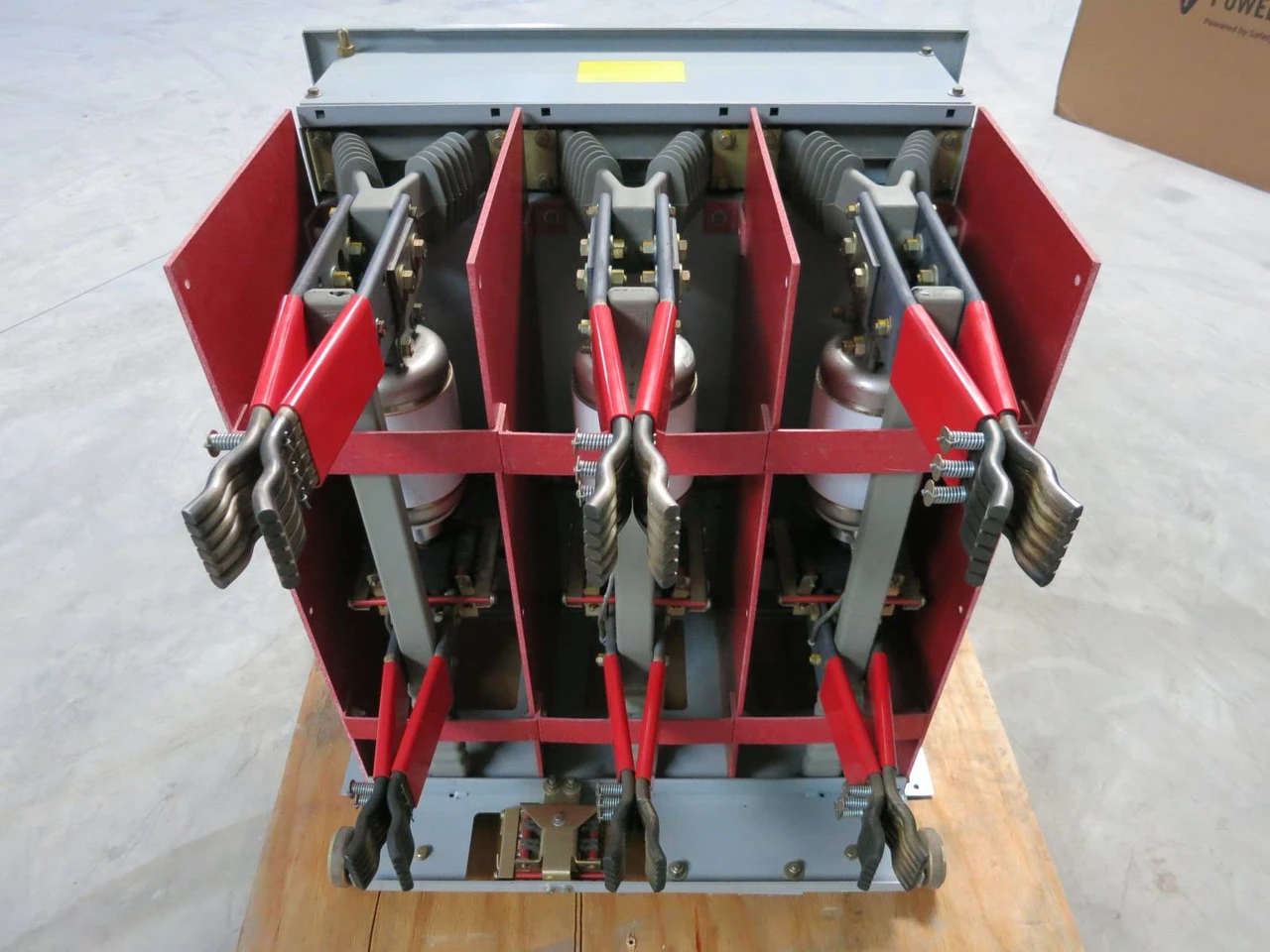

Powell Industries Powl-Vac Vacuum Circuit Breaker

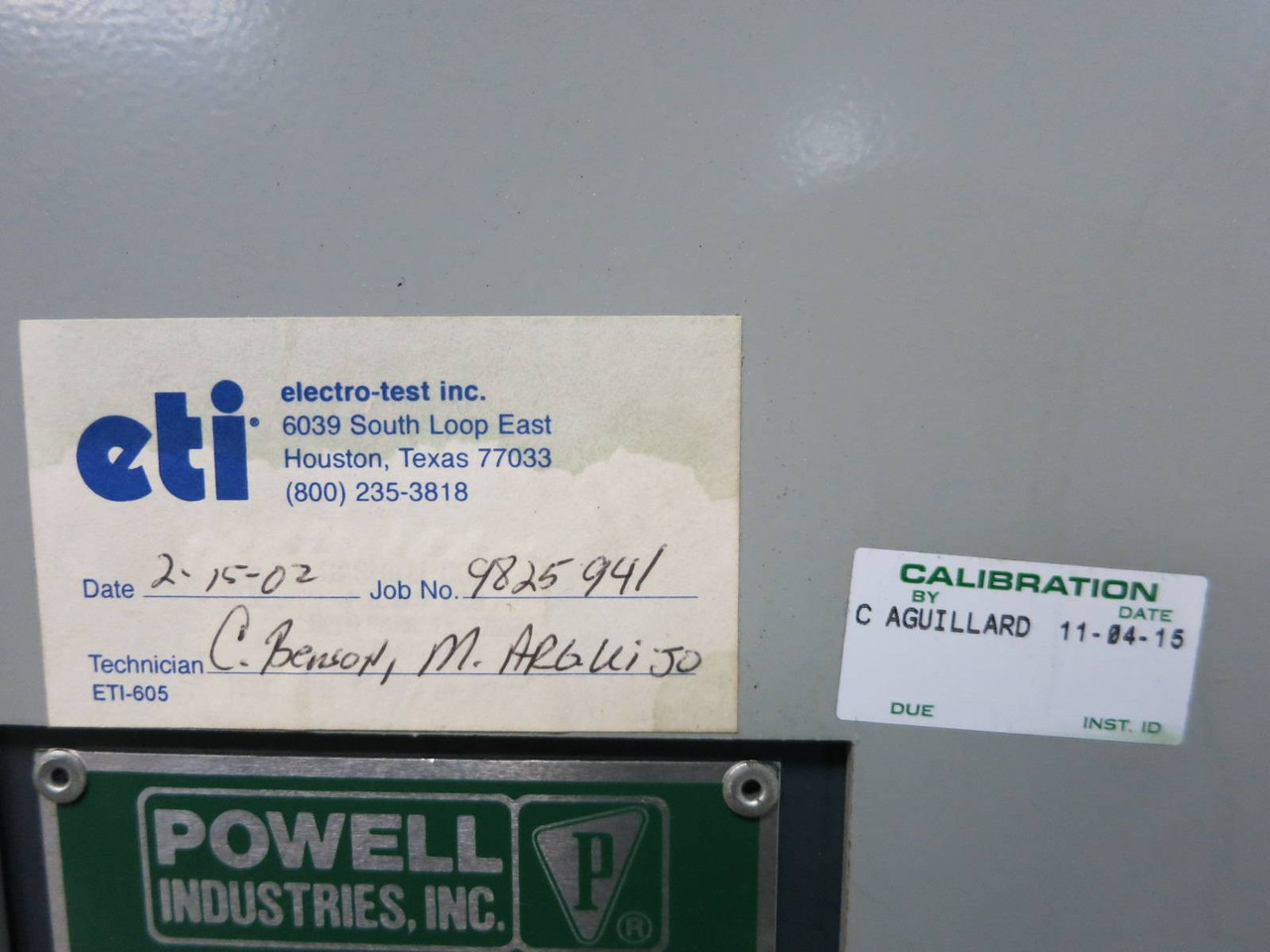

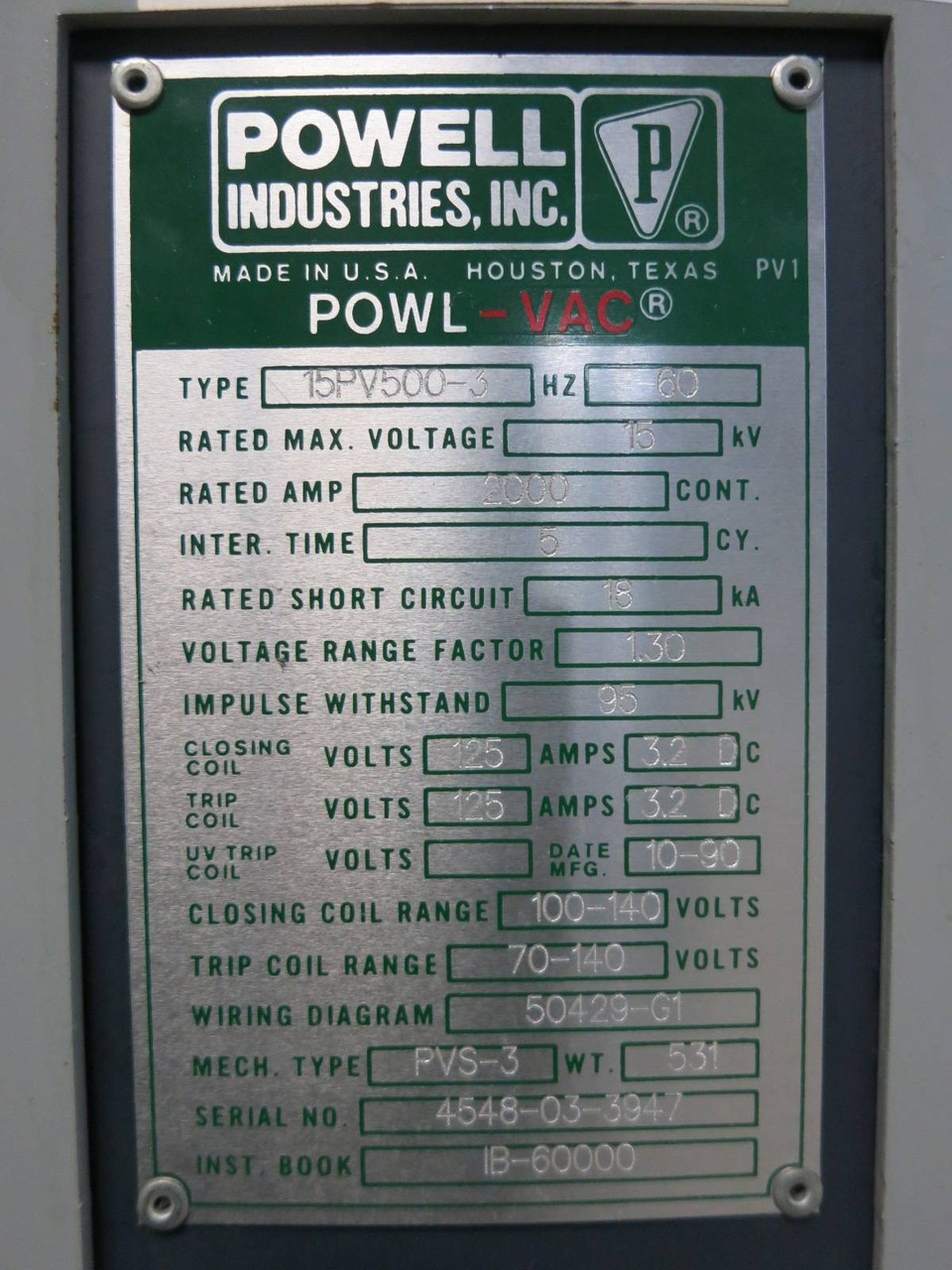

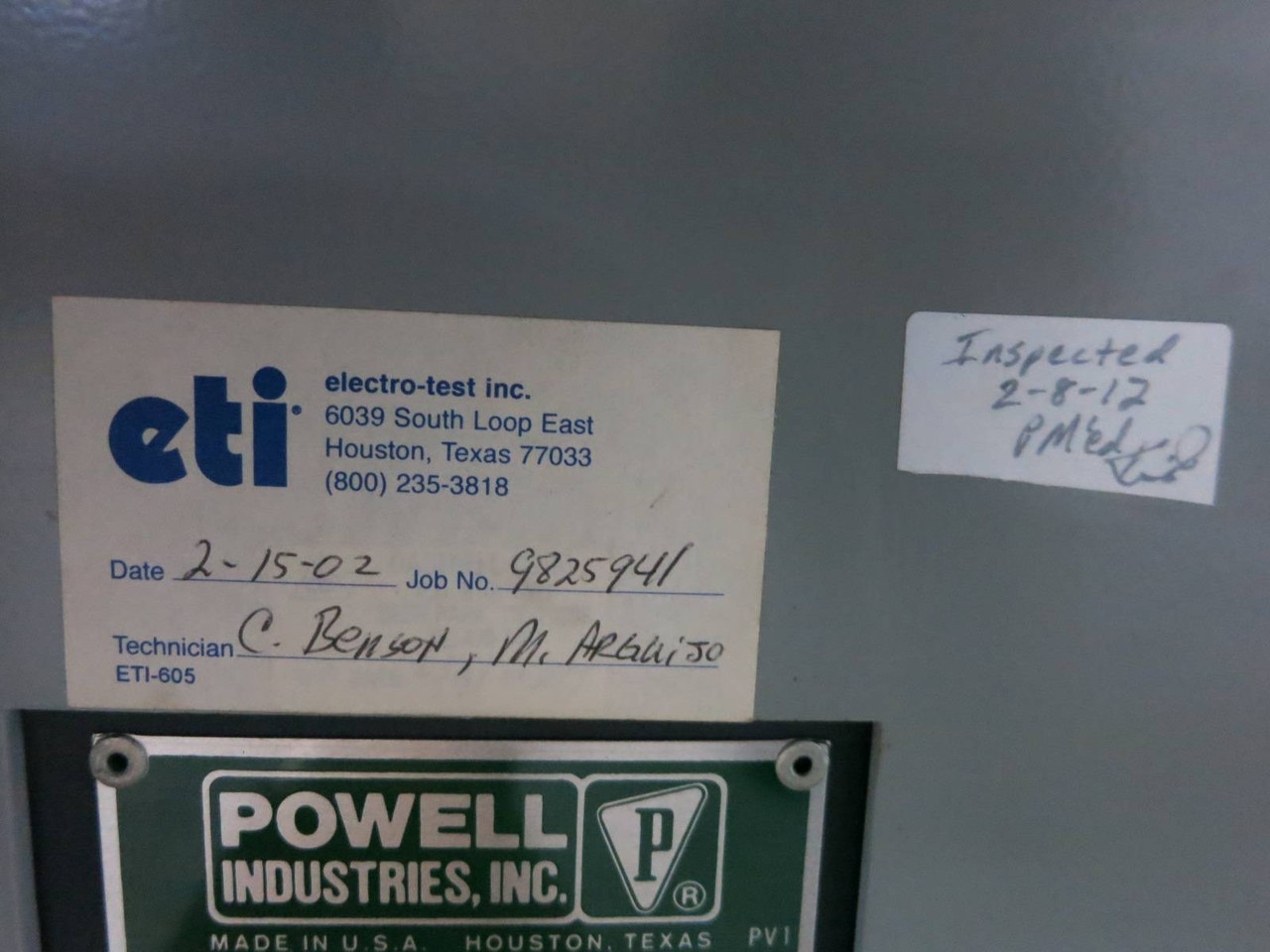

Not put back into service/energized after being tested/inspected and calibrated if needed- Nameplate Information -
Type: 15PV500-3 - Hz: 60
Rated Max Voltage: 15 kV - Rated Amp: 2000
Interrupting Time: 5 Cycles - Rated Short Circuit: 18 kA
Voltage Range Factor: 1.30 - Impulse Withstand: 95 kV
Closing Coil Volts: 125 - Closing Coil Amps: 3.2 DC
Trip Coil Volts: 125 - Closing Coil Amps: 3.2 DC
Closing Coil Range: 100-140 Volts
Trip Coil Range: 70-140 Volts
Wiring Diagram: 50429-G1
Mech. Type: PVS-3 - WT: 531 - Inst. Book: IB-60000

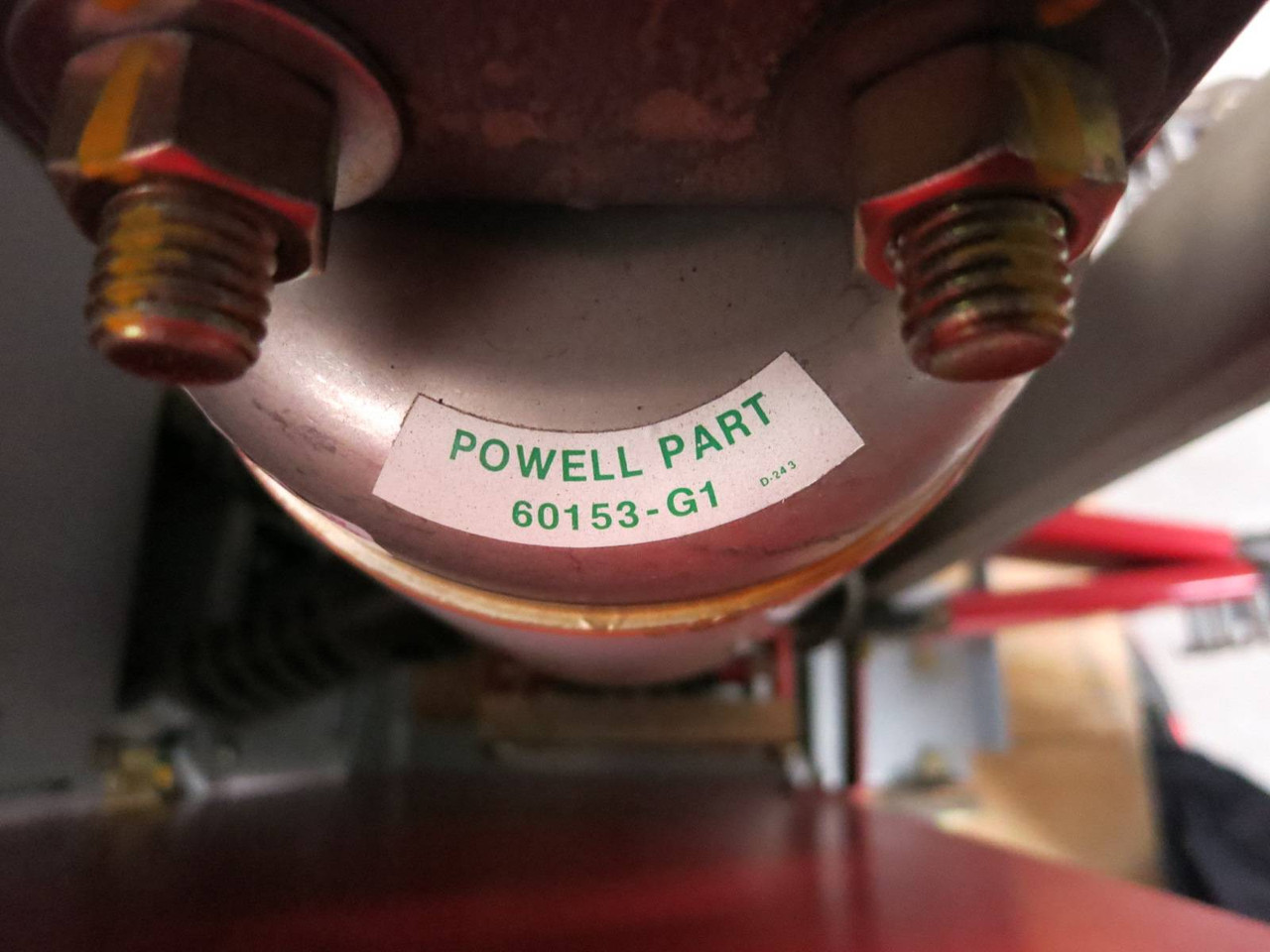

Part Number from Vacuum Bottle: 60153-G1

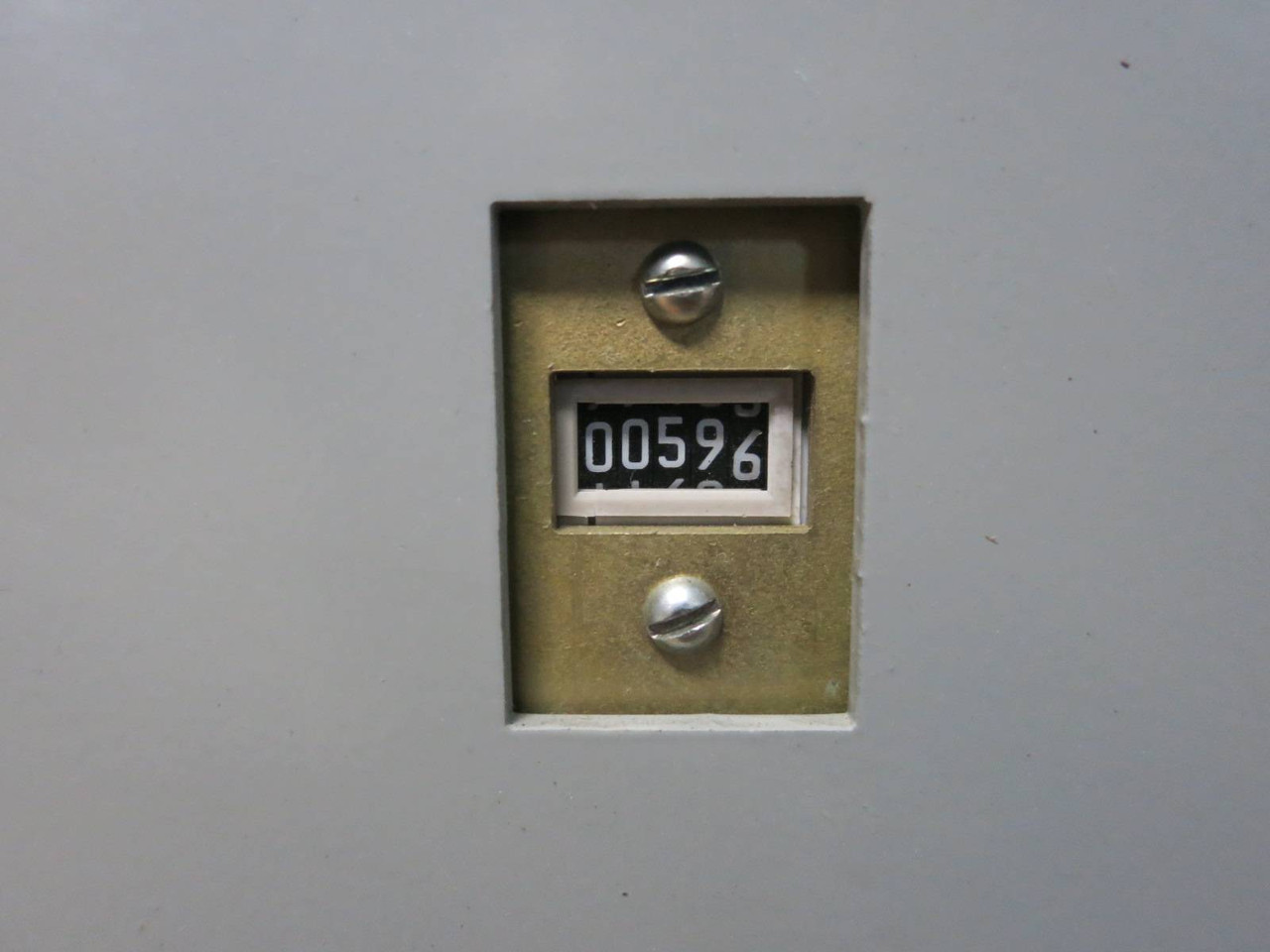

Number of Operations Fall Between 532 - 596
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
Powell
MPN: 15PV500-3 - 2000A
USED
Powell Industries Powl-Vac Vacuum Circuit Breaker
Not put back into service/energized after being tested/inspected and calibrated if needed- Nameplate Information -
Type: 15PV500-3 - Hz: 60
Rated Max Voltage: 15 kV - Rated Amp: 2000
Interrupting Time: 5 Cycles - Rated Short Circuit: 18 kA
Voltage Range Factor: 1.30 - Impulse Withstand: 95 kV
Closing Coil Volts: 125 - Closing Coil Amps: 3.2 DC
Trip Coil Volts: 125 - Closing Coil Amps: 3.2 DC
Closing Coil Range: 100-140 Volts
Trip Coil Range: 70-140 Volts
Wiring Diagram: 50429-G1
Mech. Type: PVS-3 - WT: 531 - Inst. Book: IB-60000
Part Number from Vacuum Bottle: 60153-G1
Number of Operations Fall Between 532 - 596
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
SKU:
PM2923
UPC:
076625957722
Condition:
Used
Availability:
Ships within 0-1 business days of full payment. Expedited shipping available.
Width:
40
Height:
40
Depth:
48
Warranty:
30 day warranty.
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
SKU:
PM2923
MPN:
15PV500-3 - 2000A
Approx Shipping Dims (LxWxH):
48.000" x 40.000" x 40.000"
Approx Shipping Weight:
550.0000
Location:
E 25A, E 31B
Amperage:
2000 Amp
Voltage:
15 kV
Freight Shipping Cost:
324
Listed:
1/11/2019
UPC:
076625957722
eBay Listing:
352566355187
