Powell Industries 1200A 15kV 15PV500-3 125DC Powl-Vac Vacuum Breaker PowlVac GE (PM2925-12)
SKU:
PM2925
Powell
MPN: 15PV500-3 - 1200A
USED

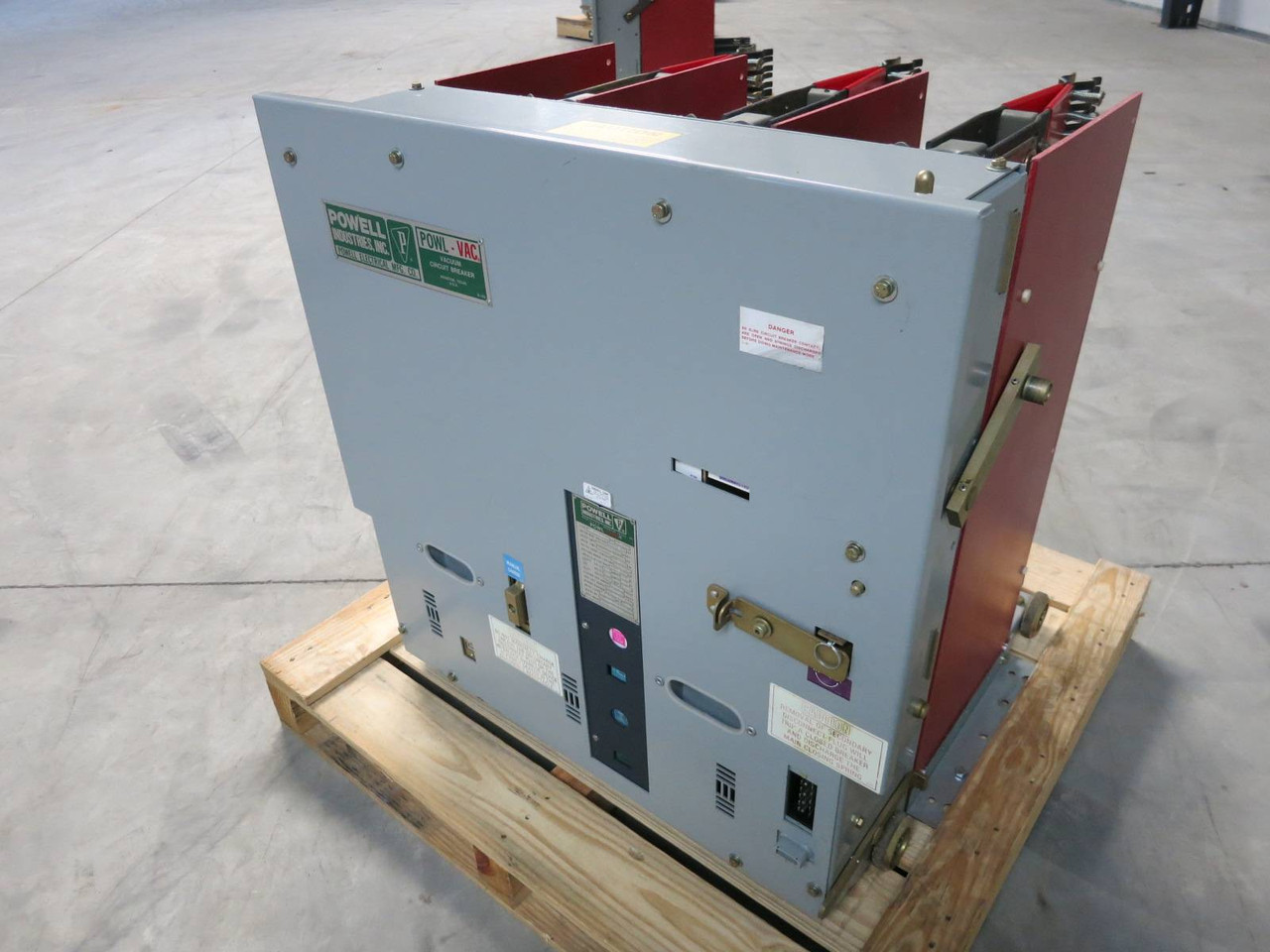

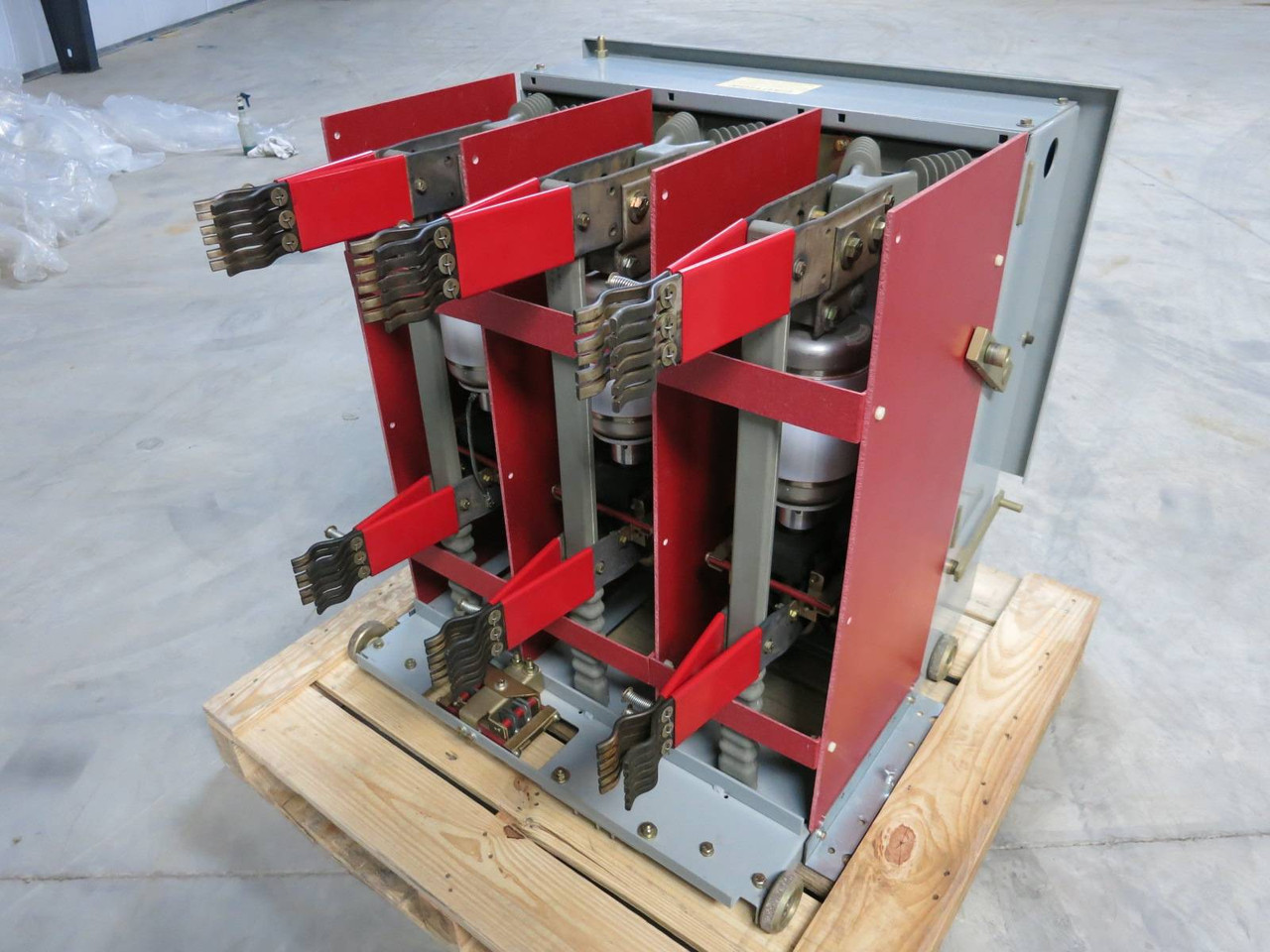

Powell Industries Powl-Vac Vacuum Circuit Breaker

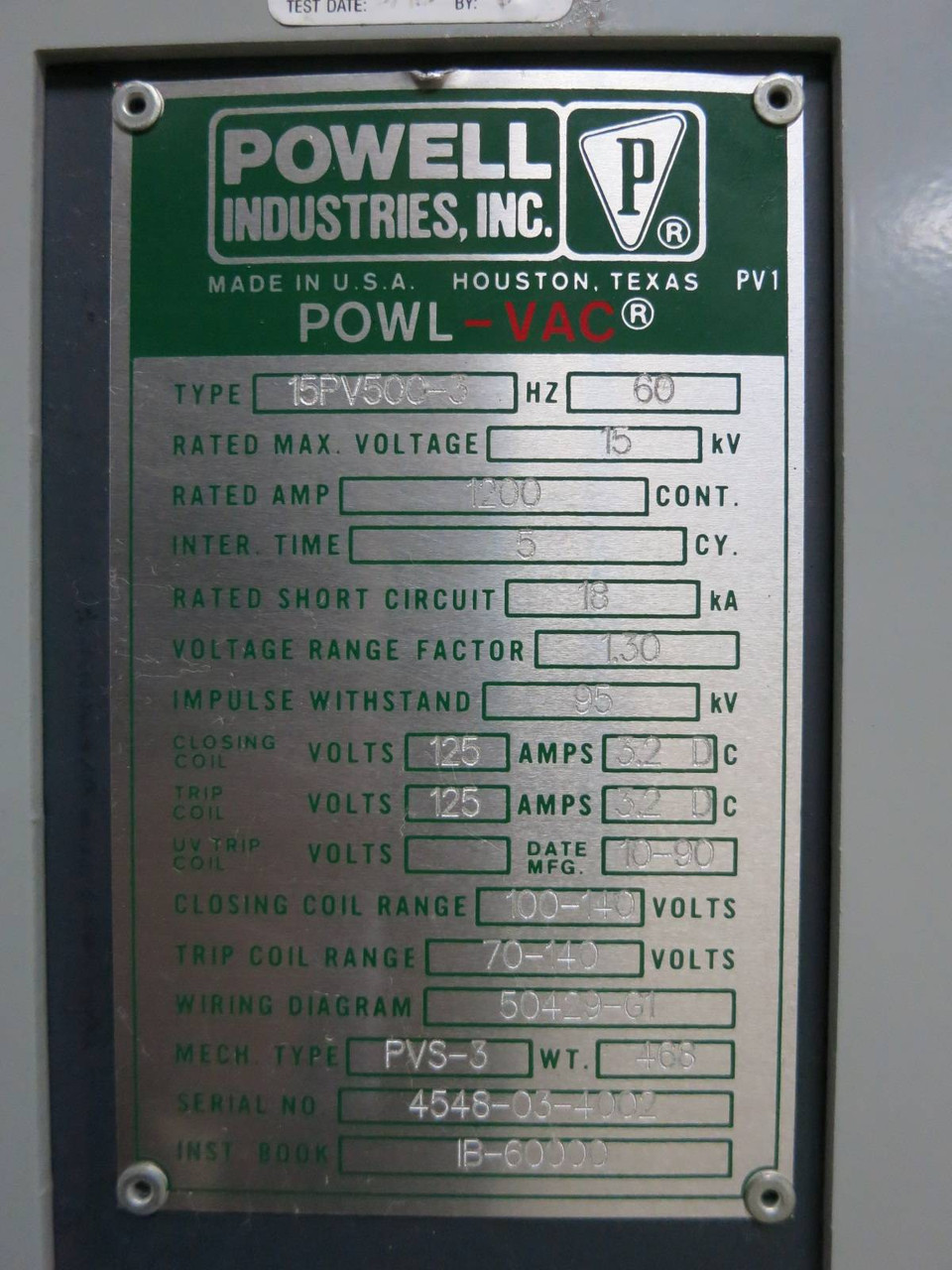

Not put back into service/energized after being tested/inspected and calibrated if needed- Nameplate Information -
Type: 15PV500-3 - Hz: 60
Rated Max Voltage: 15 kV - Rated Amp: 1200
Interrupting Time: 5 Cycles - Rated Short Circuit: 18 kA
Voltage Range Factor: 1.30 - Impulse Withstand: 95 kV
Closing Coil Volts: 125 - Closing Coil Amps: 3.2 DC
Trip Coil Volts: 125 - Closing Coil Amps: 3.2 DC
Closing Coil Range: 100-140 Volts
Trip Coil Range: 70-140 Volts
Wiring Diagram: 50429-G1
Mech. Type: PVS-3 - WT: 468 - Inst. Book: IB-60000

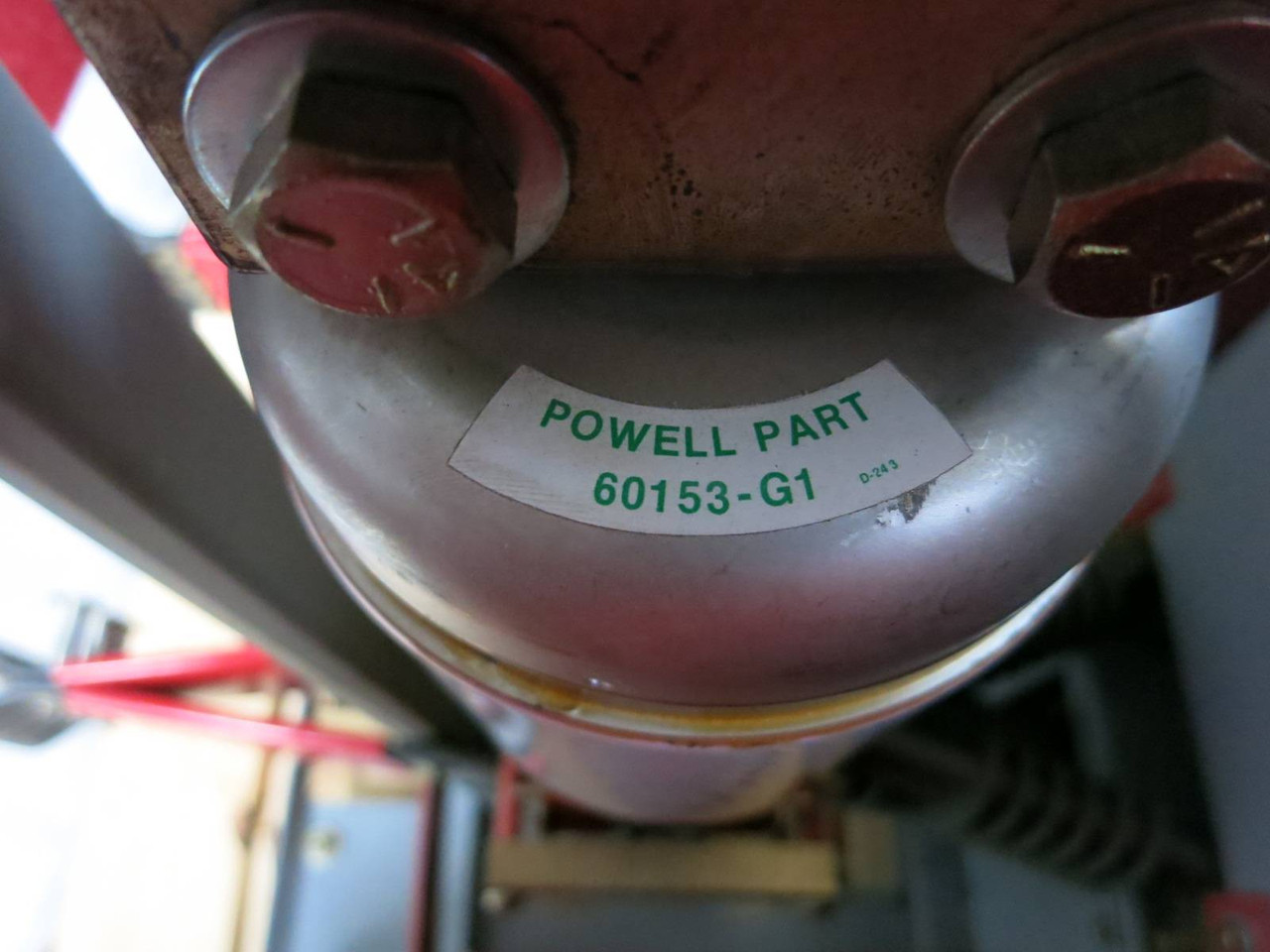

Part Number from Vacuum Bottle: 60153-G1
Number of Operations Fall Between 409 to 519
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
Powell
MPN: 15PV500-3 - 1200A
USED
Powell Industries Powl-Vac Vacuum Circuit Breaker
Not put back into service/energized after being tested/inspected and calibrated if needed- Nameplate Information -
Type: 15PV500-3 - Hz: 60
Rated Max Voltage: 15 kV - Rated Amp: 1200
Interrupting Time: 5 Cycles - Rated Short Circuit: 18 kA
Voltage Range Factor: 1.30 - Impulse Withstand: 95 kV
Closing Coil Volts: 125 - Closing Coil Amps: 3.2 DC
Trip Coil Volts: 125 - Closing Coil Amps: 3.2 DC
Closing Coil Range: 100-140 Volts
Trip Coil Range: 70-140 Volts
Wiring Diagram: 50429-G1
Mech. Type: PVS-3 - WT: 468 - Inst. Book: IB-60000
Part Number from Vacuum Bottle: 60153-G1
Number of Operations Fall Between 409 to 519
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
SKU:
PM2925
UPC:
076625957746
Condition:
Used
Availability:
Ships within 0-1 business days of full payment. Expedited shipping available.
Width:
33
Height:
35
Depth:
33
Warranty:
30 day warranty.
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
SKU:
PM2925
MPN:
15PV500-3 - 1200A
Approx Shipping Dims (LxWxH):
33.000" x 33.000" x 35.000"
Approx Shipping Weight:
500.0000
Location:
E Pallet Racking
Phases:
3 Phase
Amperage:
1200 Amp
Voltage:
15 kV
Freight Shipping Cost:
259
Listed:
1/11/2019
UPC:
076625957746
eBay Listing:
352566355288
