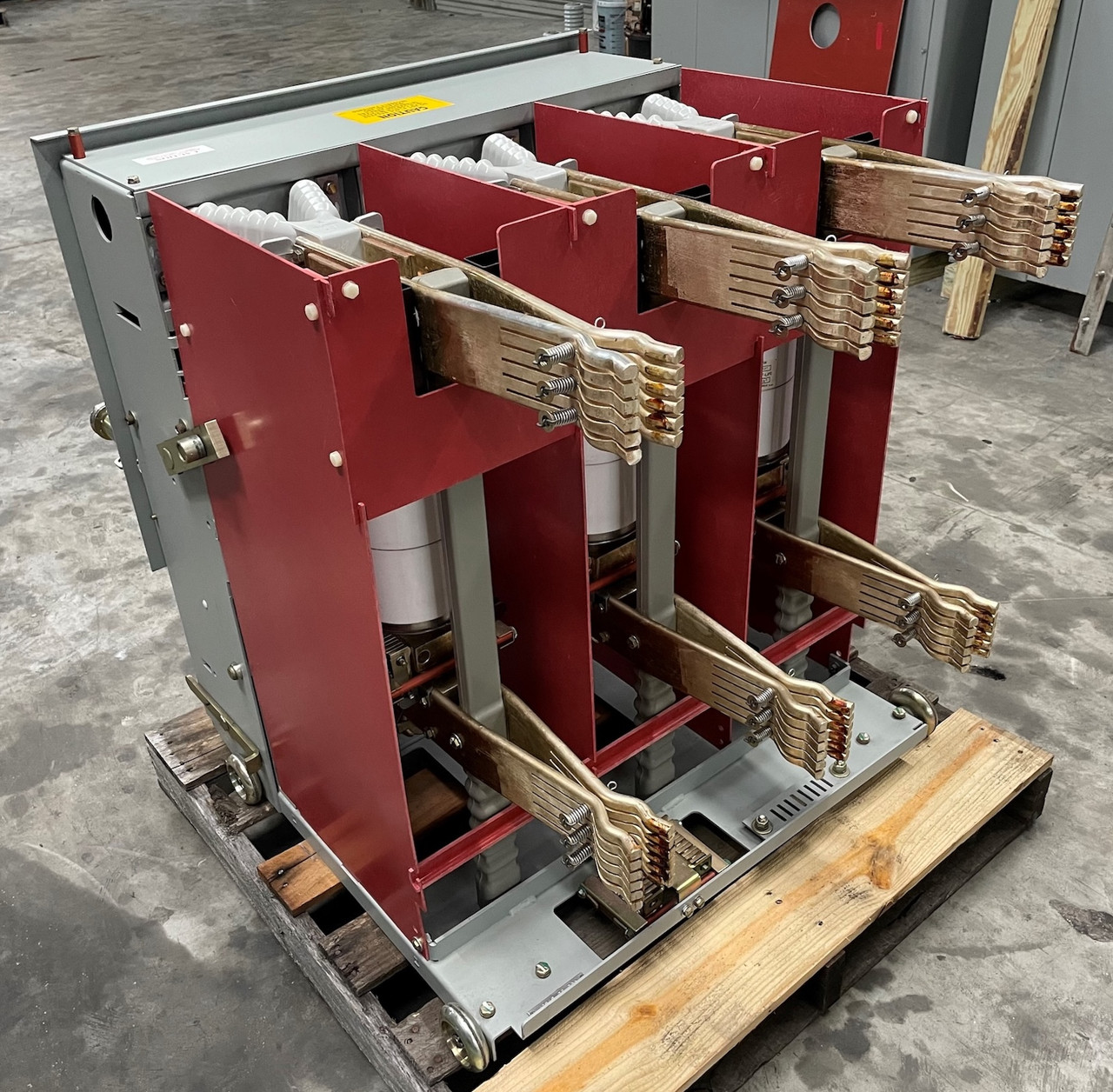

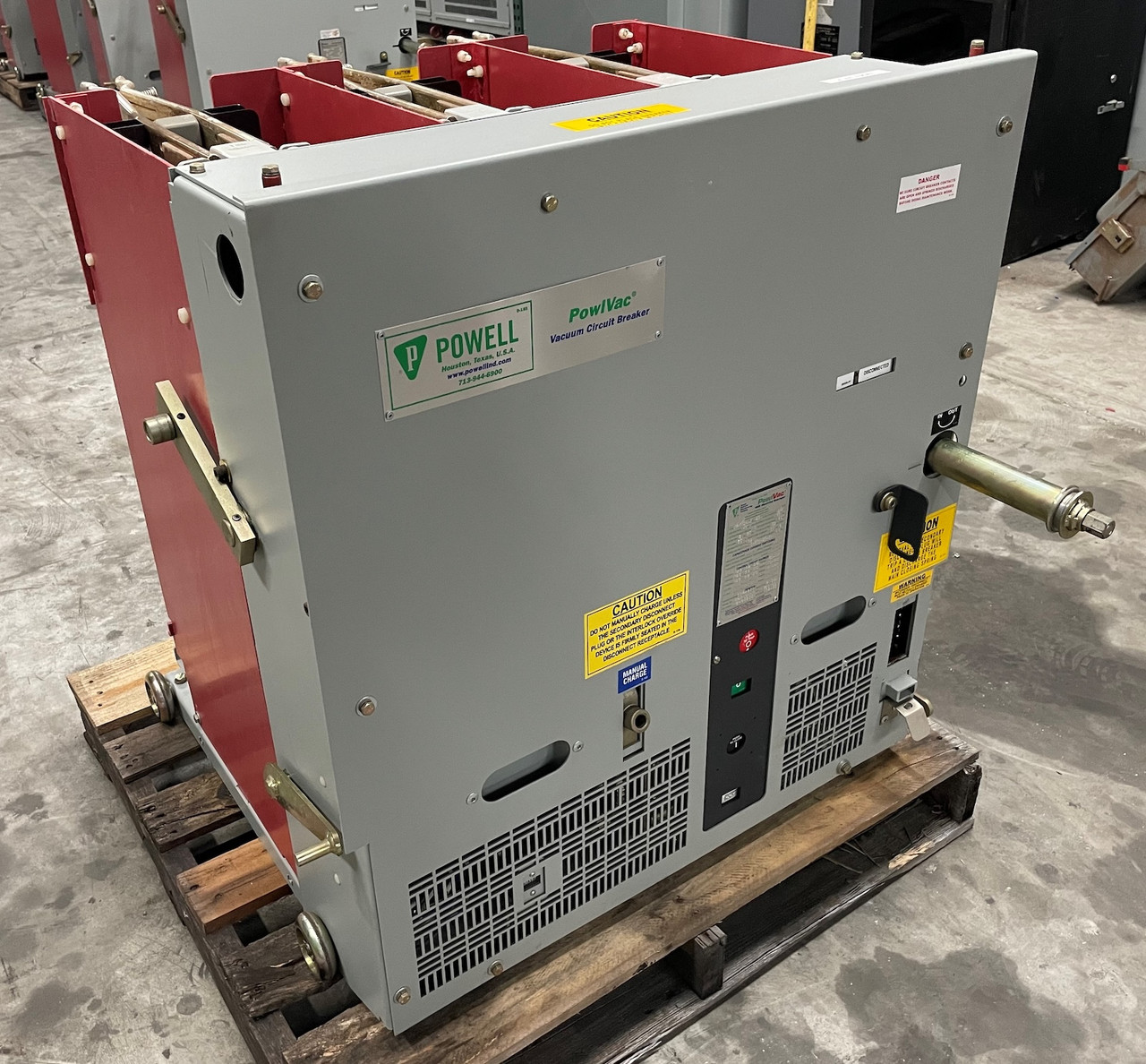

Powell 05PV50CDRX-2 3000A 4.76 kV ANSI Vacuum Circuit Breaker Powl GE 5kV 3000 (PM3189-1)
SKU:
PM3189
Powell
GE / General Electric
MPN: 05PV50CDRX-2
USED
ANSI Vacuum Circuit Breaker
3000 Amp | 4.76 KV

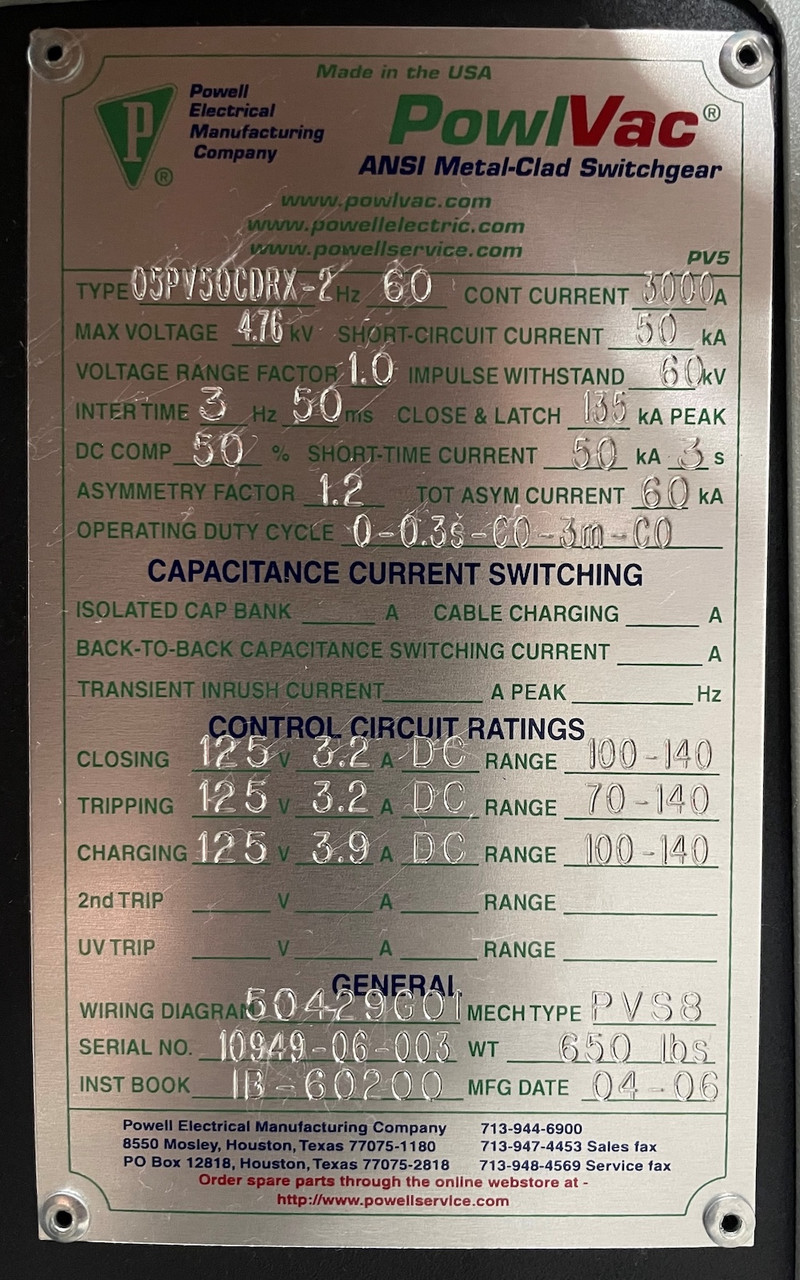

- Name Plate Information -
Type: 05PV50CDRX-2 - Hz: 60 - Cont Current: 3000 A - Max Voltage: 4.76 - kV Short- Circuit Current: 50 kA
Voltage Range Factor: 1.0 - Impulse Withstand: 60 kV - Inter Time: 3 Hz 50 ms - Close & Latch 135 kA Peak
DC Comp: 50 % - Short-time Current: 50 kA 3 s - Asymmetry Factor: 1.2 Total Asym Current: 60 kA
Operating Duty Cycle: 0 - 0.3s - C0 - 3m - C0
- Control Circuit Ratings -
Closing: 125 V 3.2 A DC Range 100-140
Tripping: 125 V 3.2 A DC Range 70-140
Charging: 125 V 3.9 A DC Range 100-140
- General -
Wiring Diagram: 50429G01 - Mech Type: PVS8 - Weight: 650 lbs - Inst Book: IB-60200 - Mfg Date: 2006

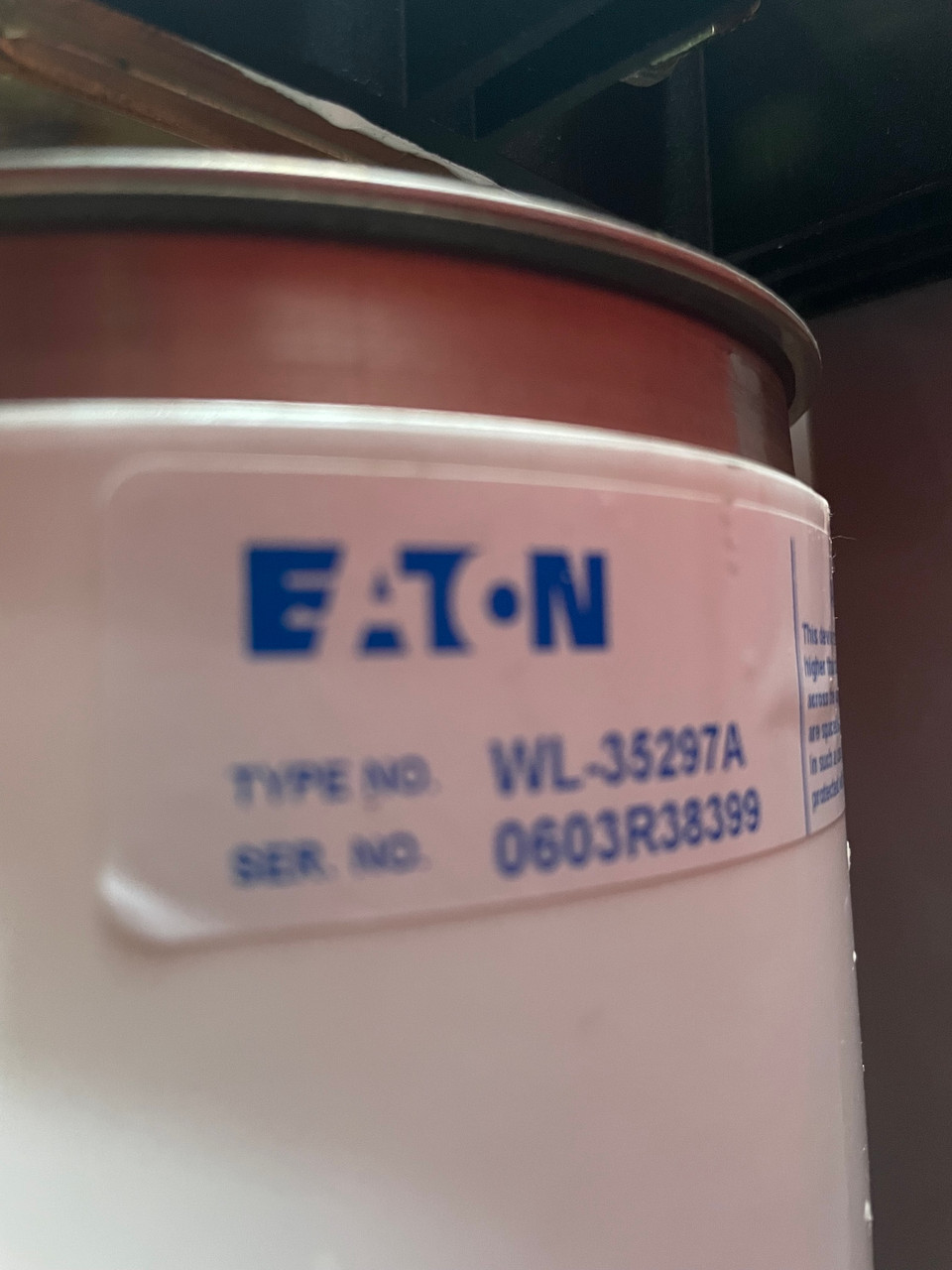

Vacuum Bottle Type: WL-35297A
Operations Counter Between 289 and 387
Breaker Dimensions: 32" Wide x 34" Tall x 40" Deep
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
Powell
GE / General Electric
MPN: 05PV50CDRX-2
USED
ANSI Vacuum Circuit Breaker
3000 Amp | 4.76 KV
- Name Plate Information -
Type: 05PV50CDRX-2 - Hz: 60 - Cont Current: 3000 A - Max Voltage: 4.76 - kV Short- Circuit Current: 50 kA
Voltage Range Factor: 1.0 - Impulse Withstand: 60 kV - Inter Time: 3 Hz 50 ms - Close & Latch 135 kA Peak
DC Comp: 50 % - Short-time Current: 50 kA 3 s - Asymmetry Factor: 1.2 Total Asym Current: 60 kA
Operating Duty Cycle: 0 - 0.3s - C0 - 3m - C0
- Control Circuit Ratings -
Closing: 125 V 3.2 A DC Range 100-140
Tripping: 125 V 3.2 A DC Range 70-140
Charging: 125 V 3.9 A DC Range 100-140
- General -
Wiring Diagram: 50429G01 - Mech Type: PVS8 - Weight: 650 lbs - Inst Book: IB-60200 - Mfg Date: 2006
Vacuum Bottle Type: WL-35297A
Operations Counter Between 289 and 387
Breaker Dimensions: 32" Wide x 34" Tall x 40" Deep
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
SKU:
PM3189
UPC:
7450008675626
Condition:
Used
Availability:
Ships within 0-1 business days of full payment. Expedited shipping available.
Width:
36
Height:
40
Depth:
36
Warranty:
30 day warranty.
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
SKU:
PM3189
MPN:
05PV50CDRX-2
Approx Shipping Dims (LxWxH):
36.000" x 36.000" x 40.000"
Approx Shipping Weight:
700.0000
Location:
B 41E
Phases:
3 Phase
Amperage:
3000 Amp
Voltage:
5 kV
Freight Shipping Cost:
324
Listed:
1/3/2022
UPC:
7450008675626
eBay Listing:
373849839102
Related products

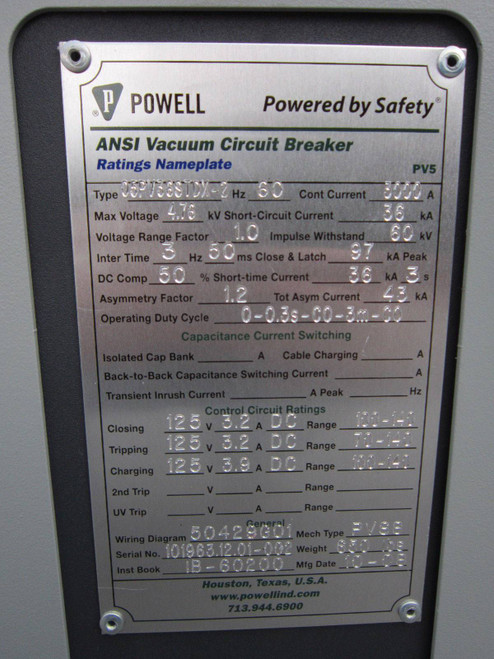

Powell Electrical 3000A 5kV 05PV36STDX-2 Powl-Vac Vacuum Circuit Breaker PowlVac (EBI3285-2)
$9,555.00

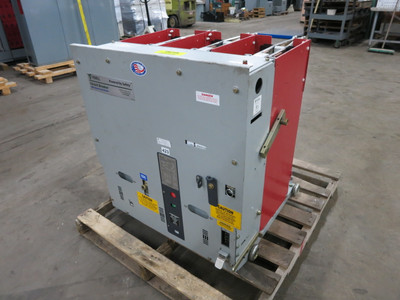

Powell 15PV50STDX-2 3000A 15kV 125DC Powl-Vac Vacuum Breaker PowlVac GE 3000 Amp (DW1457-1)
