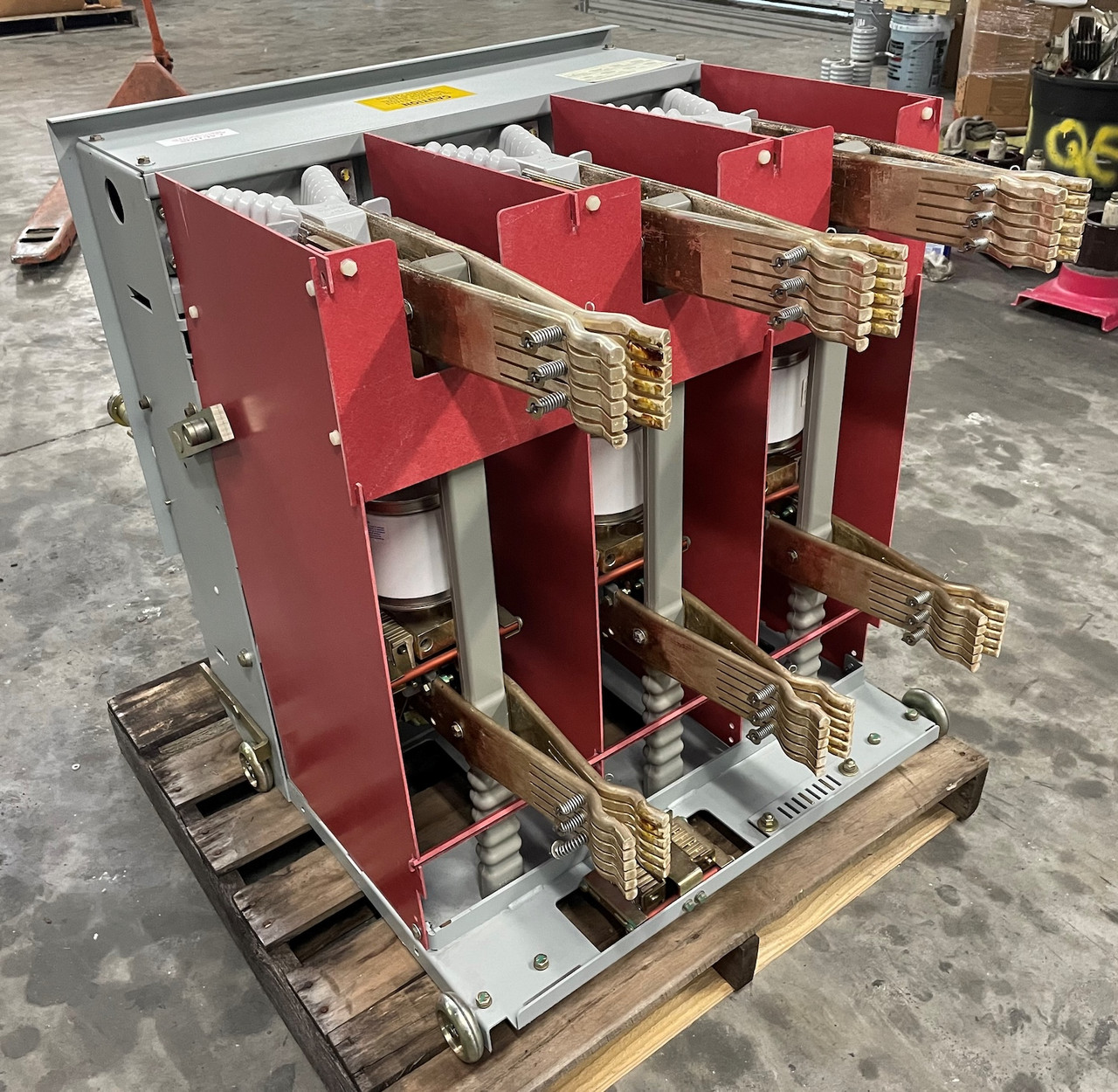

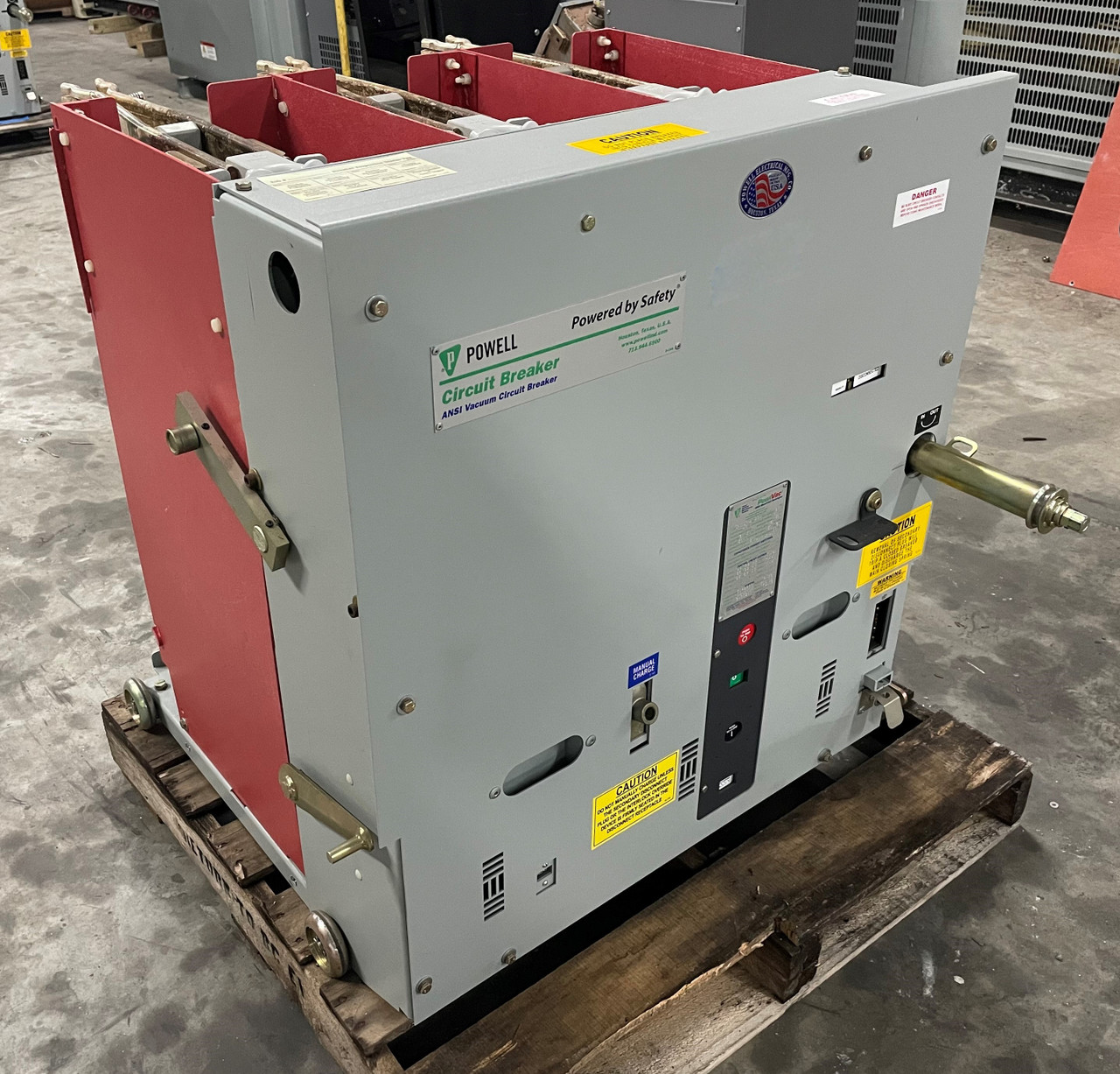

Powell 05PV50CDRX-2 1200A 4.76 kV ANSI Vacuum Circuit Breaker GE 5kV 1200 Powl (PM3190-11)
SKU:
PM3190
Powell
GE / General Electric
MPN: 05PV50CDRX-2
USED
ANSI Vacuum Circuit Breaker
1200 Amp | 4.76 KV

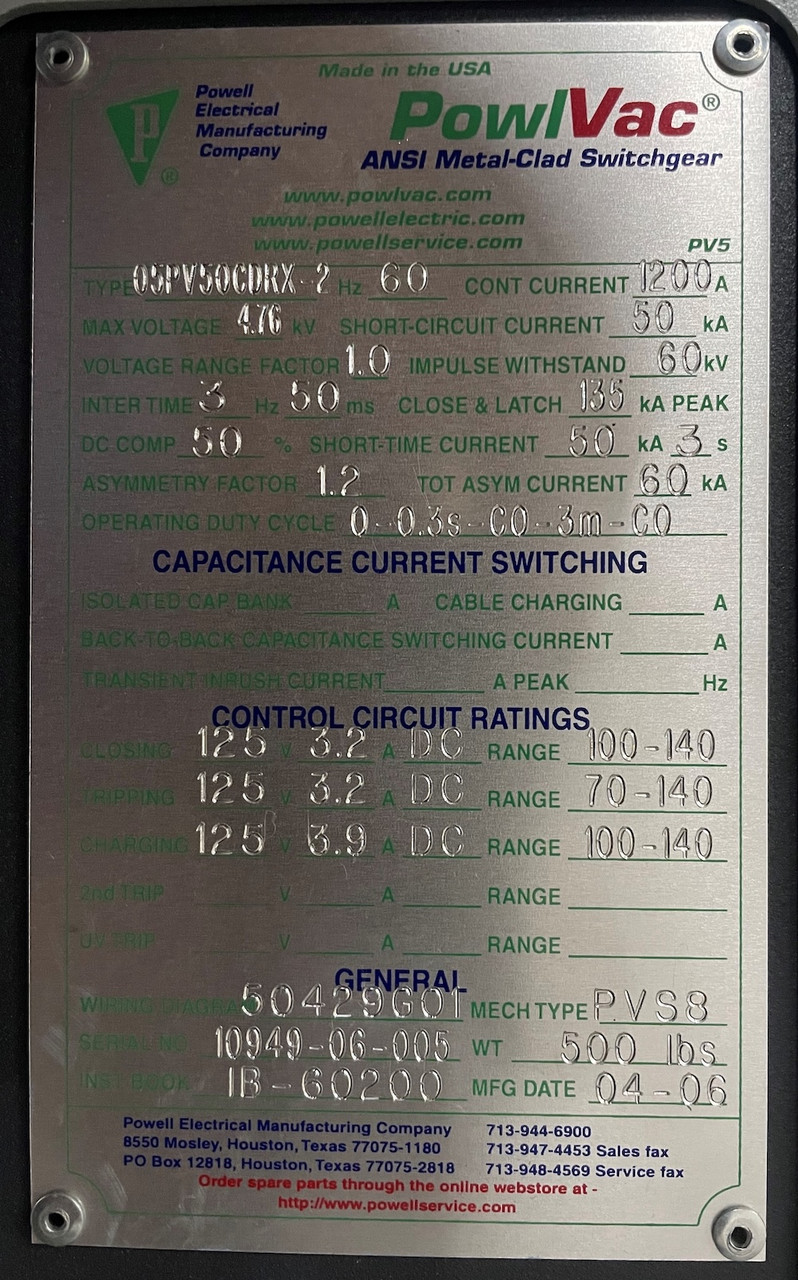

- Name Plate Information -
Type: 05PV50CDRX-2 - Hz: 60 - Cont Current: 1200 A - Max Voltage: 4.76 - kV Short- Circuit Current: 50 kA
Voltage Range Factor: 1.0 - Impulse Withstand: 60 kV - Inter Time: 3 Hz 50 ms - Close & Latch 135 kA Peak
DC Comp: 50 % - Short-time Current: 50 kA 3 s - Asymmetry Factor: 1.2 Total Asym Current: 60 kA
Operating Duty Cycle: 0 - 0.3s - C0 - 3m - C0
- Control Circuit Ratings -
Closing: 125 V 3.2 A DC Range 100-140
Tripping: 125 V 3.2 A DC Range 70-140
Charging: 125 V 3.9 A DC Range 100-140
- General -
Wiring Diagram: 50429G01 - Mech Type: PVS8 - Weight: 500 lbs - Inst Book: IB-60200 - Mfg Date: 2006

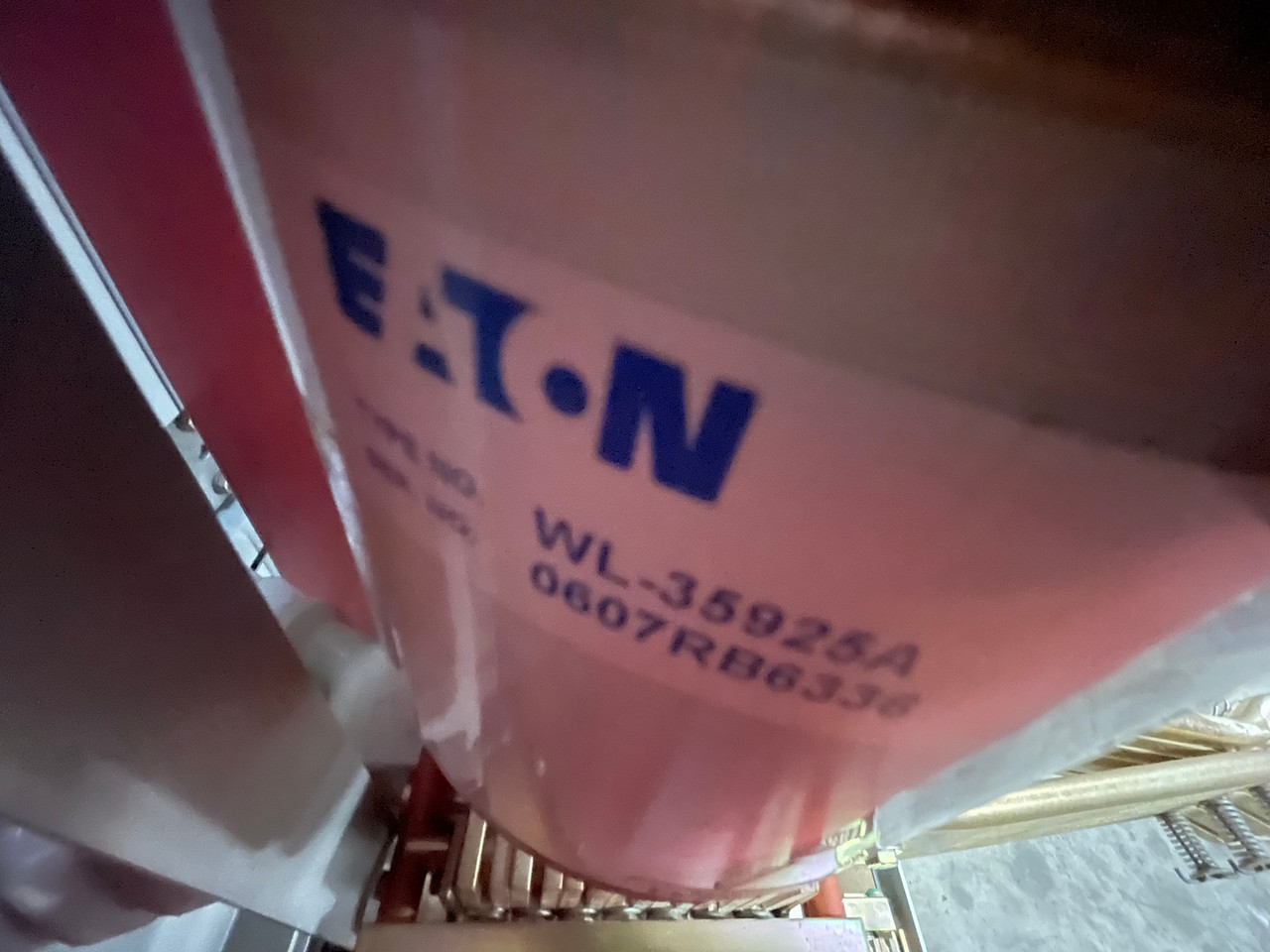

Vacuum Bottle Type: WL-35925A
Breaker Dimensions: 32" Wide x 34" Tall x 40" Deep
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
Powell
GE / General Electric
MPN: 05PV50CDRX-2
USED
ANSI Vacuum Circuit Breaker
1200 Amp | 4.76 KV
- Name Plate Information -
Type: 05PV50CDRX-2 - Hz: 60 - Cont Current: 1200 A - Max Voltage: 4.76 - kV Short- Circuit Current: 50 kA
Voltage Range Factor: 1.0 - Impulse Withstand: 60 kV - Inter Time: 3 Hz 50 ms - Close & Latch 135 kA Peak
DC Comp: 50 % - Short-time Current: 50 kA 3 s - Asymmetry Factor: 1.2 Total Asym Current: 60 kA
Operating Duty Cycle: 0 - 0.3s - C0 - 3m - C0
- Control Circuit Ratings -
Closing: 125 V 3.2 A DC Range 100-140
Tripping: 125 V 3.2 A DC Range 70-140
Charging: 125 V 3.9 A DC Range 100-140
- General -
Wiring Diagram: 50429G01 - Mech Type: PVS8 - Weight: 500 lbs - Inst Book: IB-60200 - Mfg Date: 2006
Vacuum Bottle Type: WL-35925A
Breaker Dimensions: 32" Wide x 34" Tall x 40" Deep
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
