Product Description
Siemens
MPN: SBS0808DV
USED

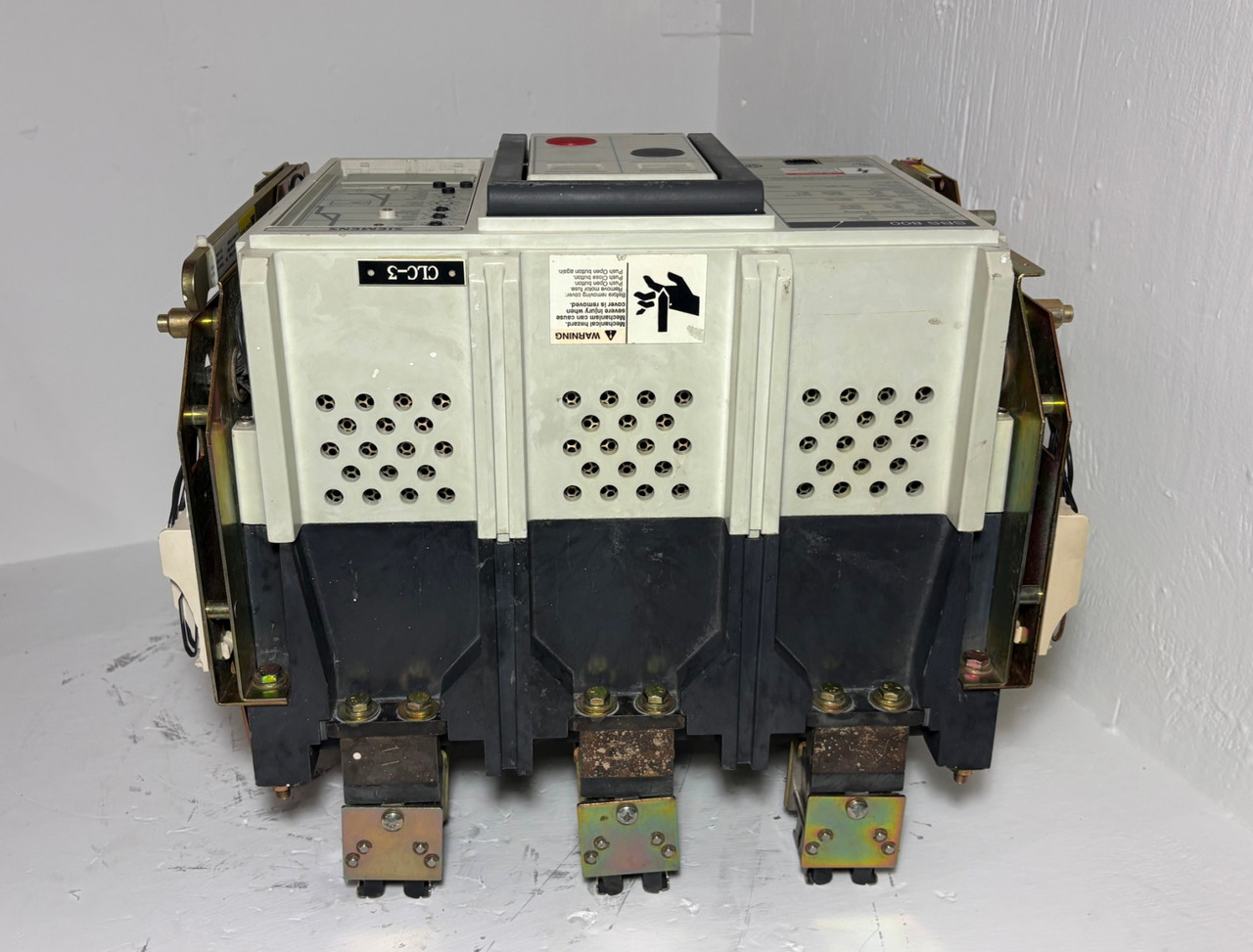

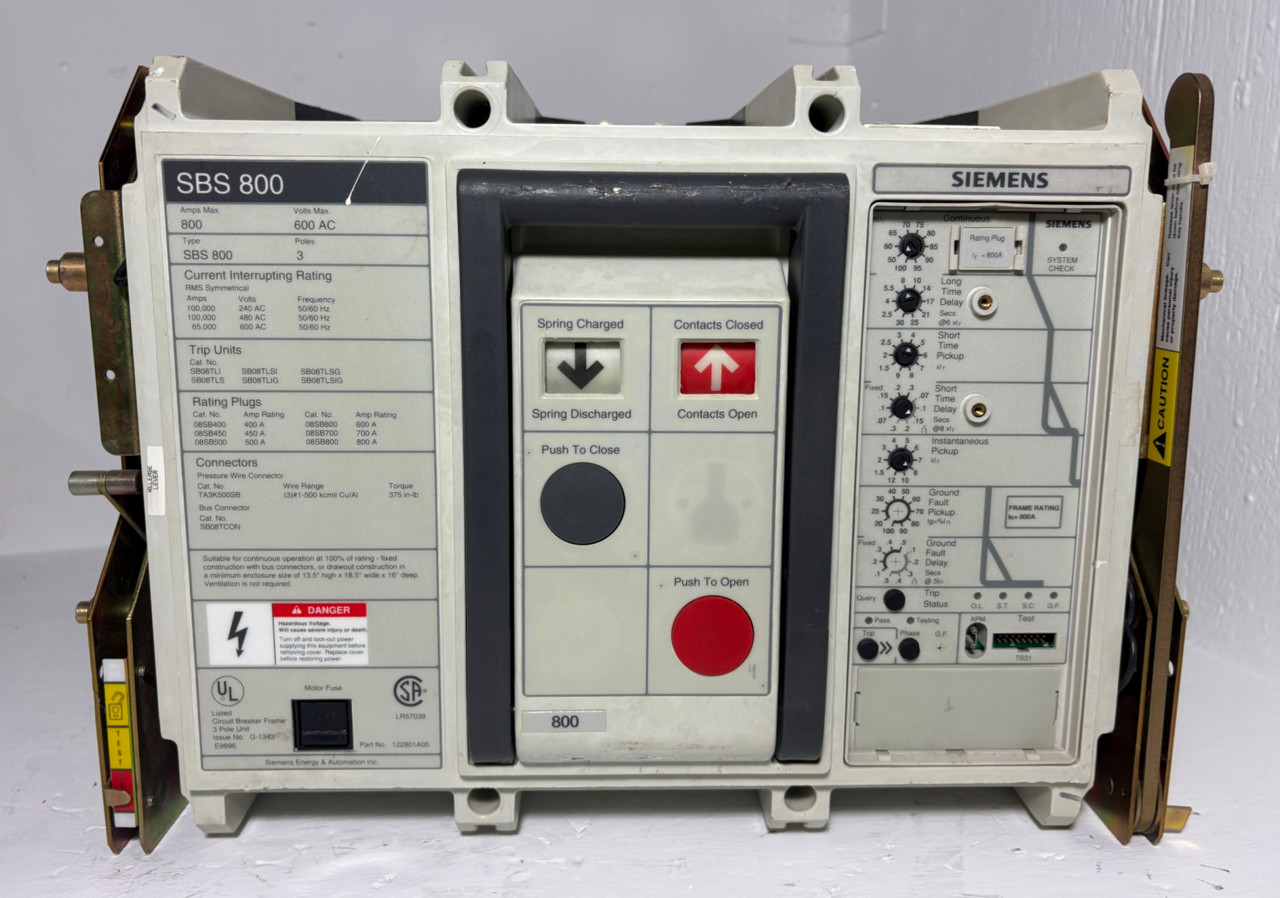

Drawout Circuit Breaker
800 Amps Max. | 800 A Rating Plug
SBS 800
Electrical Operator | 120 VAC Shunt Trip | Auxiliary Switches
LSI
This drawout circuit breaker can be manually or electrically operated
3 Pole
480/600 VAC
Current Interrupting Ratings:
100,000 Amps @ 240 Volts AC
100,000 Amps @ 480 Volts AC
65,000 Amps @ 600 Volts AC
Trip Unit:
800 Amps
Long Time Delay
Short Time Pickup & Delay
Instantaneous Pickup
Rating Plug:
800 Amps
Cat. No. 08SB800
Electric Operator:
SBE0120
120 Volts AC
Shunt Trip:
SBST120
120 Volts AC
Aux. Switches:
SBAS12
Breaker Weight: 128 lbs.
Breaker Dimensions (D x W x H): 15.5" x 19" x 12.5"
Shipping within 1 business day
30 Day Warranty on all purchases
Your purchase will include what is pictured and described above ONLY.
For more info or pictures, please visit our FAQs or contact us :
423 821-4712 - Sales@RiverCityIndustrial.com
Additional Information
- SKU:
- EM6047
- Condition:
- Used
- Availability:
- Ships within 0-1 business days of full payment. Expedited shipping available.
- SKU:
- EM6047
- MPN:
- SBS0808DV
- Approx Shipping Dims (LxWxH):
- 48.000" x 40.000" x 19.000"
- Approx Shipping Weight:
- 178.0000
- Location:
- BR 74A = lsi - drawout - 800a - eo - shunt - aux - broken fins
- Amperage:
- 800 Amp
- Voltage:
- 480/600 VAC
- Amperage (rated amps):
- 800 Amp
- Freight Shipping Cost:
- 242
- Listed:
- 2026-10-13T00:00:00
