Siemens Load Interrupter Switch 400A 7.2kV Medium Voltage Switchgear A5E03258116 (GA0098-1)
SKU:
GA0098
Siemens
Siemens Industry Inc
MPN: A5E03258116
USED
Siemens Load Interrupter Switchgear
400 Amp - 7.2 kV - 3 Phase - 3 Wire - 60 Hertz

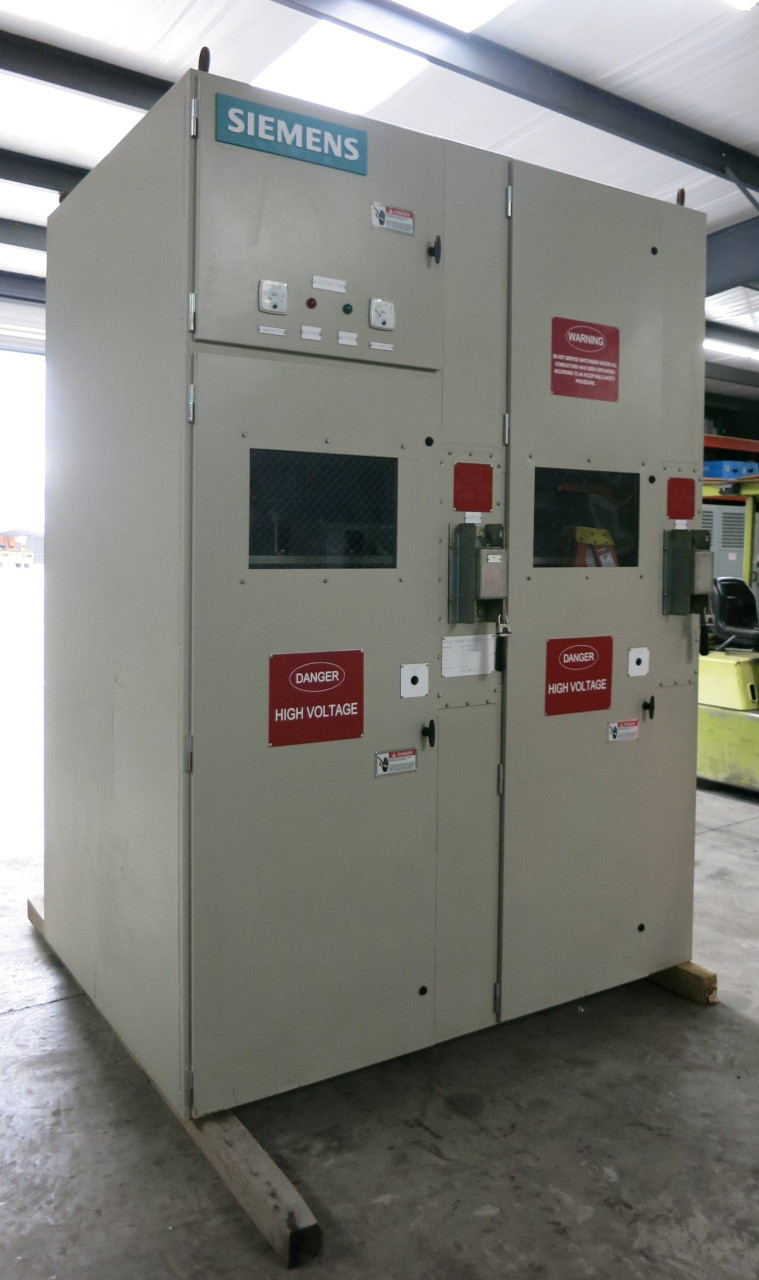

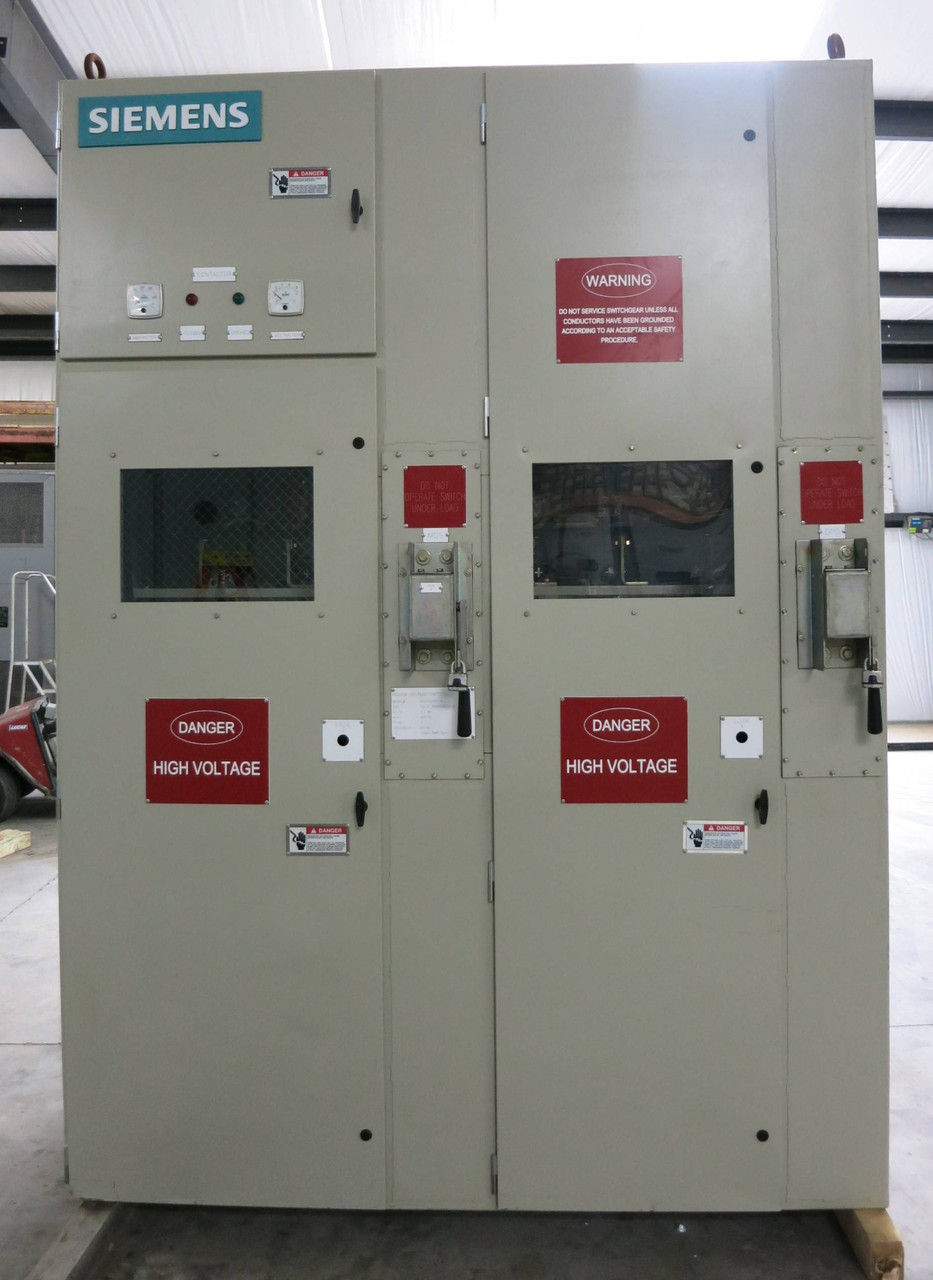

Complete and Ready to be Hooked Up110" Tall, so will need at least a single drop flatbed truck for freight

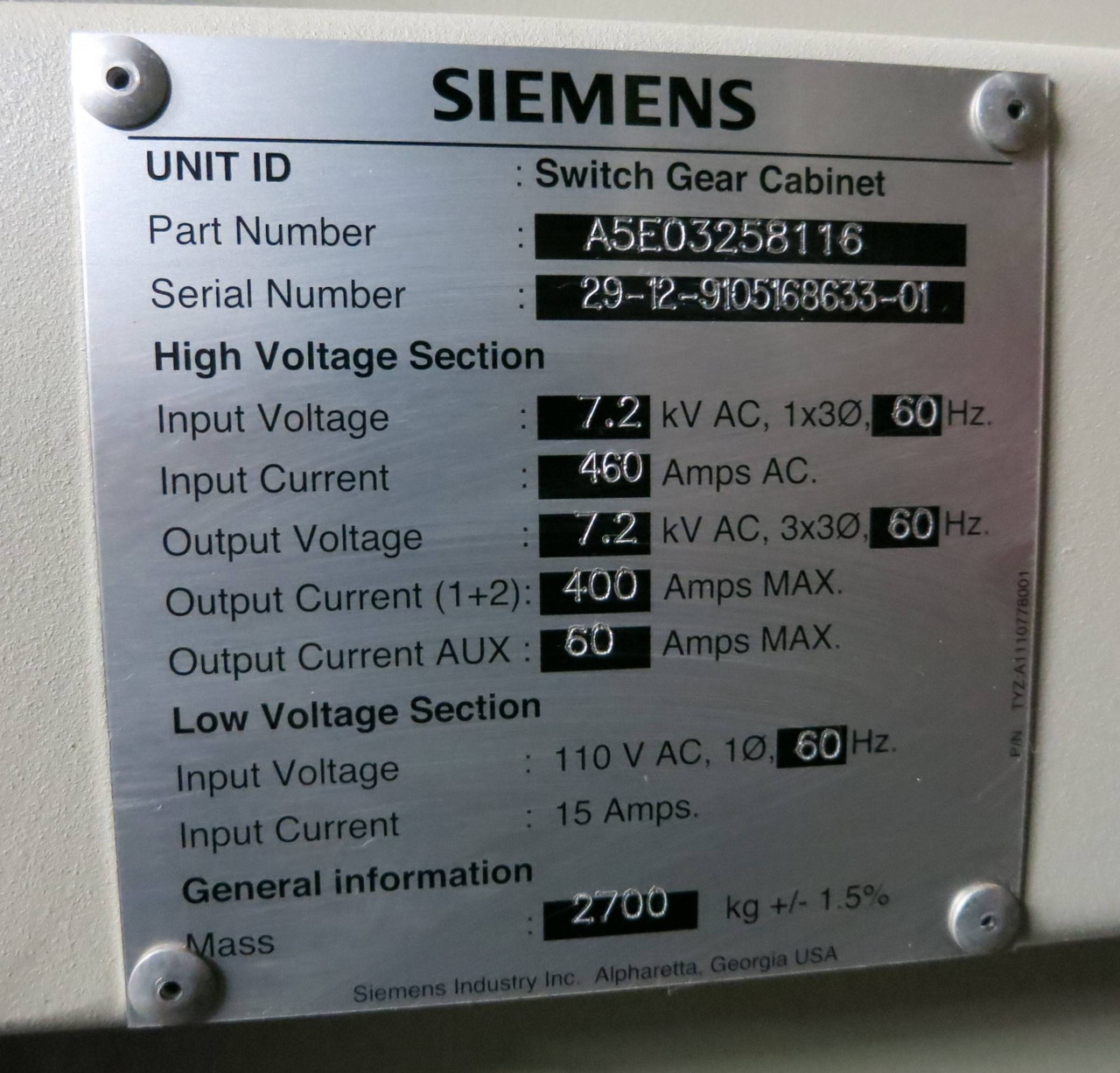

-Nameplate Information-
Unit ID: Switch Gear Cabinet
Part Number: A5E03258116
Serial Number: 29-12-9105168633-01
High Voltage Section:
Input Voltage: 7.2 kV AC, 1 x 30, 60Hz.
Input Current: 460 Amps AC.
Output Voltage: 7.2 kV AC, 3 x 30, 60Hz.
Output Current (1+2): 400 Amps MAX.
Output Current AUX: 60 Amps MAX.
Low Voltage Section:
Input Voltage: 110 V AC, 10, 60Hz.
Input Current: 15 Amps.
General Information: Mass - 2700 kg +/- 1.5%
Siemens Industry Inc
In Alpharetta, Georgia USA
P/N: TYZA110778001

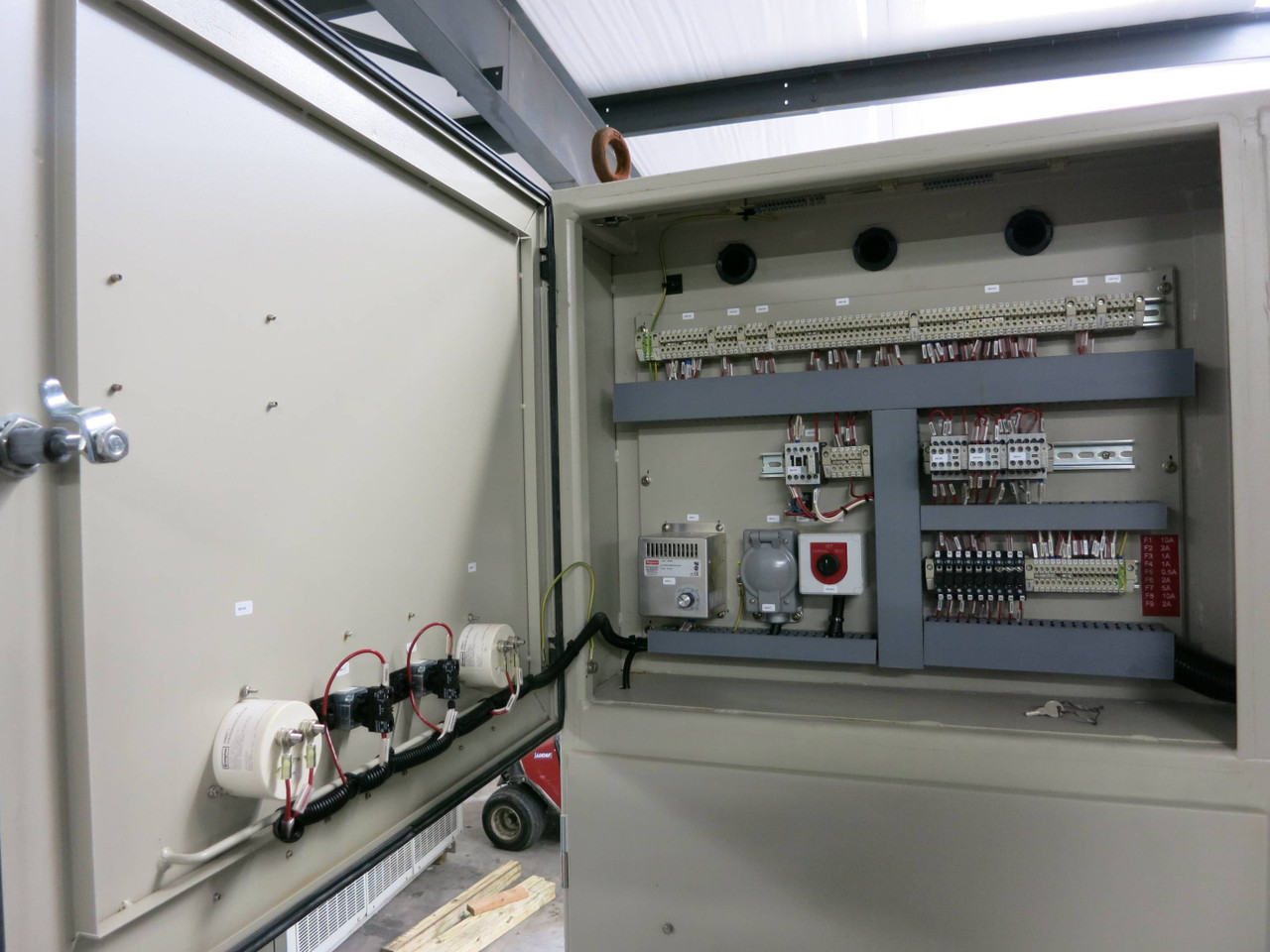

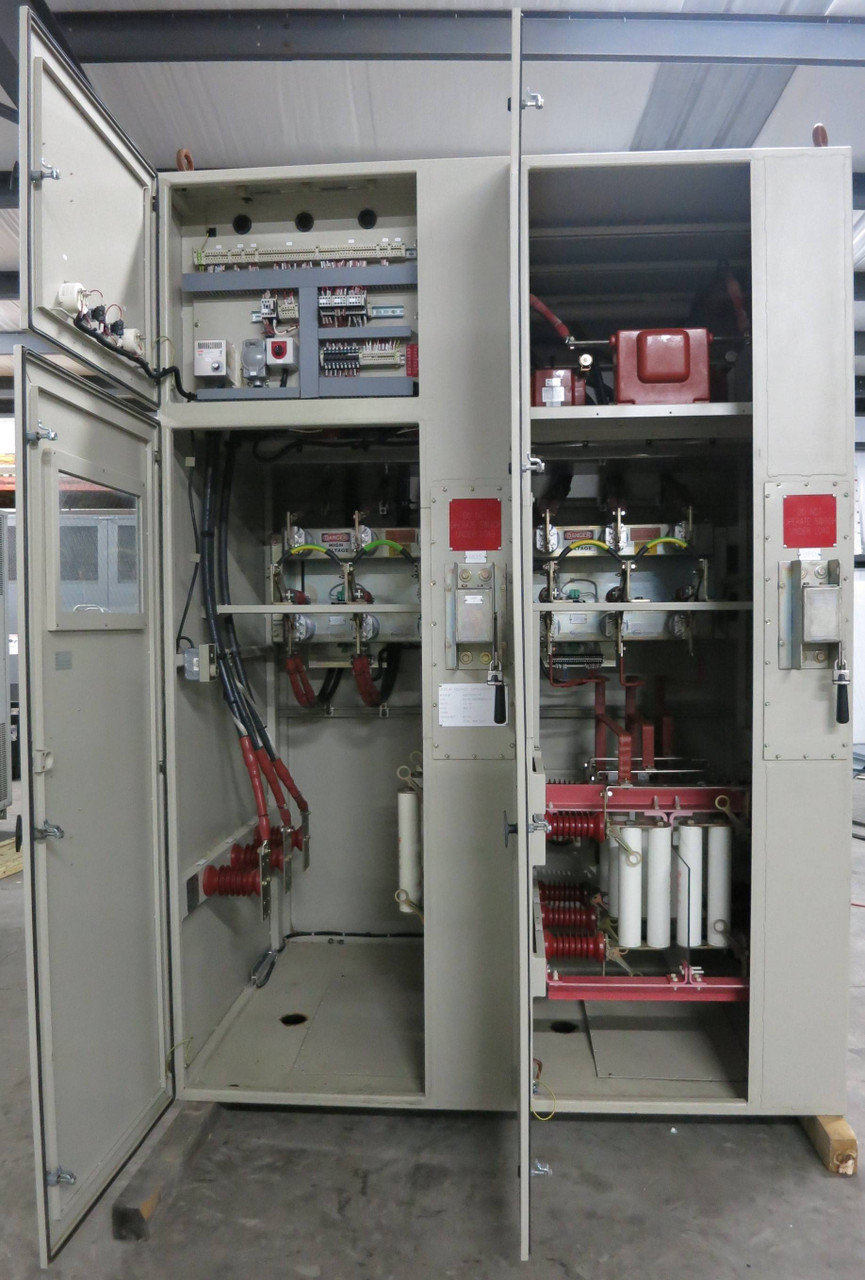

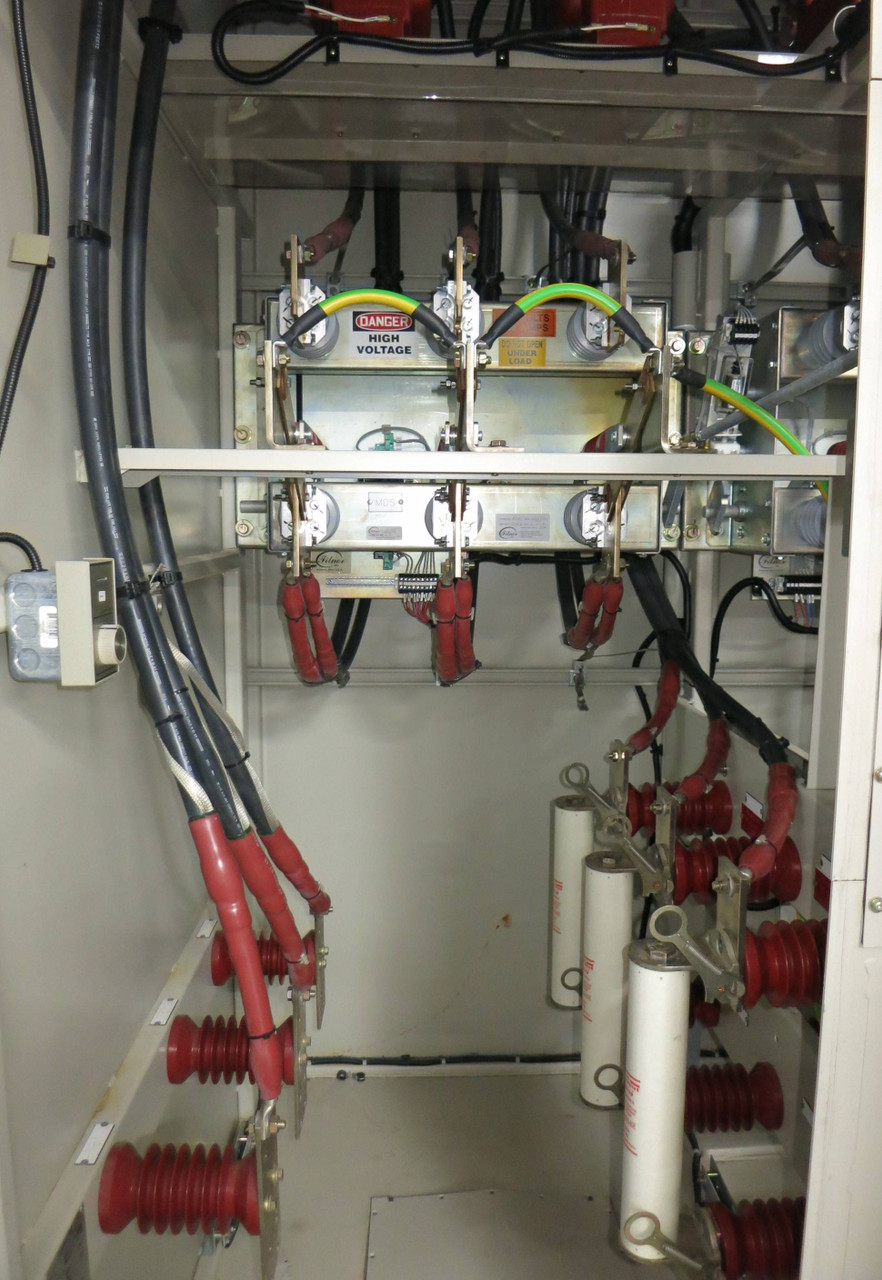

Top left section:
Hoffman Voltage Product:
Cat: DAH2001A l 115 Volts l 200 Watts
Crompton Voltmeter Reader:
206061*1 l 016-02VA-PZUY-C6-S2-SM l 0/150 Volts AC l 60 Hz
by Tyco Electronics Corporations
Crompton Ampmeter Reader:
205642*2 l 016-02AA-LSSC-C6-S2-SM l 0/5 Amps AC l 60 Hz
by Tyco Electronics Corporations
Top Right Section:
3x Current Transformers MSV 15.5kV:
Ratio: 400:5 A. 0.15 B0.9 RF 1.33 @ 30 degree C
by Instrument Transformers, Inc.
3x Current Transformers with Type E Bussmann Fuses: 12CAV 1E
Ratio: 60:1

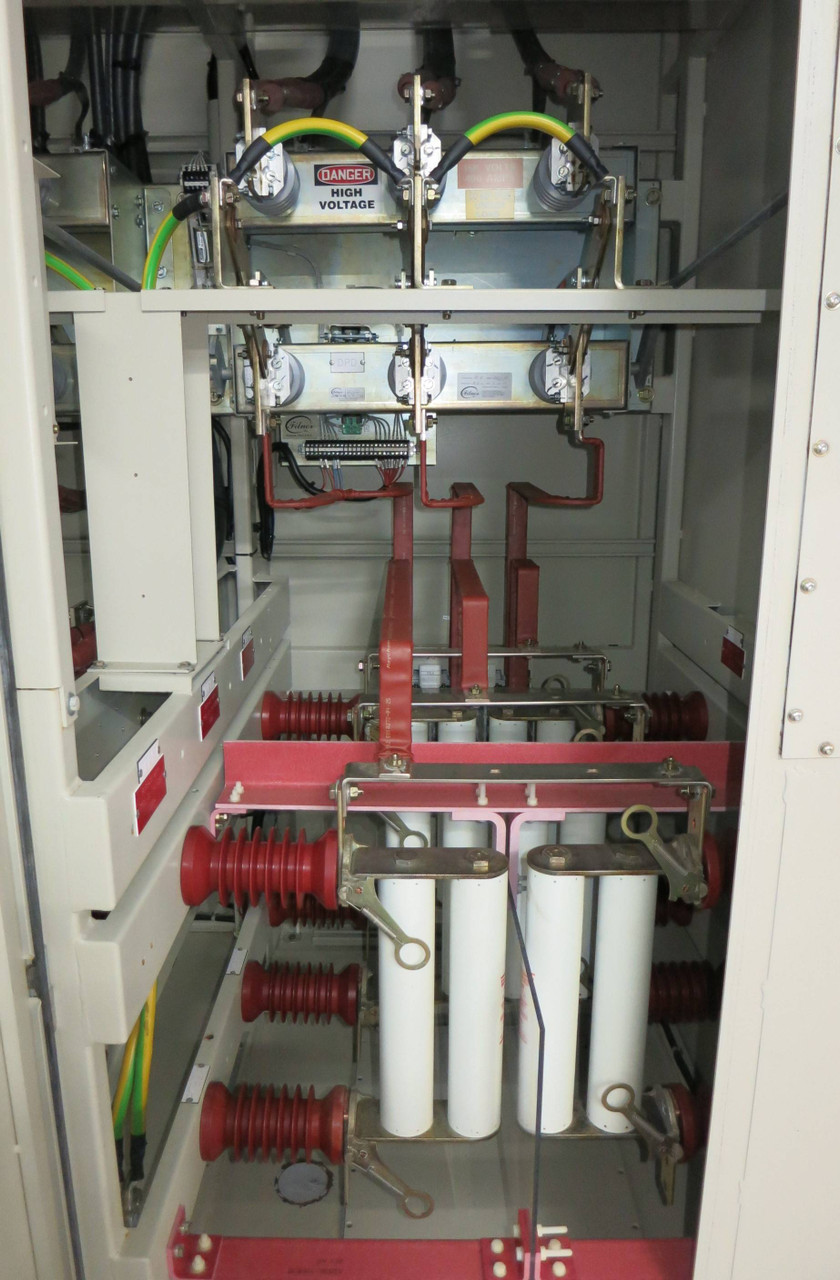

Bottom Right Section:
12x Ferraz Shawmut Amp-trap Fuses
Type CL-14 l General Purpose Current Limiting Power Fuse
A083C2D0R0-200E l 8.3 kV Max l IR: 50kA. RMS Sym
A20361036800 Rev AG
Bottom Left Section:
3x Ferraz Shawmut Amp-trap Fuses
ype CL-14 l General Purpose Current Limiting Power Fuse
A083C2D0R0-200E l 8.3 kV Max l IR: 50kA. RMS Sym
White-Rodgers switch E08/-TH01
Decco DC Solenoid 28-631-457 l 125 VDC
Approximate Switchgear dimensions: 60 x 80 x 110
Approximate Switchgear weight: 5953 lbs
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
