Siemens 1200A 38kV 38-3AFS-1500-56 56VDC AC High Voltage Vacuum Breaker Flawed (GA0733-2)
SKU:
GA0733
Siemens Energy & Automation, Inc.
MPN: 38-3AFS-1500-56
USED
AC High Voltage Circuit Breaker
Side Arc Shields are not on the breaker
Not put back into service/energized after being tested/inspected and calibrated if neededSide Arc Shields are not on the breaker

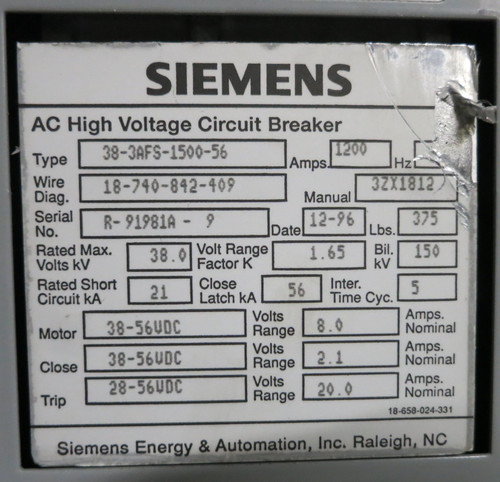

- Nameplate Information -
Type: 38-3AFS-1500-56 l 1200 Amps l 60 Hz
Wire Diag. 18-740-842-409 l Manual: 3ZX1812
Date: 12/96
38.0 Rated Volts KV Max. l 1.65 Volt Range Factor K l 150 Bil. kV
21 Rated Short Circuit kA l 56 Close Latch kA l 5 Inter. Time Cyc.
Motor: 38-56 VDC Volts Range l 8.0 Amps Nominal
Close: 38-56 VDC Volts Range l 2.1 Amps Nominal
Trip: 28-56 VDC Volts Range l 20.0 Amps Nominal
Breaker Weight: 1000 Lbs
Breaker Dimensions: 42" x 48" x 66"
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
Siemens Energy & Automation, Inc.
MPN: 38-3AFS-1500-56
USED
AC High Voltage Circuit Breaker
Side Arc Shields are not on the breaker
Not put back into service/energized after being tested/inspected and calibrated if neededSide Arc Shields are not on the breaker
- Nameplate Information -
Type: 38-3AFS-1500-56 l 1200 Amps l 60 Hz
Wire Diag. 18-740-842-409 l Manual: 3ZX1812
Date: 12/96
38.0 Rated Volts KV Max. l 1.65 Volt Range Factor K l 150 Bil. kV
21 Rated Short Circuit kA l 56 Close Latch kA l 5 Inter. Time Cyc.
Motor: 38-56 VDC Volts Range l 8.0 Amps Nominal
Close: 38-56 VDC Volts Range l 2.1 Amps Nominal
Trip: 28-56 VDC Volts Range l 20.0 Amps Nominal
Breaker Weight: 1000 Lbs
Breaker Dimensions: 42" x 48" x 66"
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
SKU:
GA0733
UPC:
7450000483434
Condition:
Used
Availability:
Ships within 0-1 business days of full payment. Expedited shipping available.
Width:
54
Height:
72
Depth:
48
Warranty:
30 day warranty.
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
SKU:
GA0733
MPN:
38-3AFS-1500-56
Approx Shipping Dims (LxWxH):
48.000" x 54.000" x 72.000"
Approx Shipping Weight:
1050.0000
Location:
B 10A - B Floor (Side Arc Shields are not on the breaker)
Phases:
3 Phase
Amperage:
1200 Amp
Voltage:
38 kV
Amperage (rated amps):
1200 Amp
Freight Shipping Cost:
443
Listed:
4/21/2021
UPC:
7450000483434
eBay Listing:
274767821704
