Product Description
Teco Westinghouse
MPN: EP1502C
NEW

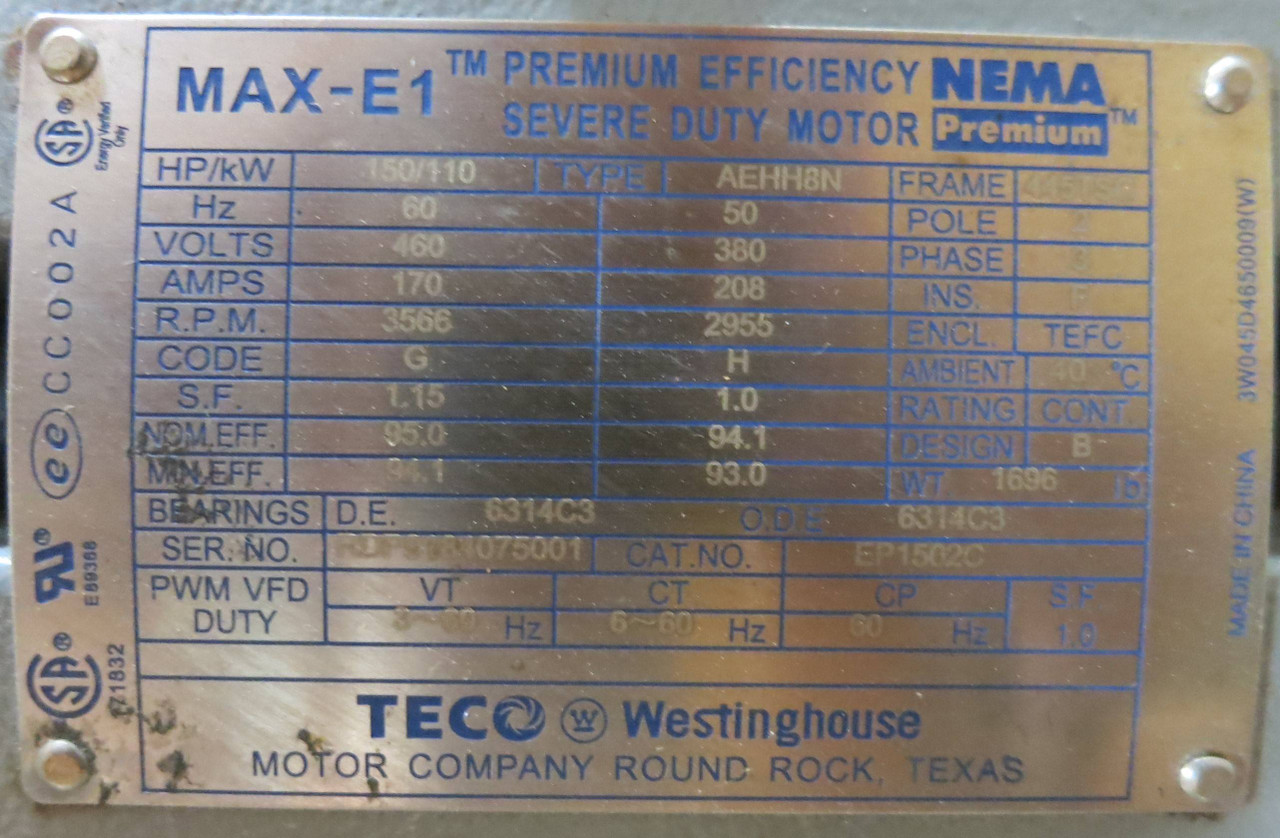

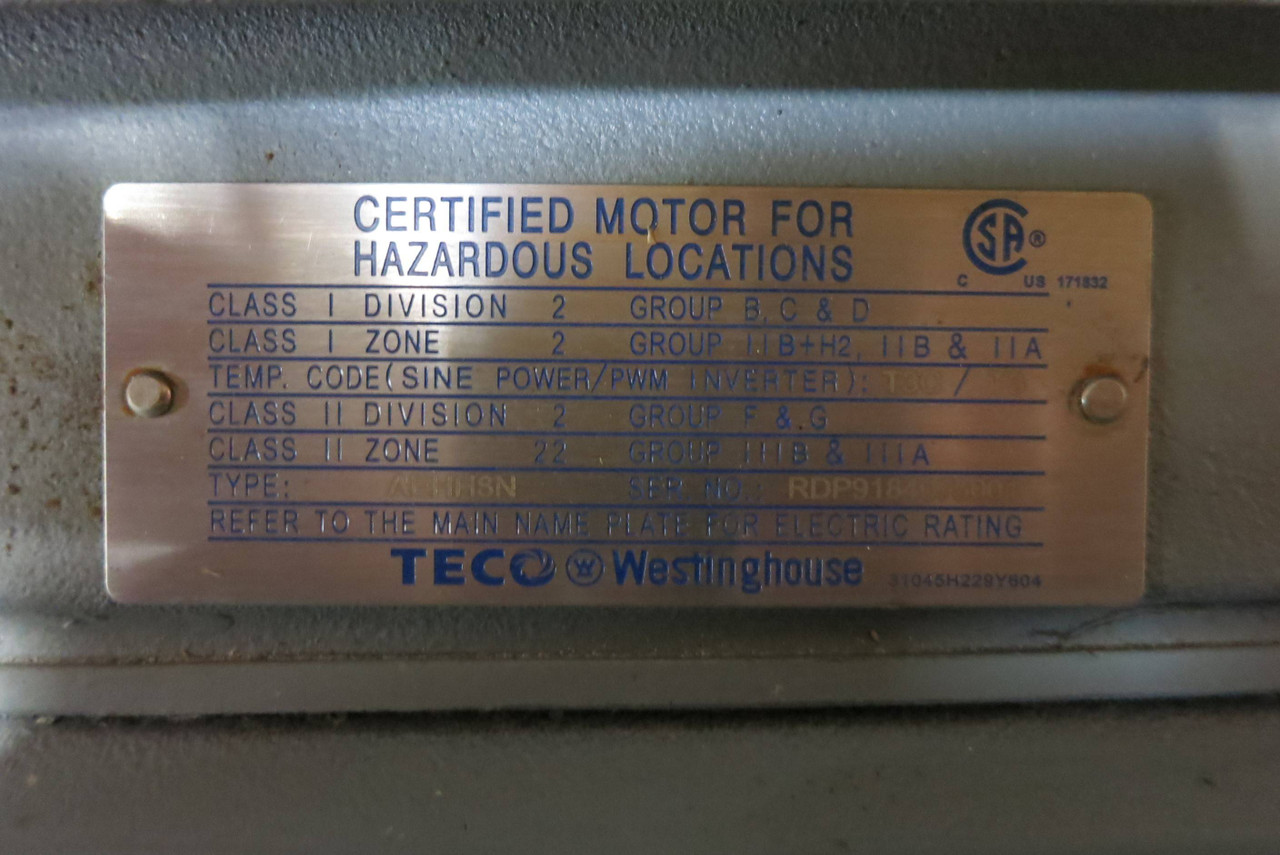

Certified Hazardous Location Max-E1 Premium Efficiency Severe Duty Electric Motor
HP/kW: 150/110 - Type: AEHH8N - Frame: 445TSG
Pole: 2 - Phase: 3 - Ins: F - Encl: TEFC - Ambient: 40 Deg C
Rating: Cont - Design: B - WT: 1696 lb - Bearings D.E. & O.D.E: 6314C3
Cat No: EP1502C - Serial No: RDP9184075001
PWM VFD Duty
VT: 3-60 Hz - CT: 6-60 Hz - CP: 60 Hz - SF: 1.0
Hz: 60 - Volts: 460 - Amps: 170 - RPM: 3566 - Code: G - SF: 1.15 - Nom Eff: 95.0 - Min Eff: 94.1
Hz: 50 - Volts: 380 - Amps: 208 - RPM: 2955 - Code: H - SF: 1.0 - Nom Eff: 94.1 - Min Eff: 93.0
buy.tecowestinghouse.com/Motors/MotorsDetail.aspx?Catalog=b4GjmRJWTdfvFHS1hO0%2BBg%3D%3D
Shipping within 1 business day
30 Day Warranty on all purchases
Your purchase will include what is pictured and described above ONLY.
For more info or pictures, please visit our FAQs or contact us :
423 821-4712 - Sales@RiverCityIndustrial.com
Additional Information
- SKU:
- PM3021-R1
- UPC:
- 760377733139
- Condition:
- New
- Availability:
- Ships within 0-1 business days of full payment. Expedited shipping available.
- SKU:
- PM3021-R1
- MPN:
- EP1502C
- Approx Shipping Dims (LxWxH):
- 44.000" x 35.000" x 30.000"
- Approx Shipping Weight:
- 1700.0000
- Location:
- E 32A
- eBay Listing:
- 372833595546
- Phases:
- 3 Phase
- Horsepower:
- 150 HP
- Voltage:
- 380/460 VAC
- Outdoor Rated?:
- Outdoor Rated (NEMA 3R or 4X)
- UPC:
- 760377733139
- Listed:
- 11/8/2019
