    Product Description

    Marathon
    Marathon Electric blue chip

    MPN: 8D 364TTGS1036AN
    USED

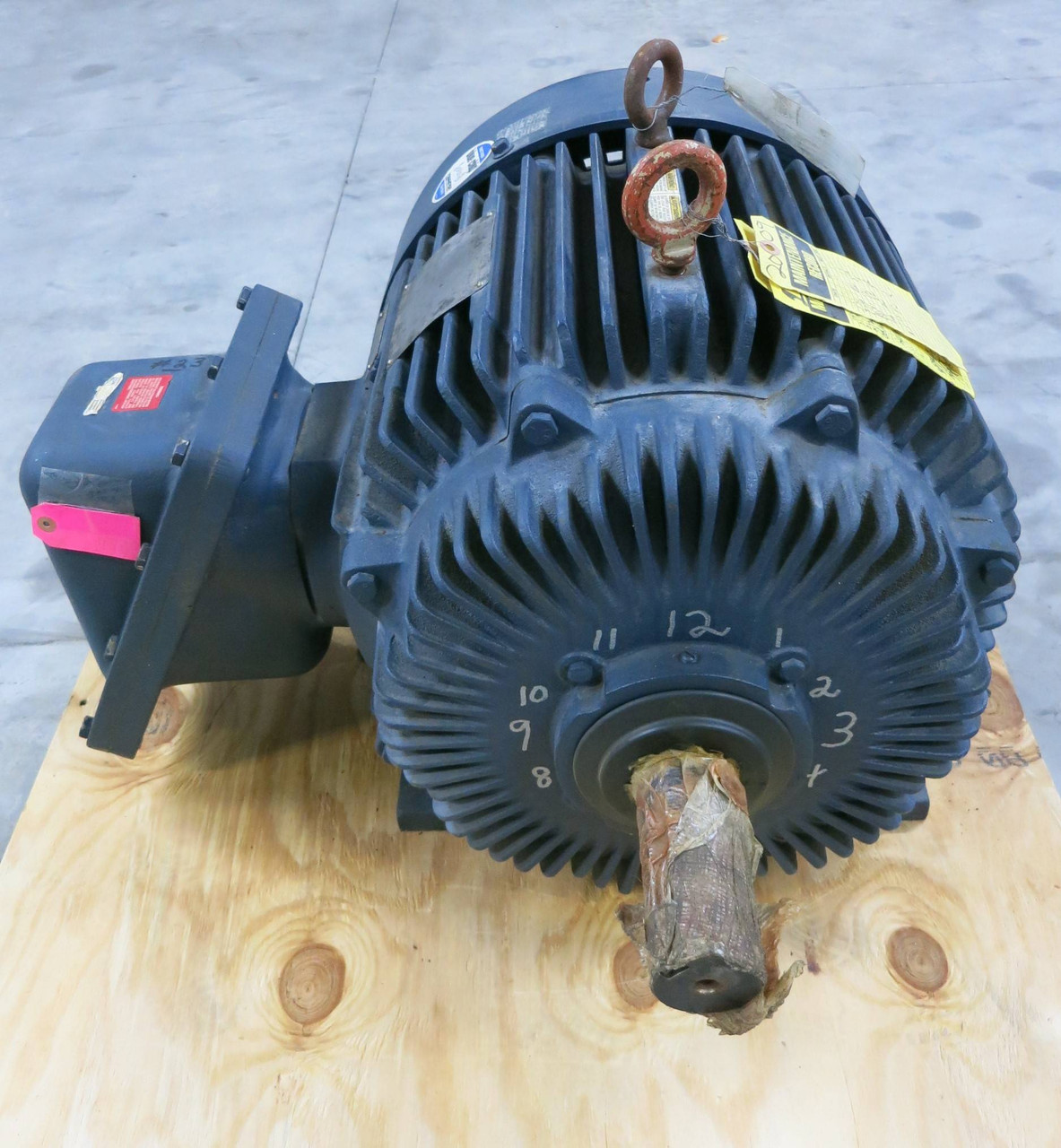

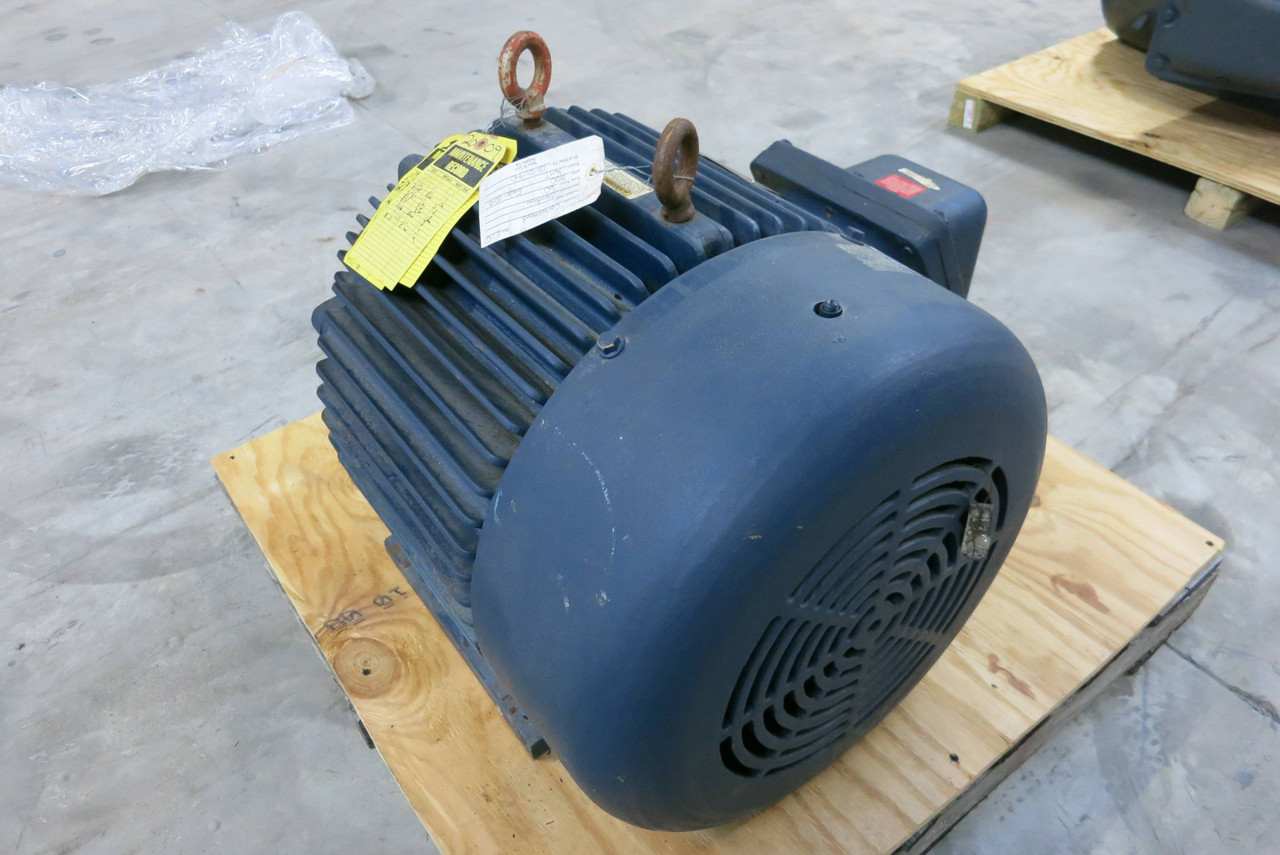

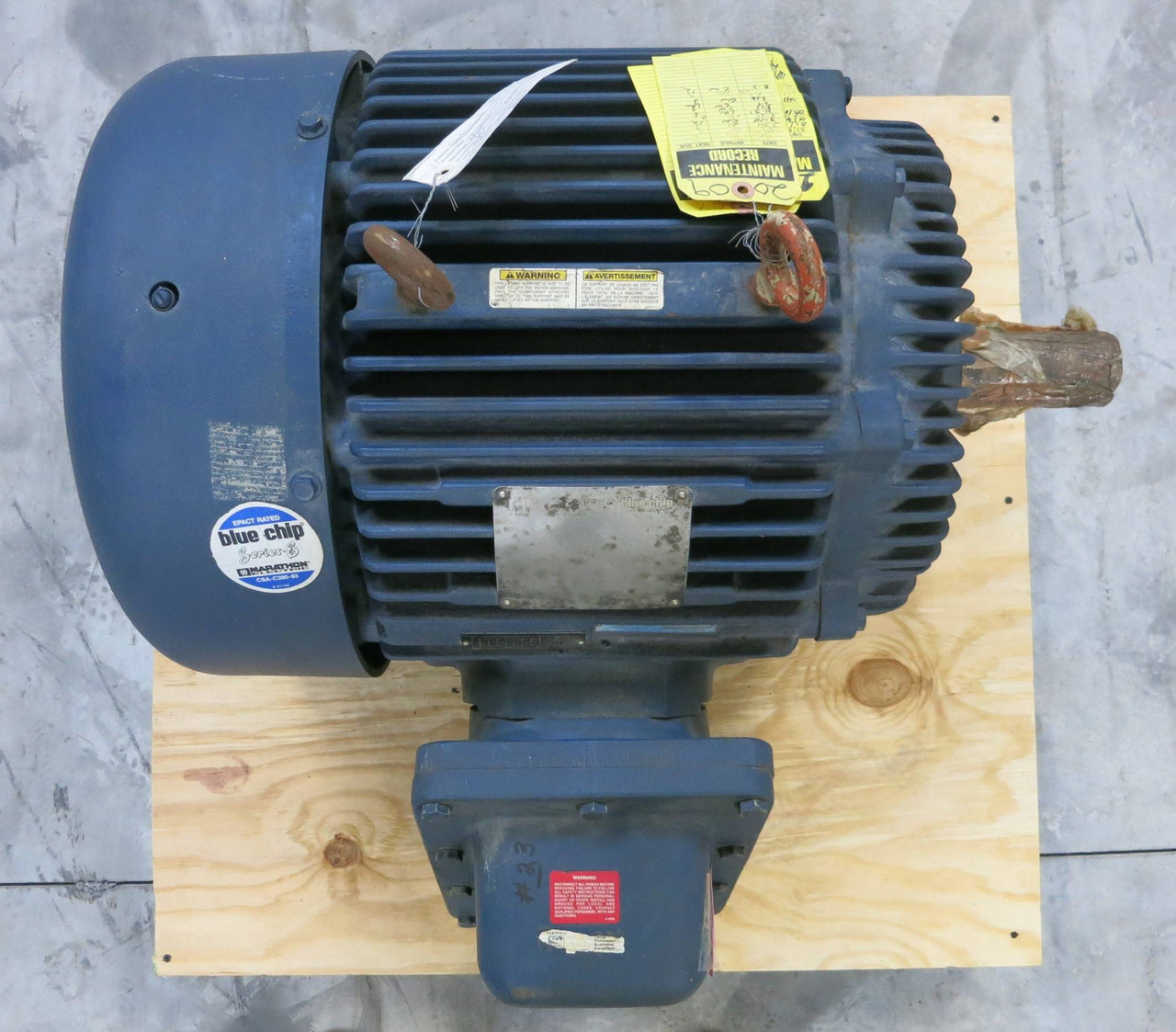

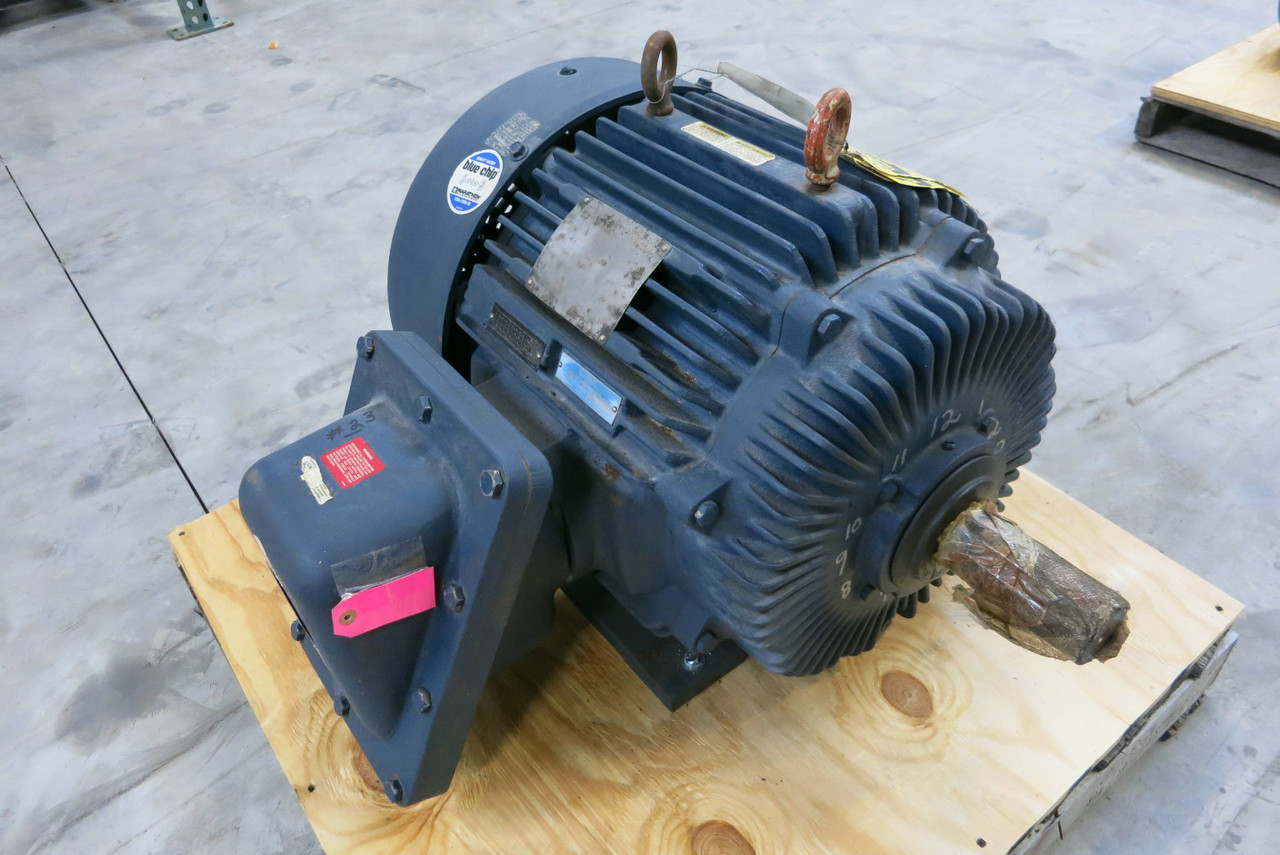

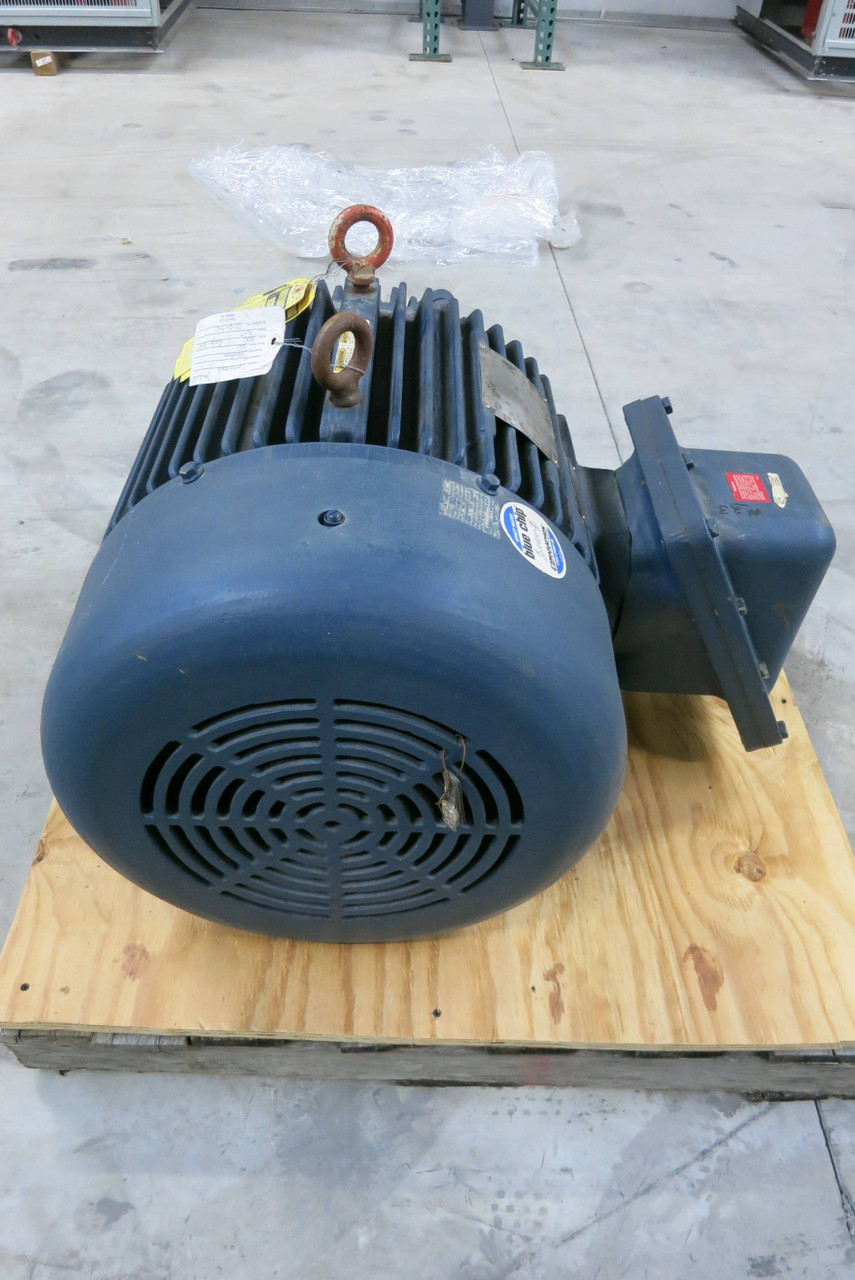

    60 HP A.C. Severe Duty Explosion Proof Electric Motor

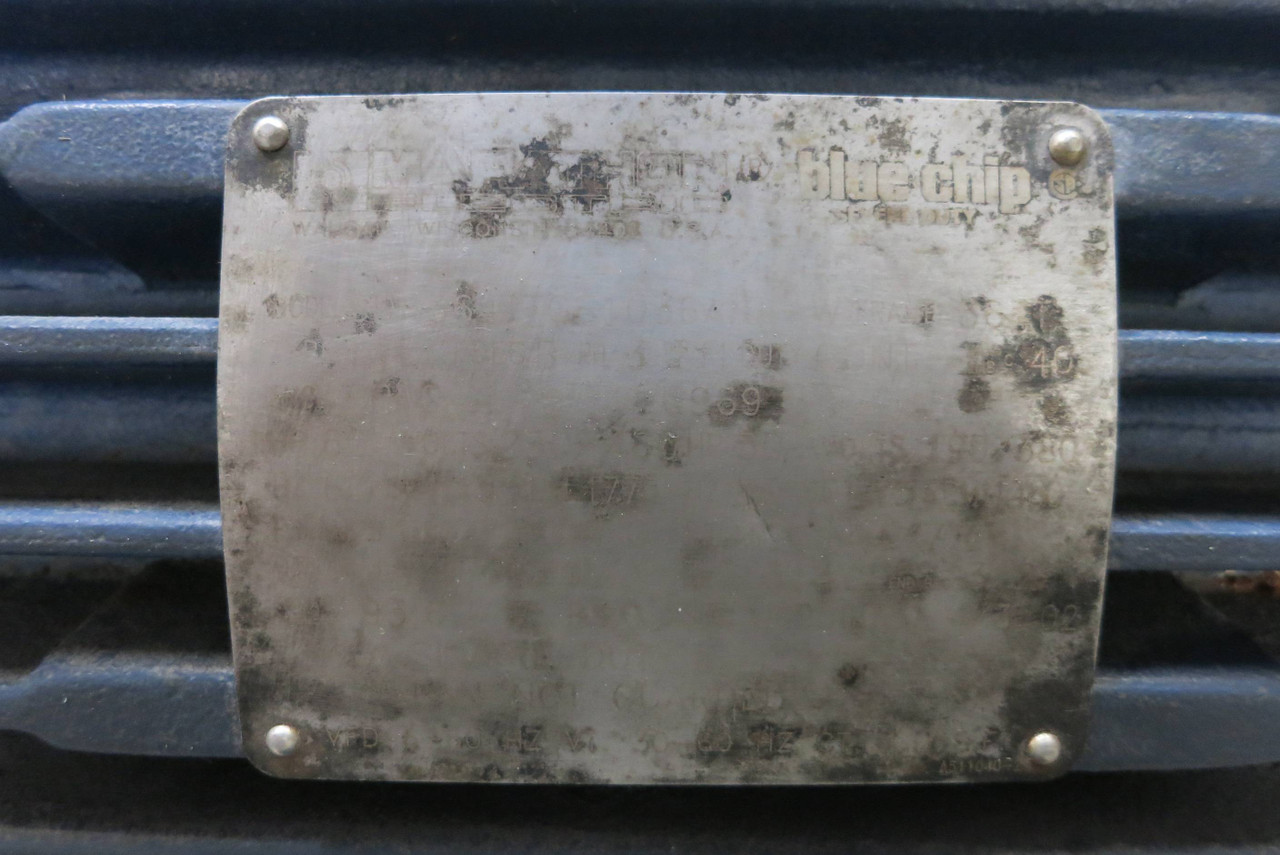

    Mostly Unreadable Label

    Nameplate is faded and hard to read

    Model: 8D 364TTGS1036AN - W-Frame: 364T - Des: B - PH: 3 - Ins Cl: F1
    Duty: Cont - Max Amb Deg C: 40 - Nema Nom Eff: 93.6 - Encl: XPFC
    HP: 60 - Volts: 230/460 - Hz: 60 - SF: 1.15 - RPM: 1775
    HP: 50 - Volts: 190/380 - Hz: 50 - SF: 1.15 - RPM: 1380
    Nom PF: 83.0 - Shaft Brg: 314 - Shaft End: 312 - Ser: 009560704/3/02
    VFD: 6-60 Hz - VT: 30-60 Hz - CT: 1.05


    Shipping within 1 business day
    30 Day Warranty on all purchases

    Your purchase will include what is pictured and described above ONLY.
    For more info or pictures, please visit our FAQs or contact us :
    423 821-4712 - Sales@RiverCityIndustrial.com



    For more info on the meaning on motor frame size numbers,
    please see the following link:
    Link

    For a conversion chart of 3PH amperage to horsepower,
    please see the following chart:
    Link

    Additional Information

    SKU:
    PM3018
    UPC:
    760377733108
    Condition:
    Used
    Availability:
    Ships within 0-1 business days of full payment. Expedited shipping available.
    SKU:
    PM3018
    MPN:
    8D 364TTGS1036AN
    Approx Shipping Dims (LxWxH):
    34.000" x 32.000" x 24.000"
    Approx Shipping Weight:
    825.0000
    Location:
    E 36B
    Phases:
    3 Phase
    Horsepower:
    60 HP
    Voltage:
    230/460 VAC
    Outdoor Rated?:
    Outdoor Rated (NEMA 3R or 4X)
    Freight Shipping Cost:
    344
    Listed:
    11/7/2019
    UPC:
    760377733108
    eBay Listing:
    352846524293
