Johnson Controls HMX156E4NAL3* 125 HP VS Drive 125HP JC-VSD Series II 480V (GA0739-1)

Johnson Controls $10,633.00
SKU: GA0739

Johnson Controls

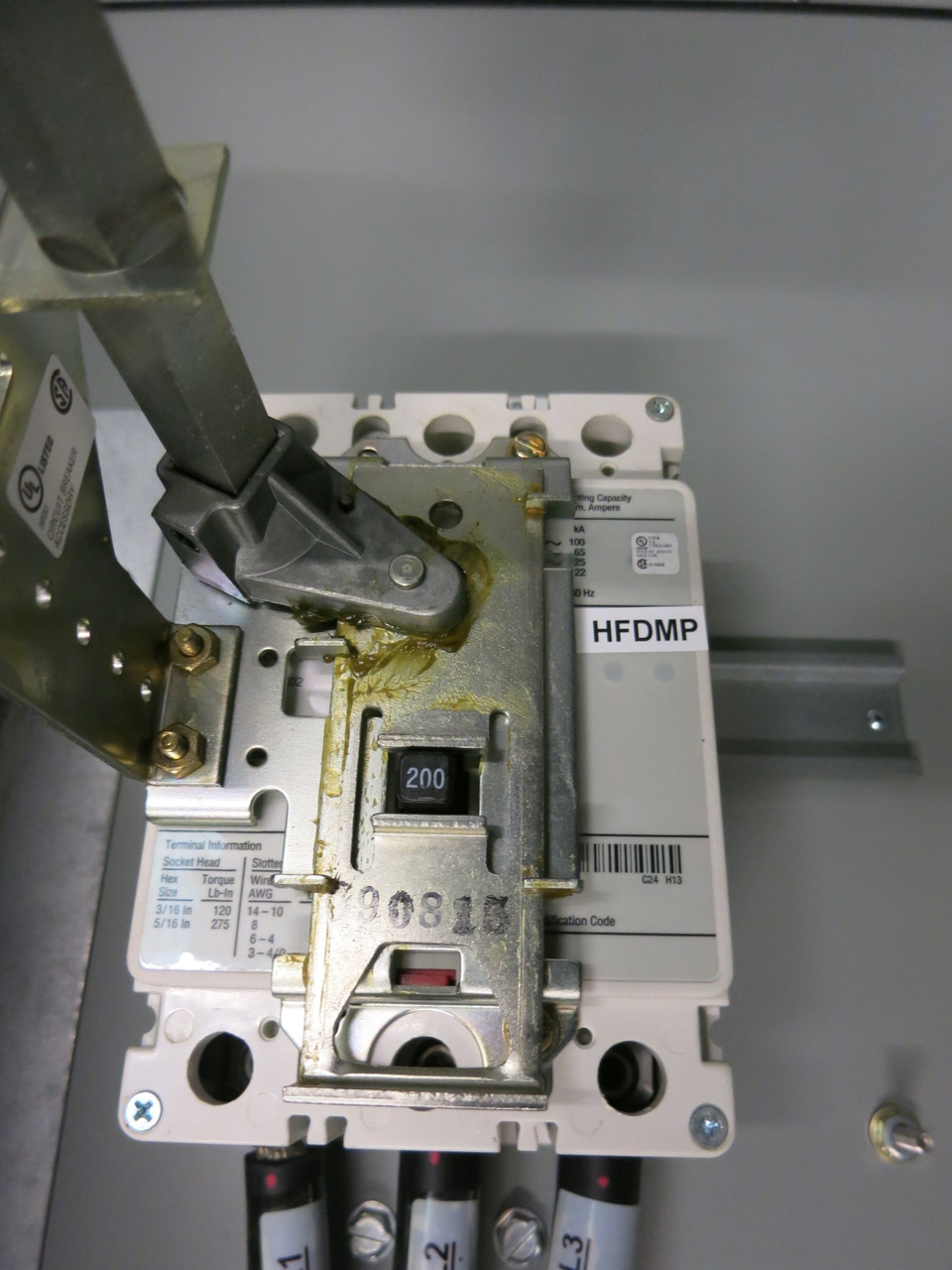

Intellidisconnect

MPN: HMX156E4NAL3*
USED

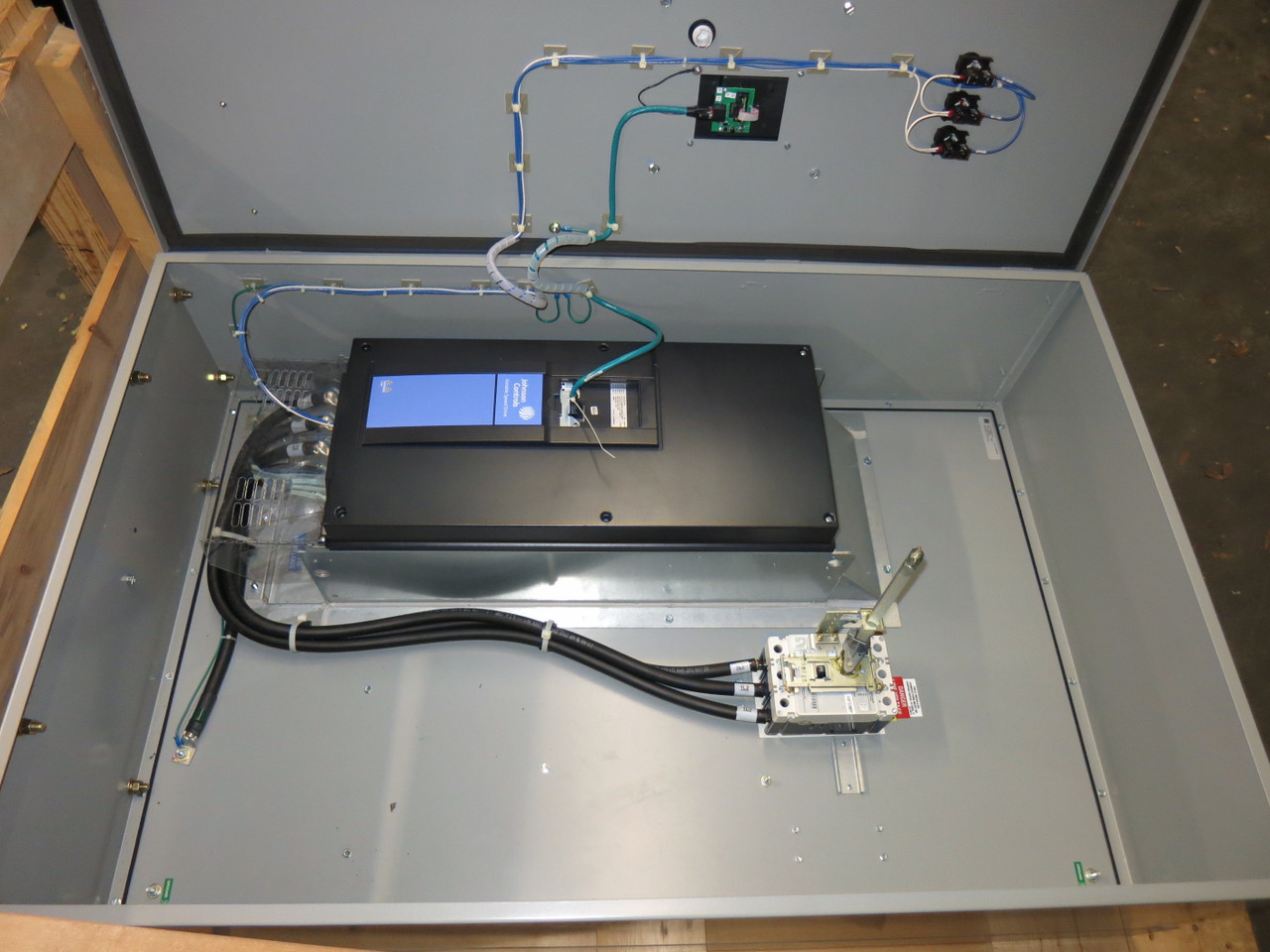

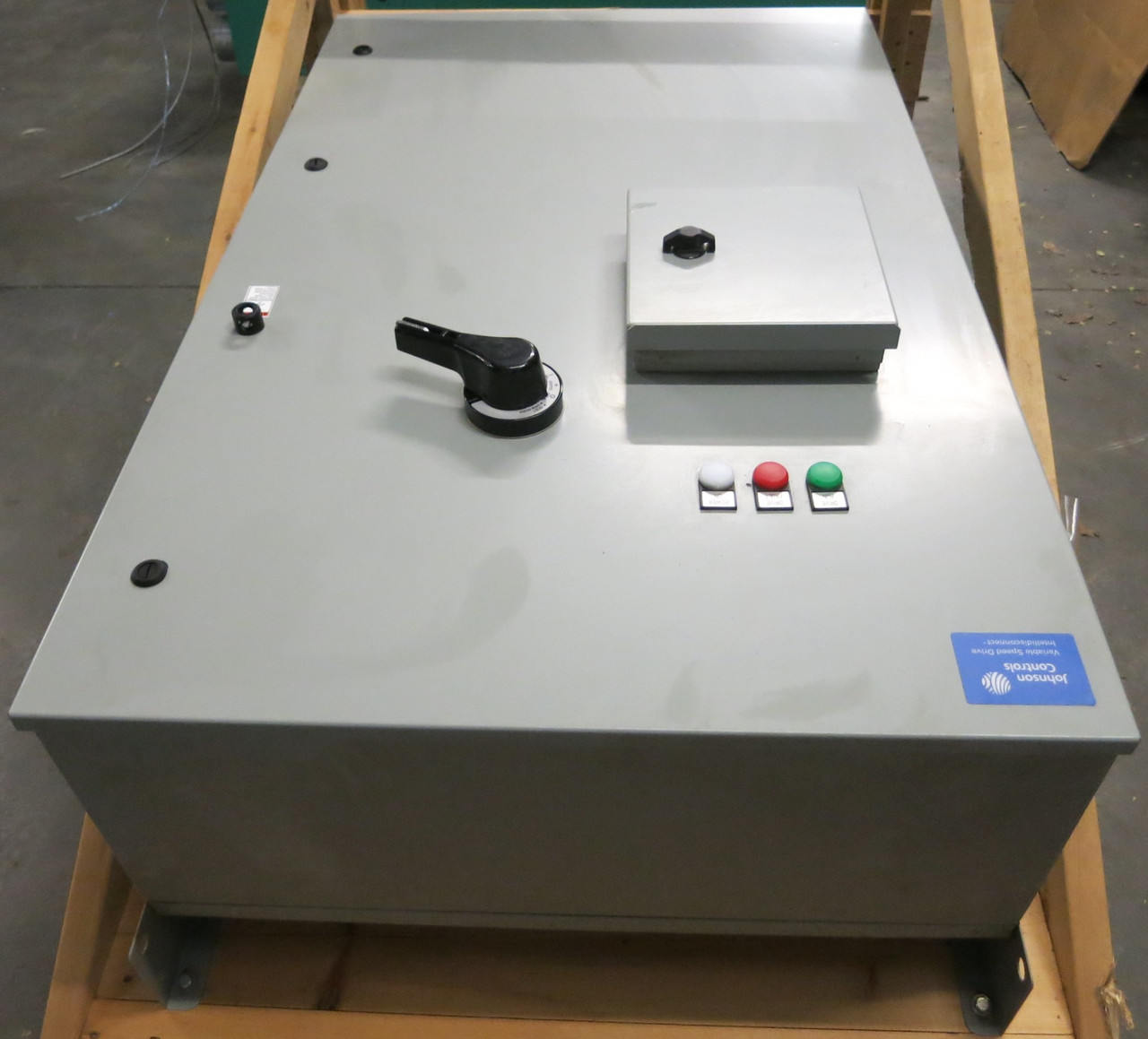

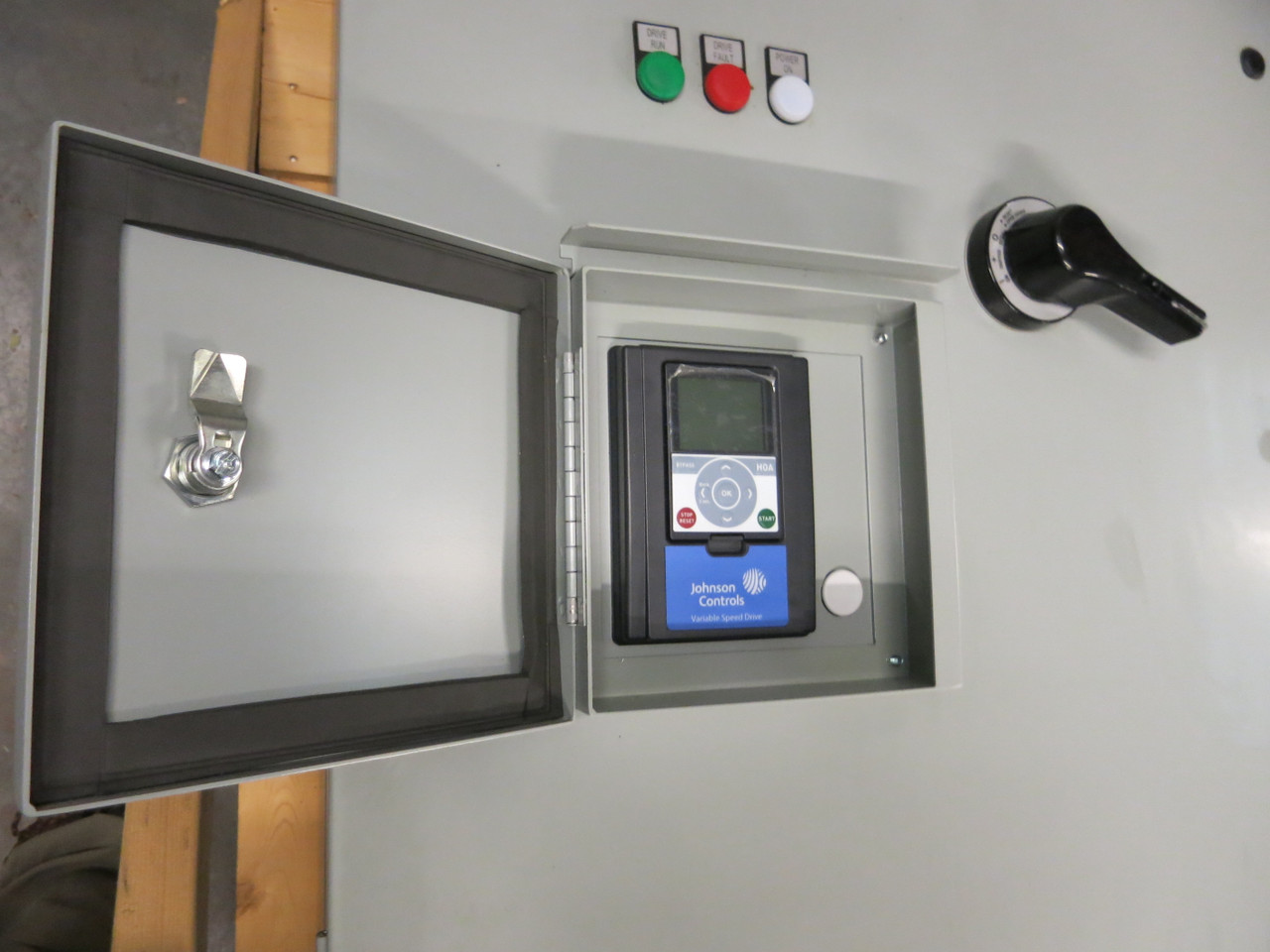

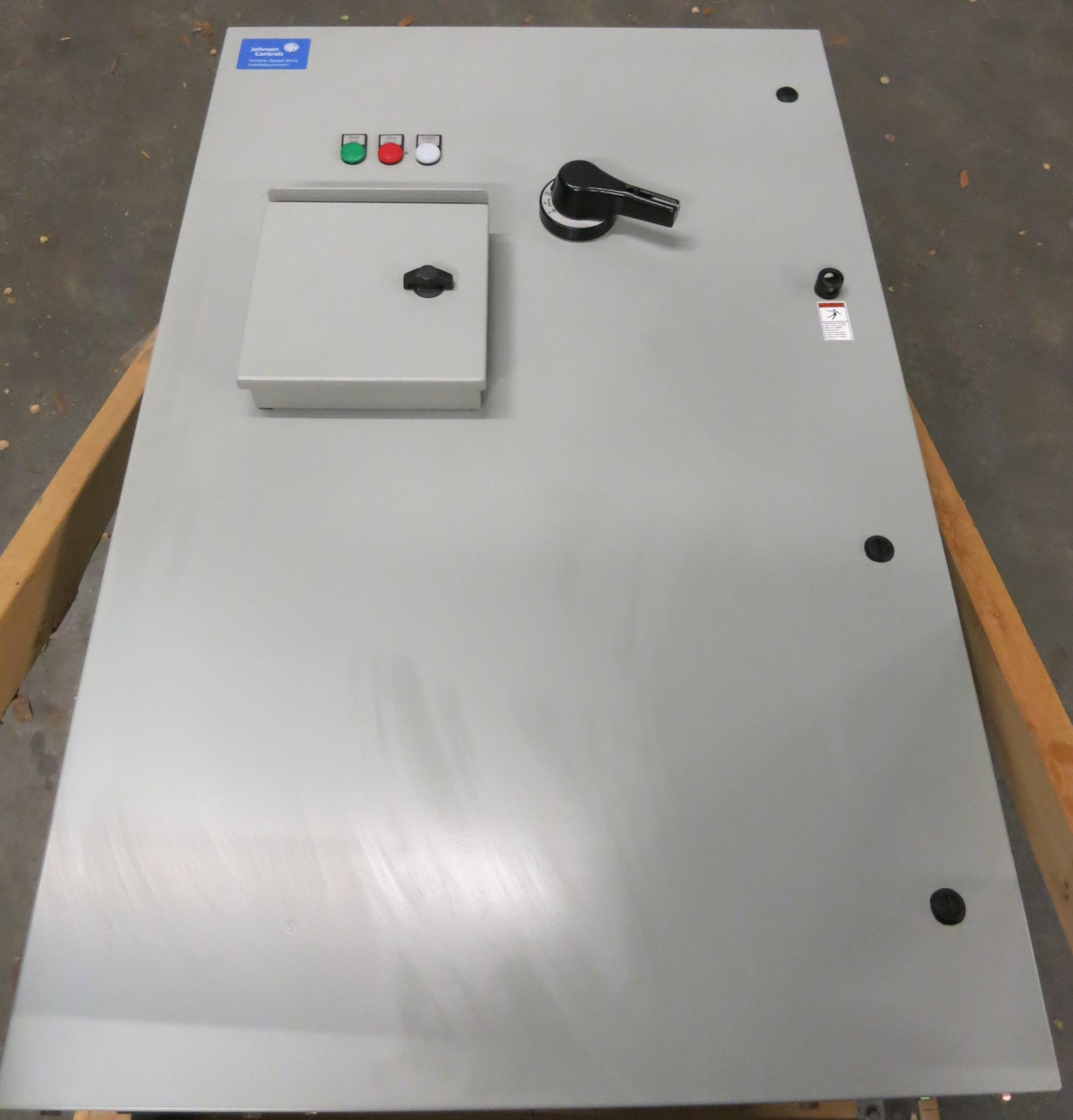

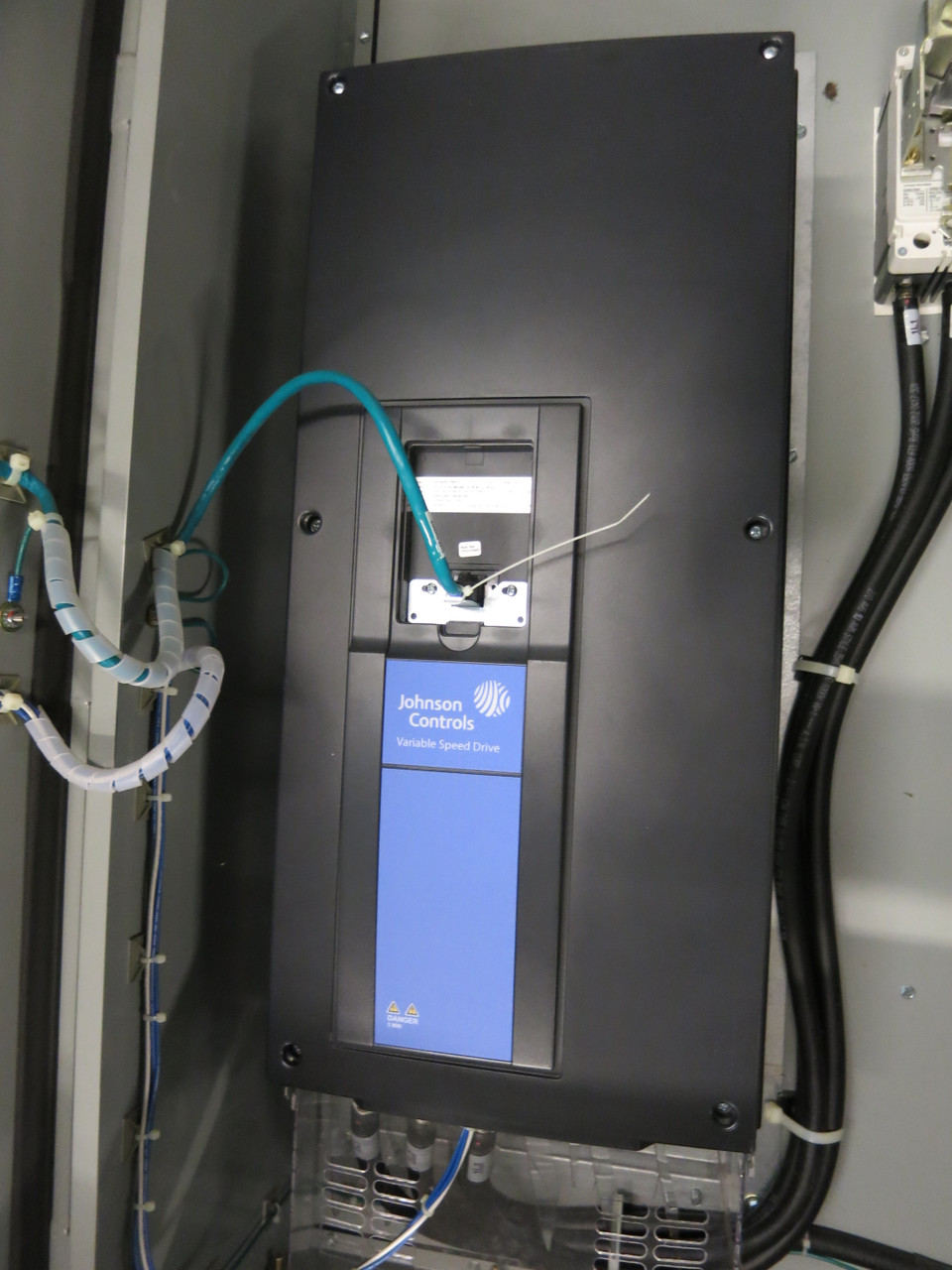

JC-VSD Series II Variable Speed Drive
Style No. JNCT23530-002
125 HP @ 480VAC 156A

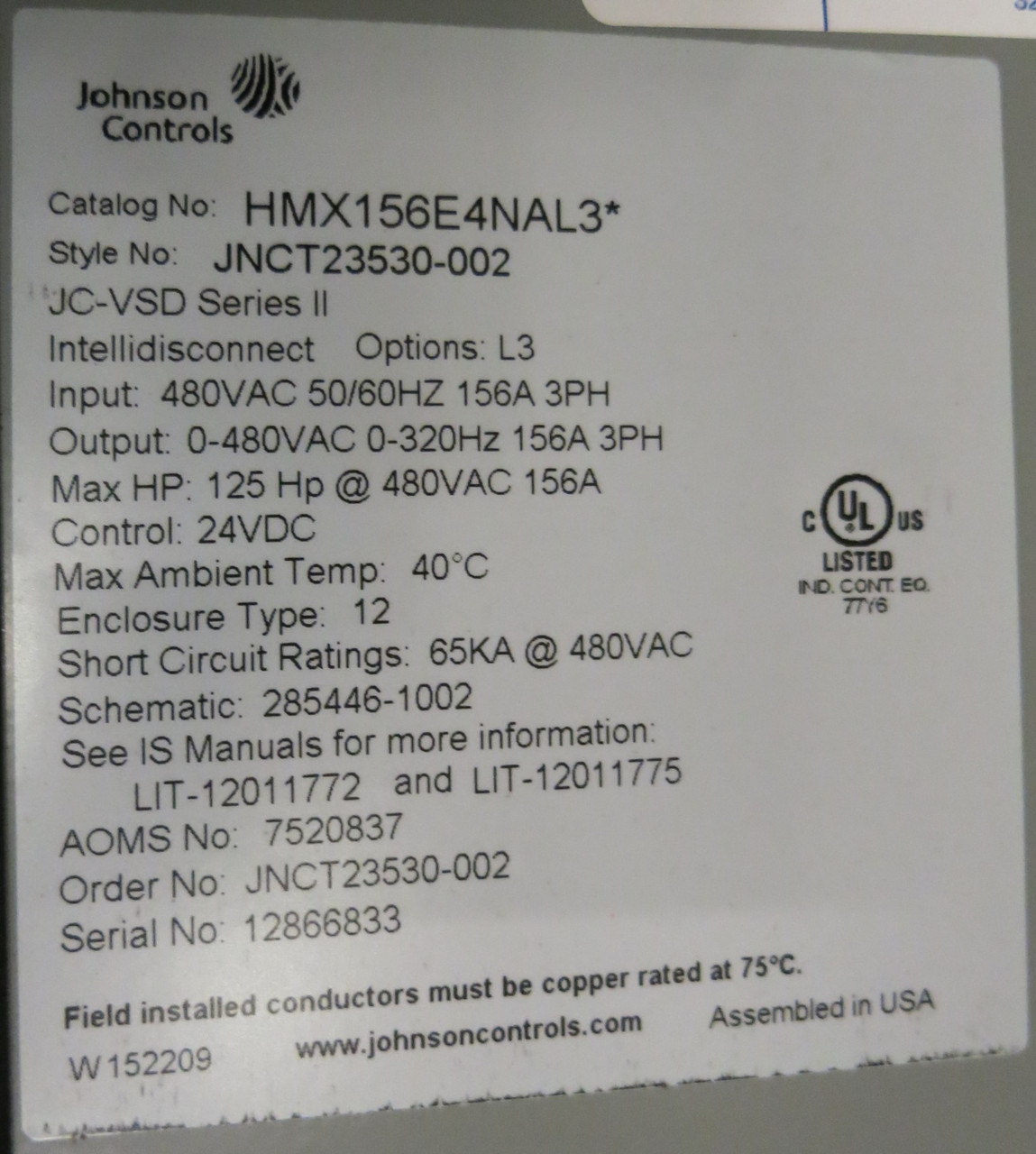

Nameplate Information:
Catalog No: HMX156E4NAL3* l Options: L3
Input: 480 VAC - 50/60 Hz - 156A - 3PH
Output: 0-480 VAC - 0-320 Hz - 156A - 3PH
Control: 24 VDC l 40°C Max Ambient Temp
Enclosure Type: 12
Short Circuit Ratings: 65 kA @ 480 VAC
Schematic: 285446-10002
See IS Manuals for more information: LIT-12011771 and LIT-12011775
AOMS No: 7520837 l Order No: JNCT23530-002
Field installed conductors must be copper rated at 75°C l W 152209
Assembled in USA

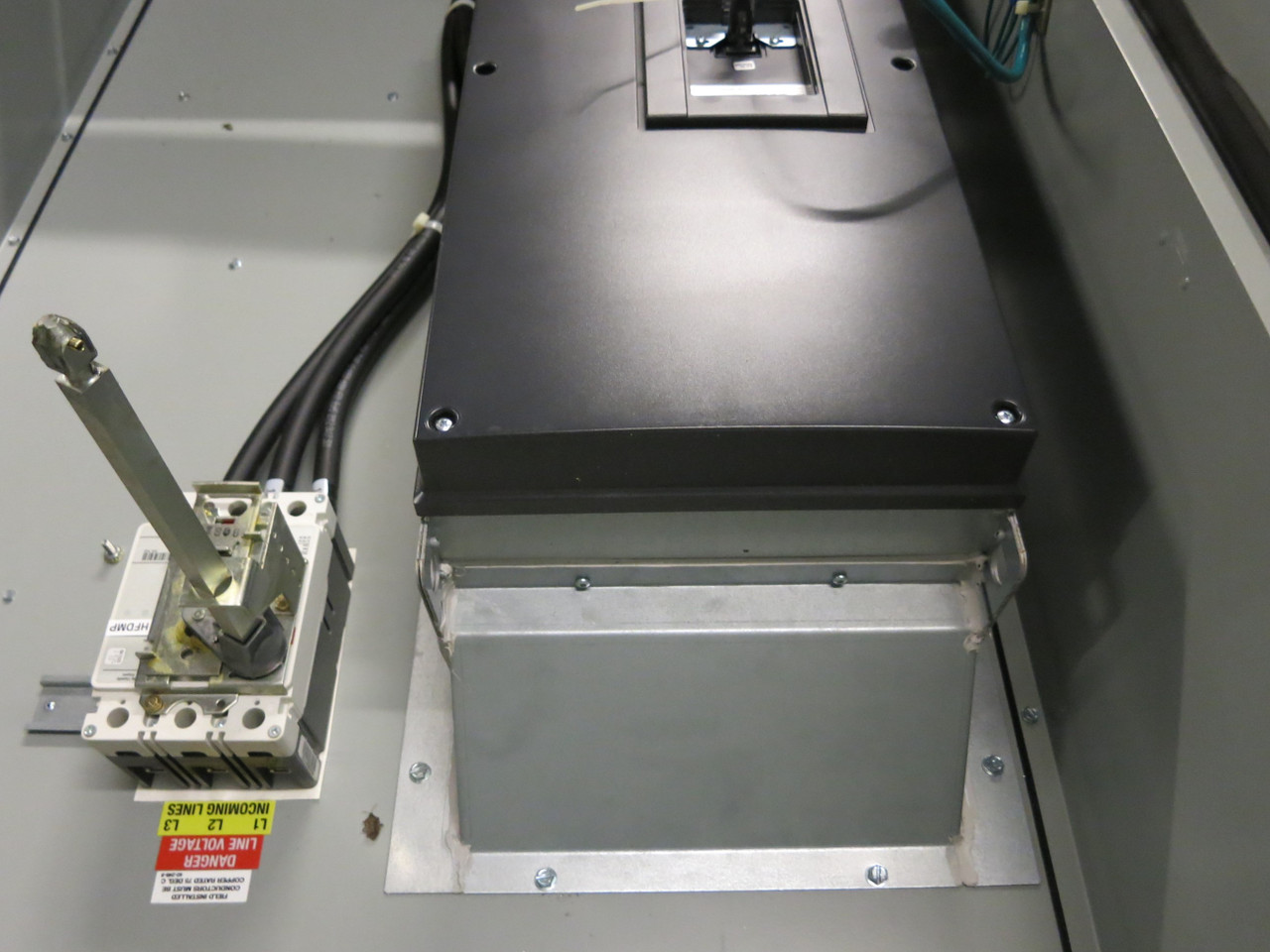

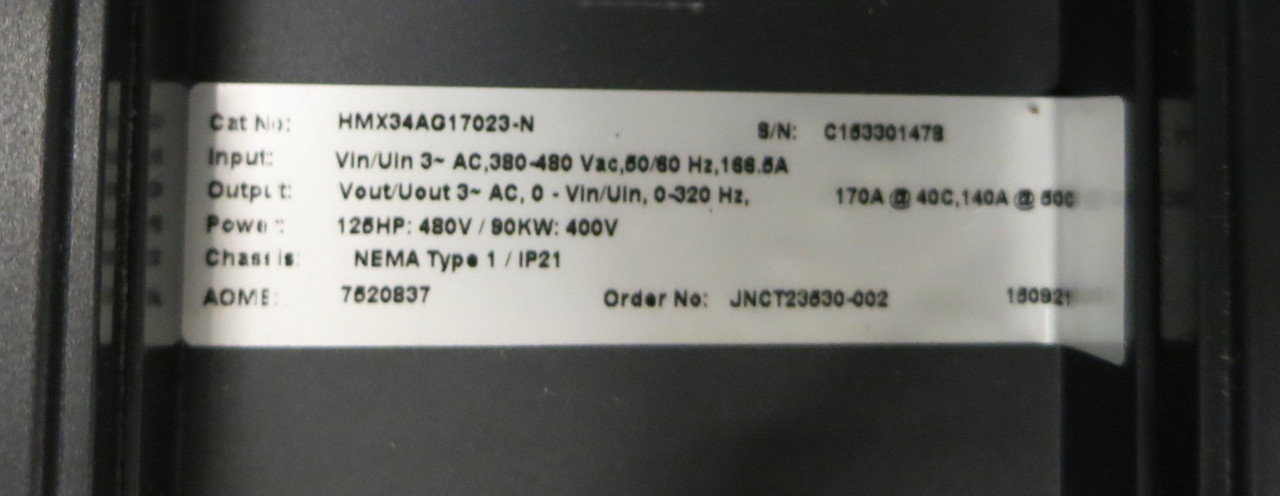

Drive: HMX34A170AG17023-N l 170A @ 40°C , 140A @50°C - 90 kW

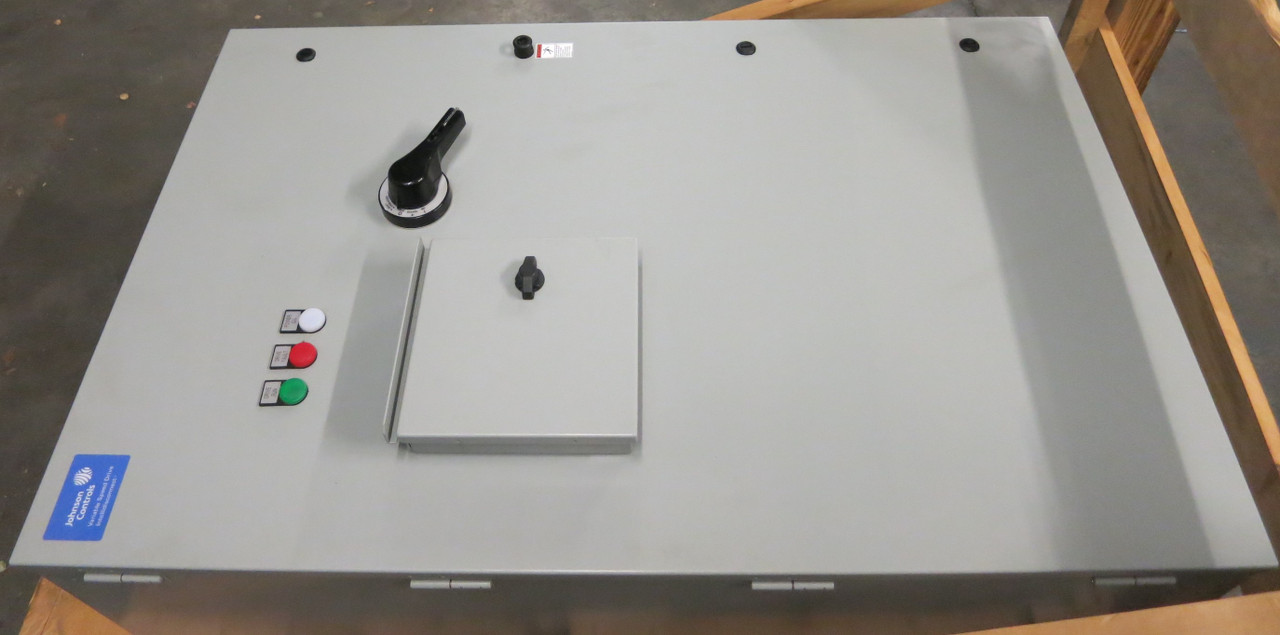

VS Drive Panel Weight: 350 Lbs
VS Drive Panel Dimensions: 32" x 53" x 17"

30 day warranty on all purchases.

Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com

Read more
Current stock: 1
Description

Johnson Controls
Intellidisconnect

MPN: HMX156E4NAL3*
USED
JC-VSD Series II Variable Speed Drive
Style No. JNCT23530-002
125 HP @ 480VAC 156A



Nameplate Information:
Catalog No: HMX156E4NAL3* l Options: L3
Input: 480 VAC - 50/60 Hz - 156A - 3PH
Output: 0-480 VAC - 0-320 Hz - 156A - 3PH
Control: 24 VDC l 40°C Max Ambient Temp
Enclosure Type: 12
Short Circuit Ratings: 65 kA @ 480 VAC
Schematic: 285446-10002
See IS Manuals for more information: LIT-12011771 and LIT-12011775
AOMS No: 7520837 l Order No: JNCT23530-002
Field installed conductors must be copper rated at 75°C l W 152209
Assembled in USA

Drive: HMX34A170AG17023-N l 170A @ 40°C , 140A @50°C - 90 kW


VS Drive Panel Weight: 350 Lbs
VS Drive Panel Dimensions: 32" x 53" x 17"

30 day warranty on all purchases.

Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com

Additional info
SKU: GA0739
UPC: 7450004947901
Condition: Used
Availability: Ships within 0-1 business days of full payment. Expedited shipping available.
Width: 60
Height: 30
Depth: 40
Warranty: 30 day warranty.

If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.

SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.

Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
SKU: GA0739
MPN: HMX156E4NAL3*
Approx Shipping Dims (LxWxH): 40.000" x 60.000" x 30.000"
Approx Shipping Weight: 400.0000
Location: B 25C
Phases: 3 Phase
Horsepower: 125 HP
Amperage: 156 Amp
Voltage: 480 VAC
Amperage (rated amps): 156 Amp
Freight Shipping Cost: 259
Listed: 4/30/2021
UPC: 7450004947901
eBay Listing: 373561937002
