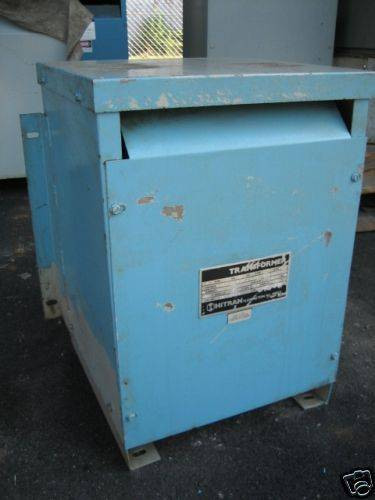

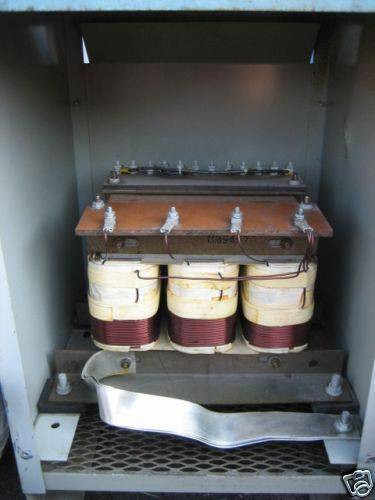

Hitran 8 kVA 460 to 460Y/266 V D3000844H6 3 Phase Isolation Dry Type Transformer (EBI2389-5)
SKU:
EBI2389
Hitran
AGEX
MPN: D3000844H6
USED
Dry Type Isolation Transformer
8kVA - 460 Delta to 460 WYE / 266 Volts - 3 Phase
8.0kVA 3 Phase 60 Hz Type DIT
Class AA Cat. No. D3000844H6 Weight: 150 LB
High Voltage: 460 + - 5% Delta
Low Voltage: 460Y / 266V
Current: 11 - 10.1 Amps 3.6 % Imp. at 170 degrees C
220C Insulation System 150C Rise
Taps - Voltage
H 1,2,3 to +5% - 105%
H 1,2,3 to NOM - 100%
H 1,2,3 to -5% - 95%
Approximate Dimensions : 15" (Width) x 16" (Depth) x 22" (Height)
Approximate Shipping Weight : 200 lbs.
For Information on backfeeding transformers, please see:
automationdirect.com/static/manuals/hpsimperator/backfeedingtransformers.pdf
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
Hitran
AGEX
MPN: D3000844H6
USED
Dry Type Isolation Transformer
8kVA - 460 Delta to 460 WYE / 266 Volts - 3 Phase
8.0kVA 3 Phase 60 Hz Type DIT
Class AA Cat. No. D3000844H6 Weight: 150 LB
High Voltage: 460 + - 5% Delta
Low Voltage: 460Y / 266V
Current: 11 - 10.1 Amps 3.6 % Imp. at 170 degrees C
220C Insulation System 150C Rise
Taps - Voltage
H 1,2,3 to +5% - 105%
H 1,2,3 to NOM - 100%
H 1,2,3 to -5% - 95%
Approximate Dimensions : 15" (Width) x 16" (Depth) x 22" (Height)
Approximate Shipping Weight : 200 lbs.
For Information on backfeeding transformers, please see:
automationdirect.com/static/manuals/hpsimperator/backfeedingtransformers.pdf
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
SKU:
EBI2389
UPC:
782451018918
Condition:
Used
Availability:
Ships within 0-1 business days of full payment. Expedited shipping available.
Width:
40
Height:
25
Depth:
48
Warranty:
30 day warranty.
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
MPN:
D3000844H6
SKU:
EBI2389
kVA:
8 kVA
Phases:
3 Phase
Freight Shipping Cost:
242
Listed:
6/24/2009
Approx Shipping Dims (LxWxH):
48.000" x 40.000" x 25.000"
Approx Shipping Weight:
200.0000
Location:
2x B 67A, 2x B 12B, 1x B 14A
eBay Listing:
352531261793
UPC:
782451018918
