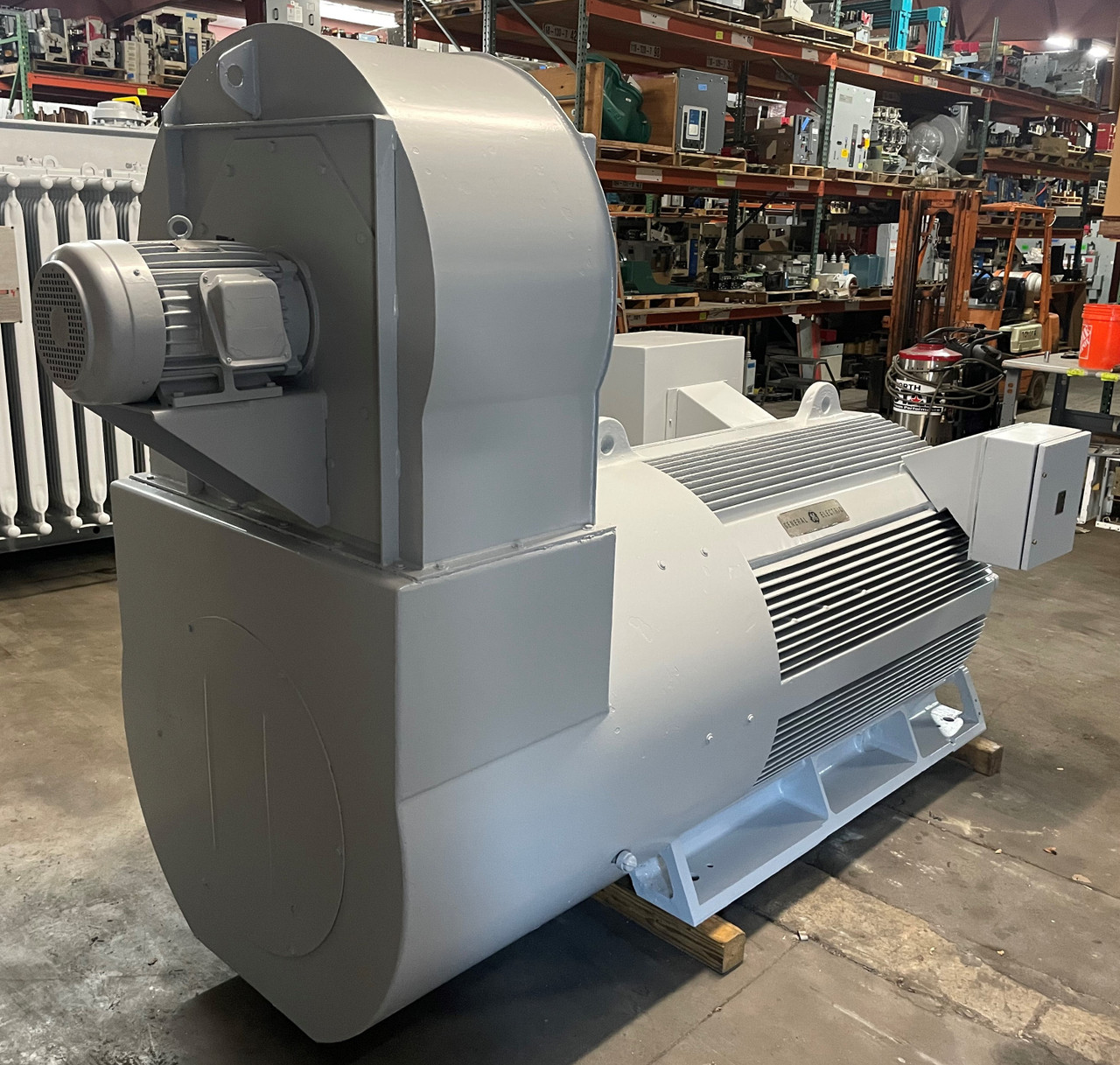

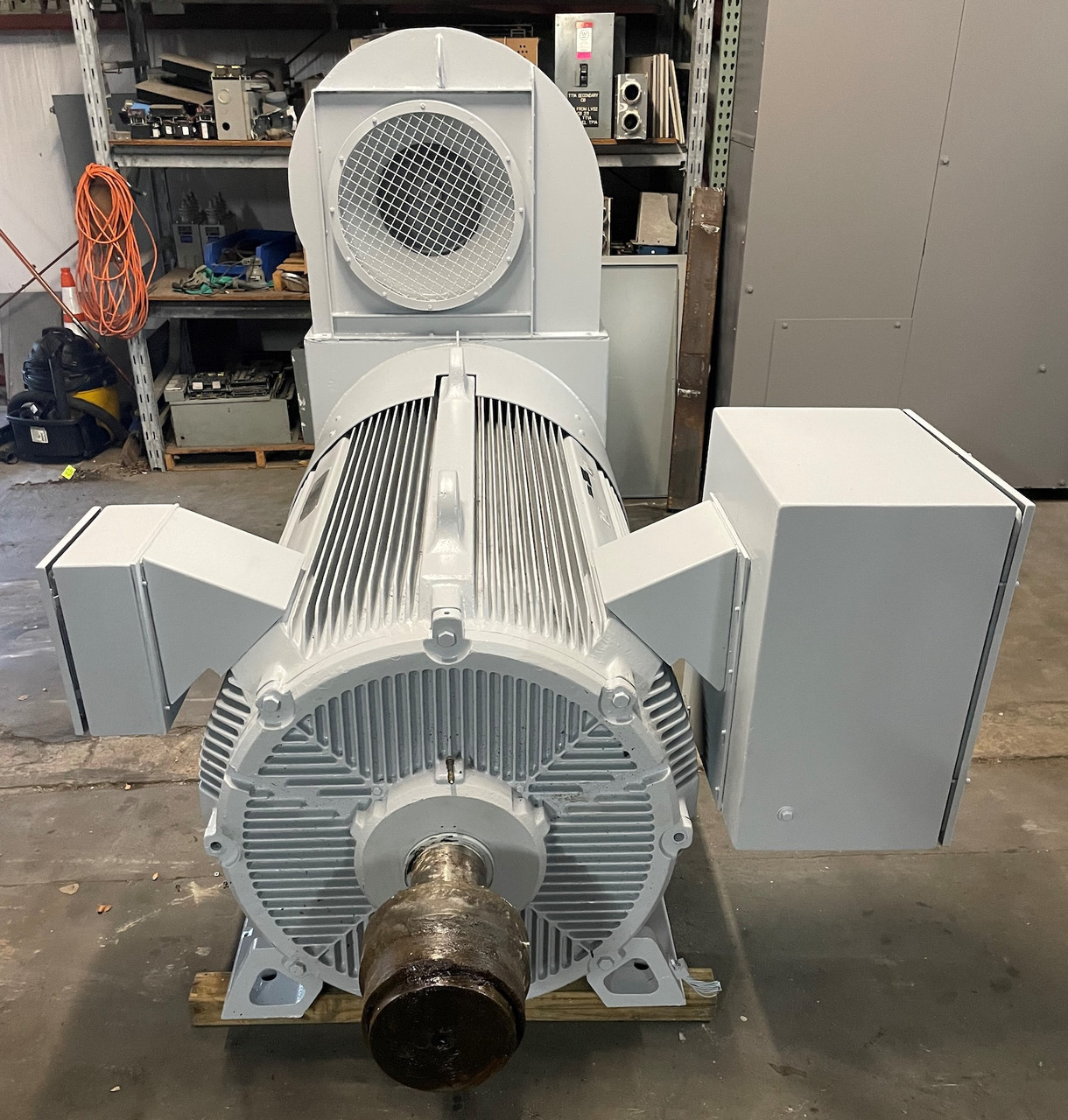

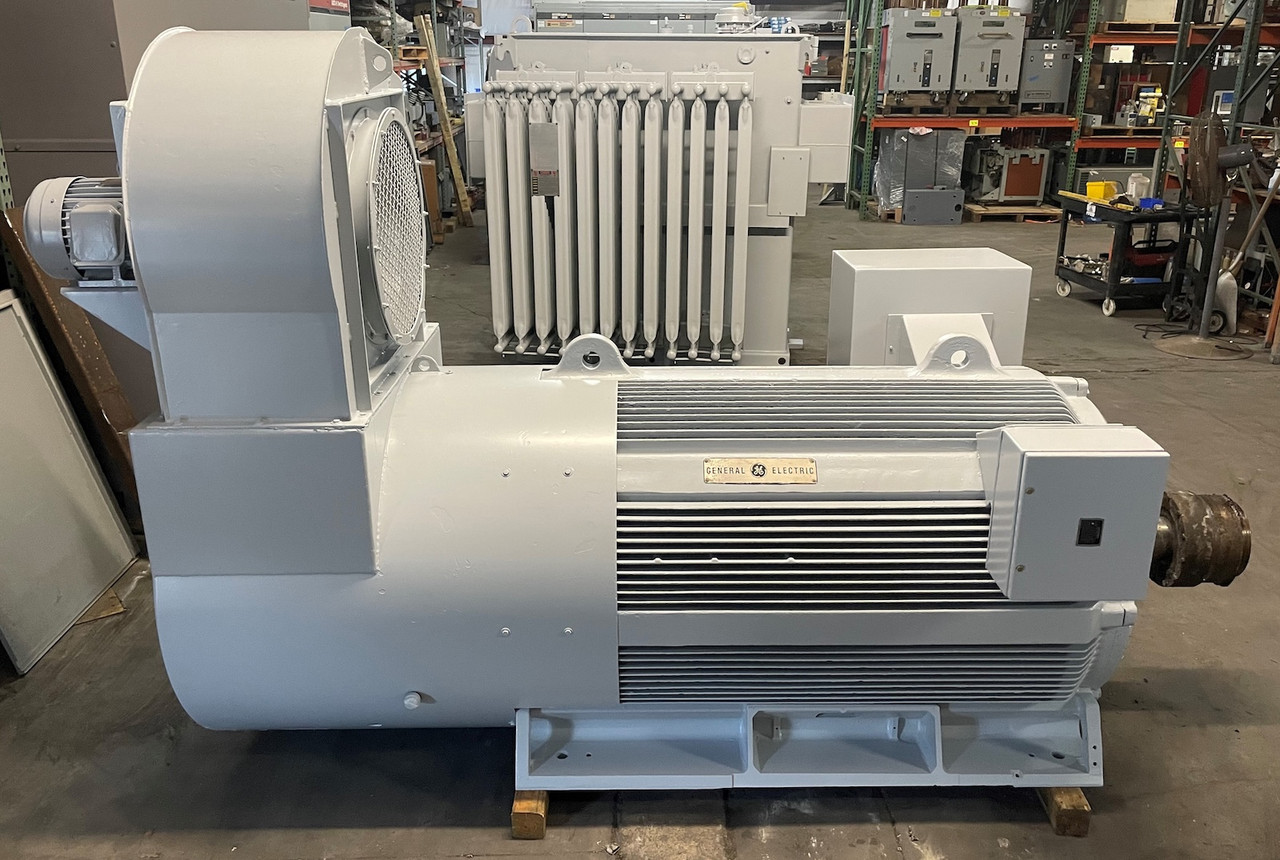

General Electric KAF TEAC 8011S 1250HP 1785RPM 460V Custom 8000 Induction Motor (PM3201-1)
SKU:
PM3201
General Electric
GE Motors
MPN: 5KAF80114344201
USED
Custom 8000 A$D Induction Motor Adjustable Speed Duty

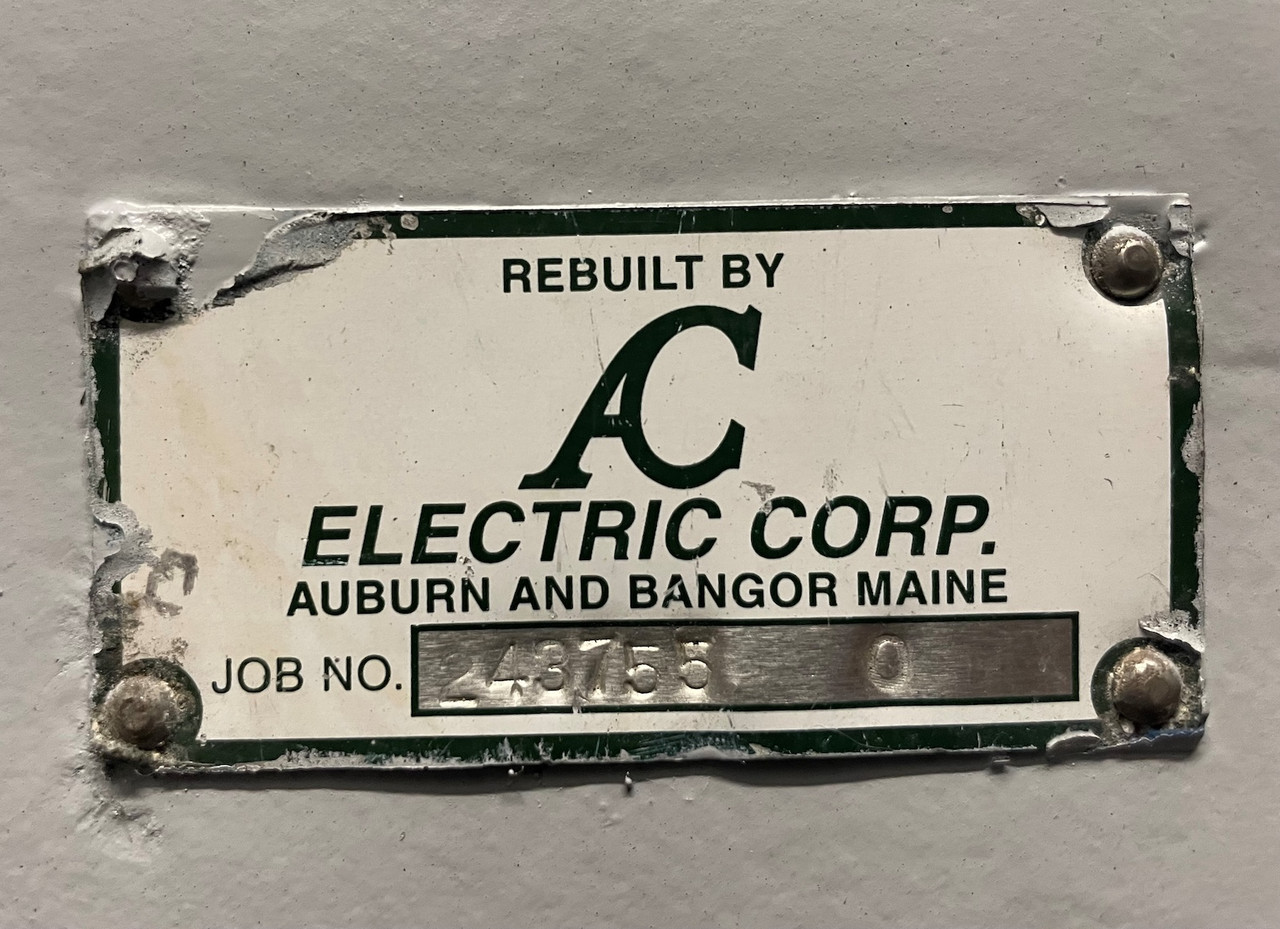

Bearings Excellent and Shaft Turns EasilyAfter a complete rebuild by AC Electric Corp, this motor was only in operation for a few months and then professionally removed by us from a fully operational Paper Mill line
Stored in an Environmentally Controlled Warehouse
- Nameplate Information -
Model: 5KAF80114344201 - Serial: OSH 284001639 - Power: 1250 HP - Type: KAF
Enclosure: TEAC - RPM Base: 1785 - Frame: 8011S - Amperes: 1344 - Volts: 460 - V(Max): 460
Phase: 3 - Hertz: 60 - Eff: 96.0 (%) - PF: 0.907 - Service Factor: 1.15 - Sine: 1.00 ASD
Insulation Class: F - Max Temp Rise: 115 Deg C at SF Stator By RTD
Time Rating: Continuous - Inverter Type: PWM - Altitude: 3300 (FT)

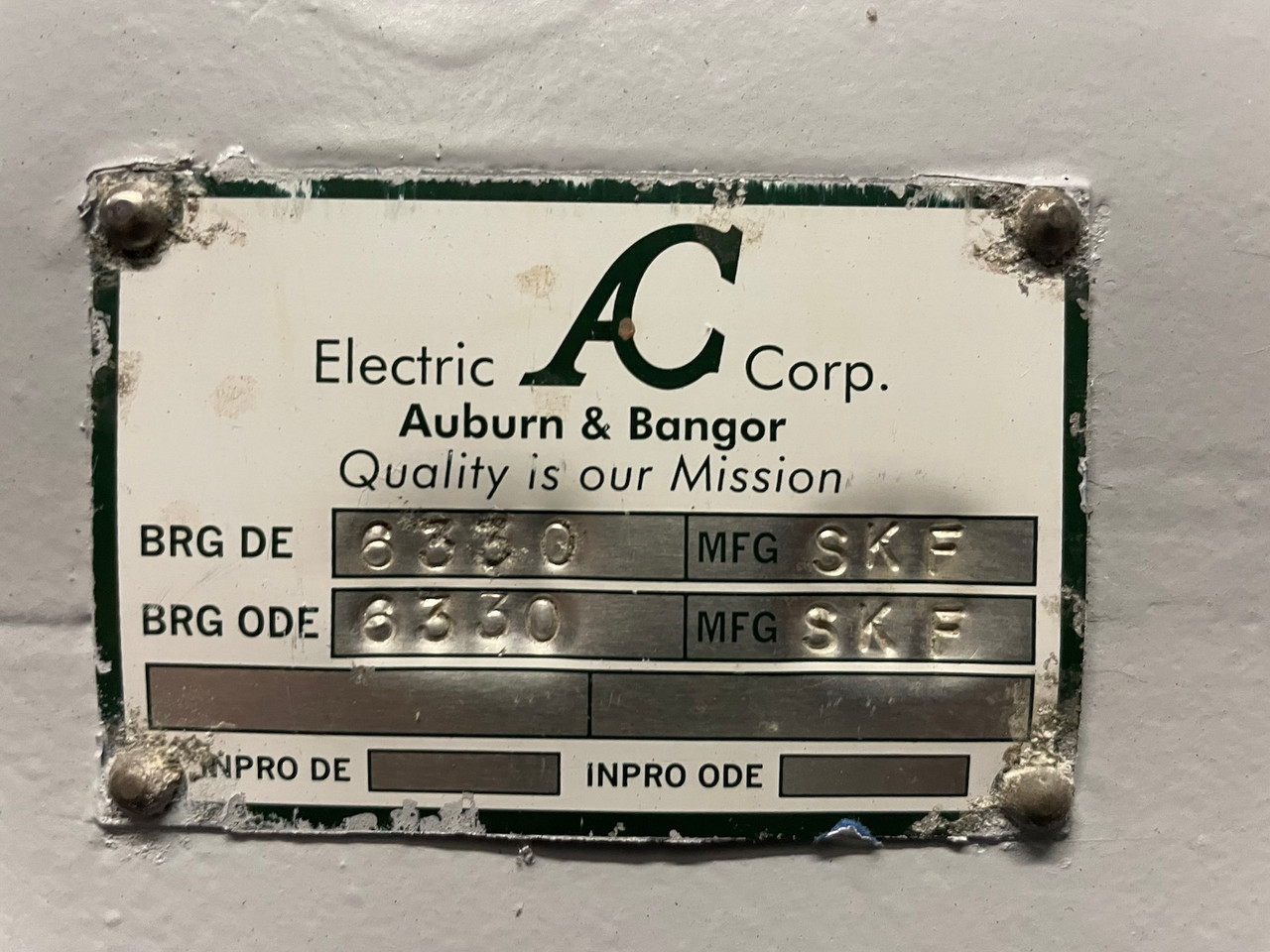

Drive End Brg: 150BC03J3 - Lubrication: Grease - Lubricant: Shell Alvania-R2
Opp Drive End Brg: 150BC03J3 - Lubrication: Grease - Lubricant: Shell Alvania-R2
Amb Temp (Deg C): 40 Max, -18 Min - Manufacturing Date: 02/01
Suitable for Operation From: 180 to 1800 RPM at Constant Torque
Constant Volts/Hertz to: 1800 RPM
- Weight (LB) -
Stator: 9000 - Rotor: 2800 - Total: 15000
- Direction of Rotation Facing: ODE -
CCW with T1, T2, T3 Phase Seq
CW with T1, T3, T2 Phase Seq
Before Installing or Operating Read Instruction Book: GEEP-171-1
- Dimensions -
Overall: 78" Tall x 135" Long x 34" Wide
Footprint for Mounting Holes (Center of Hole to Center of Hole): 56" Long, 34" Wide
Mounting Eyes on Top of Motor (Center of Hole to Center of Hole): 42.5"
Total Width of Motor without Junction Boxes: 41"
Shaft Diameter: 5.5" - Shaft Length: 16.5"
Blower Motor Sticks Out 13.5" from Back of Main Motor
Large Junction Box Sticks 20" Out from Motor - Small Junction Box Sticks 9" Out from Motor
- Video Link to Shaft Being Turned -
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
General Electric
GE Motors
MPN: 5KAF80114344201
USED
Custom 8000 A$D Induction Motor Adjustable Speed Duty
Bearings Excellent and Shaft Turns EasilyAfter a complete rebuild by AC Electric Corp, this motor was only in operation for a few months and then professionally removed by us from a fully operational Paper Mill line
Stored in an Environmentally Controlled Warehouse
- Nameplate Information -
Model: 5KAF80114344201 - Serial: OSH 284001639 - Power: 1250 HP - Type: KAF
Enclosure: TEAC - RPM Base: 1785 - Frame: 8011S - Amperes: 1344 - Volts: 460 - V(Max): 460
Phase: 3 - Hertz: 60 - Eff: 96.0 (%) - PF: 0.907 - Service Factor: 1.15 - Sine: 1.00 ASD
Insulation Class: F - Max Temp Rise: 115 Deg C at SF Stator By RTD
Time Rating: Continuous - Inverter Type: PWM - Altitude: 3300 (FT)
Drive End Brg: 150BC03J3 - Lubrication: Grease - Lubricant: Shell Alvania-R2
Opp Drive End Brg: 150BC03J3 - Lubrication: Grease - Lubricant: Shell Alvania-R2
Amb Temp (Deg C): 40 Max, -18 Min - Manufacturing Date: 02/01
Suitable for Operation From: 180 to 1800 RPM at Constant Torque
Constant Volts/Hertz to: 1800 RPM
- Weight (LB) -
Stator: 9000 - Rotor: 2800 - Total: 15000
- Direction of Rotation Facing: ODE -
CCW with T1, T2, T3 Phase Seq
CW with T1, T3, T2 Phase Seq
Before Installing or Operating Read Instruction Book: GEEP-171-1
- Dimensions -
Overall: 78" Tall x 135" Long x 34" Wide
Footprint for Mounting Holes (Center of Hole to Center of Hole): 56" Long, 34" Wide
Mounting Eyes on Top of Motor (Center of Hole to Center of Hole): 42.5"
Total Width of Motor without Junction Boxes: 41"
Shaft Diameter: 5.5" - Shaft Length: 16.5"
Blower Motor Sticks Out 13.5" from Back of Main Motor
Large Junction Box Sticks 20" Out from Motor - Small Junction Box Sticks 9" Out from Motor
- Video Link to Shaft Being Turned -
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
