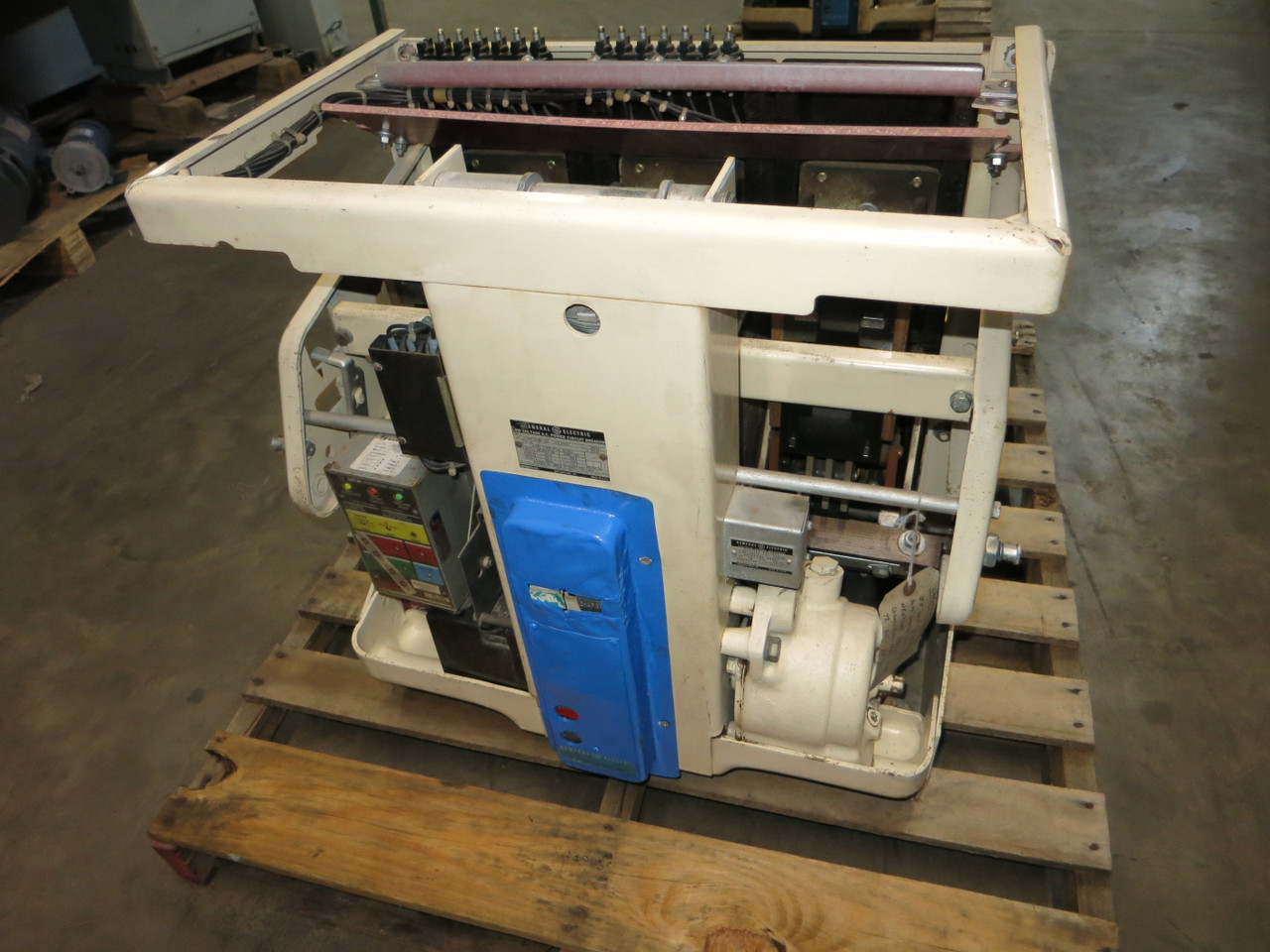

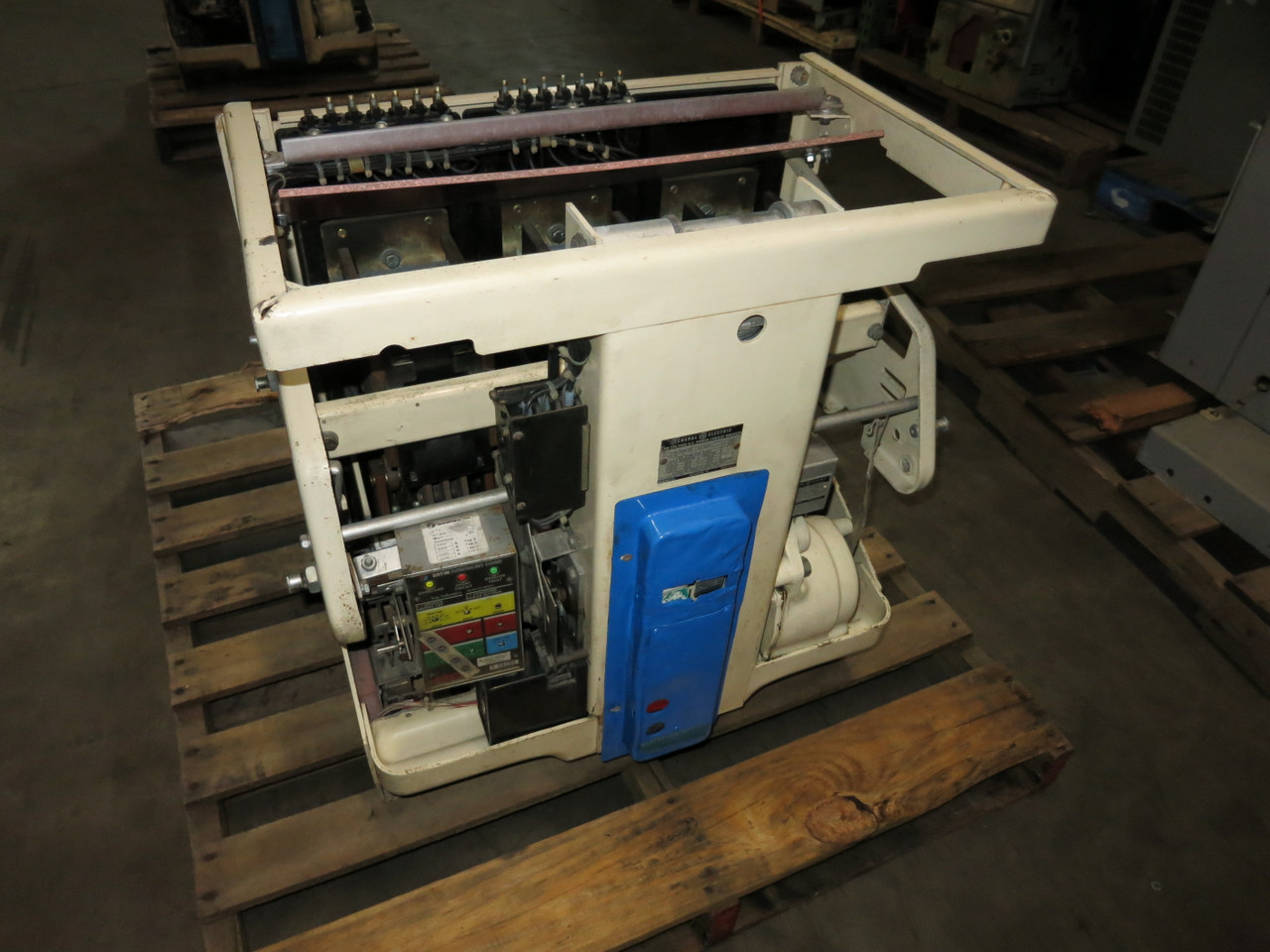

General Electric AK-2A-75-1 3000A Satin American Corp Trip LSIG EO Air Breaker (GA0497-1)
SKU:
GA0497
General Electric
GE
MPN: AK-2A-75-1
USED
Low Voltage Power Circuit Breaker

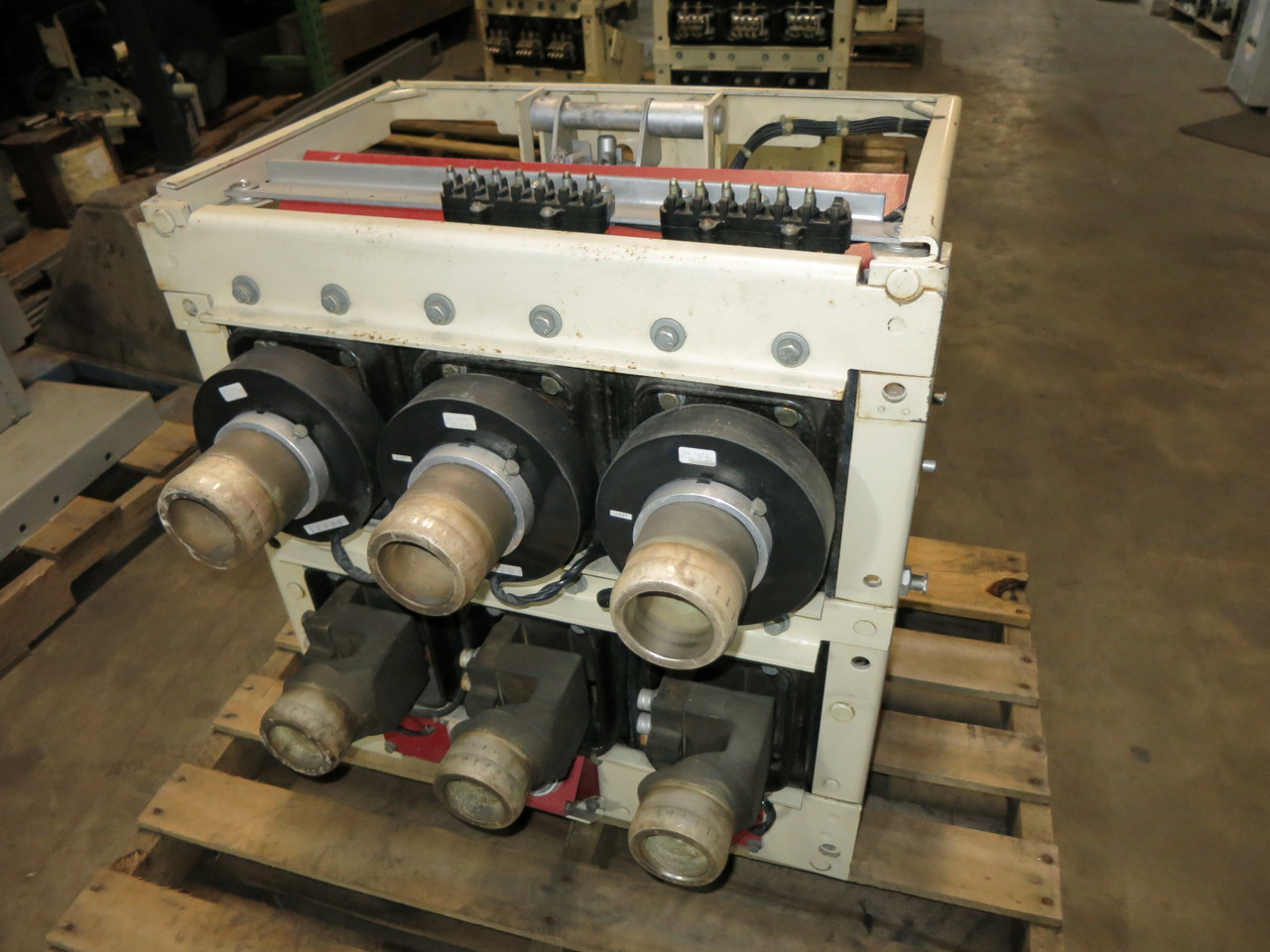

3000 Amp Frame - LSIG Satin American Corp Trip l Tubular-Type Primary Disconnects

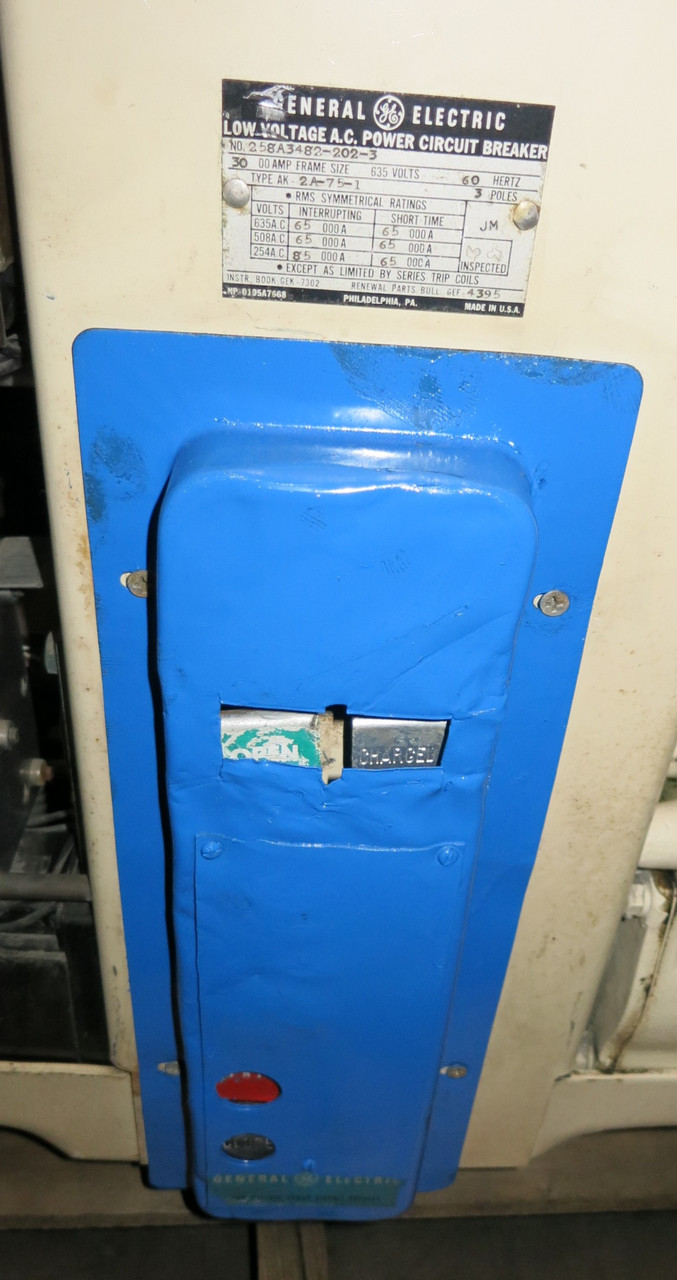

*Blue Cover is dinged and has no plastic cover
Electrically Operated

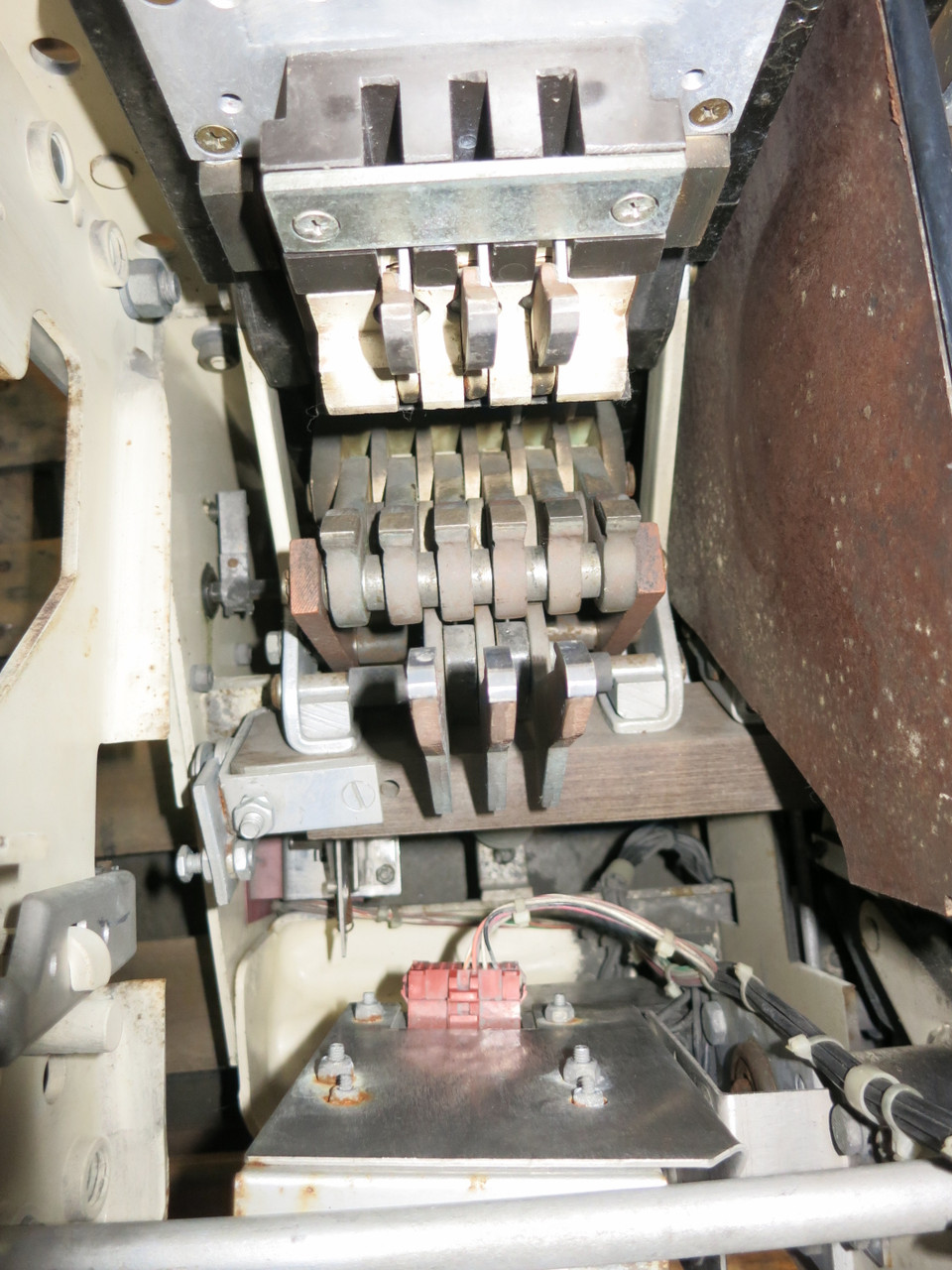

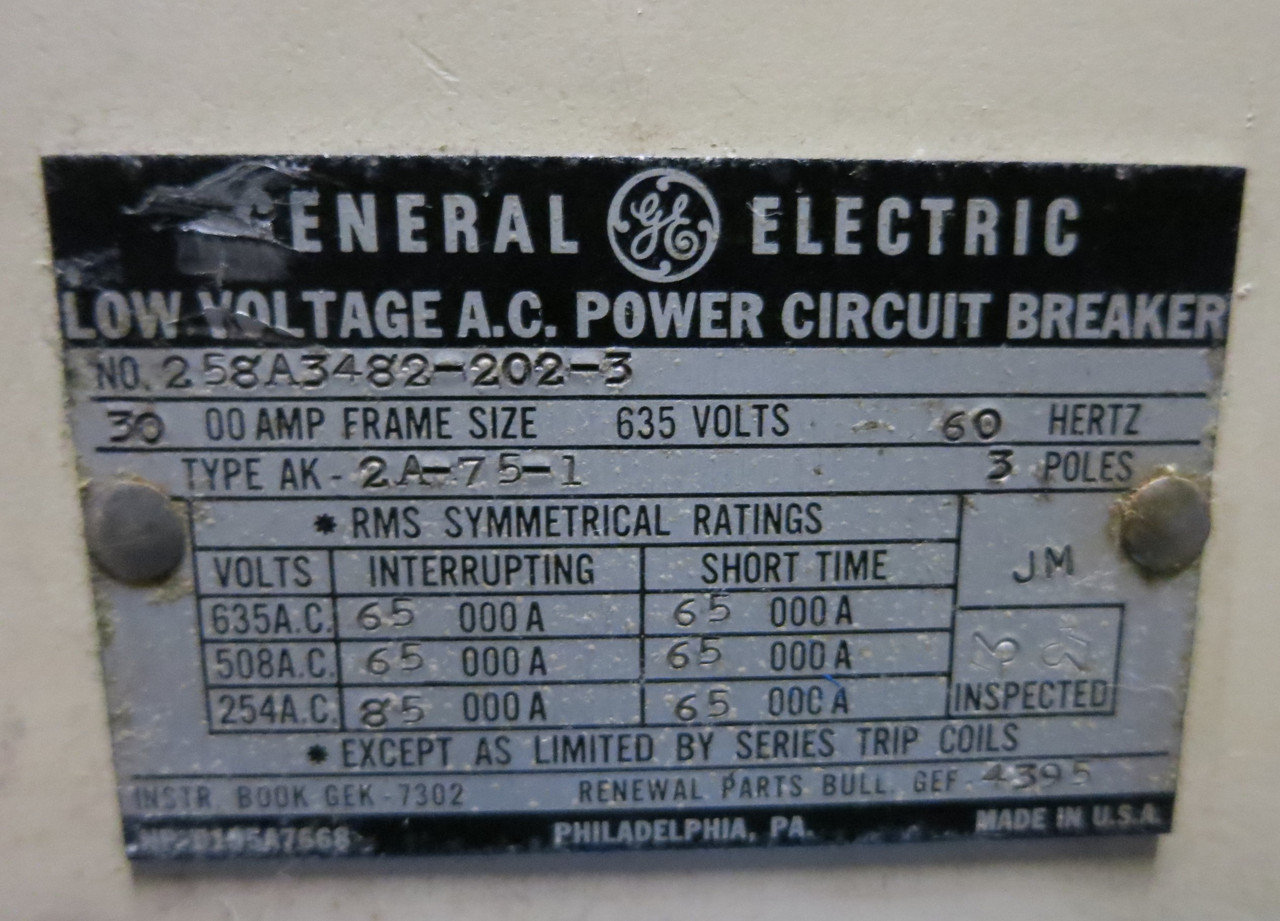

Excellent Contacts (See Picture)-Nameplate Information-
Type: AK-2A-75-1 l 3000 Amp Frame Size l 3 Poles l 635 Volts l 60 Cycles
RMS Symmetrical Ratings:
635 VAC l 65000A Interrupting l 65000A Short Time
508 VAC l 65000A Interrupting l 65000A Short Time
254 VAC l 85000A Interrupting l 65000A Short Time
Except as Limited by Series Trip Coils
Instr Book GEK - 7302 l Renewal Parts Bull. GEF 4395
NP0195A7568 l Made in USA
with Satin American Corp Trip Unit:
Long-time l Short-time l Instantaneous l Ground Fault

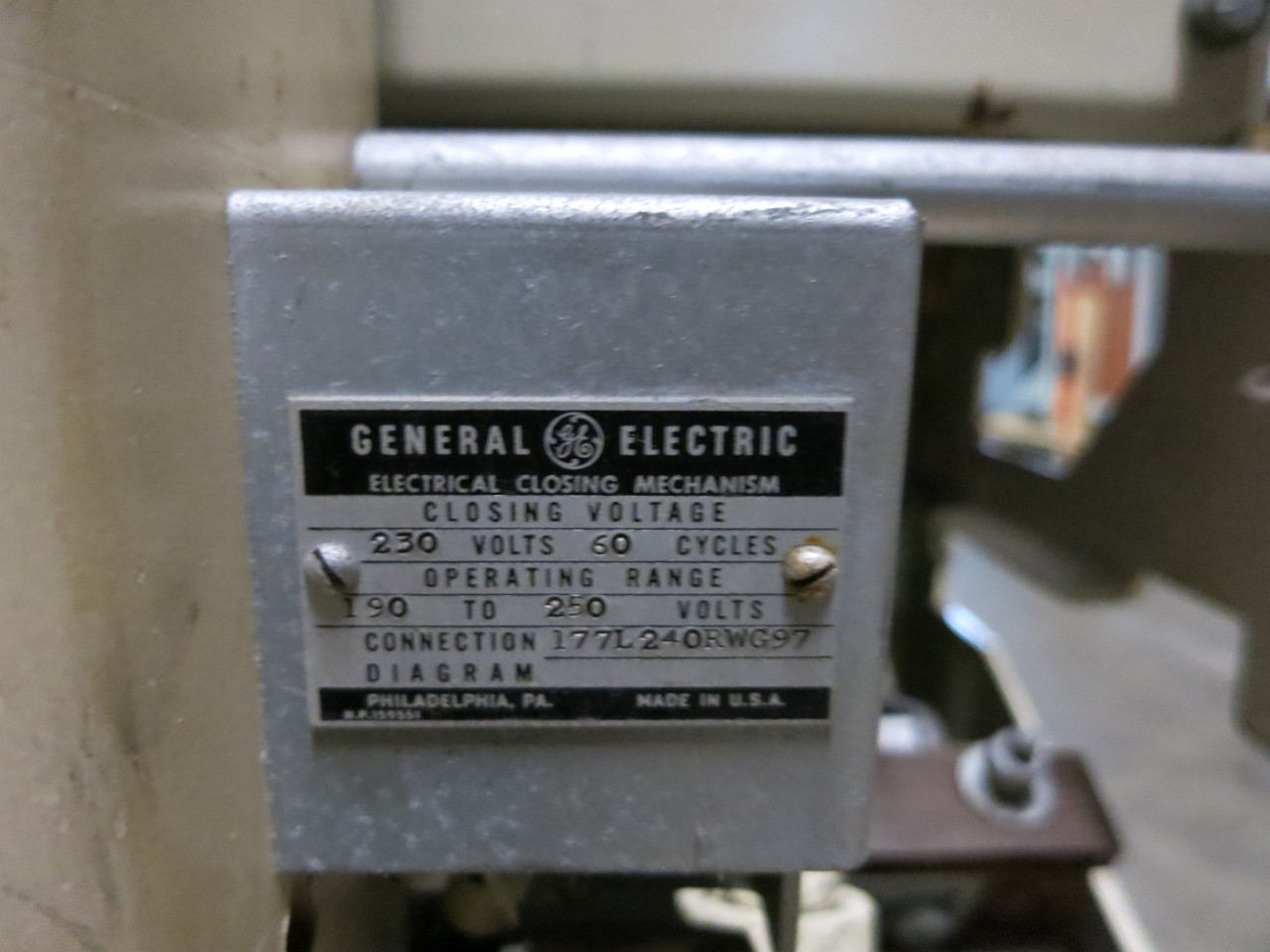

Electrical Closing Mechanism:
Closing Voltage: 230 Volts l 60 Cycles
Operating Range: 90 to 250 Volts
Connection Diagram: 177L240RWG97
Breaker Weight: 700 Lbs
Breaker Dimension: 25" x 24" x 28"
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
