Product Description
General Electric
GE
MPN: 9T26G3002
USED

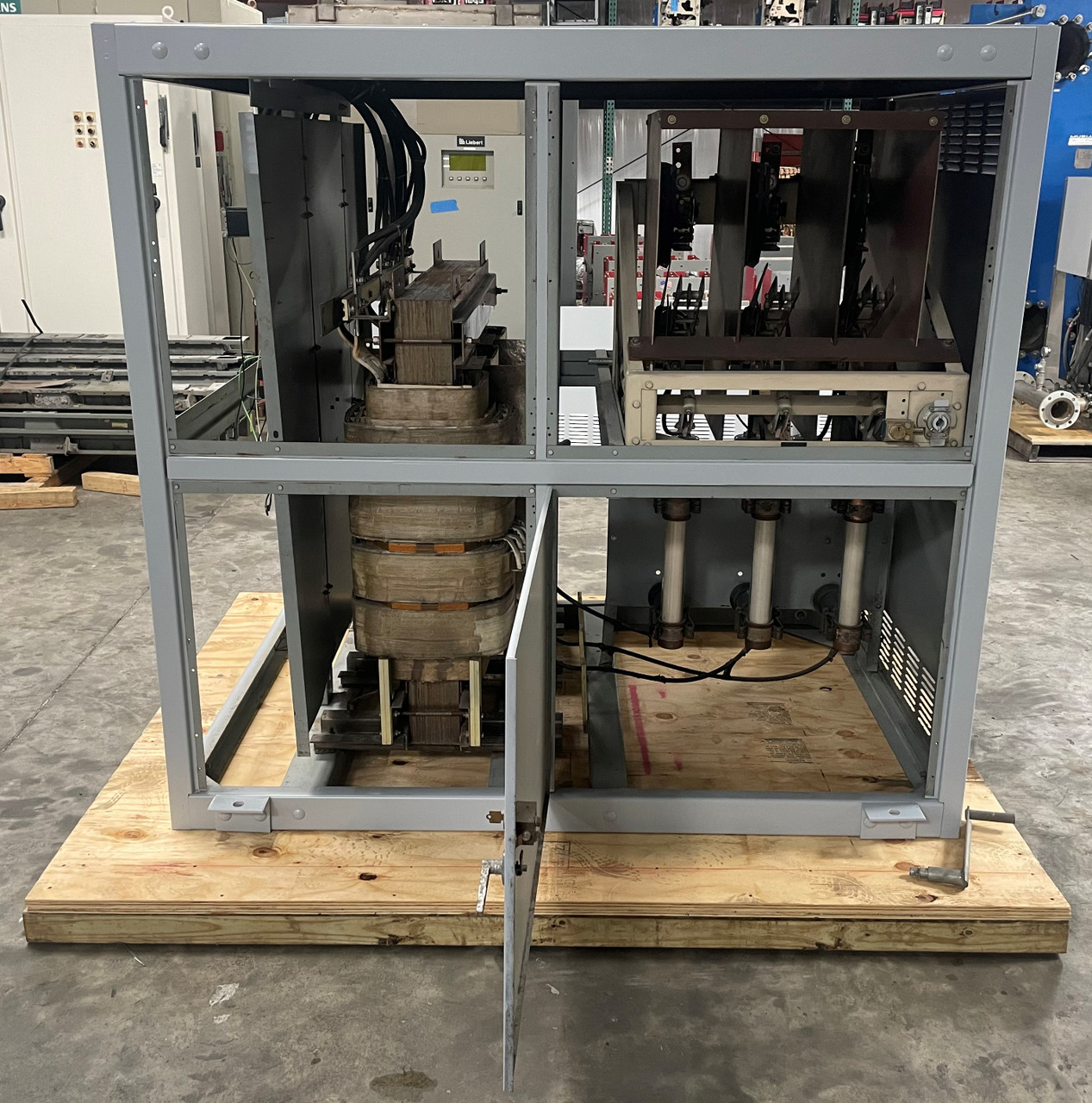

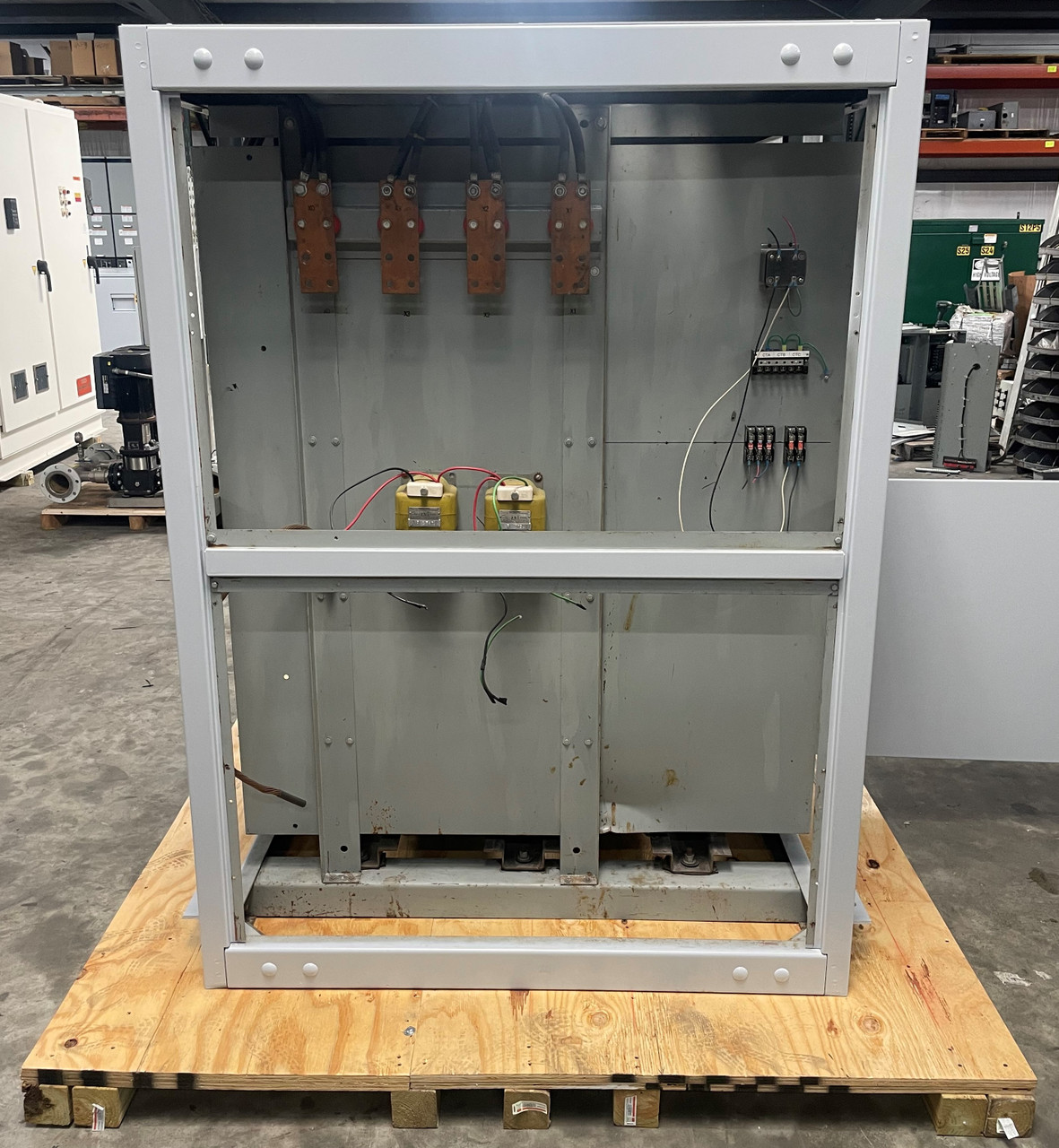

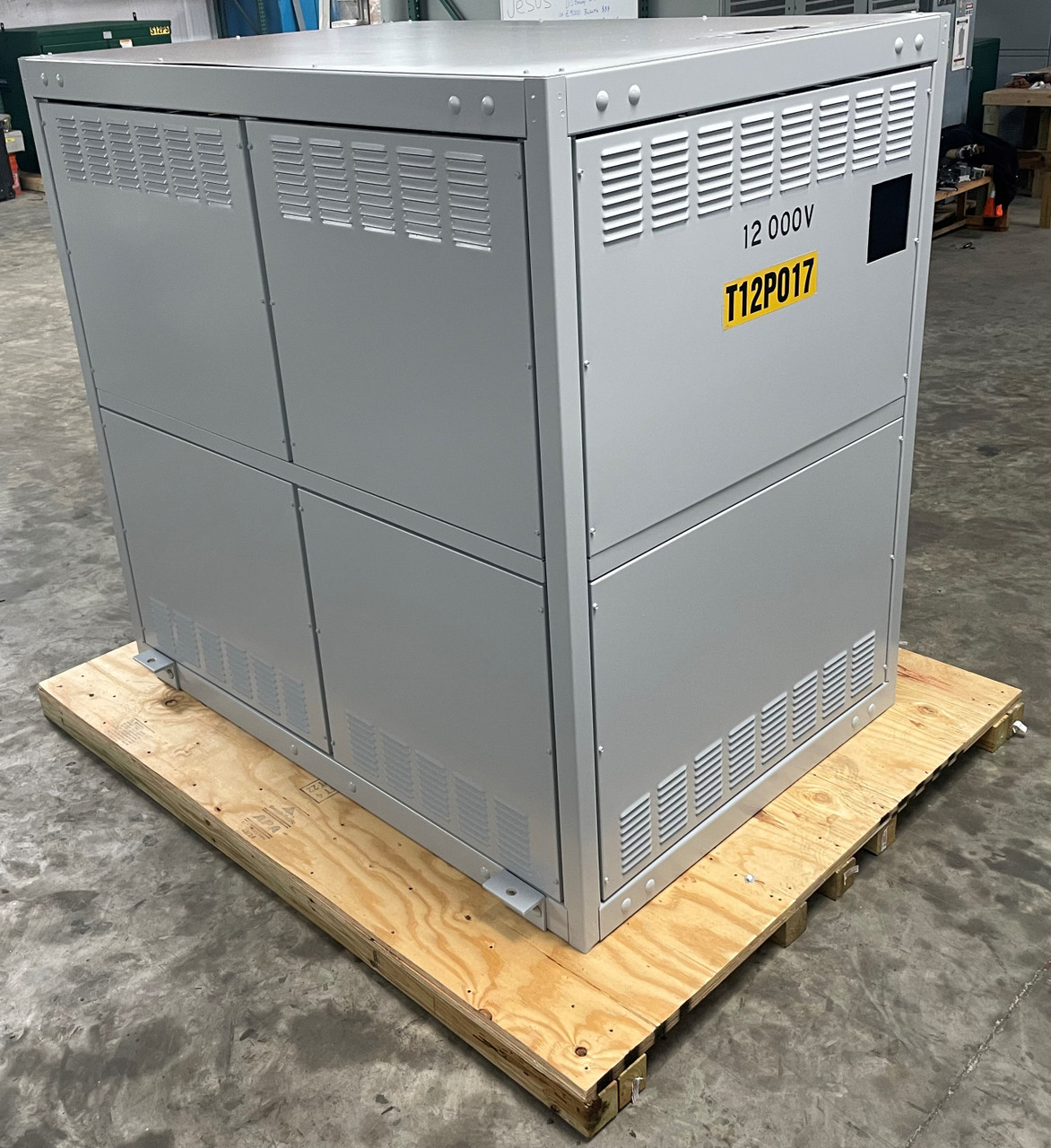

Three Phase Dry Type Transformer Distribution Center w Disconnect
500kVA - 12000V Delta to 480 WYE / 277 Volts - 3PH

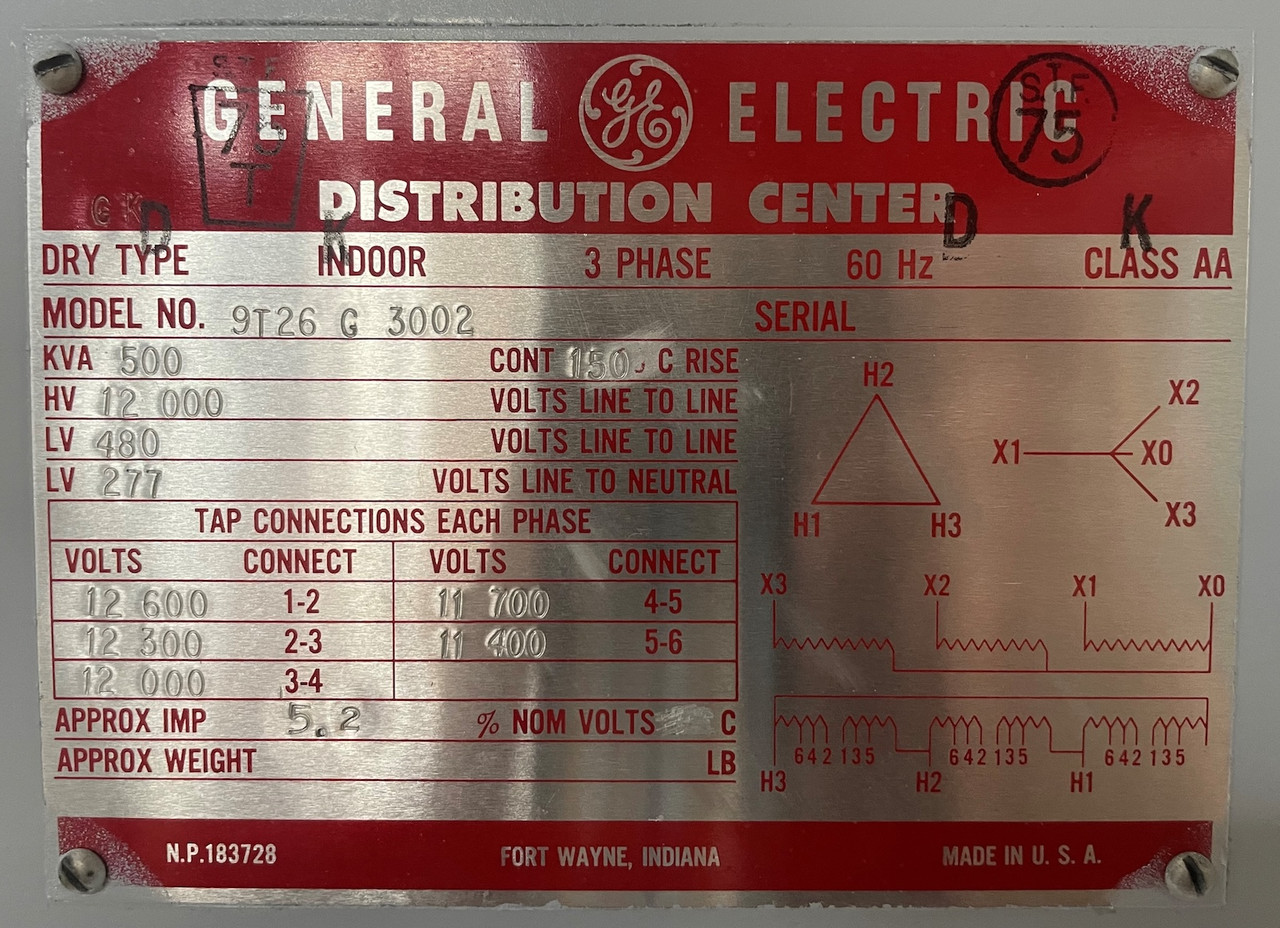

- General Electric Distribution Center Nameplate (Transformer) -
Dry Type - Indoor - 3 Phase - 60 Hz - Class AA
Model No: 9T26G3002 - kVA: 500 Cont 150 Deg C Rise
HV: 12000 Volts Line to Line
LV: 480 Volts Line to Line
LV: 277 Volts Line to Neutral
Approx Imp: 5.2 %
- Tap Connections Each Phase -
Volts - Connect
12600 - 1-2
12300 - 2-3
12000 - 3-4
11700 - 4-5
11400 - 5-6

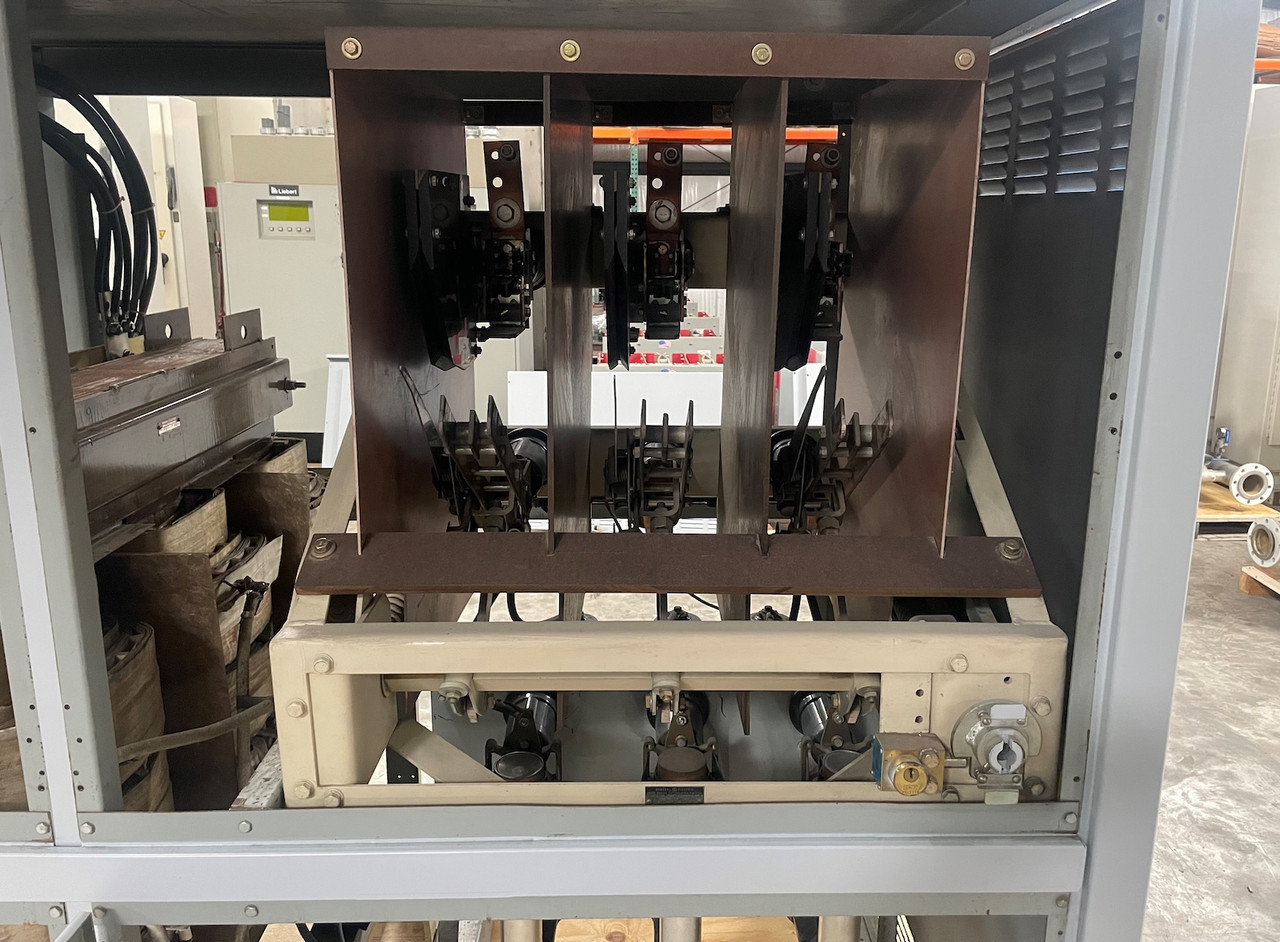

- Nameplate off from Load-Break Interrupter Switch -
Type: SE-100S OEM - No: 0213X0300G 53
13200 V - 600 Amp - 60 Cy - Inter Amps: 600
Date: 3-74 - 15.5 kV Max Des - 95 kV Bil - 40 kA Mom
Inst and Parts: GE-88767
Physical Dimensions of Distribution Center: 76in Tall x 55in Deep x 80in Wide
For Information on backfeeding transformers, please see:
automationdirect.com/static/manuals/hpsimperator/backfeedingtransformers.pdf
Shipping within 1 business day
30 Day Warranty on all purchases
Your purchase will include what is pictured and described above ONLY.
For more info or pictures, please visit our FAQs or contact us :
423 821-4712 - Sales@RiverCityIndustrial.com
Additional Information
- SKU:
- PM3218
- UPC:
- 7450001694624
- Condition:
- Used
- Availability:
- Ships within 0-1 business days of full payment. Expedited shipping available.
- SKU:
- PM3218
- MPN:
- 9T26G3002
- Approx Shipping Dims (LxWxH):
- 60.000" x 84.000" x 82.000"
- Approx Shipping Weight:
- 4500.0000
- Location:
- E Floor
- kVA:
- 500 kVA
- Phases:
- 3 Phase
- Listed:
- 5/18/2023
- UPC:
- 7450001694624
- eBay Listing:
- 275857972492
