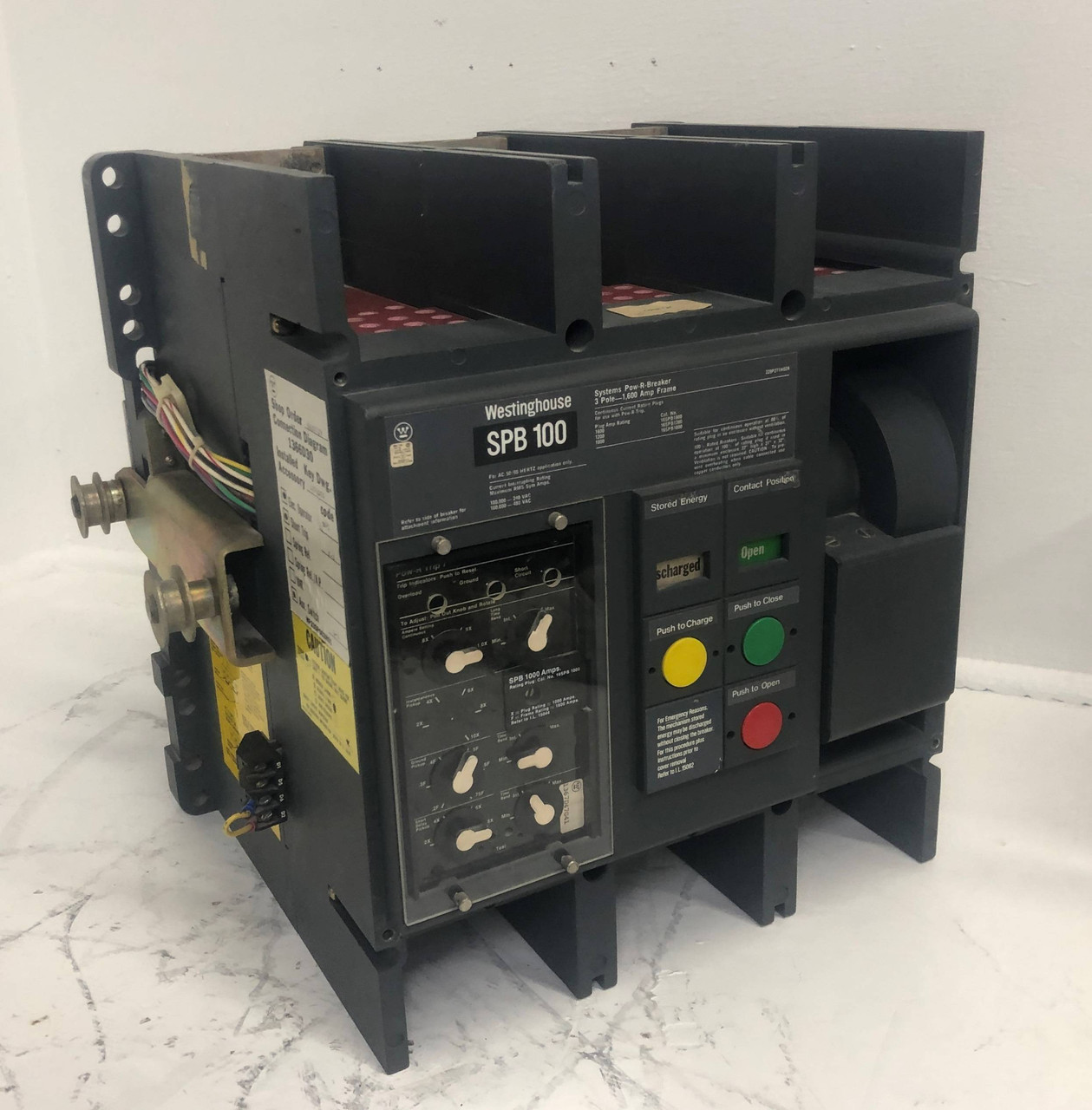

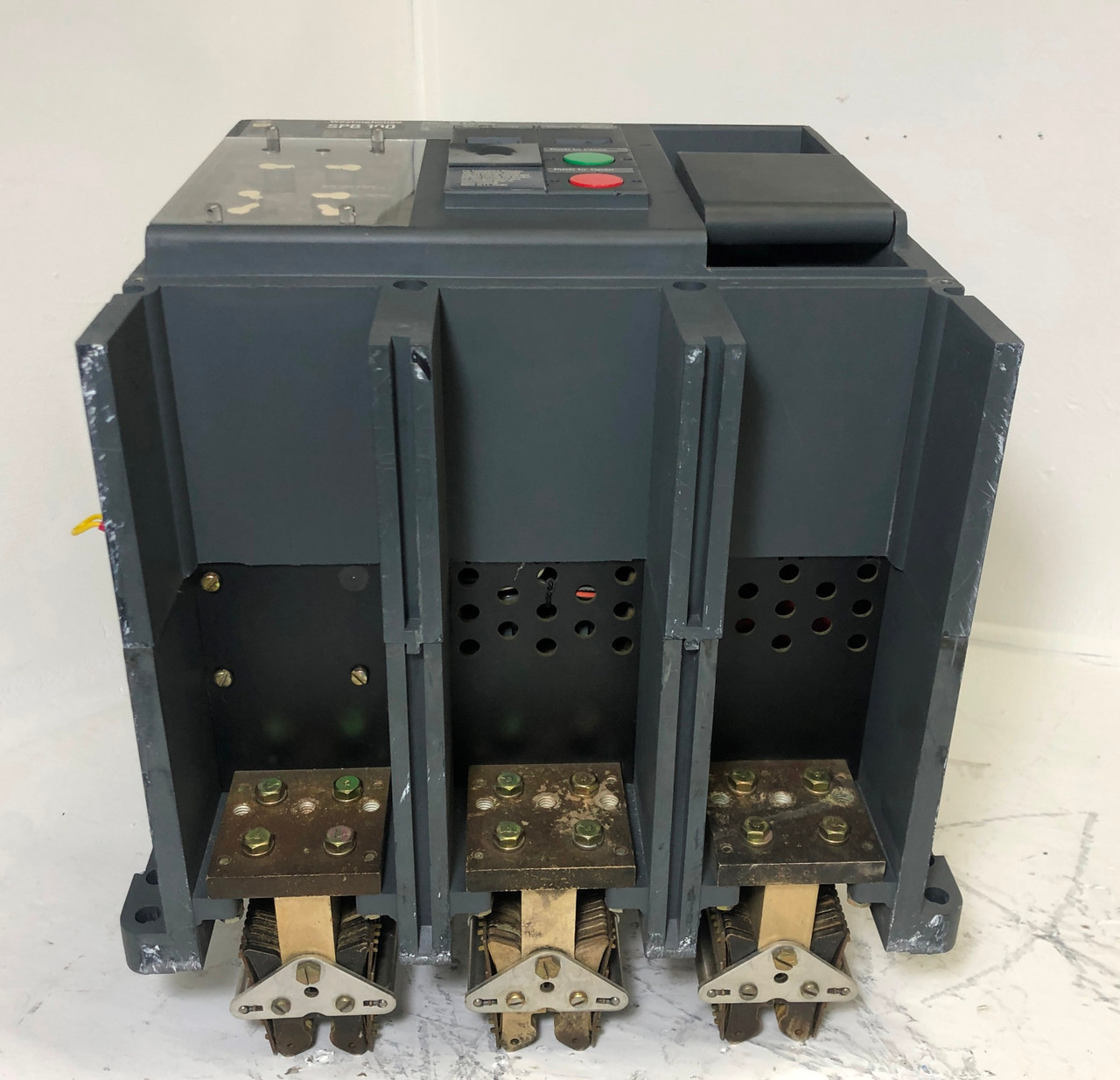

CH Westinghouse SPB 100 1600A Drawout EO Pow-R Breaker LSG 1000 Amp Plug & Shunt (EM3926-2)
SKU:
EM3926
Westinghouse
Cutler-Hammer / Eaton
MPN: SPB 100
USED
Systems Pow-R Breaker
1600 Amps Frame | 1000 A Rating Plug
Electrical Operator | Shunt Trip | Auxiliary Switch | Spring Release
LSG
This breaker is electrically or manually operated

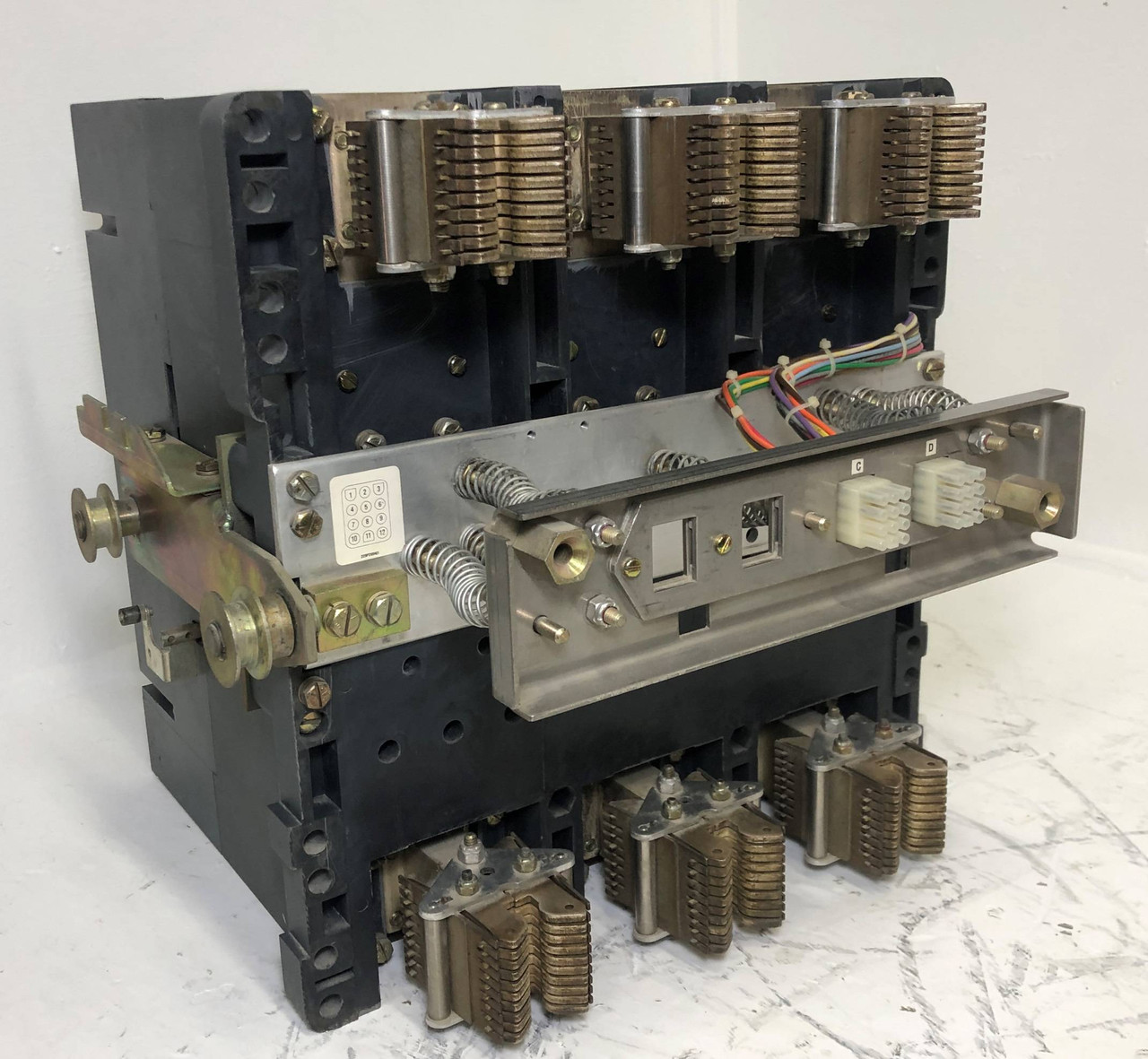

This is a drawout circuit breaker
3 Pole
480/600 VAC
Current Interrupting Maximum RMS Symmetrical:
100,000 Amps @ 240 Volts
100,000 Amps @ 480 Volts

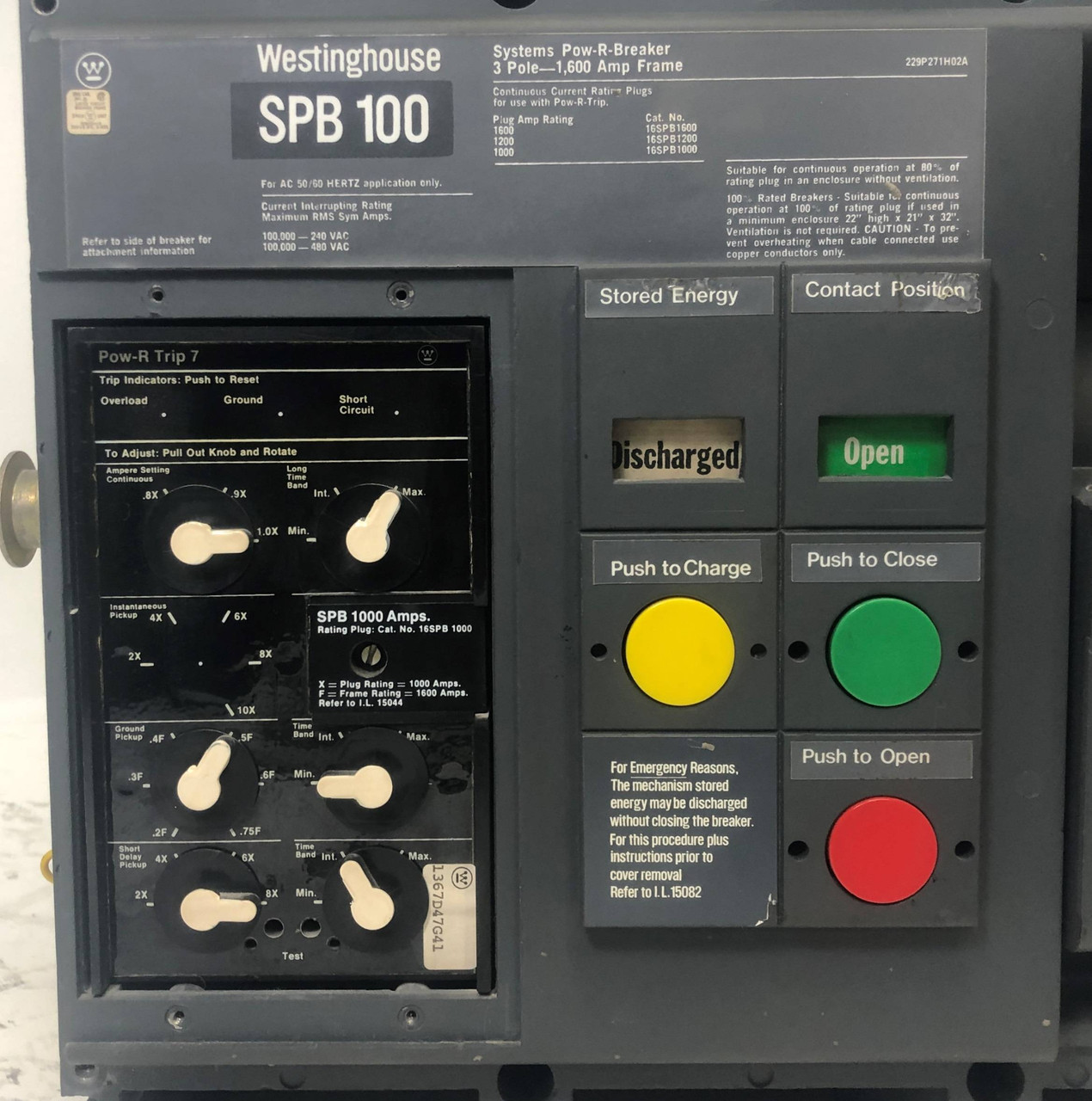

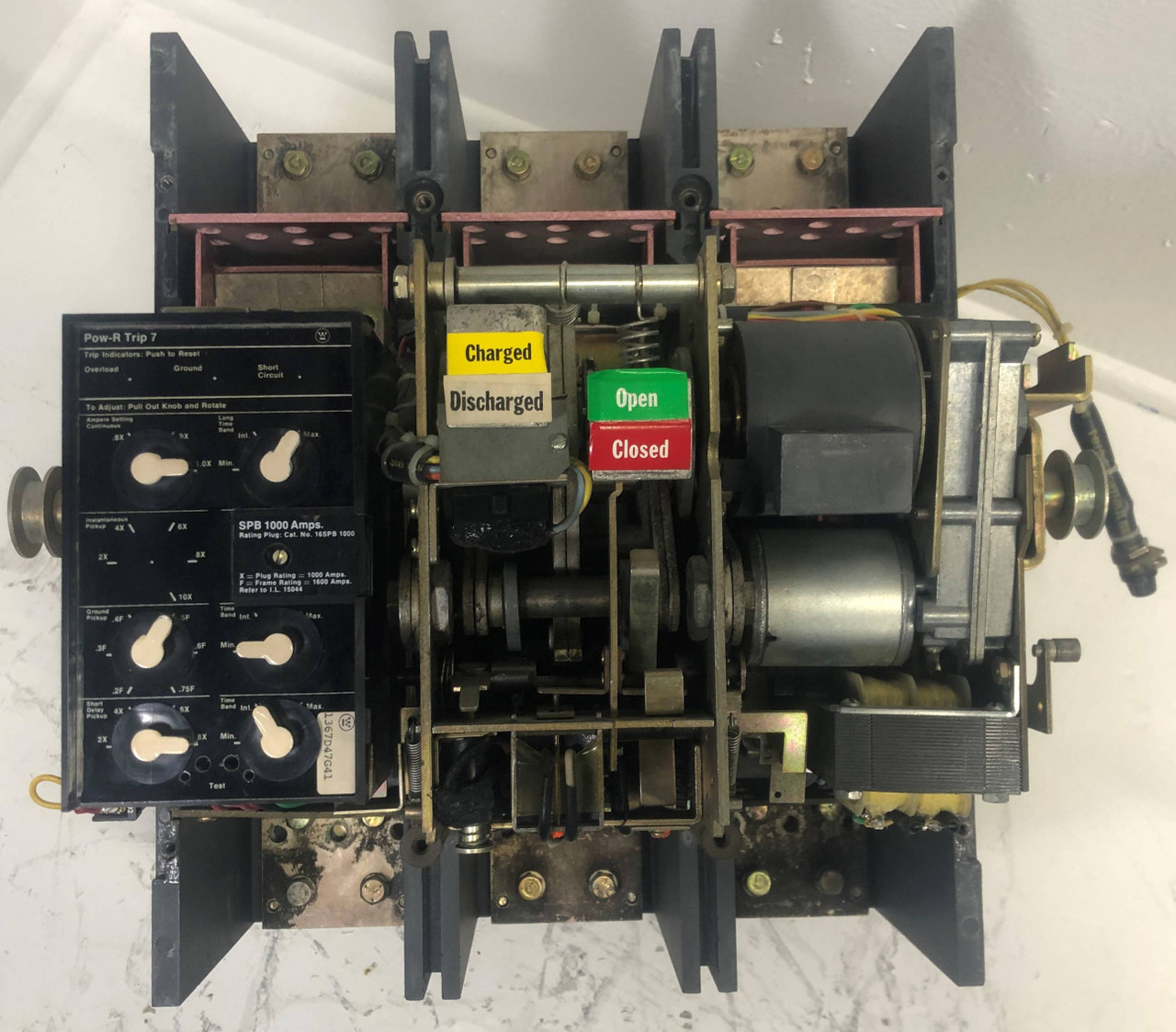

Pow-R Trip 7 Trip Unit:
1367D47G41
Ampere Setting Continuous & Long Time Band
Ground Pickup & Time Band
Short Delay Pickup & Time Band
SPB Rating Plug:
1000 Amps
Cat. No. 16SPB1000

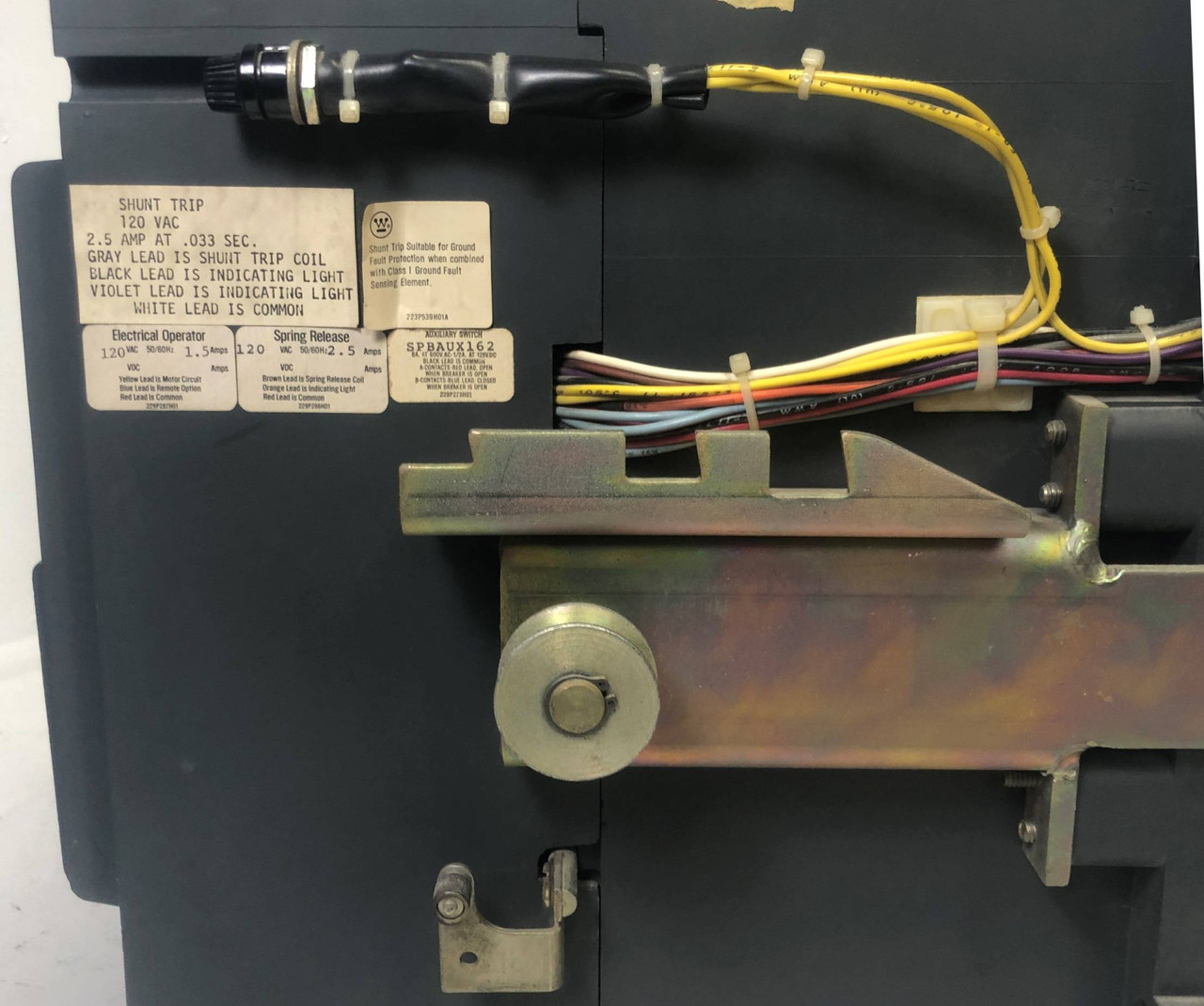

Shunt Trip:
120 VAC
2.5 Amps @ .033 Sec.

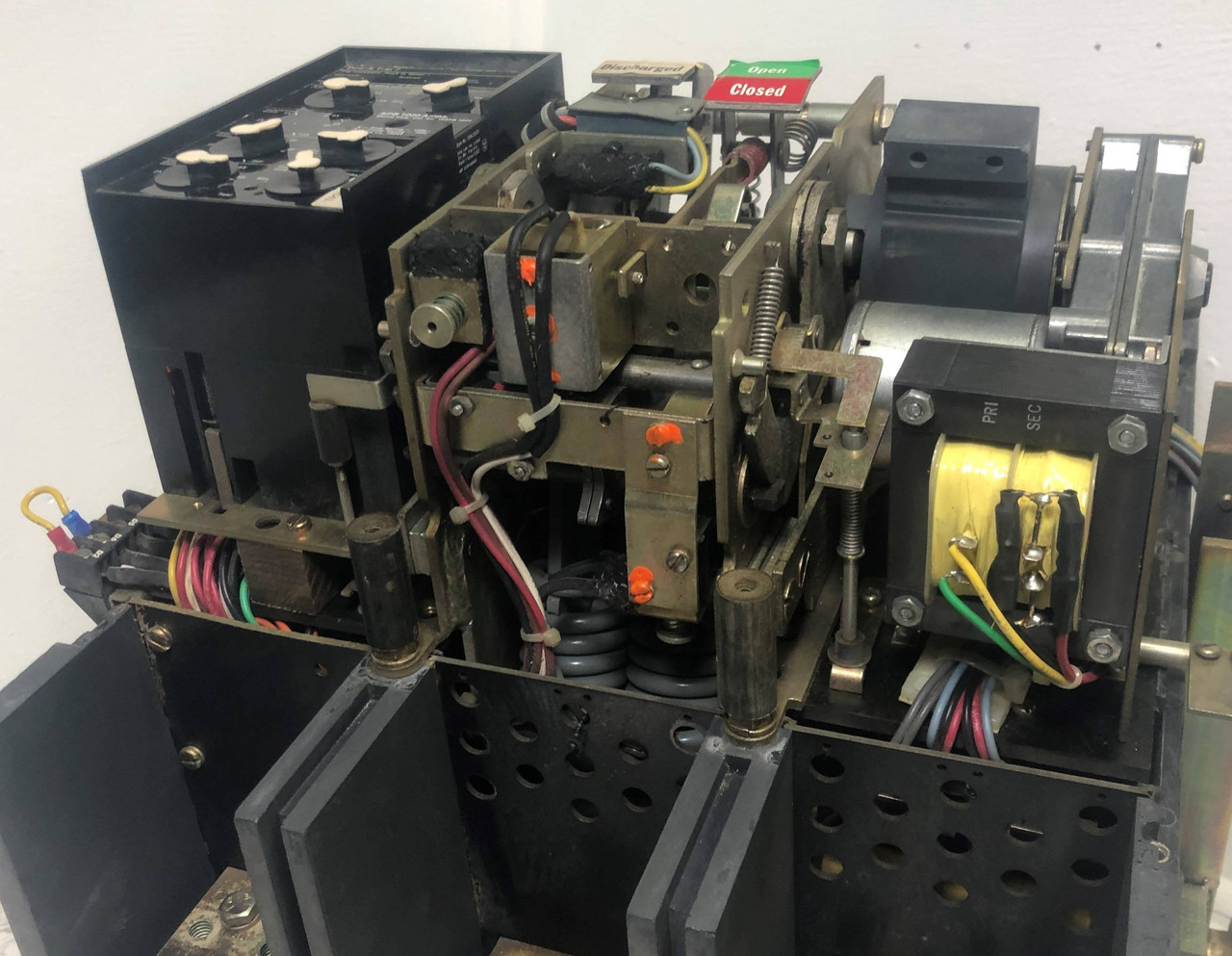

Electrical Operator:
120 VAC @ 50/60 Hz
1.5 Amps
Spring Release:
120 VAC @ 50/60 Hz
2.5 Amps

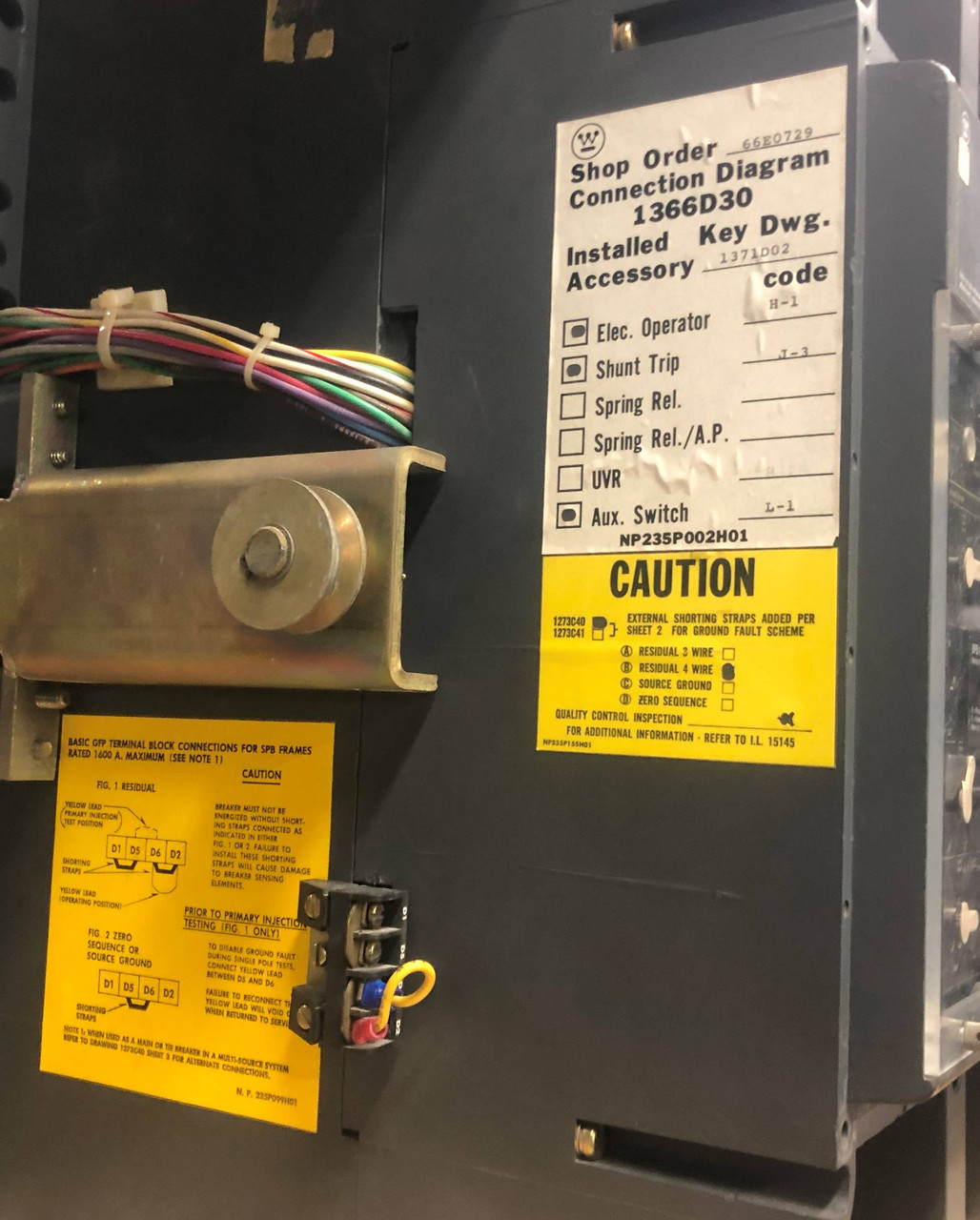

Aux. Switch:
SPBAUX162
6 Amps @ 600 VAC
1/2 Amp @ 125 VDC
Breaker Weight: 151 lbs.
Breaker Dimensions (D x W x H): 18" x 17.5" x 16"
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
