Siemens SBH 800 Amp Circuit Breaker w/ 800A Plug SBH800 SBH2008 Aux Drawout SBS (EBI3908-3)
SKU:
EBI3908
Siemens
MPN: SBH800
USED
Industrial Circuit Breaker
800 Amps Frame | 800 A Plug
Type SBH2008
SBH2008DV
This breaker was installed, but never energized and usedIncludes circuit breaker chassis / drawout frame assembly.
Breaker is a higher interrupting version of the SBS 2000 / 2008 and will work in lieu of the SBS. It will just handle a higher RMS Symmetrical Rating (which is usually preferable).
Breaker can be used in a bolt on or draw out application.
3 Pole
600 VAC
50/60 Hz
Trip Unit:
Cat. No. SB08TP02G
Max. Rating: 800 Amps
Includes serial port & test connector
Rating Plug:
800 Amps
Cat. No. 08SB800

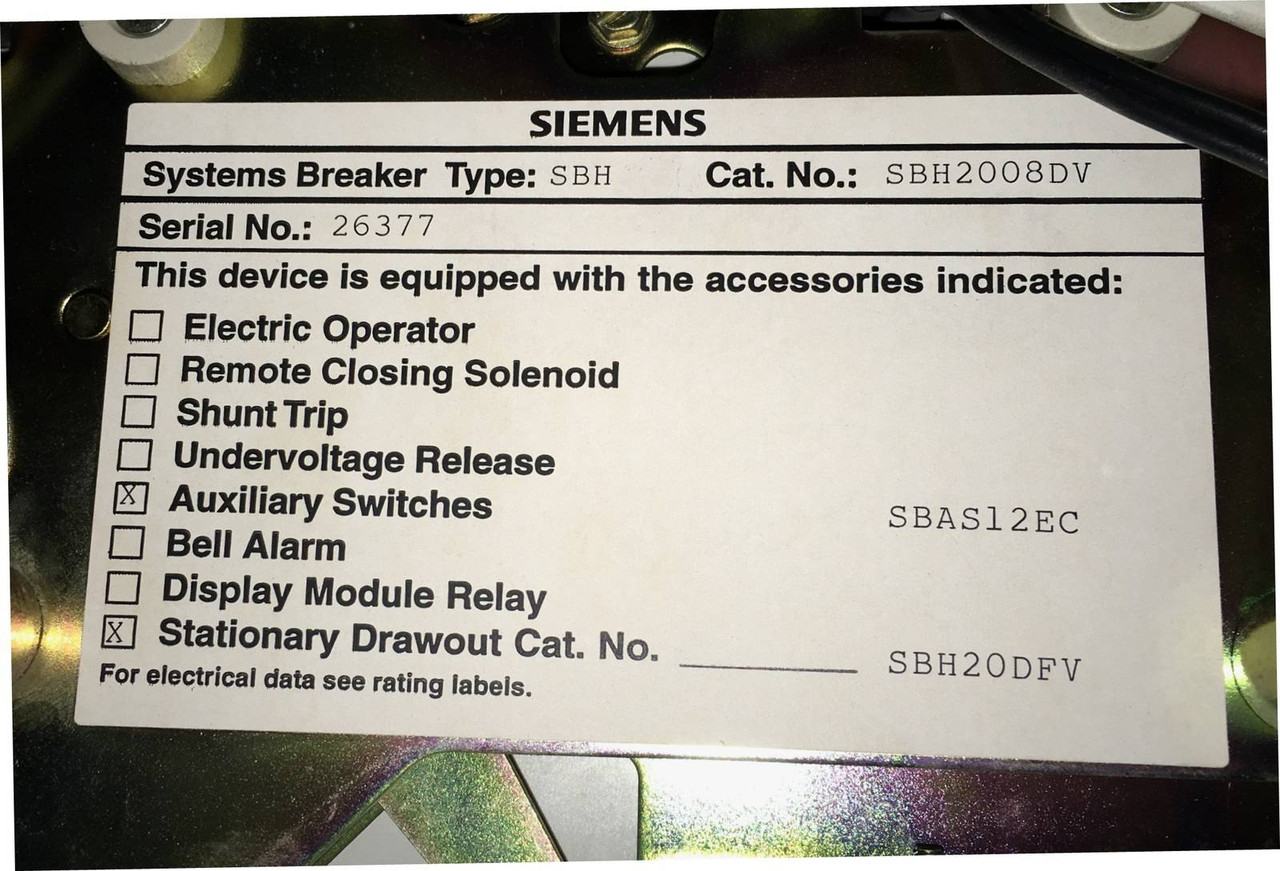

Auxiliary Switches:
Cat. No. SBAS12EC
Bus Connector:
Cat. No. SB20TCON
Interrupting Capacity RMS Symmetrical Amps.:
200,000 Amps @ 240 Volts AC
150,000 Amps @ 480 Volts AC
100,000 Amps @ 600 Volts AC
Approximate Dimensions : 20" x 16" x 20"
Approximate Weight : 130 lbs.
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
Siemens
MPN: SBH800
USED
Industrial Circuit Breaker
800 Amps Frame | 800 A Plug
Type SBH2008
SBH2008DV
This breaker was installed, but never energized and usedIncludes circuit breaker chassis / drawout frame assembly.
Breaker is a higher interrupting version of the SBS 2000 / 2008 and will work in lieu of the SBS. It will just handle a higher RMS Symmetrical Rating (which is usually preferable).
Breaker can be used in a bolt on or draw out application.
3 Pole
600 VAC
50/60 Hz
Trip Unit:
Cat. No. SB08TP02G
Max. Rating: 800 Amps
Includes serial port & test connector
Rating Plug:
800 Amps
Cat. No. 08SB800
Auxiliary Switches:
Cat. No. SBAS12EC
Bus Connector:
Cat. No. SB20TCON
Interrupting Capacity RMS Symmetrical Amps.:
200,000 Amps @ 240 Volts AC
150,000 Amps @ 480 Volts AC
100,000 Amps @ 600 Volts AC
Approximate Dimensions : 20" x 16" x 20"
Approximate Weight : 130 lbs.
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
SKU:
EBI3908
UPC:
782451014552
Condition:
Used
Availability:
Ships within 0-1 business days of full payment. Expedited shipping available.
Width:
32
Height:
32
Depth:
36
Warranty:
30 day warranty.
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
MPN:
SBH800
SKU:
EBI3908
Voltage:
480/600 VAC
Freight Shipping Cost:
242
Listed:
2/18/2013
Approx Shipping Dims (LxWxH):
36.000" x 32.000" x 32.000"
Approx Shipping Weight:
200.0000
Location:
B 51B, B 50E = 800a - chassis
eBay Listing:
274001541075
UPC:
782451014552
Amperage:
800 Amp
Amperage (rated amps):
800 Amp
