Vacuum Retrofit GE Magne-Blast AM-13.8-750-5H 1200A VVC Breaker General Electric (PM2909-1)
SKU:
PM2909
General Electric
GE
MPN: AM-13.8-750-5H
USED
Magne-Blast Circuit Breaker

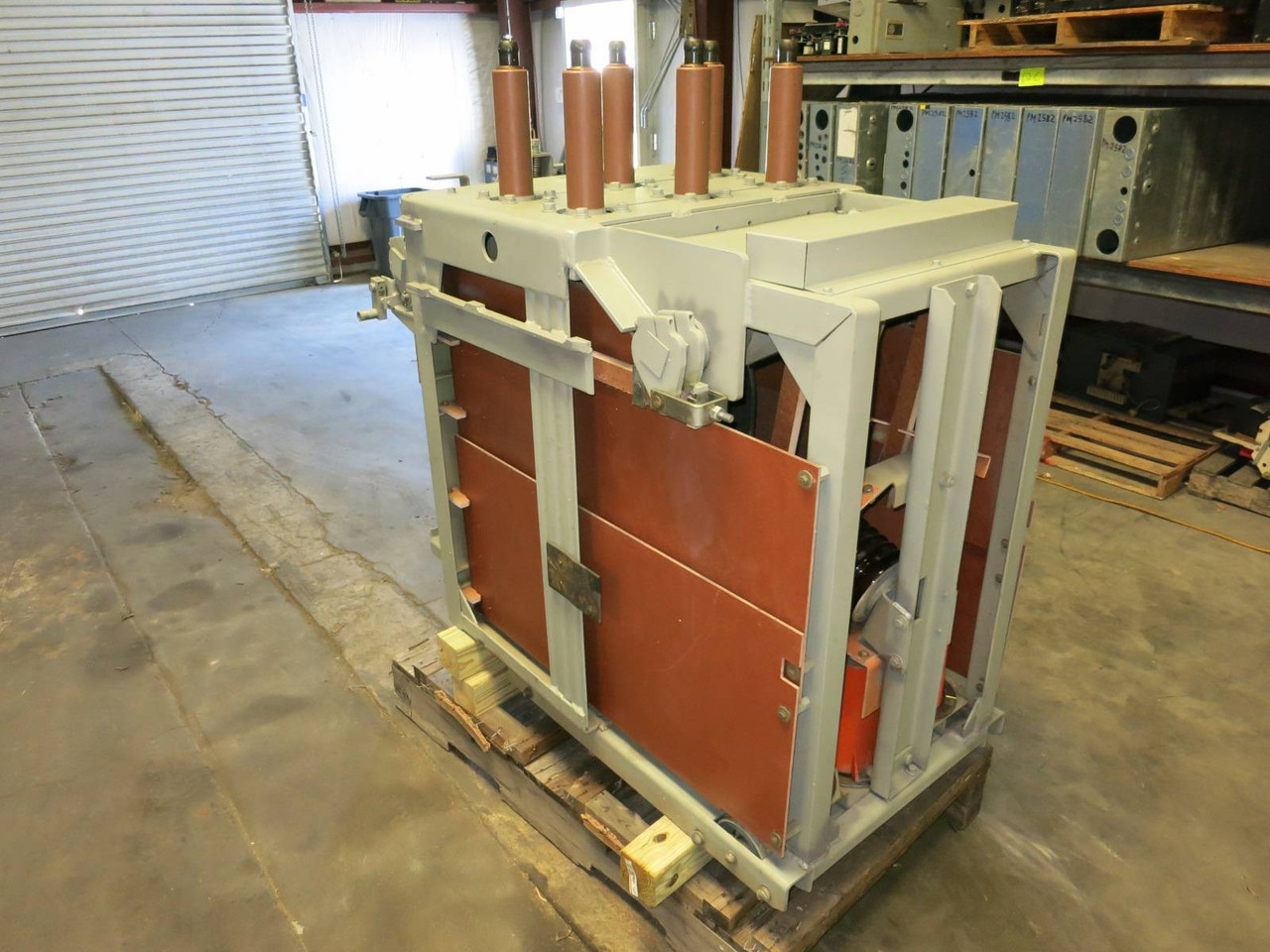

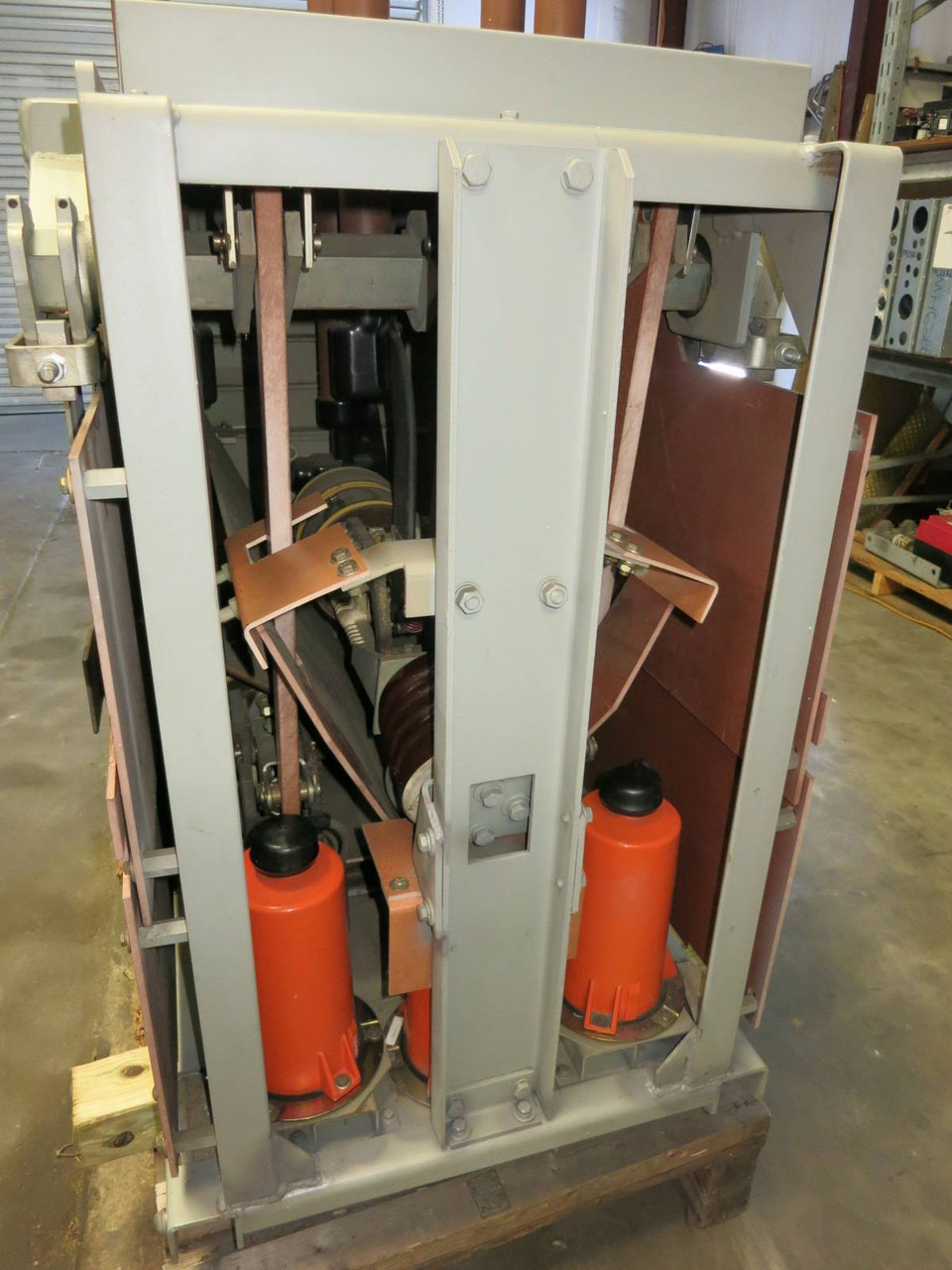

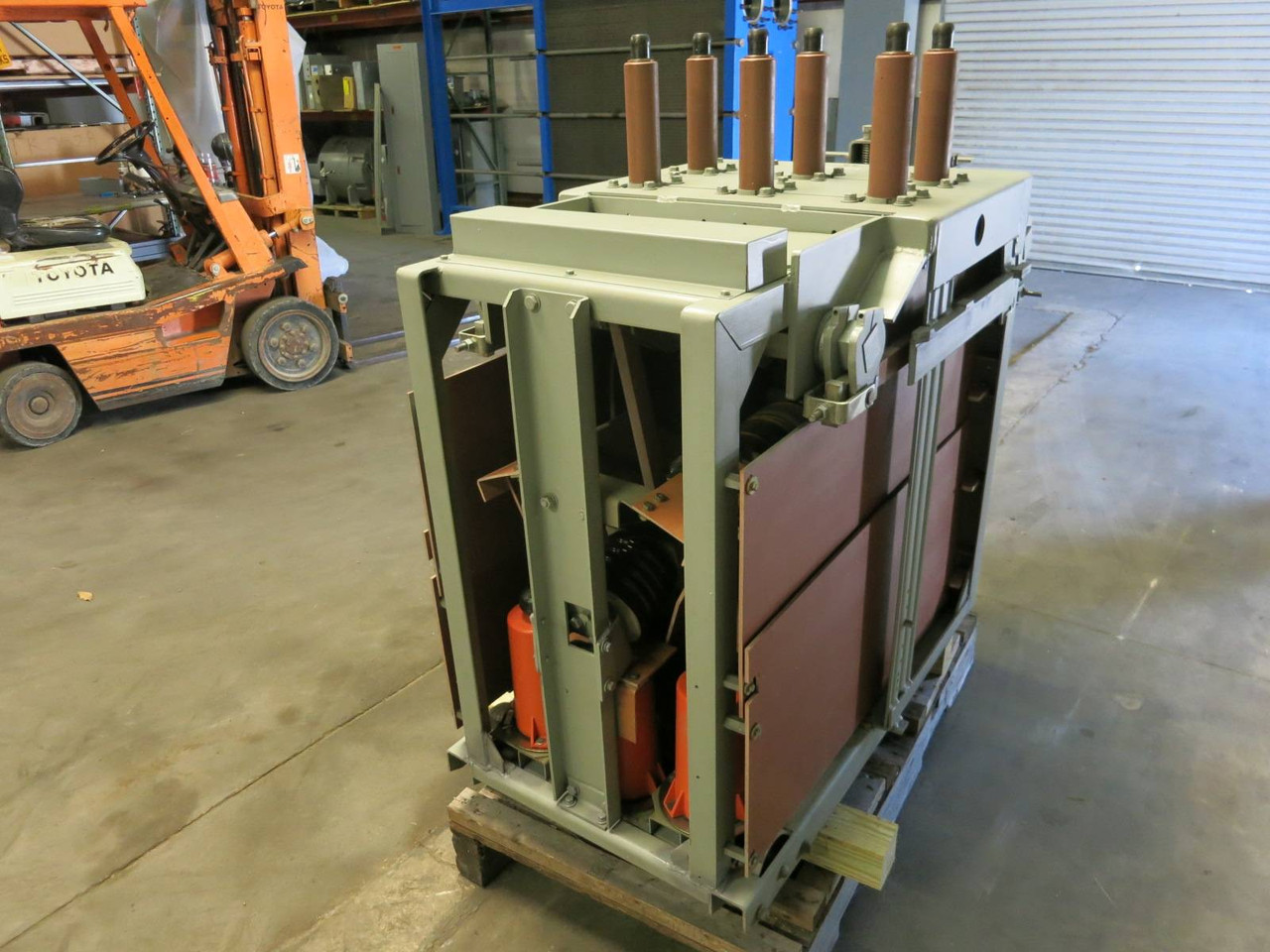

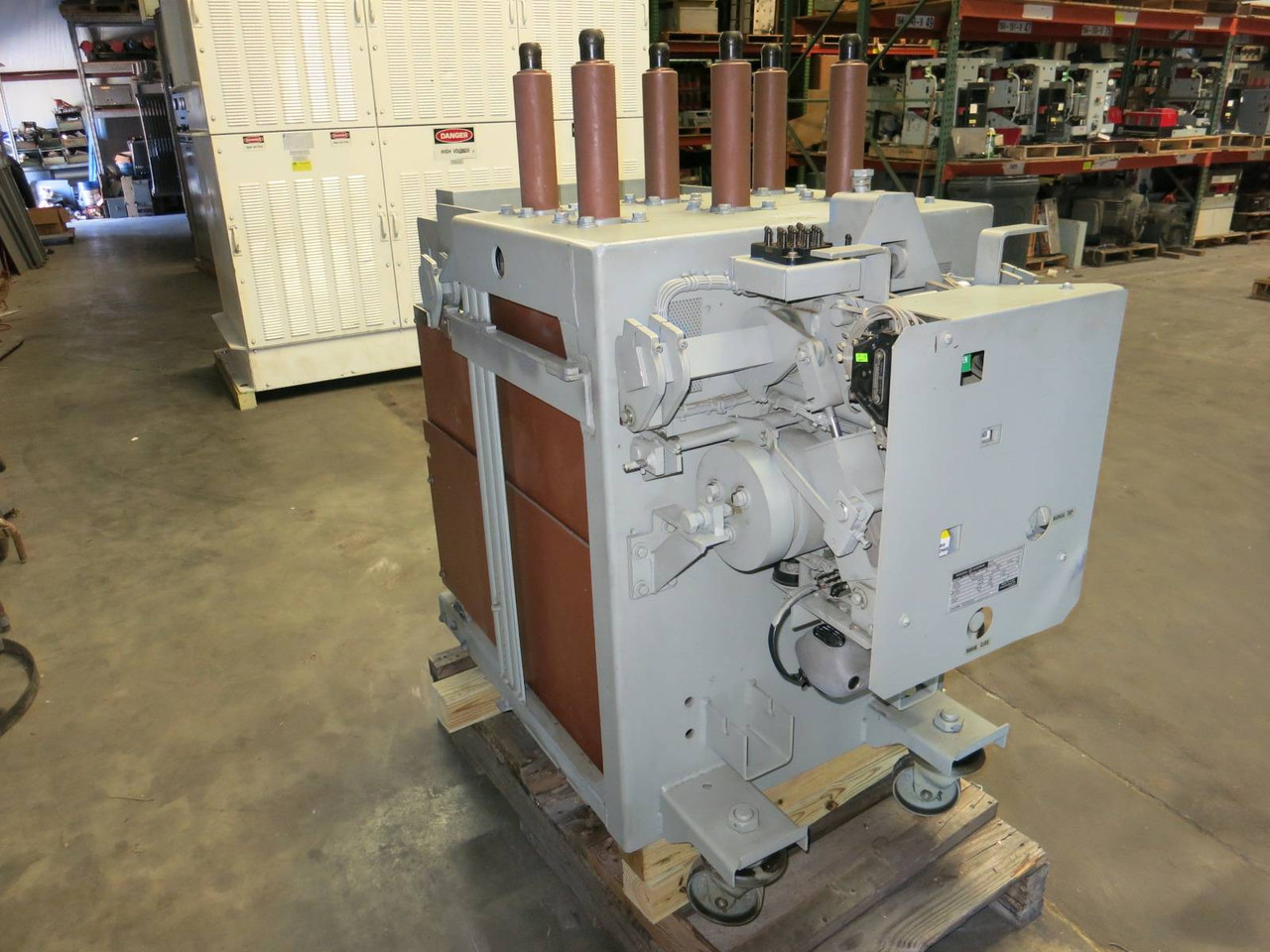

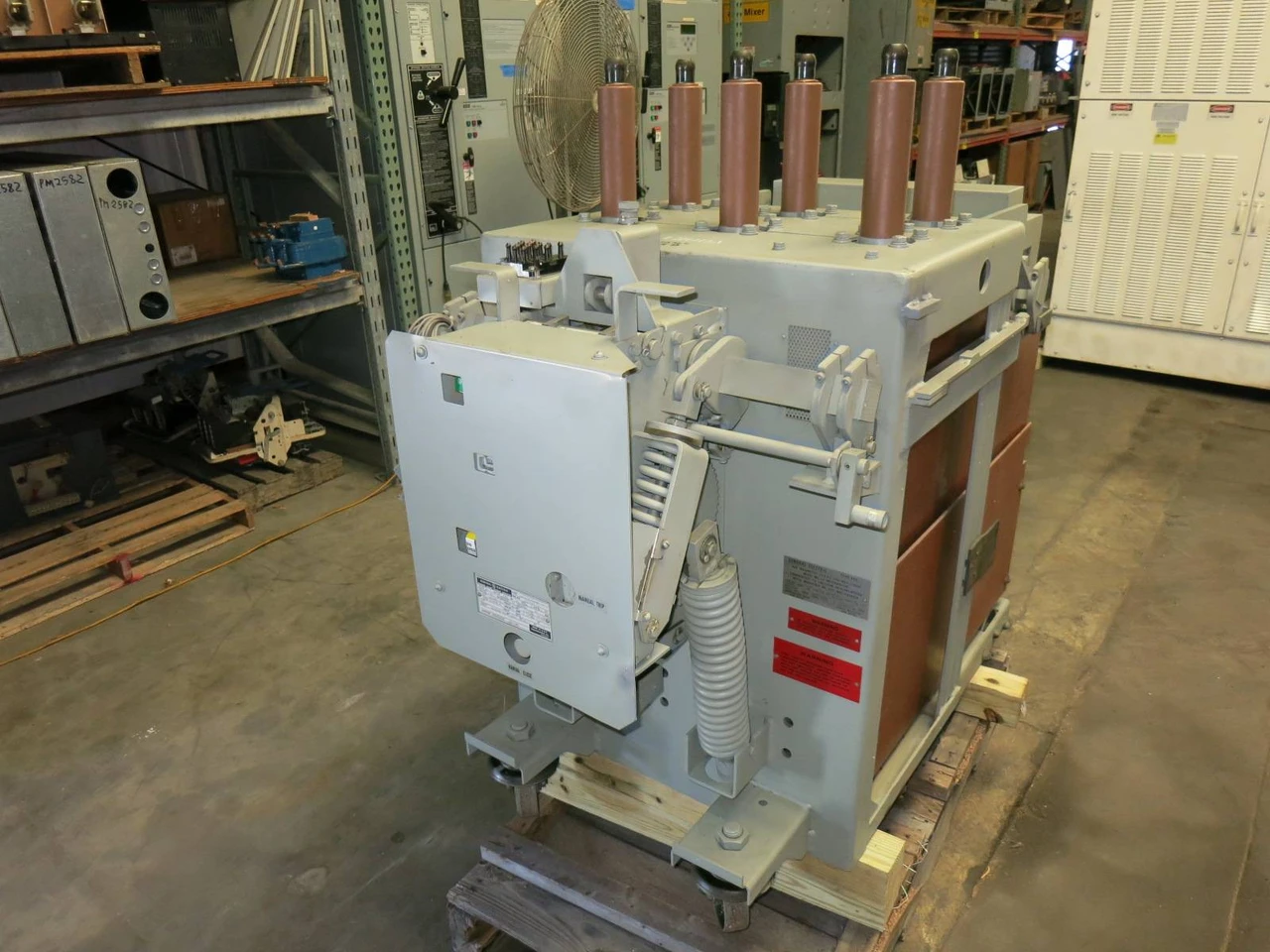

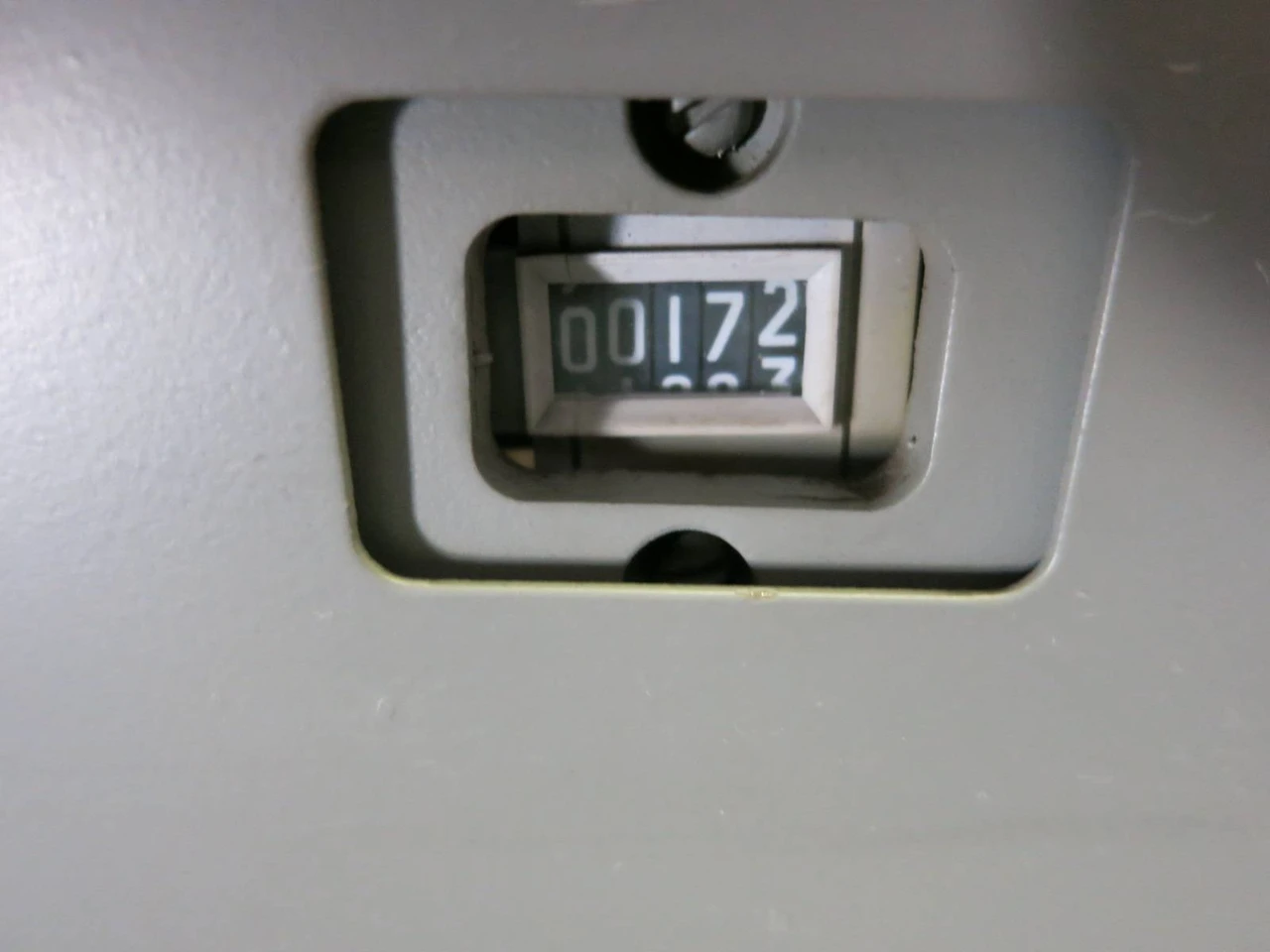

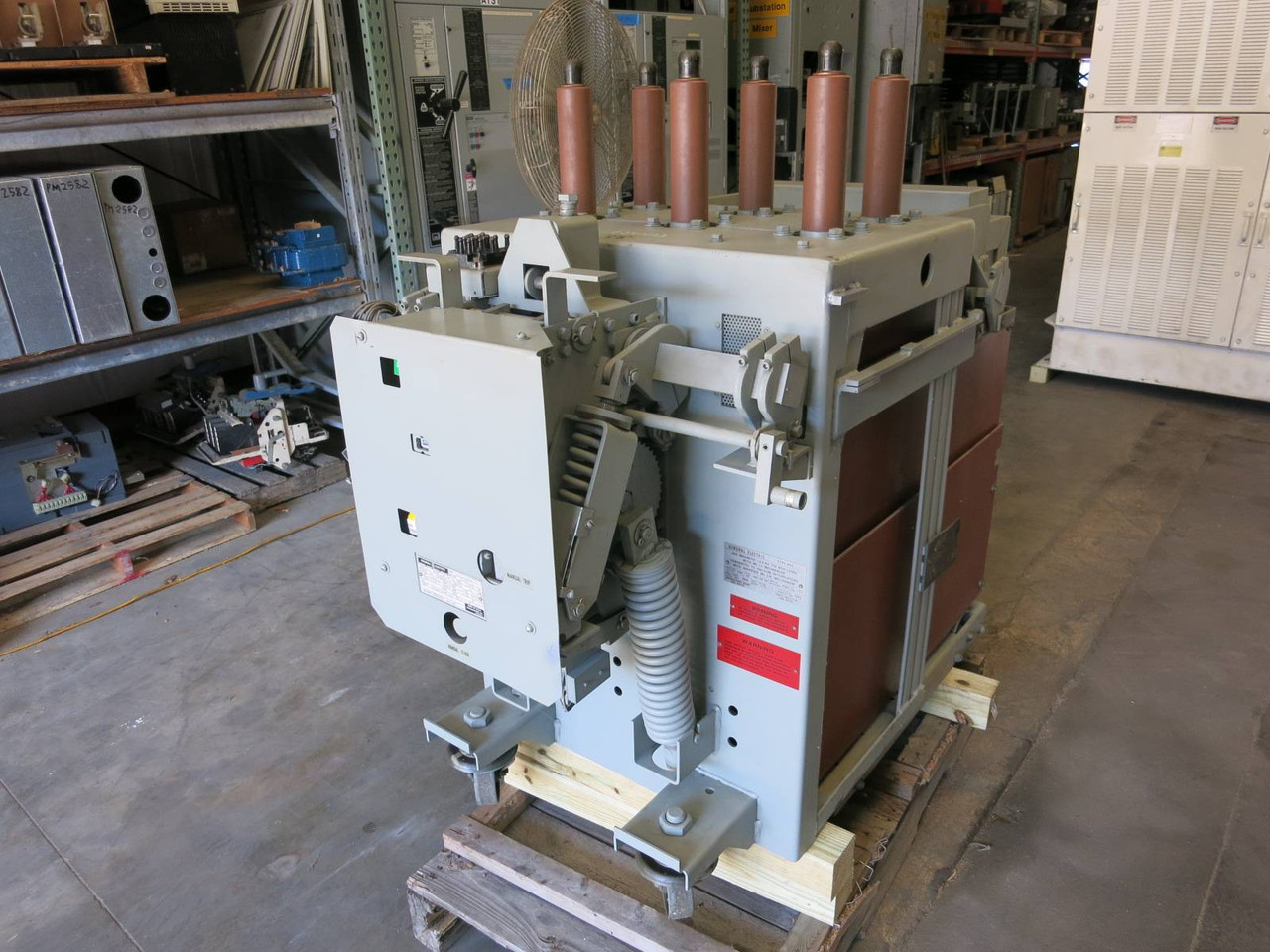

Only 172 Operations Since Complete Rebuild/Vacuum Retrofit- Retrofit Nameplate -
General Electric Type VVC
Air Magnetic - 13.8 kV - 750 MVA - 1200A with ML-13 Mechanism

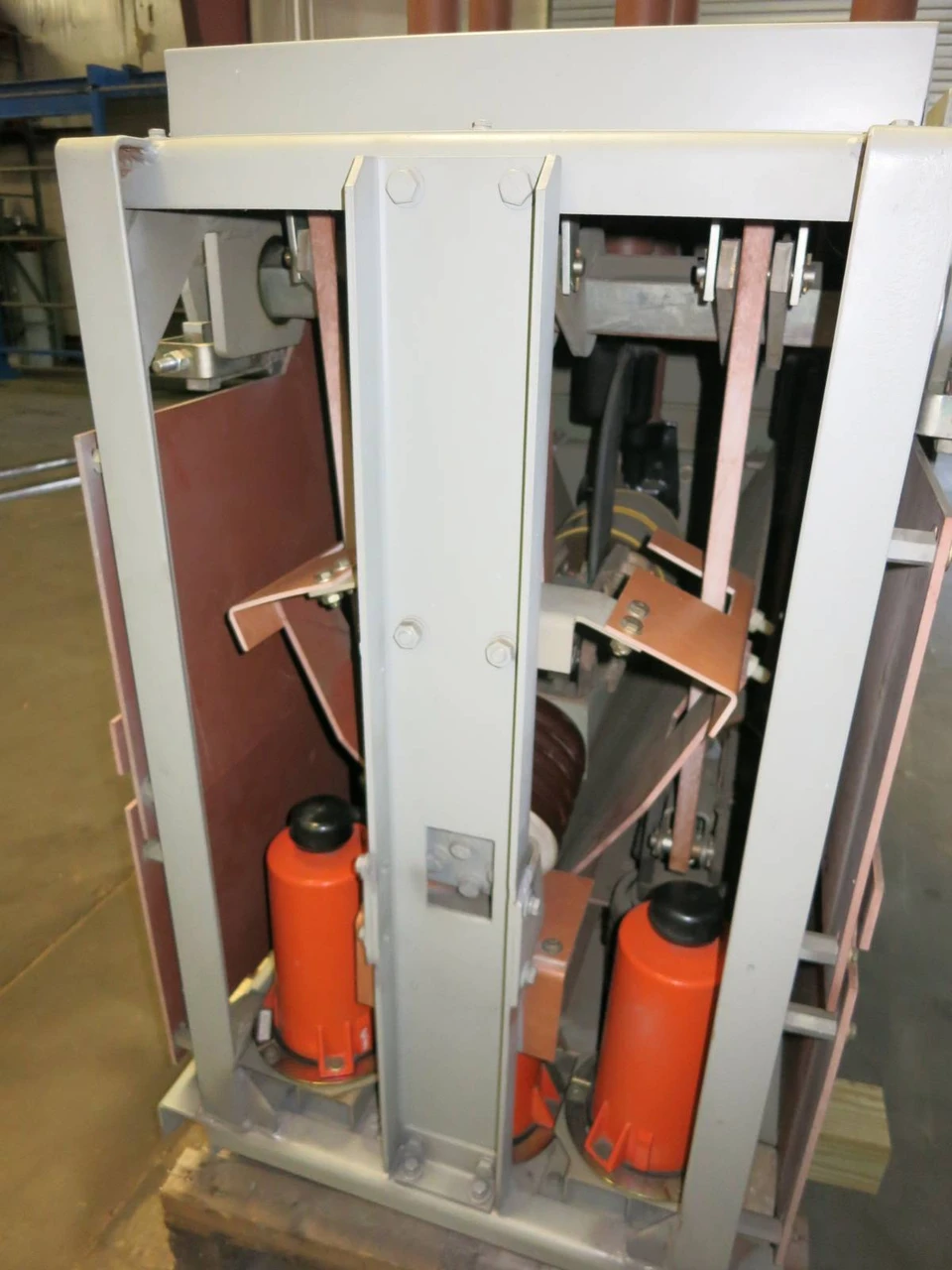

Converted to Vacuum Interrupters with Modified ML-13C Mechanism
Rated Max. Voltage: 15kV - Rated Amp: 1200 - Hz: 60 - Impulse Withstand: 95kV - Int Time: 5 Cy
Rated Short Circuit Amps: 28kA - Rated Voltage Range Factor: 1.3 - Close & Latch Capability Amp: 58kA
Instruction Book: GEK 89752: 0288A3982 - Parts Bulletin: GEK 89752
- Original Nameplate -

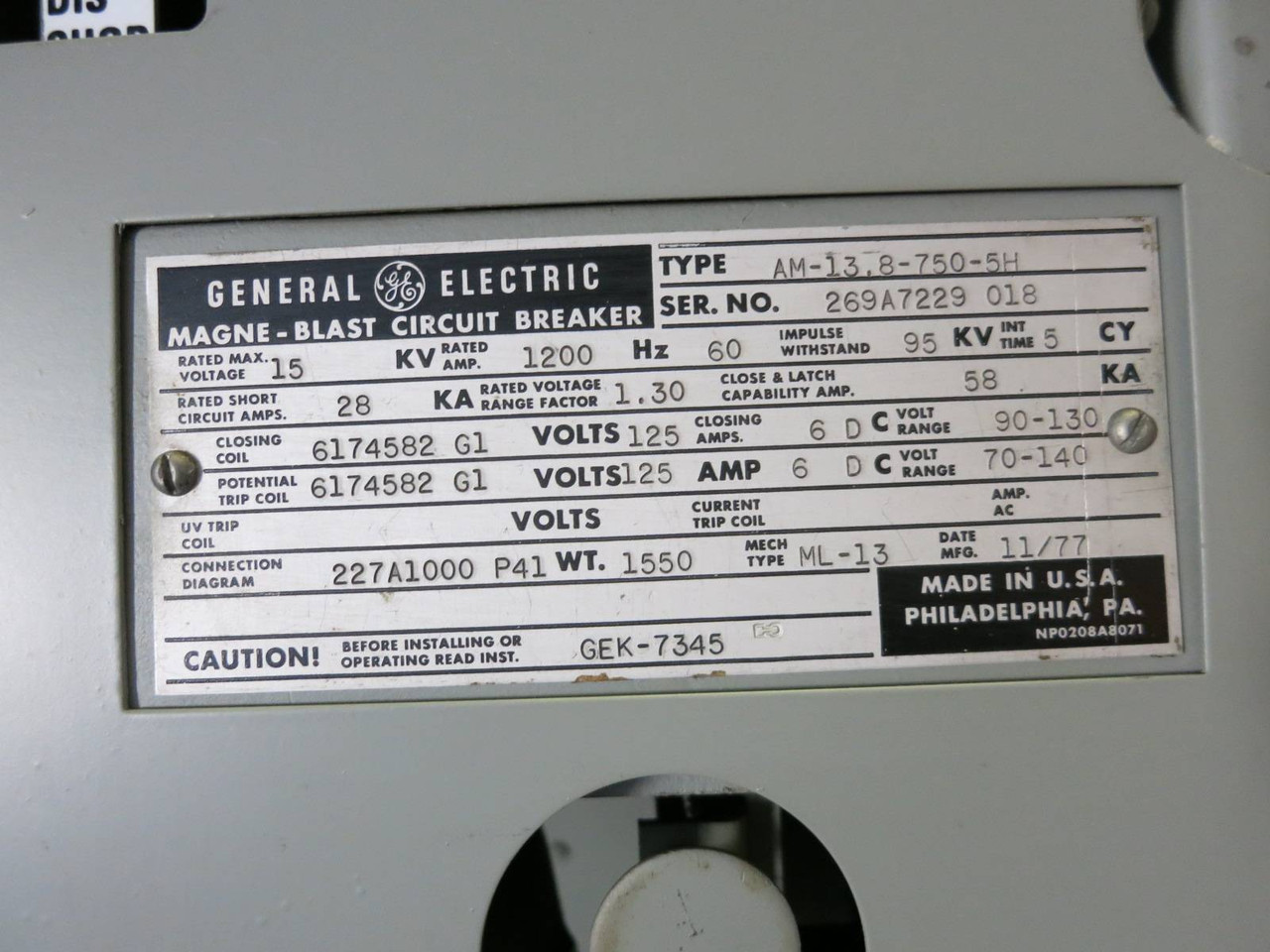

General Electric Magne-Blast Circuit Breaker
Type: AM-13.8-750-5H - Ser No: 269A7229 018 - Rated Max Voltage: 15 kV
Rated Amp: 1200 - Hz: 60 - Impulse Withstand: 95 kV - Int Time: 5 Cy
Closing Coil: 6174582 G1 - Volts: 125 - Closing Amps: 6 DC - Volt Range: 90-130
Potential Trip Coil: 6174582 G1 - Volts: 125 - Amp: 6 DC - Volt Range: 70-140
Connection Diagram: 227A1000 P41 - WT: 1550 - Mech Type: ML-13 - Date MFG: 11/77
CAUTION! Before Installing or Operating Read Inst: GEK-7345
