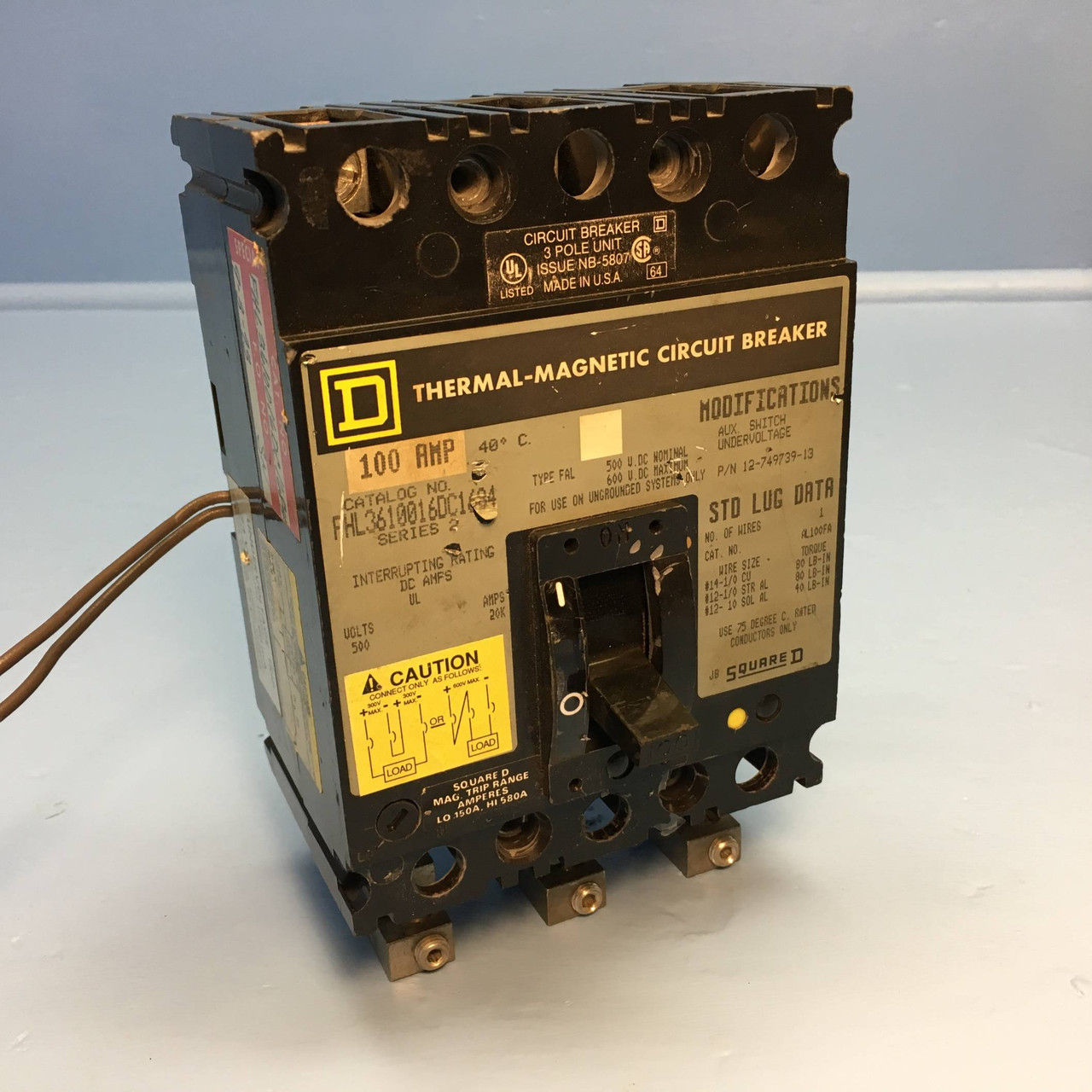

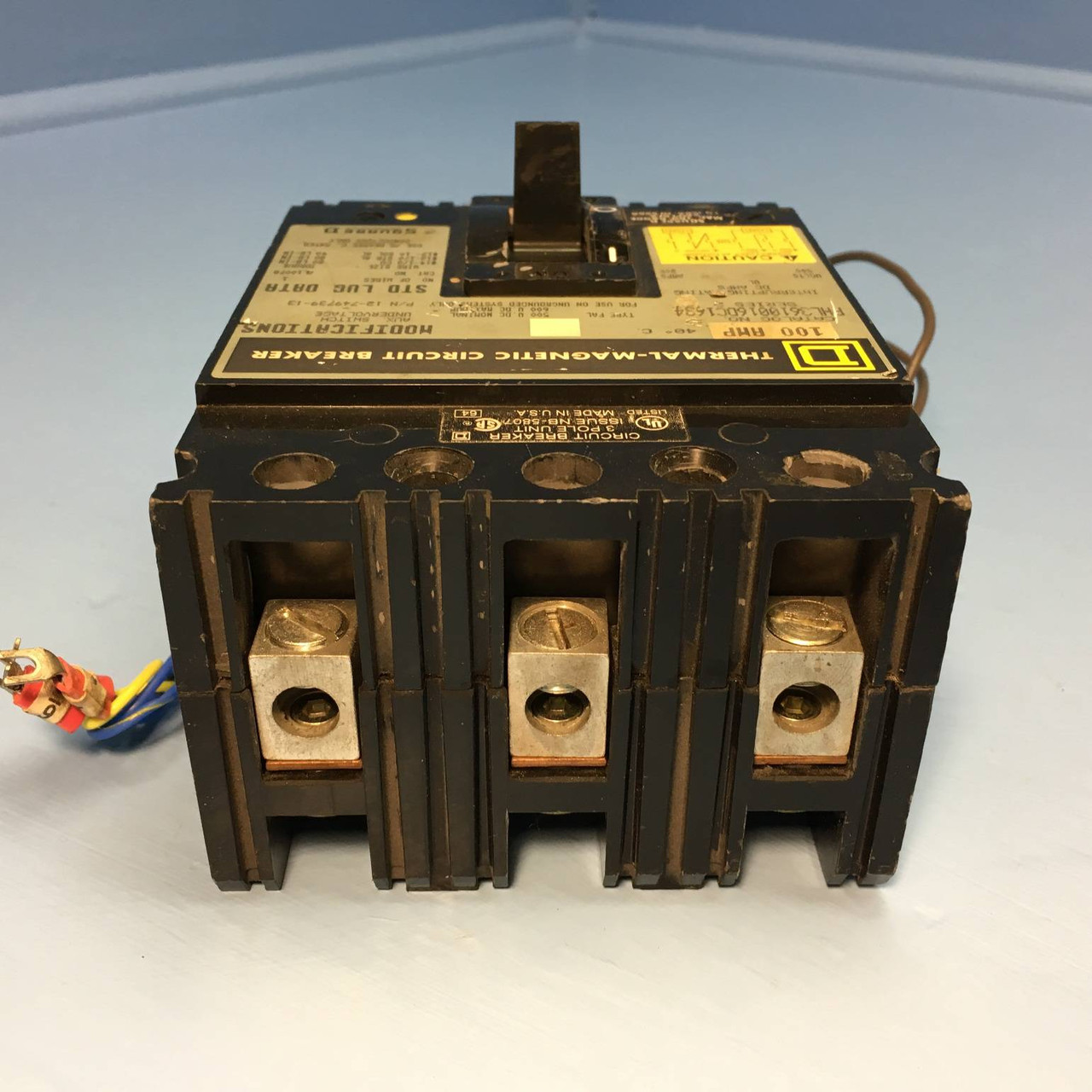

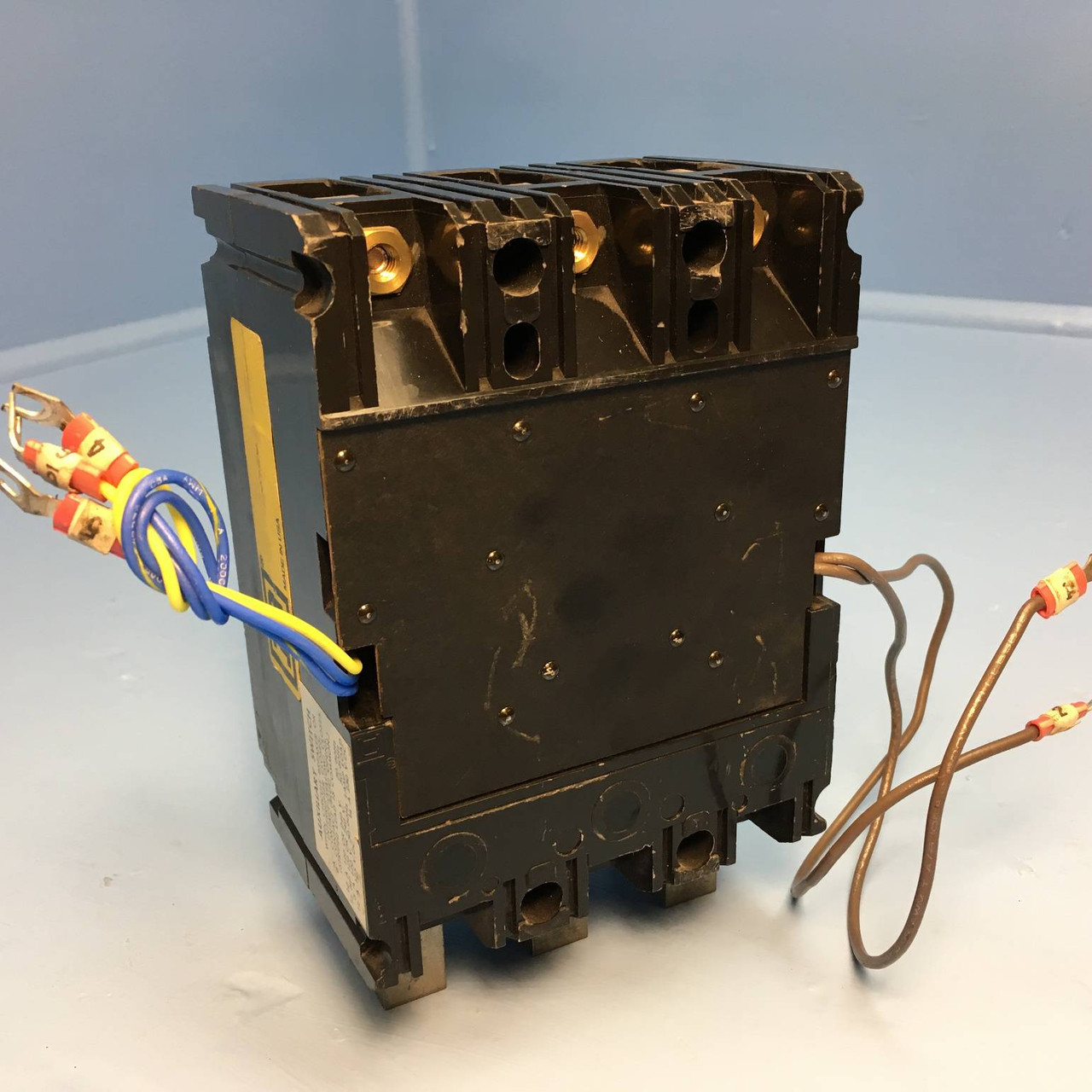

Square D FHL3610016DC1684 100A DC Circuit Breaker w/ Aux & UVR 500V 3P 100 Amp (EM2120-1)
SKU:
EM2120
Square D
MPN: FHL3610016DC1684
USED
Thermal-Magnetic DC Circuit Breaker
100 Amps
Type FAL | Series 2
Auxiliary Switch | Undervoltage Trip
P/N 12-749739-13

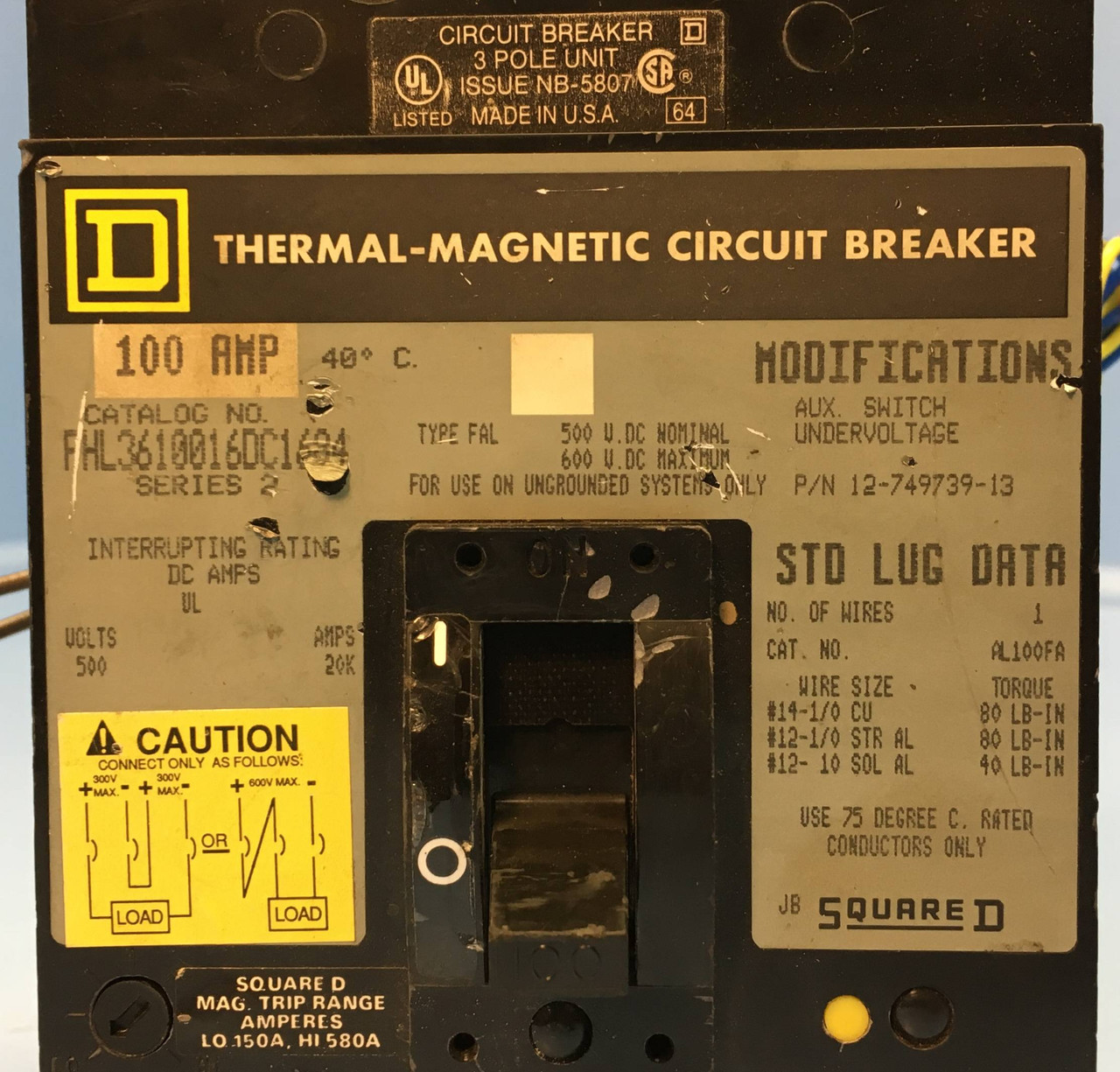

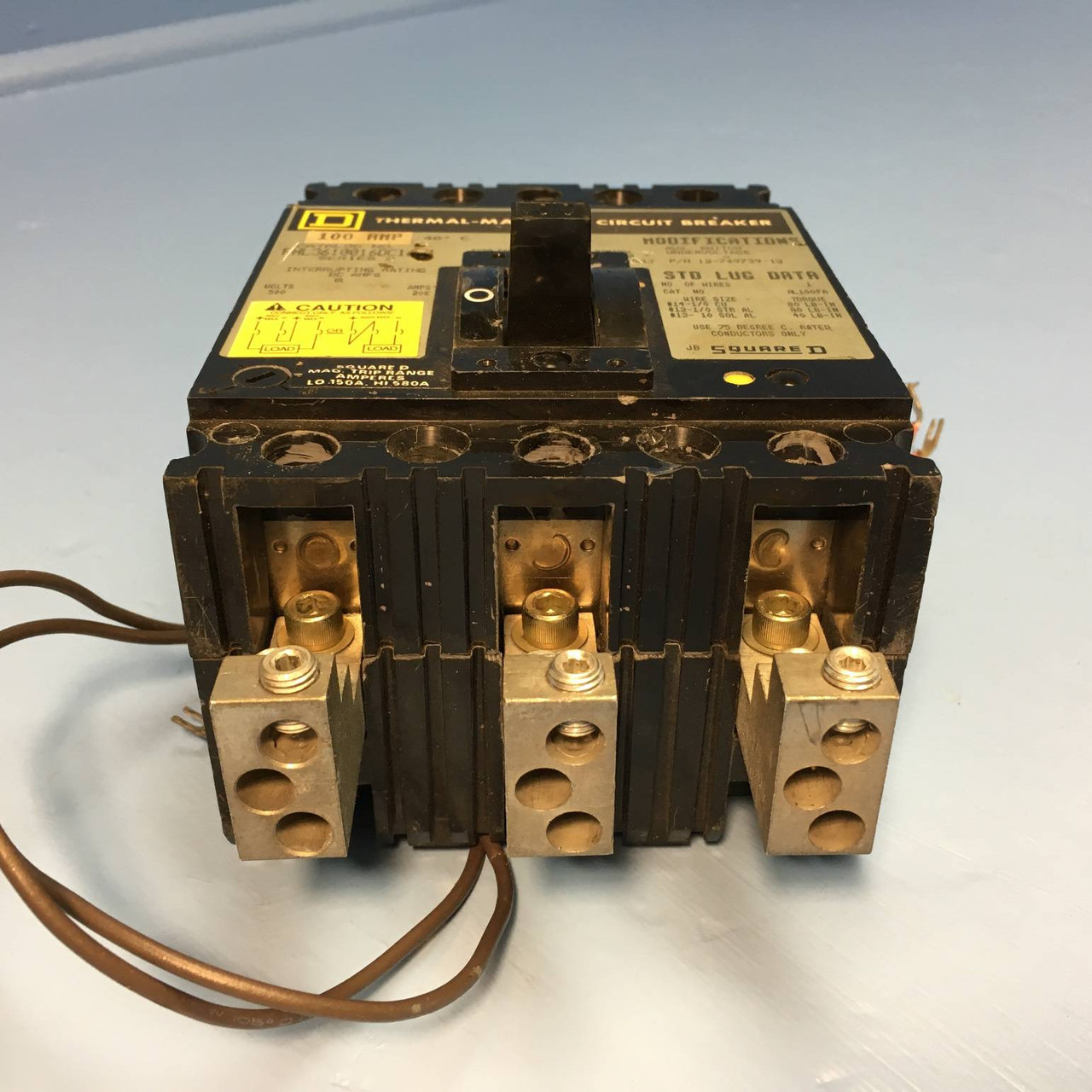

Label is a little ripped in places (see pictures)Includes sets of extended bottom/load-side & top/line-side lugs
3 Pole
500 VDC Nominal
600 VDC Maximum
Interrupting Rating DC:
20,000 Amps @ 500 Volts DC
Magnetic Trip Range:
150-580 Amperes (Lo to Hi)

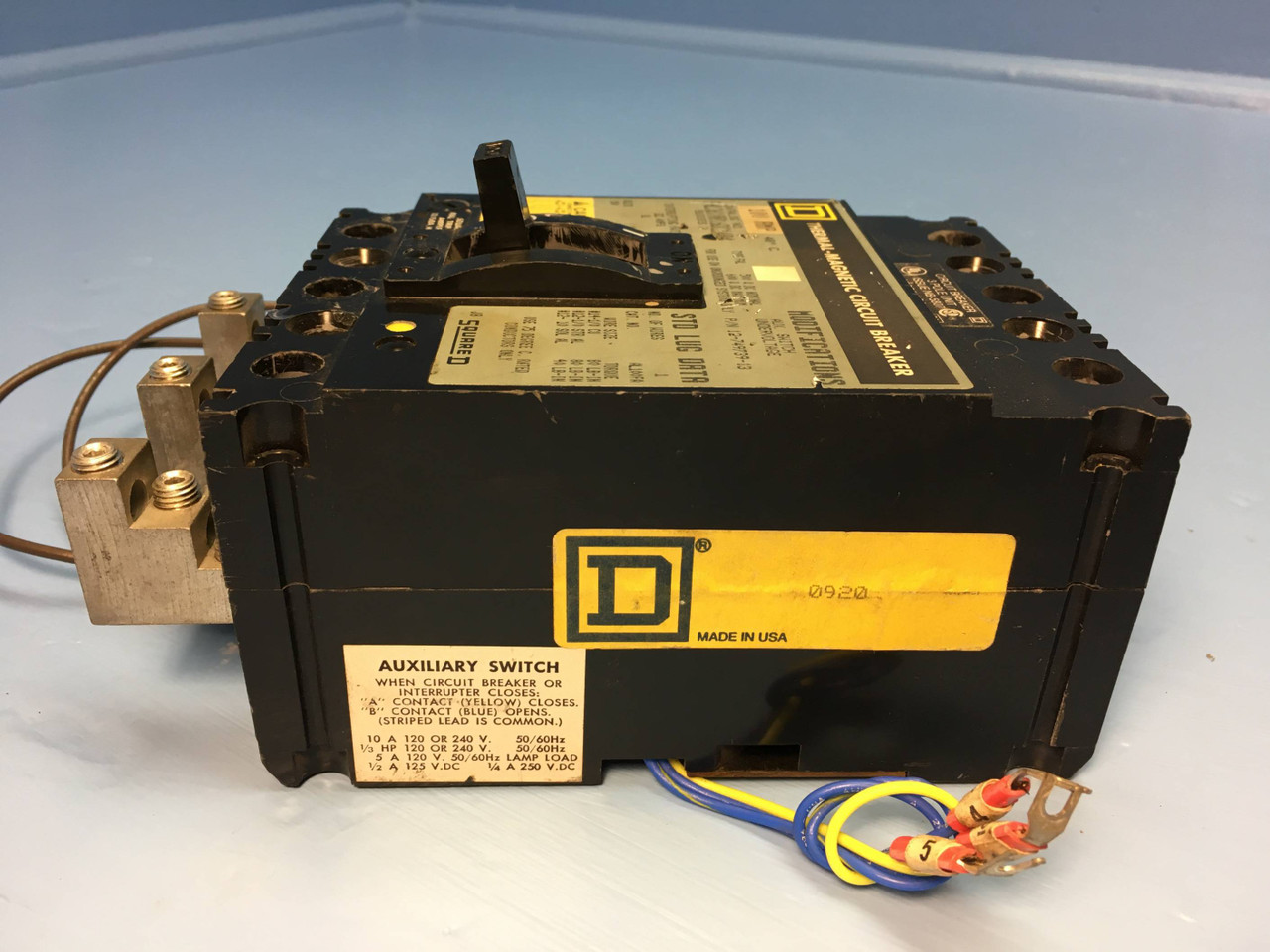

Aux. Switch:
10 Amps @ 120/240 Volts AC @ 50/60 Hz @ 1/3 HP
5 Amps @ 120 Volts AC @ 50/60 Hz
1/2 Amps @ 125 Volts DC
1/4 Amps @ 250 Volts DC

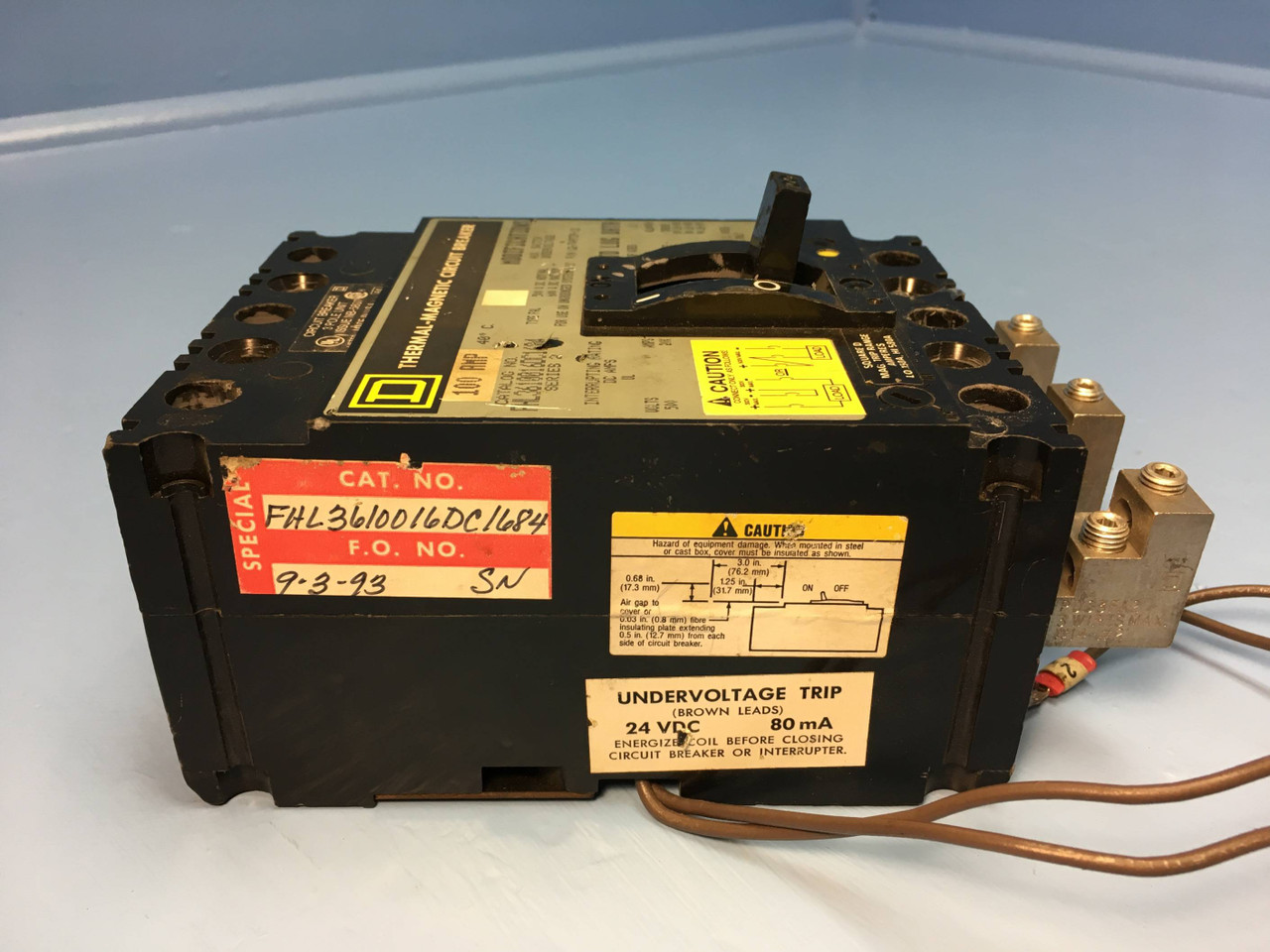

Undervoltage Trip:
24 Volts DC @ 80 mA
Breaker Weight: 4.7 lbs.
Breaker Dimensions (D x W x H): 3" x 4.5" x 6"
(add 1" to depth measurement for handle)
(add 1" to height measurement for extended lugs)
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
