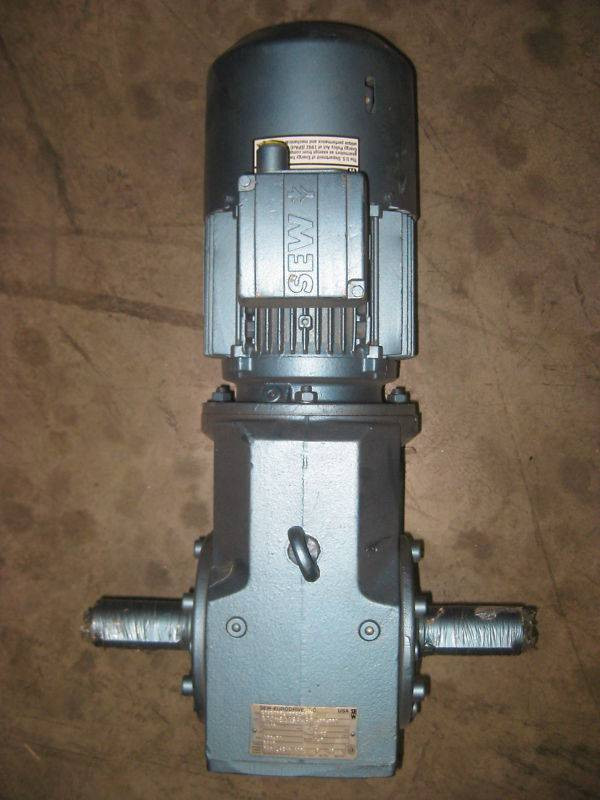

Sew Eurodrive K76DT90 2HP Ratio:108.51 Gear Reducer NEW (EBI3631-1)
SKU:
EBI3631
Sew Eurodrive
MPN: K76DT90L4BNG2HFIS
NEW
Gear Reducer with 2 HP EPAct Exempt Motor
Type : K76DT90L4BNG2HFIS
Ratio : 108.51 3 Phase 1410 RPM 460 VAC
NEW
SEW-Eurodrive, Inc. Gear Reducer
Type : K76DT90L4BNG2HFIS
S/N : 870421159.98.98.001
In : 1410 RPM
Out : 13 RPM
Torque : 9405 lb-in.
Ratio : 108.51
Service Factor : 1.0
Mounting Position B3AB
Lubrication : Mobilgear 630

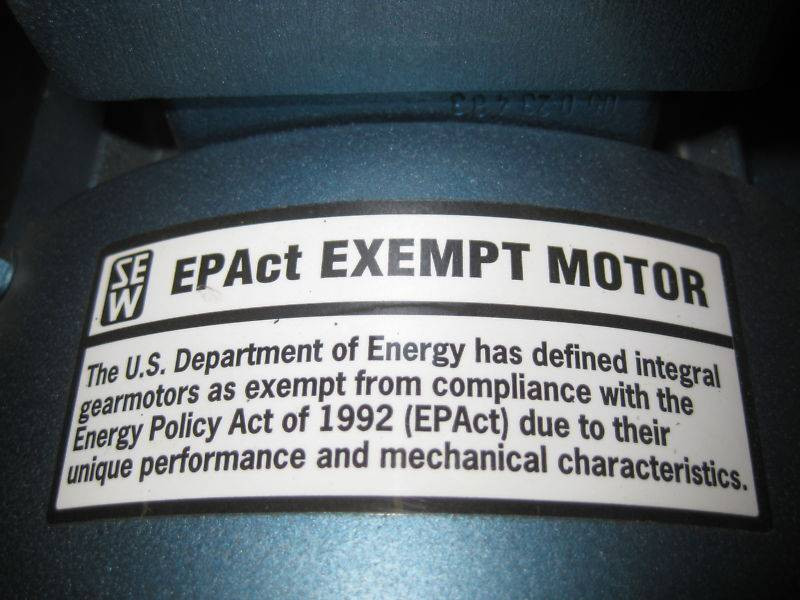

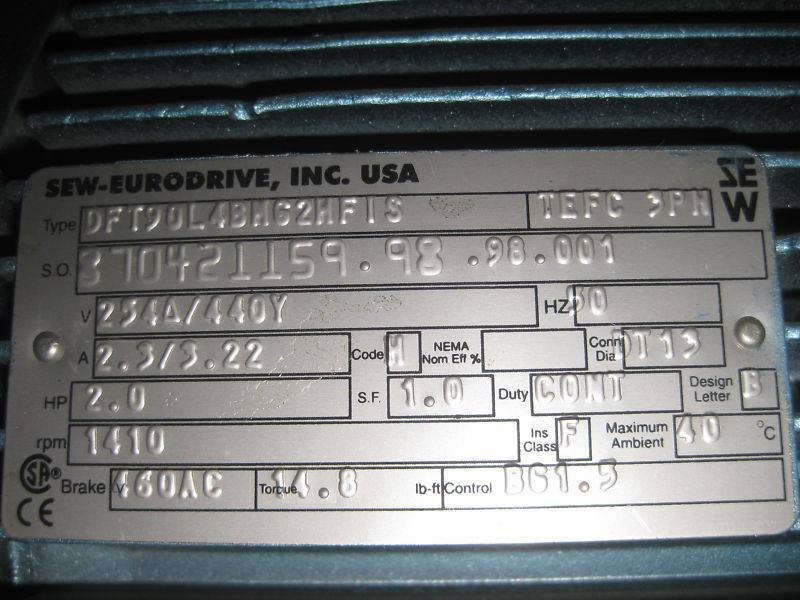

SEW-Eurodrive, Inc. EPAct Exempt Motor 2 HP
Type : DFT90L4BMG2HFIS TEFC 3 PH
Ser. No. 870421159.98.98.001
V : 254 ? / 440 Y Hz : 60
A : 2.3 / 3.22
HP : 2.0
S.F. 1.0
RPM : 1410
Brake : 460 VAC
Torque : 14.8 lb. ft.
Control : BG1.5
Approximate Dimensions

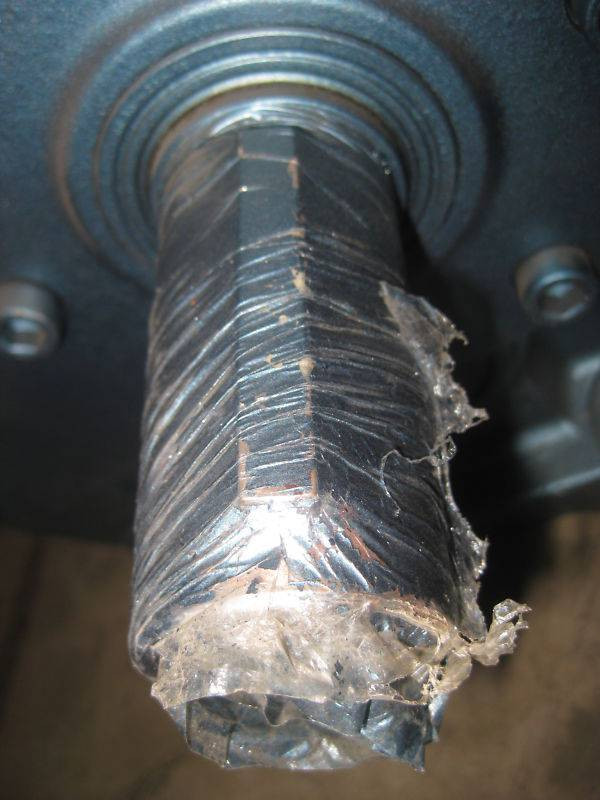

Shaft Diameter : 1 3/4"
Shaft Length : 3 3/4"
Center of shaft to base of motor : 7 3/8"
Footprint : 6" x 6 1/2"
Overall dimensions : 24" x 16" x 14"
Approximate Shipping Weight : 225 lbs.
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
Sew Eurodrive
MPN: K76DT90L4BNG2HFIS
NEW
Gear Reducer with 2 HP EPAct Exempt Motor
Type : K76DT90L4BNG2HFIS
Ratio : 108.51 3 Phase 1410 RPM 460 VAC
NEW
SEW-Eurodrive, Inc. Gear Reducer
Type : K76DT90L4BNG2HFIS
S/N : 870421159.98.98.001
In : 1410 RPM
Out : 13 RPM
Torque : 9405 lb-in.
Ratio : 108.51
Service Factor : 1.0
Mounting Position B3AB
Lubrication : Mobilgear 630
SEW-Eurodrive, Inc. EPAct Exempt Motor 2 HP
Type : DFT90L4BMG2HFIS TEFC 3 PH
Ser. No. 870421159.98.98.001
V : 254 ? / 440 Y Hz : 60
A : 2.3 / 3.22
HP : 2.0
S.F. 1.0
RPM : 1410
Brake : 460 VAC
Torque : 14.8 lb. ft.
Control : BG1.5
Approximate Dimensions
Shaft Diameter : 1 3/4"
Shaft Length : 3 3/4"
Center of shaft to base of motor : 7 3/8"
Footprint : 6" x 6 1/2"
Overall dimensions : 24" x 16" x 14"
Approximate Shipping Weight : 225 lbs.
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
