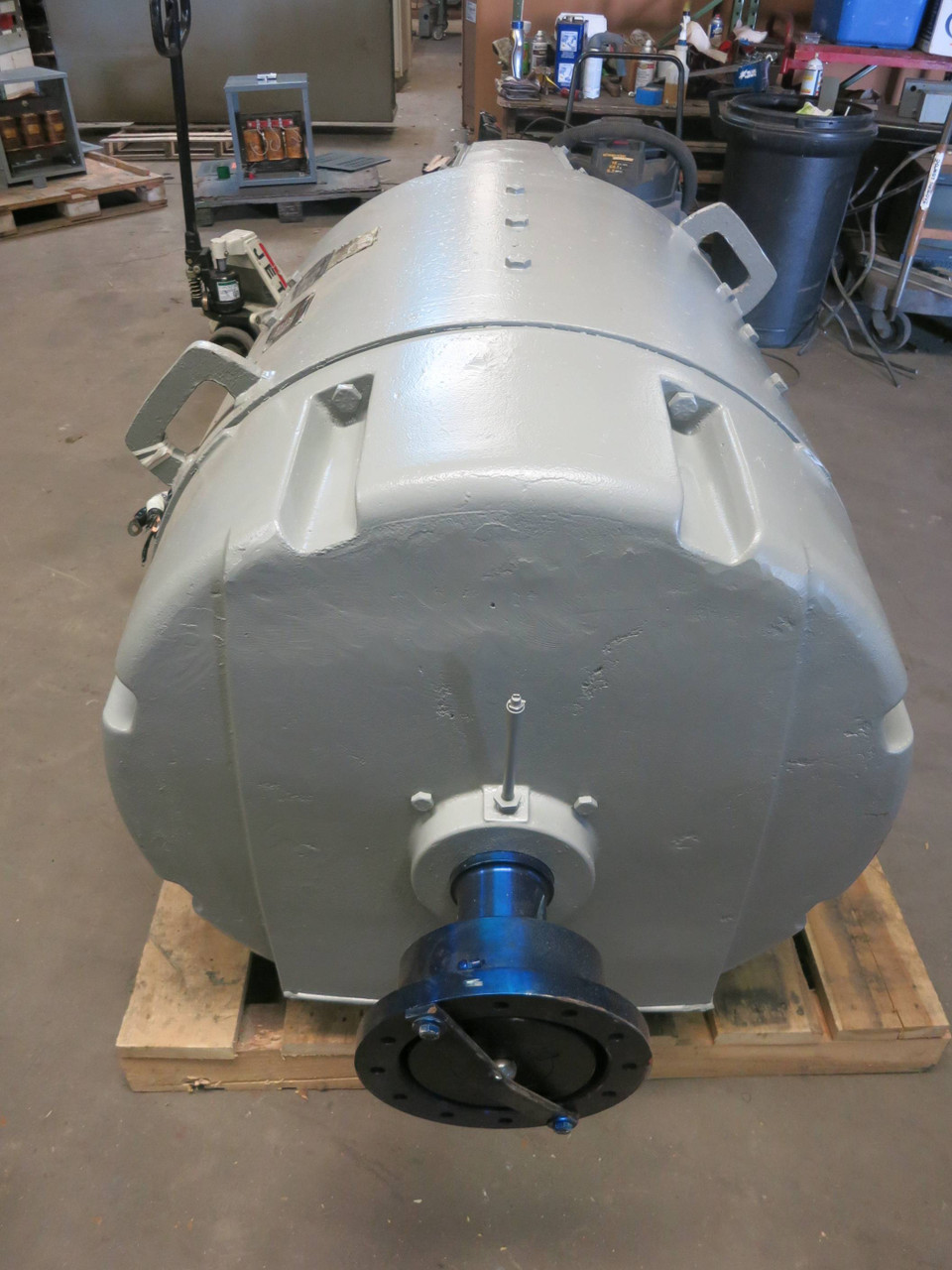

REBUILT Electro-Flyte CD685AS 200 HP 500 V 850/1700 RPM Insul B SSW DC Motor GE (PM2810-1)

Electro-Flyte $15,503.60
SKU: PM2810

Electro-Flyte
General Electric / GE

MPN: 5CD685E232CG
REFURBISHED
200HP Paper Mill Duty D.C. Motor
Frame Number: CD 685 AS

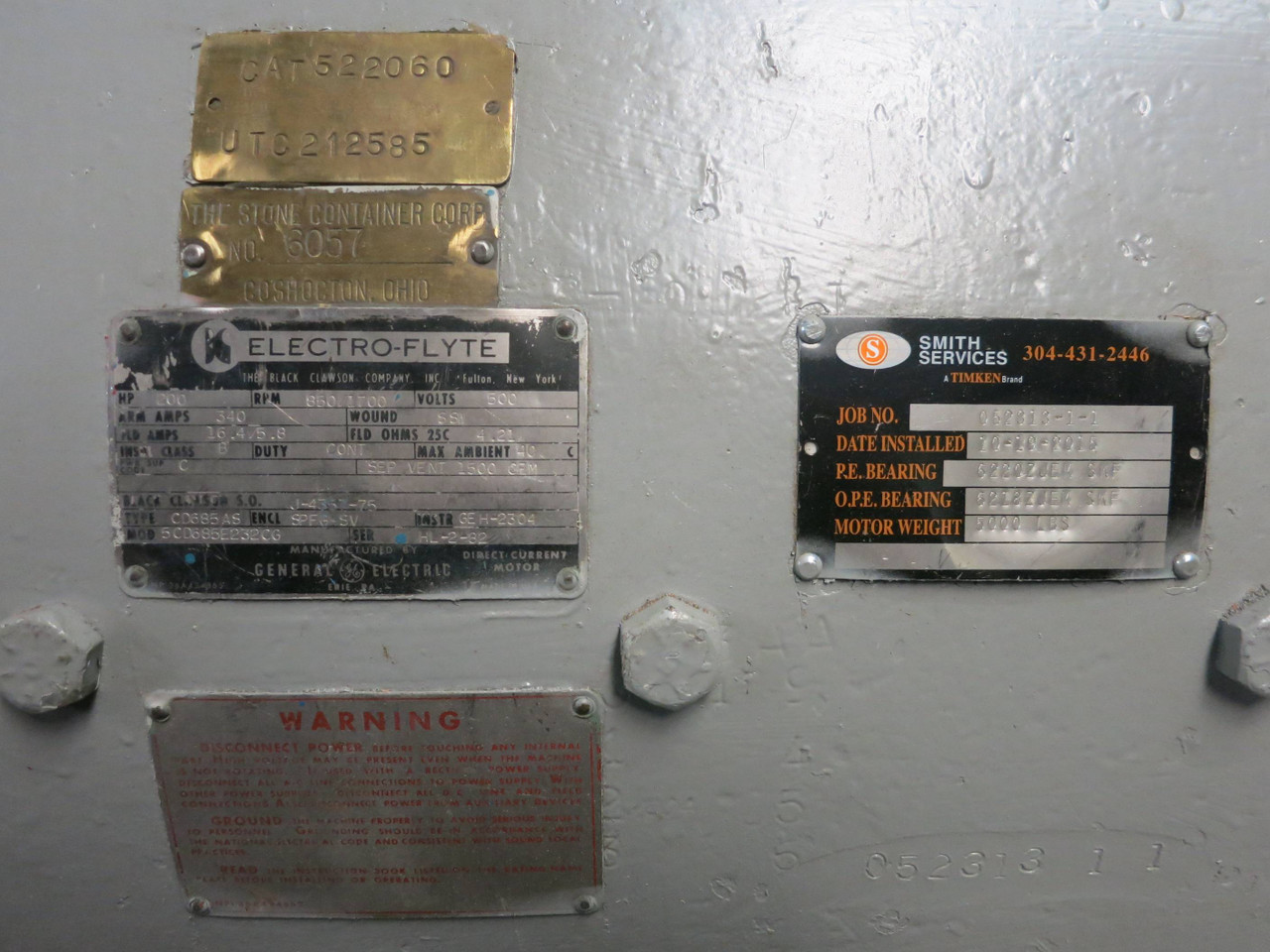

This DC Motor was never put back into service after being fully rebuilt by Smith Services in 2015.

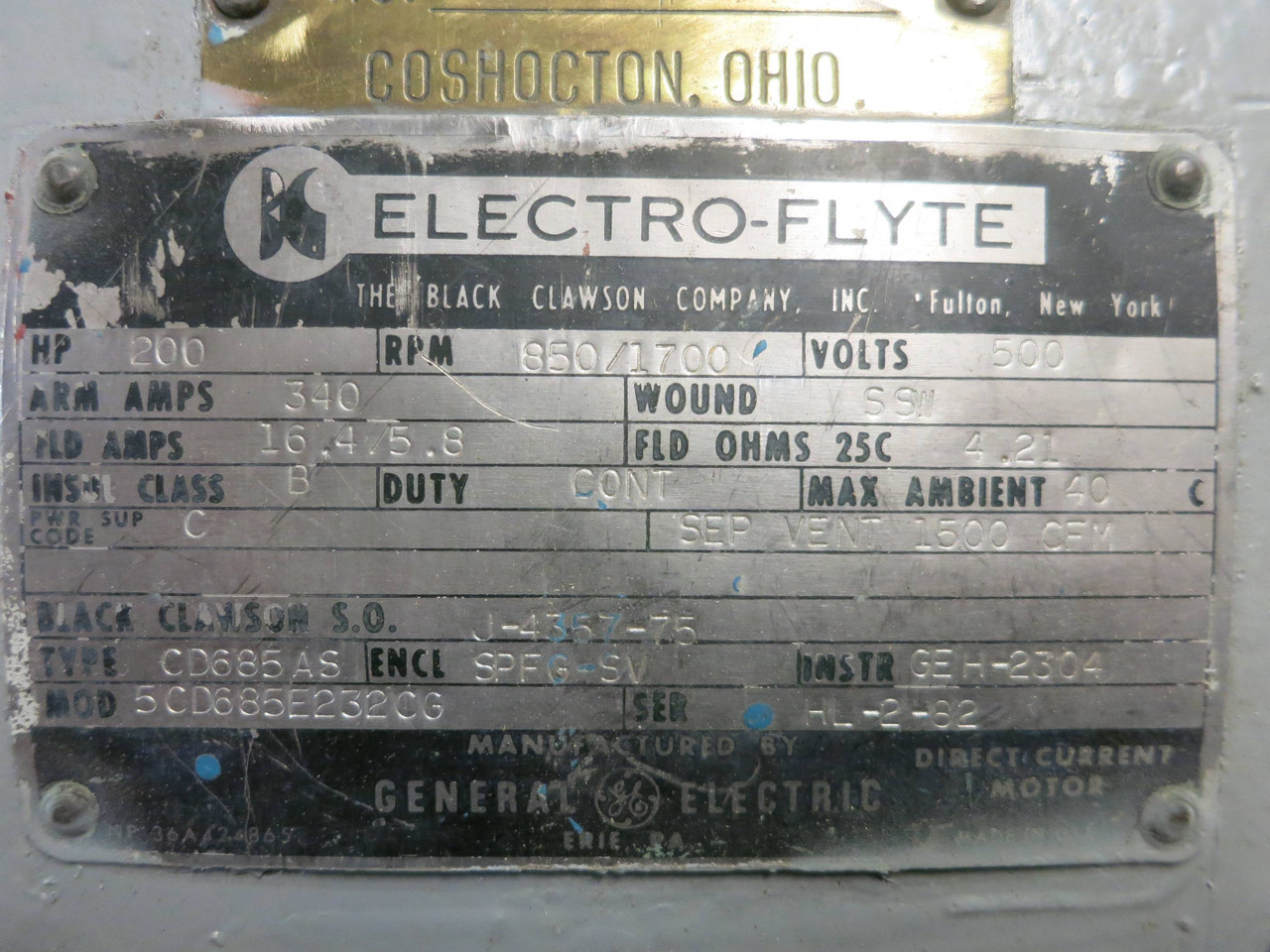

Electro-Flyte - Manufactured by General Electric - Direct Current Motor
HP: 200 - RPM: 850 / 1700 - Volts: 500
Arm Amps: 340 - Wound: SSW
Fld Amps: 16.4 / 5.8 - Fld Ohms 25C: 4.21
Insul Class: B - Duty: Cont - Max Ambient: 40 Deg C
Pwr Sup Code: C - SEP Vent 1500 CFM at .60 In of H2O
Type: CD 685AS - Encl: SPFG-SV - Instr: GEH-2304
Model: 5CD685E232CG - Serial: HL-2-82

Footprint Bolt Hole Dimensions:
25" Front to Back | 27" Side to Side

Approximate Shaft Dimensions:
Length: ~7" | Diameter: ~3.25"
Buyers' Guide: gepowerconversion.com/sites/gepc/files/product/DC_Buyers_Guide_Complete_Guide2012.pdf

Condition Report:
dropbox.com/s/vnoj9c4b6ips861/R65550%20Condition%20Report.pdf?dl=0
30 day warranty on all purchases.

Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com



For more info on the meaning on motor frame size numbers,
please see the following link:
Link

For a conversion chart of 3PH amperage to horsepower,
please see the following chart:
Link

Read more
Current stock: 1

Electro-Flyte
General Electric / GE

MPN: 5CD685E232CG
REFURBISHED
200HP Paper Mill Duty D.C. Motor
Frame Number: CD 685 AS

This DC Motor was never put back into service after being fully rebuilt by Smith Services in 2015.

Electro-Flyte - Manufactured by General Electric - Direct Current Motor
HP: 200 - RPM: 850 / 1700 - Volts: 500
Arm Amps: 340 - Wound: SSW
Fld Amps: 16.4 / 5.8 - Fld Ohms 25C: 4.21
Insul Class: B - Duty: Cont - Max Ambient: 40 Deg C
Pwr Sup Code: C - SEP Vent 1500 CFM at .60 In of H2O
Type: CD 685AS - Encl: SPFG-SV - Instr: GEH-2304
Model: 5CD685E232CG - Serial: HL-2-82

Footprint Bolt Hole Dimensions:
25" Front to Back | 27" Side to Side

Approximate Shaft Dimensions:
Length: ~7" | Diameter: ~3.25"
Buyers' Guide: gepowerconversion.com/sites/gepc/files/product/DC_Buyers_Guide_Complete_Guide2012.pdf

Condition Report:
dropbox.com/s/vnoj9c4b6ips861/R65550%20Condition%20Report.pdf?dl=0
30 day warranty on all purchases.

Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com



For more info on the meaning on motor frame size numbers,
please see the following link:
Link

For a conversion chart of 3PH amperage to horsepower,
please see the following chart:
Link

SKU: PM2810
UPC: 086156124203
Condition: Refurbished
Availability: Ships within 0-1 business days of full payment. Expedited shipping available.
Width: 45
Height: 39
Depth: 62
Warranty: 30 day warranty.

If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.

SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.

Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
MPN: 5CD685E232CG
SKU: PM2810
Horsepower: 200 HP
Listed: 12/21/2017
Approx Shipping Dims (LxWxH): 62.000" x 45.000" x 39.000"
Approx Shipping Weight: 5000.0000
Location: B 57A
UPC: 086156124203
eBay Listing: 372172592309
