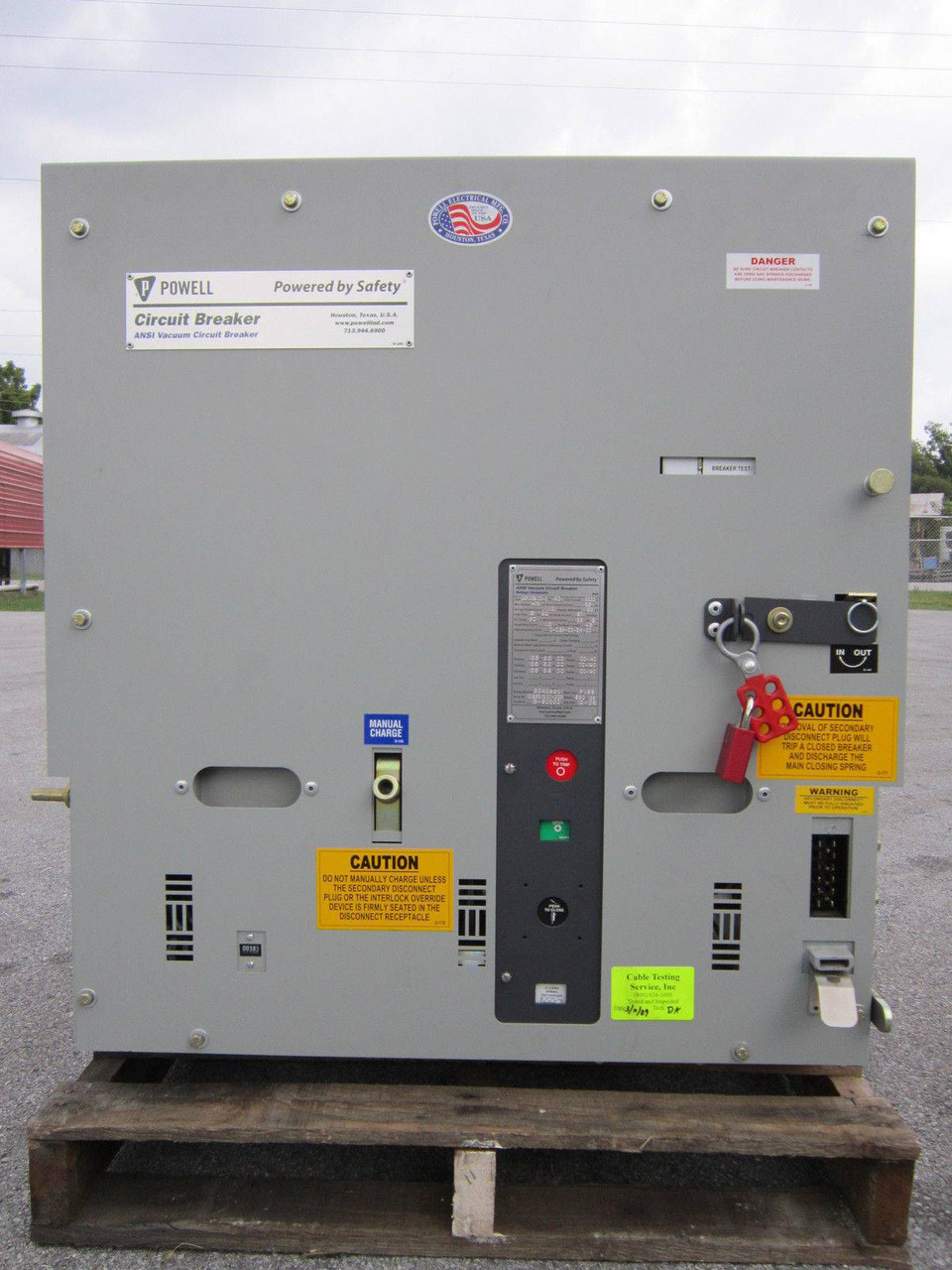

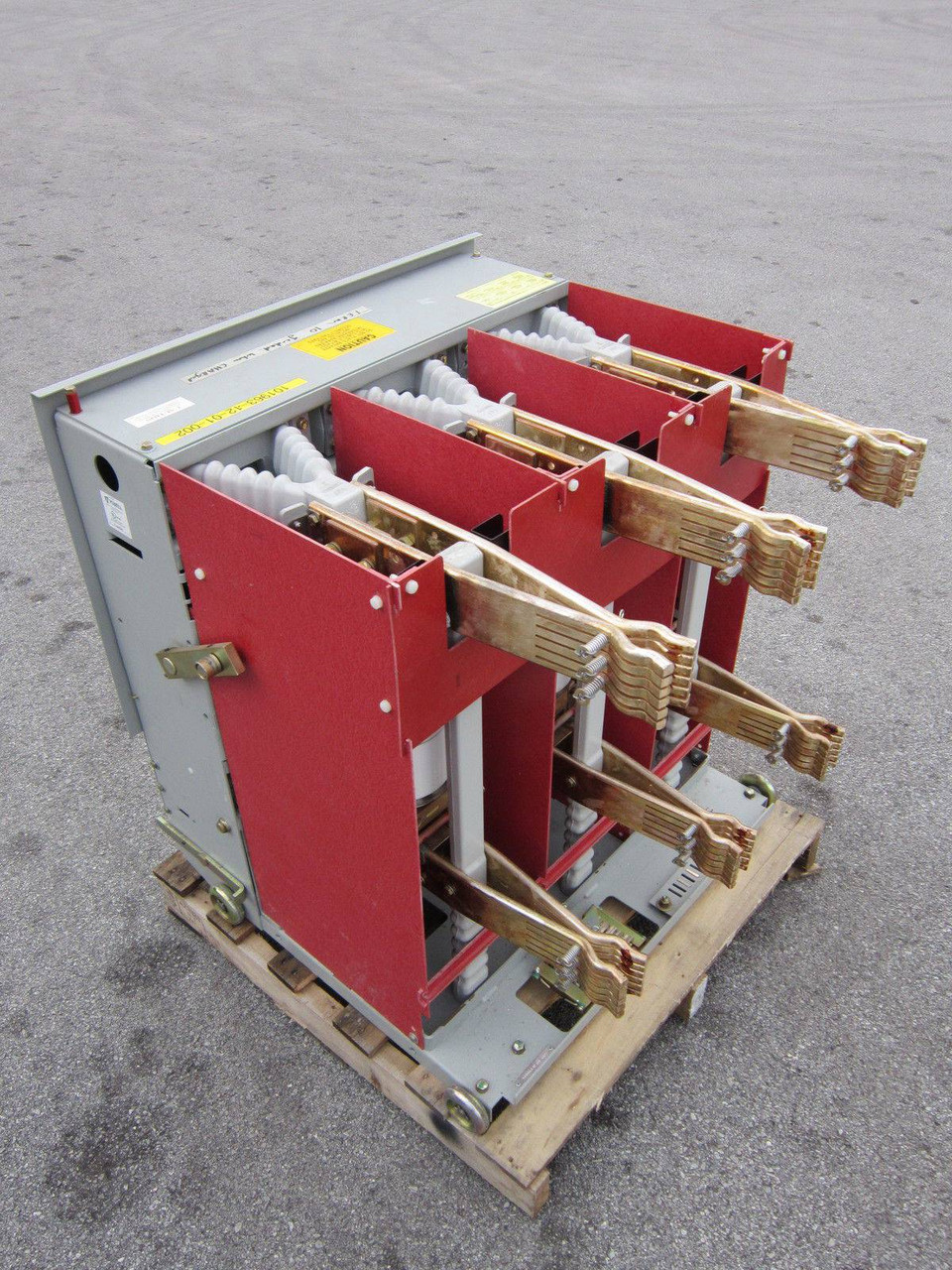

Powell Electrical 3000A 5kV 05PV36STDX-2 Powl-Vac Vacuum Circuit Breaker PowlVac (EBI3285-2)
SKU:
EBI3285
Powell
MPN: 05PV36STDX-2
USED

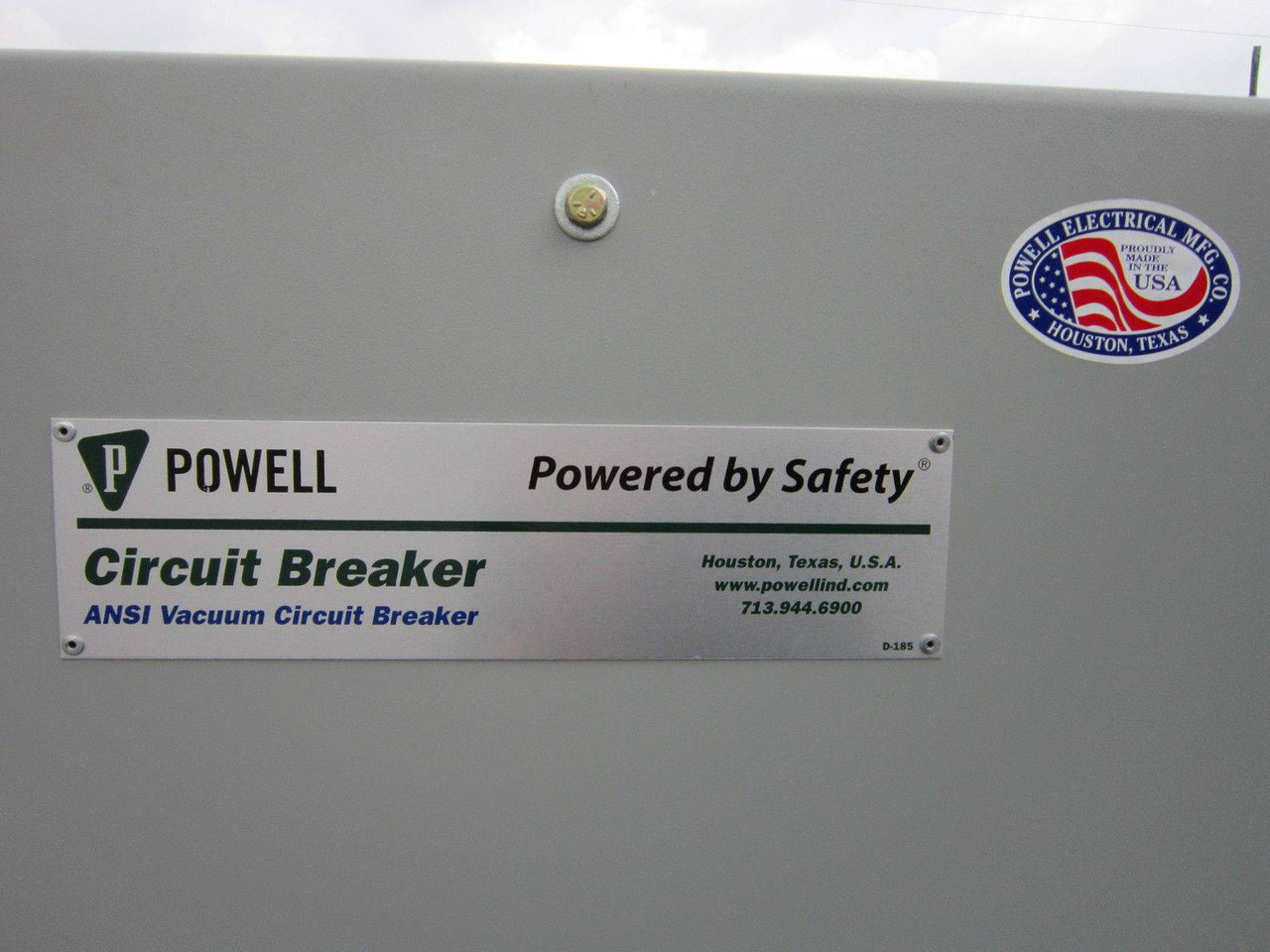

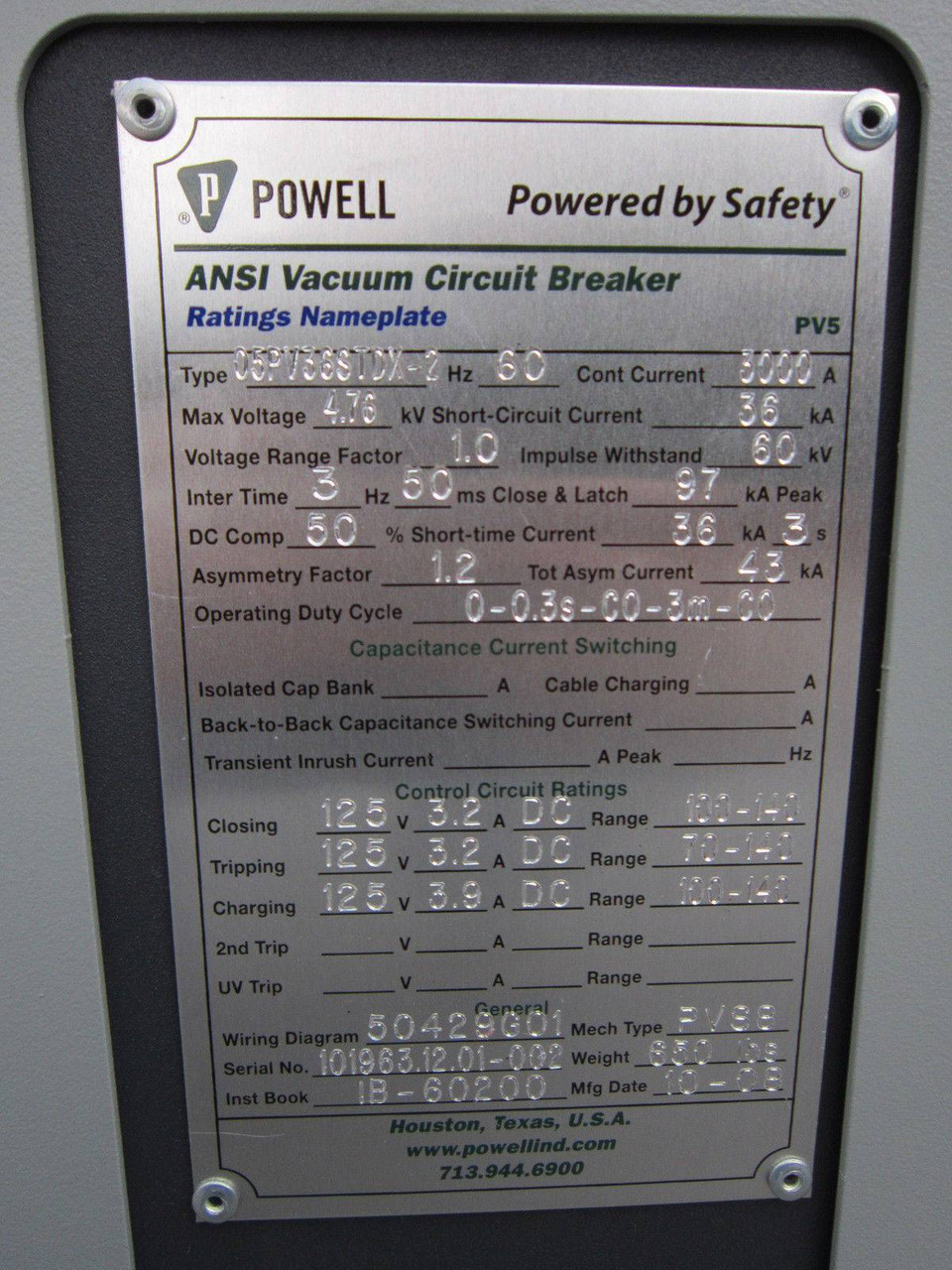

ANSI PowlVac Vacuum Circuit Breaker
3000A 5 KV
PV5
Type 05PV36STDX-2
Maximum Voltage : 4.76 kV
Continuous Current : 3000 A
Sym Short Circuit @ Max kV : 36 kA
Voltage Range Factor : 1.0
Impulse Withstand : 60 kV
Rated Interrupting Time : 3 Hz 50 ms
Close & Latch 97 kA Peak
DC Comp 50% Short-time Current 36 KA 3s
Asymmetry Factor 1.2
Tot Asym Current 43 kA
Operating Duty Cycle : 0-0.3s-C0-3m-C0
Control Voltage Circuit Range
Charging : 125 VDC
Closing : 125 VDC
Opening : 125 VDC
Approximate Dimensions : 32.5" deep x 31" wide x 34" high
Powell site : powlvac.com/products_page3.asp?MenuCategory=2&MenuPosition=1&MenuID=2
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
Powell
MPN: 05PV36STDX-2
USED
ANSI PowlVac Vacuum Circuit Breaker
3000A 5 KV
PV5
Type 05PV36STDX-2
Maximum Voltage : 4.76 kV
Continuous Current : 3000 A
Sym Short Circuit @ Max kV : 36 kA
Voltage Range Factor : 1.0
Impulse Withstand : 60 kV
Rated Interrupting Time : 3 Hz 50 ms
Close & Latch 97 kA Peak
DC Comp 50% Short-time Current 36 KA 3s
Asymmetry Factor 1.2
Tot Asym Current 43 kA
Operating Duty Cycle : 0-0.3s-C0-3m-C0
Control Voltage Circuit Range
Charging : 125 VDC
Closing : 125 VDC
Opening : 125 VDC
Approximate Dimensions : 32.5" deep x 31" wide x 34" high
Powell site : powlvac.com/products_page3.asp?MenuCategory=2&MenuPosition=1&MenuID=2
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
SKU:
EBI3285
UPC:
782451014408
Condition:
Used
Availability:
Ships within 0-1 business days of full payment. Expedited shipping available.
Width:
40
Height:
45
Depth:
48
Warranty:
30 day warranty.
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
If arranging your own shipping please provide ALL paperwork already filled out 1 bus day ahead of pickup.
SHIPPING OUTSIDE THE US
Buyers are responsible for duties, customs and taxes.
We recommend shipping UPS. Shipping via USPS is at your own risk: if your package is lost/damaged, you will not receive a refund.
Full policies and details please see our FAQ: RiverCityIndustrial.com/FAQ
MPN:
05PV36STDX-2
SKU:
EBI3285
Voltage:
5 kV
Freight Shipping Cost:
324
Listed:
9/19/2012
Approx Shipping Dims (LxWxH):
48.000" x 40.000" x 45.000"
Approx Shipping Weight:
650.0000
Location:
B 45C ; B 23B - SR/Ali
eBay Listing:
273536513964
UPC:
782451014408
Amperage:
3000 Amp
Amperage (rated amps):
3000 Amp
